LT 1238 G (UT-33021) - Homelite Lawn Tractor 38" Rotary Mower Attachment Deck Parts Diagram

Lawn Tractor

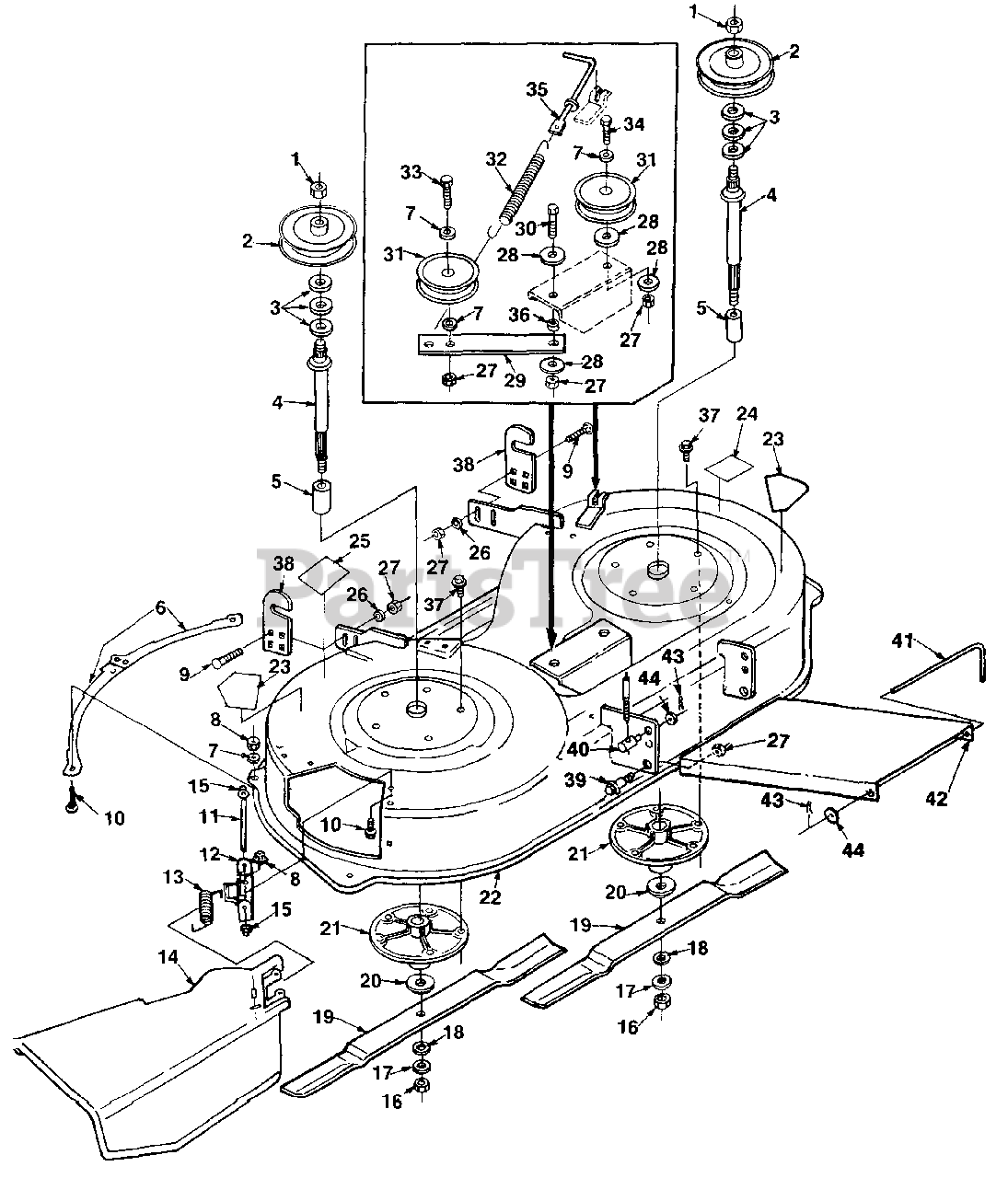

38" Rotary Mower Attachment Deck Parts Diagram

  • Title

1

Homelite JA995045

NUT-Center Lock (9/16-18)

$10.99

$

Usually ships in 3-7 days

0

2

Homelite JA994942

PULLEY- Cutter head

$

$

Currently unavailable

3

Homelite JA455049

WASHER- Flat

$8.49

$

Usually ships in 3-7 days

0

4

Homelite JA994931

SPINDLE- Cutter head

$

$

Currently unavailable

5

Homelite JA994934

SPACER- Spindle

$

$

Currently unavailable

6

Homelite JA990007

PLATE- Air cut off

$

$

Currently unavailable

7

Homelite JA453011

WASHER- Flat (3/8")
(Superseded to PS84010)

$

$

Not available

8

Homelite JA445775

NUT- Flange (5/16-18)
(Superseded to UP06674)

$

$

Not available

9

Homelite JA441676

BOLT- Rd. hd., sq. neck (3/8-16 x 1 1/4")

$12.99

$

Usually ships in 3-7 days

0

10

Homelite JA441679

BOLT- Rd. hd., sq. neck

$

$

Not available

11

Homelite JA994930

ROD- Deflector

$

$

Currently unavailable

12

Homelite JA990006

BRACKET- Chute hinge

$

$

Currently unavailable

13

Homelite JA994932

SPRING- Torsion

$

$

Currently unavailable

14

Homelite JA994939

CHUTE- Deflector Assy.

$

$

Currently unavailable

15

Homelite JA994935

NUT- Pal, push (3/8")

$

$

Currently unavailable

16

Homelite JA995046

NUT- Hex (9/16-18)

$

$

Currently unavailable

17

Homelite JA994928

WASHER- Flat

$

$

Currently unavailable

18

Homelite JA994927

WASHER- Belleville

$

$

Not available

19

Homelite JA994978

BLADE

$

$

Currently unavailable

20

Homelite JA994933

BLADE- Adaptor

$

$

Currently unavailable

21

Homelite JA994941

HOUSING- Spindle

$

$

Currently unavailable

22

Homelite JA994945

DECK ASSEMBLY

Note: Includes items 23-25

$

$

Currently unavailable

23

Homelite JA339460

DECAL- Danger

$

$

Not available

24

Homelite JA339566

DECAL- No step

$

$

Currently unavailable

25

Homelite JA994954

DECAL- Belt installation

$

$

Currently unavailable

26

Homelite JA314916

WASHER- Flat

$

$

Currently unavailable

27

Homelite JA444762

NUT- Hex lock (3/8-16)

$

$

Currently unavailable

28

Homelite JA309457

WASHER- Blade mtg.

$

$

Not available

29

Homelite JA994913

ARM- Idler

$

$

Currently unavailable

30

Homelite JA400266

SCREW- Hex hd., cap (3/8-16 x 1 1/2")

$

$

Currently unavailable

31

Homelite JA990824

PULLEY- Idler

$

$

Currently unavailable

32

Homelite JA994974

SPRING- Extension

$

$

Currently unavailable

33

Homelite JA400268

SCREW- Hex hd., cap (3/8-16 x 1 3/4")
(Superseded to UP07178)

$

$

Not available

34

Homelite JA400270

SCREW- Hex hd., cap (3/8-16 x 2")

$

$

Not available

35

Homelite JA376144

ROD- Spring release

$

$

Currently unavailable

36

Homelite JA352594

SPACER- Idler arm

$

$

Currently unavailable

37

Homelite JA995051

SCREW- Hex washer hd.

$

$

Currently unavailable

38

Homelite JA992514

BRACKET- Rear hanger

$

$

Currently unavailable

39

Homelite JA376094

BOLT- Shoulder

$

$

Not available

40

Homelite JA991759

PIN- Clevis

$162.99

$

Usually ships in 3-7 days

0

41

Homelite JA994915

PIN- Link

$

$

Currently unavailable

42

Homelite JA994972

BRACKET- Link

$

$

Currently unavailable

43

Homelite JA460306

PIN- Hair cotter

$

$

Not available

44

Homelite JA453023

WASHER- Flat
(Superseded to 678013001)

$2.49

$

Usually ships in 3-7 days

0
