LT 1238 G (UT-33021) - Homelite Lawn Tractor Control Panel, Battery And Gas Tank Parts Diagram

Lawn Tractor

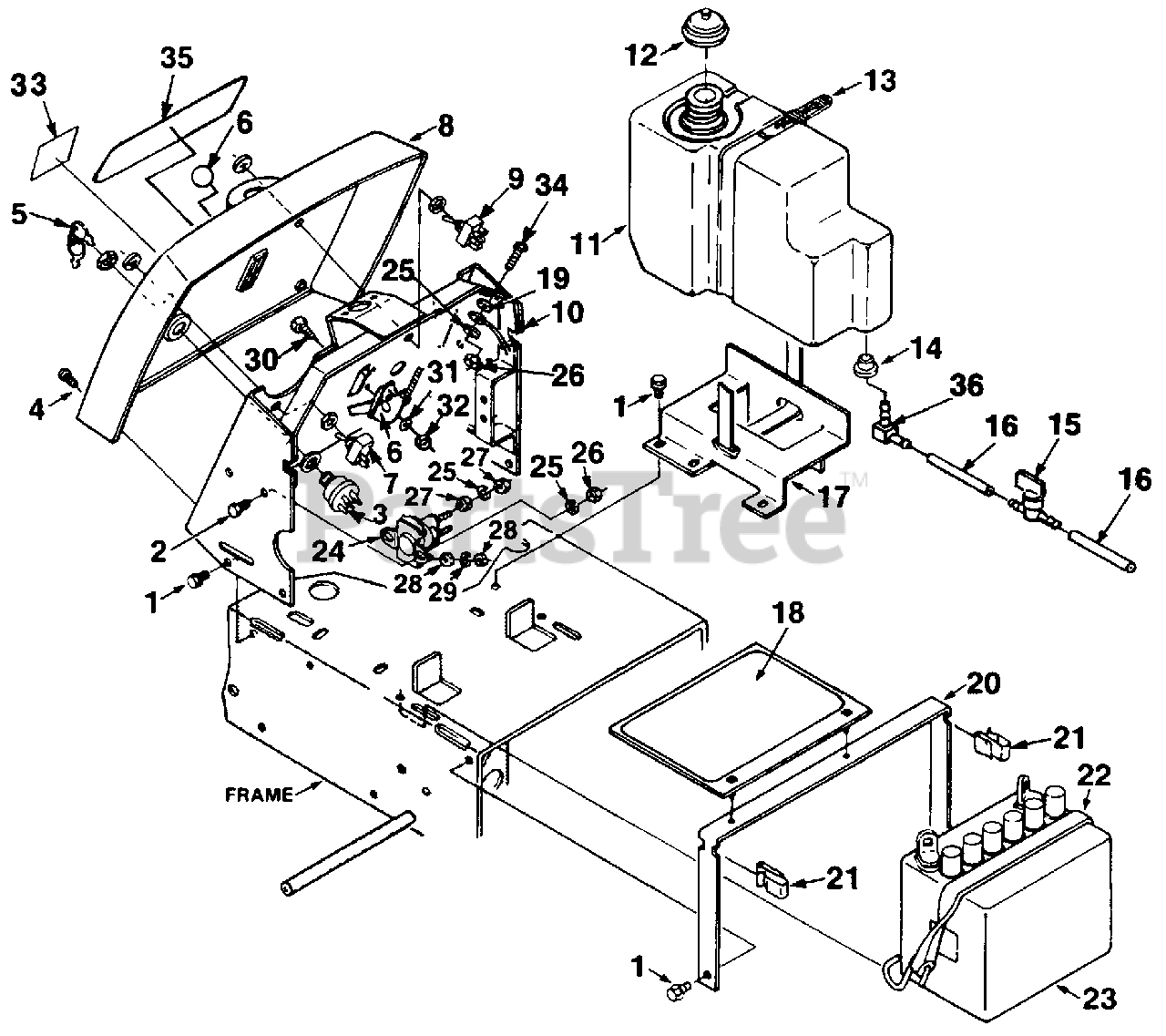

Control Panel, Battery And Gas Tank Parts Diagram

  • Title

1

Homelite JA375978

BOLT- (1/4-14 x .44)

$

$

Not available

2

Homelite JA400104

SCREW- Hex (1/4-20 x 1/2")
(Superseded to UP03379)

$

$

Not available

3

Homelite JA130412

SWITCH- Key

$

$

Currently unavailable

4

Homelite JA409036

SCREW- (#10 x 3/4")

$

$

Currently unavailable

5

Homelite JA343060

KEY

$

$

Not available

6

Homelite JA992241

CONTROL- Throttle

$

$

Currently unavailable

7

Homelite JA158992

SWITCH- Headlight

$

$

Currently unavailable

8

Homelite JA993102

PANEL- Dash

$

$

Currently unavailable

9

Homelite JA990135

SWITCH- PTO
(Superseded to UP06659)

$

$

Not available

10

Homelite JA994344

CONTROL TOWER ASSY.

$

$

Currently unavailable

11

Homelite JA994982

TANK-Gas

$

$

Currently unavailable

12

Homelite JA376011

CAP- Fuel

$

$

Currently unavailable

13

Homelite JA990980

STRAP- Gas tank

$

$

Currently unavailable

14

Homelite JA361117

BUSHING

$

$

Currently unavailable

15

Homelite JA994981

VALVE- Shut off

$

$

Currently unavailable

16

Homelite JA994979

TUBING- Rubber (fuel line)

$

$

Currently unavailable

17

Homelite JA339601

SUPPORT

$

$

Currently unavailable

18

Homelite JA991470

DECAL- Battery

$

$

Currently unavailable

19

Homelite JA447012

WASHER- External tooth (1/4")

$

$

Currently unavailable

20

Homelite JA339605

BRACKET

$

$

Currently unavailable

21

Homelite JA352496

CLIP

$

$

Currently unavailable

22

Homelite JA158959

STRAP- Hold down

$

$

Currently unavailable

23

Homelite JA376080

BATTERY

$

$

Currently unavailable

24

Homelite JA995590

SOLENOID

$

$

Currently unavailable

25

Homelite JA446130

WASHER- Lock (1/4")

$

$

Not available

26

Homelite JA443102

NUT- Hex (1/4-20)
(Superseded to JA993730)

$

$

Not available

27

Homelite JA443802

NUT- (1/4-20)

$

$

Currently unavailable

28

Homelite JA444306

NUT- Hex (8-32)

$

$

Currently unavailable

29

Homelite JA446112

WASHER- Lock (#8)

$

$

Currently unavailable

30

Homelite JA403910

SCREW- (10-24 x 1/2")

$2.49

$

Usually ships in 3-7 days

0

31

Homelite JA452002

WASHER- Plain (1/4")

$

$

Not available

32

Homelite JA444782

NUT- Hex Centerlock (10-24)

$

$

Not available

33

Homelite JA992224

DECAL- Throttle

$

$

Currently unavailable

34

Homelite JA400110

BOLT- (1/4-20 x 7/8")

$

$

Currently unavailable

35

Homelite JA993043

DECAL- Instruction

$

$

Currently unavailable

Homelite JA473165

SECURE TIES

$

$

Currently unavailable

36

Homelite JA994980

ELBOW

$

$

Currently unavailable
