LT 1238 G (UT-33021) - Homelite Lawn Tractor Frame Transaxle And Engine Parts Diagram

Lawn Tractor

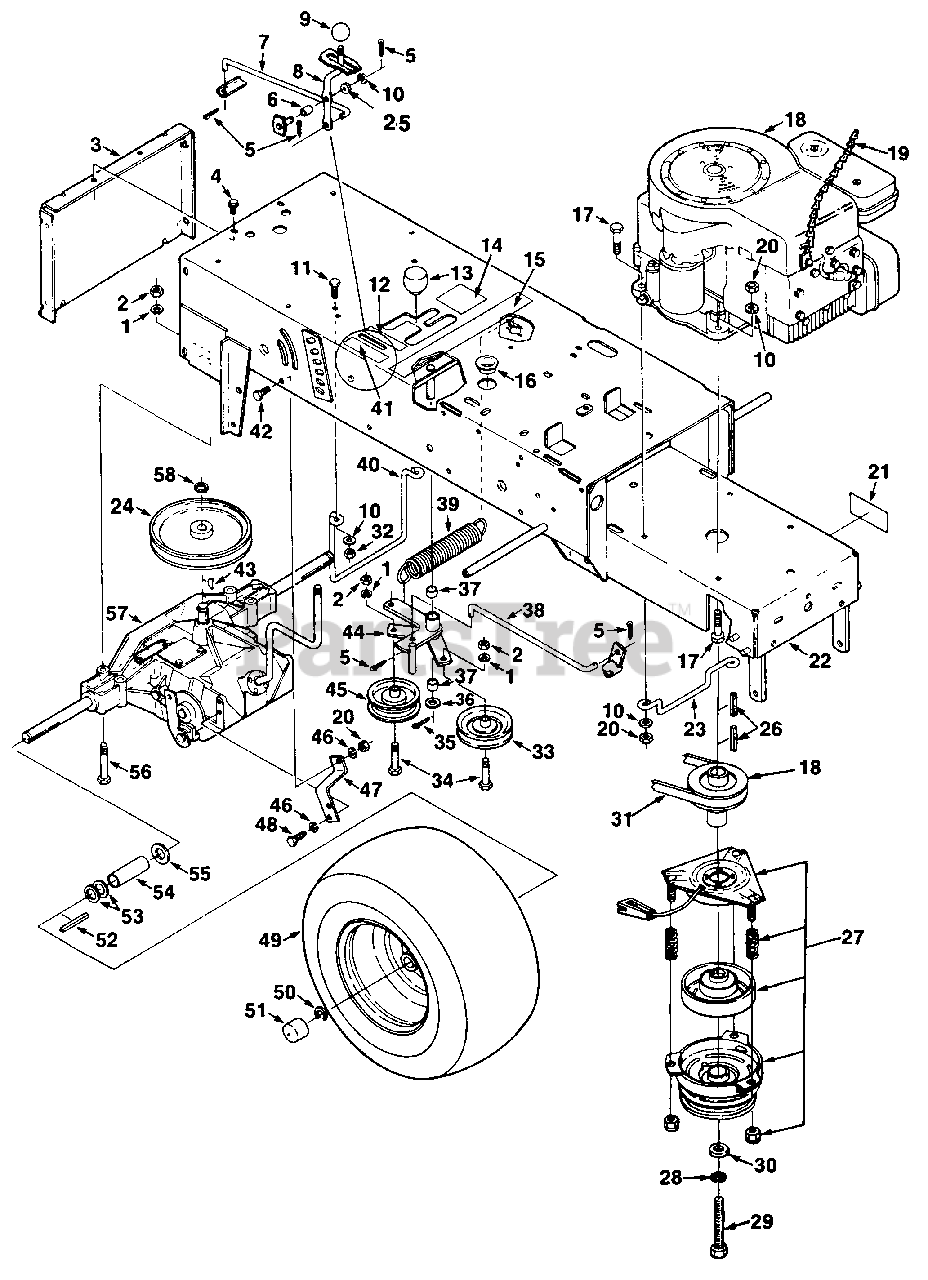

Frame Transaxle And Engine Parts Diagram

  • Title

1

Homelite JA446142

WASHER- Lock (3/8")

$

$

Not available

2

Homelite JA443110

NUT- Hex (3/8-16)

$

$

Not available

3

Homelite JA994985

BRACKET- Hitch

$

$

Currently unavailable

4

Homelite JA408865

BOLT- (1/4-20 x 9/16")

$

$

Currently unavailable

5

Homelite JA460014

PIN- Cotter (3/32 x 3/4")

$

$

Not available

6

Homelite JA376077

SPACER- Lever

$

$

Currently unavailable

7

Homelite JA339611

ROD- Hi-lo sect.

$

$

Currently unavailable

8

Homelite JA339593

LEVER- Hi-lo

$

$

Currently unavailable

9

Homelite JA315209

KNOB

$18.99

$

Usually ships in 3-7 days

0

10

Homelite JA453009

WASHER- Flat (5/16")
(Superseded to UP07173)

$

$

Not available

11

Homelite JA400186

SCREW- Hex hd. cap (5/16-18 x 7/8")
(Superseded to UP07177)

$

$

Not available

12

Homelite JA990590

DECAL- Second & Reverse

$

$

Currently unavailable

13

Homelite JA376078

KNOB- Shift lever

$

$

Not available

14

Homelite JA990600

DECAL- First & Third

$

$

Currently unavailable

15

Homelite JA990260

DECAL- Warning

$

$

Currently unavailable

16

Homelite JA376066

BUSHING- Snap

$

$

Currently unavailable

17

Homelite JA400194

SCREW- Hex hd. cap (5/16-18 x 1 3/4")

$

$

Currently unavailable

18

Homelite JA991071

PULLEY- Drive

$

$

Currently unavailable

19

Homelite JA994960

CHAIN- Restraining

$

$

Currently unavailable

20

Homelite JA443106

NUT- (5/16-18)
(Superseded to 81018)

$

$

Not available

21

Homelite JA992354

DECAL- Warning

$

$

Not available

22

Homelite JA117790

FRAME ASSY.

$

$

Currently unavailable

23

Homelite JA376038

GUIDE- Front belt

$

$

Currently unavailable

24

Homelite JA392593

PULLEY- Drive

$

$

Currently unavailable

25

Homelite JA454012

WASHER- Shakeproof

$

$

Currently unavailable

26

Homelite JA306968

KEY

$

$

Currently unavailable

27

Homelite JA990977

BRAKE- Electric clutch

$

$

Currently unavailable

28

Homelite JA446148

WASHER- Lock hvy. (7/16")

$

$

Not available

29

Homelite JA400368

SCREW- Hex hd. cap (7/16-20 x 3")

$4.49

$

Usually ships in 3-7 days

0

30

Homelite JA990128

CLUTCH- Retainer

$

$

Currently unavailable

31

Homelite JA392594

BELT- Traction drive

$

$

Currently unavailable

32

Homelite JA444718

NUT- Hex centerlock (5/16-18)

$

$

Not available

33

Homelite JA339630

IDLER- Inside

$

$

Currently unavailable

34

Homelite JA400268

SCREW- Hex hd cap (3/8-16 x 1 3/4")
(Superseded to UP07178)

$

$

Not available

35

Homelite JA460048

PIN- Cotter (3/16 x 1")

$2.49

$

Usually ships in 3-7 days

0

36

Homelite JA453017

WASHER- Flat (17/32")

$

$

Not available

37

Homelite JA328133

BUSHING

$

$

Currently unavailable

38

Homelite JA376098

ROD- Idler actuator

$

$

Currently unavailable

39

Homelite JA376088

SPRING- Extension

$

$

Not available

40

Homelite JA376037

GUIDE- Rear belt

$

$

Currently unavailable

41

Homelite JA990580

DECAL- Hi-Lo

$

$

Currently unavailable

42

Homelite JA400182

SCREW- Hex hd. cap (5/16-18 x 5/8")

$

$

Not available

43

Homelite JA463017

KEY- (3/16 x 3/4")

$

$

Currently unavailable

44

Homelite JA994338

CLUTCH BEARING ASSY.

$

$

Currently unavailable

45

Homelite JA336222

IDLER- Backside

$

$

Currently unavailable

46

Homelite JA446136

WASHER- Lock hvy. (5/16")
(Superseded to UP03791)

$

$

Not available

47

Homelite JA376017

BRACKET

$

$

Currently unavailable

48

Homelite JA409812

SCREW- (5/16-18 x 3/4")

$

$

Currently unavailable

49

Homelite JA181963

REAR WHEEL ASSY.

$488.99

$

Usually ships in 3-7 days

0

50

Homelite JA458419

RING- Retaining

$

$

Not available

51

Homelite JA376090

HUB CAP- Rear wheel

$

$

Not available

52

Homelite JA310611

KEY- (3/16 x 3/16 x 2 1/2")

$

$

Currently unavailable

53

Homelite JA313820

SPACER

$

$

Currently unavailable

54

Homelite JA376079

SPACER- Rear wheel

$

$

Currently unavailable

55

Homelite JA453022

WASHER- Flat (13/16")

$

$

Currently unavailable

56

Homelite JA400286

SCREW- Hex (3/8-16 x 2 3/4")

$

$

Currently unavailable

57

Homelite JA993015

TRANSAXLE- 6 Speed

$

$

Currently unavailable

58

Homelite JA458009

RING- Retaining

$

$

Not available

ENGINE- 12 HP

Note: When ordering engine parts, see your local Briggs & Stratton dealer.

$

$

Not available
