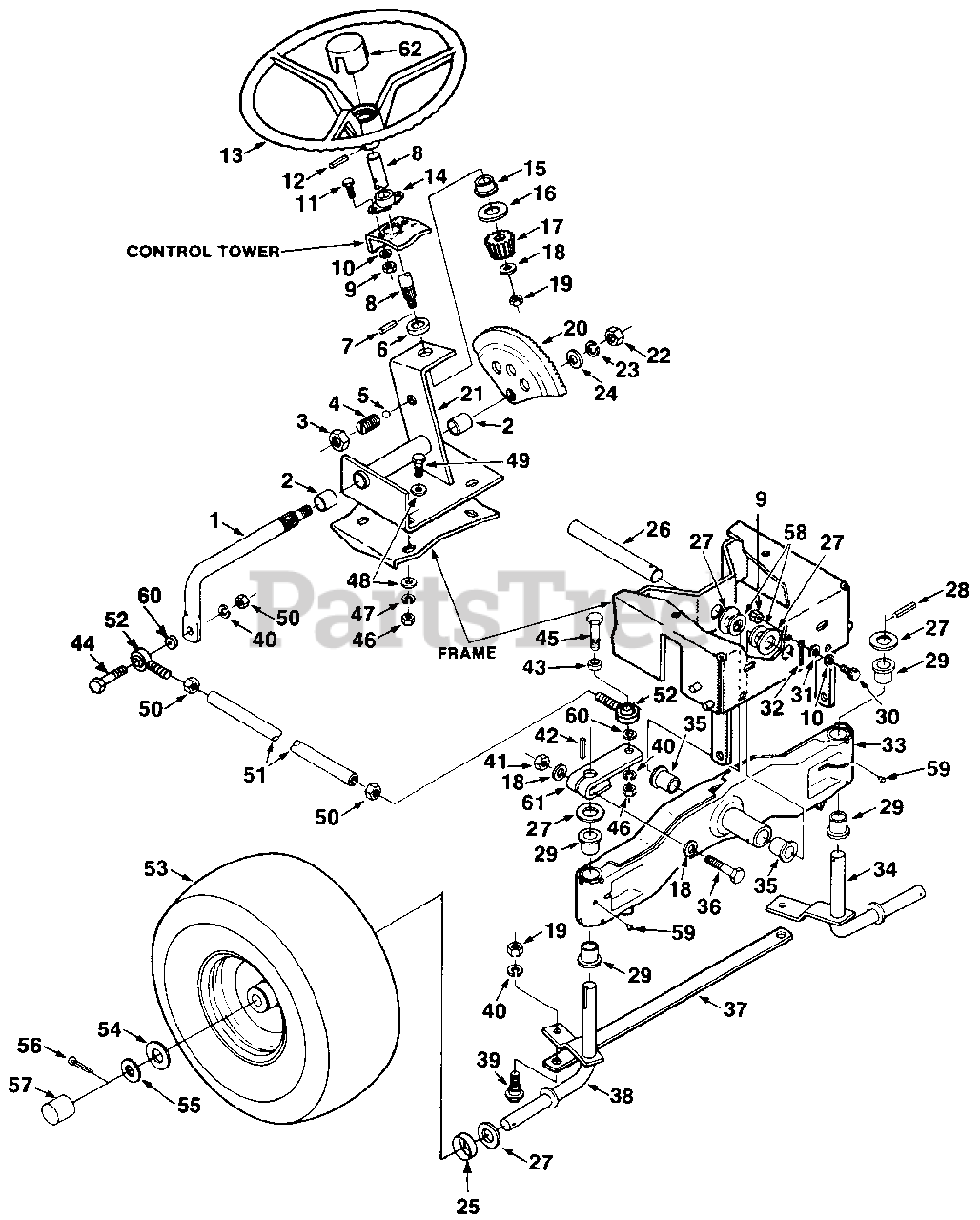

LT 1238 G (UT-33021) - Homelite Lawn Tractor Steering Linkage Parts Diagram

Lawn Tractor

Steering Linkage Parts Diagram

  • Title

1

Homelite JA994336

ARM- Pitman

$

$

Currently unavailable

2

Homelite JA311555

BUSHING

$

$

Currently unavailable

3

Homelite JA443826

NUT- (5/8")

$4.49

$

Usually ships in 3-7 days

0

4

Homelite JA376121

SPACER- Bearing

$

$

Currently unavailable

5

Homelite JA465006

BALL- (.312 dia)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite JA376108

SPACER- Steering

$

$

Not available

7

Homelite JA461383

PIN- Roll (3/16 x 1")

$

$

Not available

8

Homelite JA994335

SHAFT- Steering wheel

$

$

Currently unavailable

9

Homelite JA443102

NUT- Hex (1/4-20)
(Superseded to JA993730)

$

$

Not available

10

Homelite JA446130

WASHER- Lock (1/4")

$

$

Not available

11

Homelite JA400104

SCREW- Hex (1/4-20 x 1/2")
(Superseded to UP03379)

$

$

Not available

12

Homelite JA461387

PIN- Roll (1/4 x 1")

$2.99

$

Usually ships in 3-7 days

0

13

Homelite JA990346

WHEEL- Steering

$171.99

$

Usually ships in 3-7 days

0

14

Homelite JA376074

BEARING- Steering shaft

$

$

Not available

15

Homelite JA346133

BUSHING

$

$

Currently unavailable

16

Homelite JA375970

WASHER

$

$

Not available

17

Homelite JA339629

PINION- Steering

$

$

Currently unavailable

18

Homelite JA992581

WASHER

$2.99

$

Usually ships in 3-7 days

0

19

Homelite JA443110

NUT- Hex (3/8-16)

$

$

Not available

20

Homelite JA392599

GEAR- Steering

$

$

Currently unavailable

21

Homelite JA994337

SUPPORT- Steering

$

$

Currently unavailable

22

Homelite JA443118

NUT- Hex (1/2-13)

$

$

Currently unavailable

23

Homelite JA446154

WASHER- Lock (1/2")

$

$

Not available

24

Homelite JA453017

WASHER- Flat (1/2")

$

$

Not available

25

Homelite JA375411

WASHER- Dust

$

$

Currently unavailable

26

Homelite JA376067

ROD

$

$

Currently unavailable

27

Homelite JA453022

WASHER- Flat (3/4")

$

$

Currently unavailable

28

Homelite JA461408

PIN- Roll (1/4 x 1 1/2")

$

$

Not available

29

Homelite JA376065

BUSHING- Spindle

$

$

Currently unavailable

30

Homelite JA400110

SCREW- (1/4-20 x 7/8")

$

$

Currently unavailable

31

Homelite JA453023

WASHER- Plain (1/4")
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite JA460064

PIN- Cotter

$2.49

$

Usually ships in 3-7 days

0

33

Homelite JA994339

FRONT AXLE ASSY

$

$

Currently unavailable

34

Homelite JA990937

SPINDLE

$

$

Currently unavailable

35

Homelite JA310084

BEARING

$

$

Currently unavailable

36

Homelite JA400272

SCREW- Hex (3/8-16 x 2 1/4")

$

$

Not available

37

Homelite JA376059

BAR- Tie

$

$

Currently unavailable

38

Homelite JA992617

SPINDLE- R.H.

$

$

Not available

39

Homelite JA376085

BOLT- Tie bar mounting

$5.99

$

Usually ships in 3-7 days

0

40

Homelite JA446142

WASHER- Lock (3/8")

$

$

Not available

41

Homelite JA444762

NUT- Centerlock (3/8-16)

$

$

Currently unavailable

42

Homelite JA320790

KEY- (3/16 x 1 1/2")

$

$

Currently unavailable

43

Homelite JA376114

SPACER- Ball joint

$

$

Currently unavailable

44

Homelite JA992252

SCREW- (3/8-16 x 1 1/2")

$

$

Currently unavailable

45

Homelite JA400268

SCREW- Hex (3/8 x 16 x 1 3/4")
(Superseded to UP07178)

$

$

Not available

46

Homelite JA443106

NUT- Hex (5/16-18)
(Superseded to 81018)

$

$

Not available

47

Homelite JA446136

WASHER- Lock (5/16")
(Superseded to UP03791)

$

$

Not available

48

Homelite JA453009

WASHER- (5/16")
(Superseded to UP07173)

$

$

Not available

49

Homelite JA400186

SCREW- Hex (5/16-18 x 7/8")
(Superseded to UP07177)

$

$

Not available

50

Homelite JA443112

NUT- Hex (3/8-24)

$1.49

$

Usually ships in 3-7 days

0

51

Homelite JA376062

TUBE

$

$

Currently unavailable

52

Homelite JA376060

BALL JOINT

$

$

Currently unavailable

53

Homelite JA181964

RIM & TIRE ASSY

$

$

Currently unavailable

54

Homelite JA375970

WASHER

$

$

Not available

55

Homelite JA312398

WASHER-HT

$

$

Currently unavailable

56

Homelite JA460040

PIN- Cotter (5/32 x 1 1/4")

$

$

Currently unavailable

57

Homelite JA316802

CAP

$

$

Currently unavailable

58

Homelite JA313820

SPACER

$

$

Currently unavailable

59

Homelite JA471225

FITTING- Grease

$

$

Currently unavailable

60

Homelite JA376115

SPACER- Ball joint

$

$

Currently unavailable

61

Homelite JA994342

ARM- Steering

$

$

Currently unavailable

62

Homelite JA990345

CAP- Steering wheel

$

$

Currently unavailable

?63

Homelite JA375411

WASHER- Dust

$

$

Currently unavailable
