LT-125 (131-706F190) - White Outdoor 38" Lawn Tractor (1991)

38" Lawn Tractor

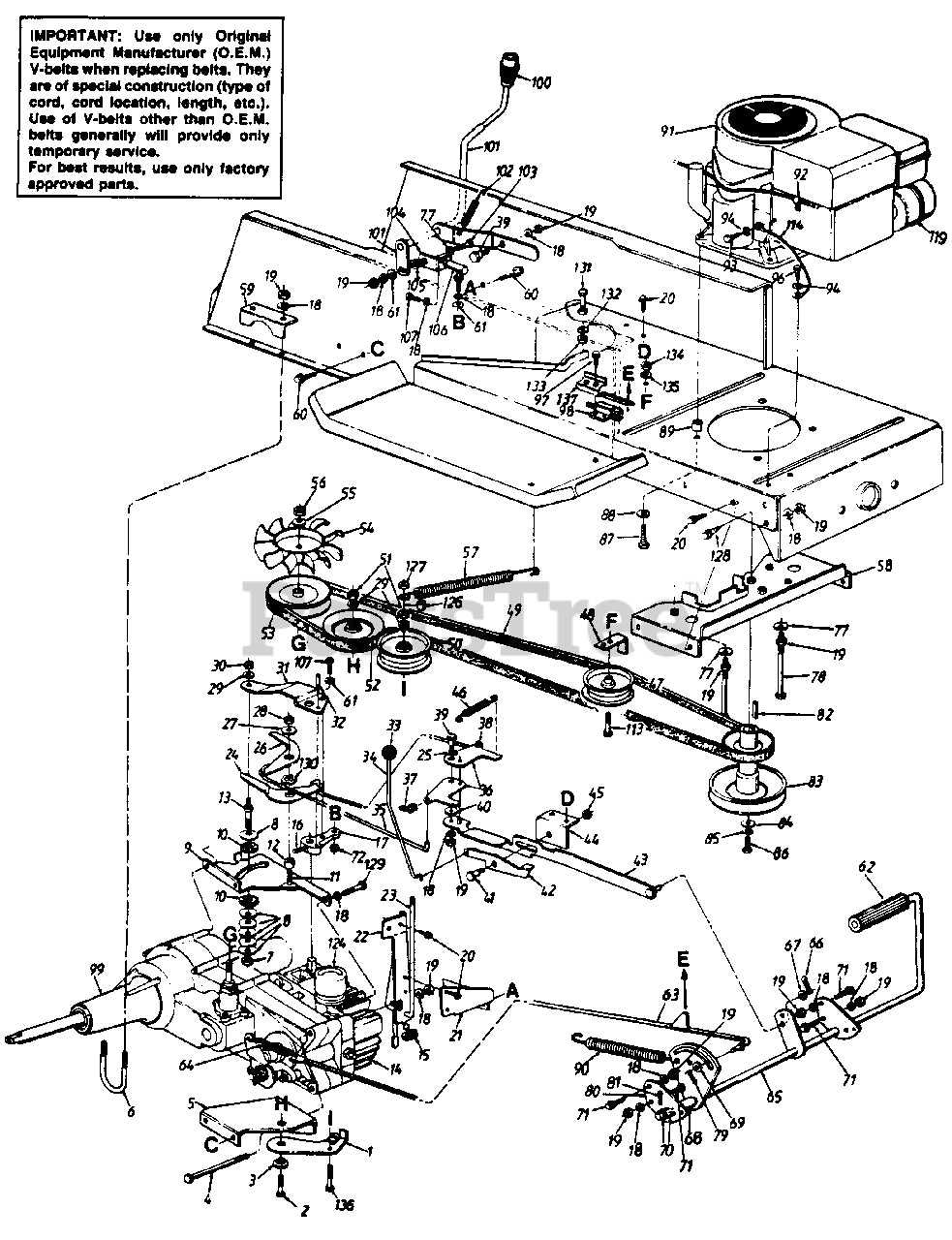

LT-125 (131-706F190) - White Outdoor 38" Lawn Tractor (1991) > Parts Diagrams (9) > Drive Mounting Assembly

  • Title
17746

1

Idler Bracket

Part# 17746

Not available

710-0427

2

Hex Bolt 3/8-16 x 2 0n Lg.

Part# 710-0427 (Superseded to 710-3144)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

738-0347

3

Shld. Spacer.625" l.D.

Part# 738-0347 (Superseded to 938-0347)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.61

710-3195

4

Hex Bolt 5/16-18 x 4.5" Lg. (Gr. 5)

Part# 710-3195

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.73

17747

5

Idler Plate

Part# 17747

OEM Warranty Repair Part for White Outdoor

Not available

710-3193

6

U-Bolt 5/16-18 x 1.75" Lg.

Part# 710-3193

OEM Warranty Repair Part for White Outdoor

Not available

712-0116

7

Hex L-Nut 3/8-24 Thd.

Part# 712-0116 (Superseded to 912-0116)

OEM Warranty Repair Part for White Outdoor

Not available

736-0219

8

Bell-Wash. .40" I.D. x 1.13"

Part# 736-0219 (Superseded to 936-0219)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

17743

9

Mounting Bracket

Part# 17743

Not available

761-0196

10

Friction Washer

Part# 761-0196 (Superseded to 961-0196)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.95

710-1012

11

Rib Neck Bolt 5/16-24 x .84" Lg.

Part# 710-1012

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.92

750-0808

12

Spacer

Part# 750-0808

OEM Warranty Repair Part for White Outdoor

Not available

738-0827

13

Axle

Part# 738-0827

OEM Warranty Repair Part for White Outdoor

Not available

717-0940

14

Hrostatic Pump

Part# 717-0940

OEM Warranty Repair Part for White Outdoor

Not available

735-0126

15

Rubber Washer .331' I.D.

Part# 735-0126 (Superseded to 735-0126A)

OEM Warranty Repair Part for White Outdoor

Not available

710-0257

16

Set Screw

Part# 710-0257

OEM Warranty Repair Part for White Outdoor

Not available

748-0328A

17

Pintle Shift Lever

Part# 748-0328A

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

18

L-Wash. 5/16 I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0267

19

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

710-0599

20

Hex TT-Tap Scr. 20 x .5n

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

17769

21

Reinforcement Plate

Part# 17769

OEM Warranty Repair Part for White Outdoor

Not available

17744

22

Transmission Torque Brkt.

Part# 17744

OEM Warranty Repair Part for White Outdoor

Not available

747-0764

23

Release Valve Rod

Part# 747-0764

OEM Warranty Repair Part for White Outdoor

Not available

17737

24

Reverse Arm

Part# 17737

OEM Warranty Repair Part for White Outdoor

Not available

736-0174

25

Spring Washer .625n l.D.

Part# 736-0174

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

17745

26

Forward Arm

Part# 17745

OEM Warranty Repair Part for White Outdoor

Not available

736-3078

27

Fl-Wash. .344' I.D. x 1.0n

Part# 736-3078

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

712-0237

28

Hex Cent. L-Nut 5/16-24 Thd.

Part# 712-0237 (Superseded to 912-0237)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 8 to 14 business days

Your price: $3.23

736-0169

29

L-Wash. 3/8n l.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

712-0241

30

Hex Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

17765

31

Pintle Arm Ext. Plate

Part# 17765

OEM Warranty Repair Part for White Outdoor

Not available

715-0156

32

Roll Pin 1/4n Dia. x .75" Lg.

Part# 715-0156

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

720-0166

33

Ball Knob

Part# 720-0166

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.63

747-0601

34

Lock-Up Rod

Part# 747-0601

OEM Warranty Repair Part for White Outdoor

Not available

747-0763

35

Connection Rod

Part# 747-0763

Not available

17757

36

Balancer Bracket

Part# 17757

OEM Warranty Repair Part for White Outdoor

Not available

726-0281

37

Rod End Clevis Clips-R.H.

Part# 726-0281

OEM Warranty Repair Part for White Outdoor

Not available

726-0280

38

Rod End Clevis Clips-L.H.

Part# 726-0280

OEM Warranty Repair Part for White Outdoor

Not available

738-0296

39

Shld. Bolt .437n Dia. x .268n

Part# 738-0296 (Superseded to 938-0296)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.88

736-3074

40

Fl-Wash. .344" I.D. x 1.12n

Part# 736-3074

OEM Warranty Repair Part for White Outdoor

Not available

738-0141

41

Shld. Bolt .437" Dia. x .35n

Part# 738-0141 (Superseded to 938-0141)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.00

17738

42

Lock-Up Bracket

Part# 17738

Not available

17756

43

Neutral Return Brkt. Ass'y.

Part# 17756

OEM Warranty Repair Part for White Outdoor

Not available

17755

44

Bracket

Part# 17755

OEM Warranty Repair Part for White Outdoor

Not available

712-0158

45

Hex Cent. L-Nut 5/16 18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.10

732-0387

46

Ext. Spring 2.5" Lg.

Part# 732-0387

OEM Warranty Repair Part for White Outdoor

Not available

756-0116

47

Idler Pulley 3.06n O.D.

Part# 756-0116 (Superseded to 756-04209)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $15.40

13819

48

Clutch Idler Belt Guard

Part# 13819

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available GUARD-BELT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

754-0372

49

"V"-Belt

Part# 754-0372 (Superseded to 954-0372)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $52.29

756-0515

50

Flat Idler

Part# 756-0515

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.57

712-0798

51

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

756-0577

52

Idler Pulley 4.0n O.D.

Part# 756-0577

OEM Warranty Repair Part for White Outdoor

Not available

756-0571

53

Transmission Pulley

Part# 756-0571

OEM Warranty Repair Part for White Outdoor

Not available

731-1145

54

Hydro Fan

Part# 731-1145

OEM Warranty Repair Part for White Outdoor

Not available

736-0427

55

Bell-Wash. .569n l.D. x 1.125n

Part# 736-0427 (Superseded to 936-0427)

OEM Warranty Repair Part for White Outdoor

Not available

712-3035

56

Hex Jam Nut 9/16-18 Thd.

Part# 712-3035

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

732-0641

57

Extension Spring

Part# 732-0641

OEM Warranty Repair Part for White Outdoor

Not available

17893

58

Belt-Guard Brkt. Ass'y.

Part# 17893 (Superseded to 17893A-0637)

OEM Warranty Repair Part for White Outdoor

Not available

17818

59

Bracket

Part# 17818

Not available

710-0603

60

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5n Lg.

Part# 710-0603

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

736-0261

61

Flat Tooth Washer 5/16" I.D.

Part# 736-0261 (Superseded to 736-0607)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

735-0196

62

Foot Pad

Part# 735-0196 (Superseded to 735-0239A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.98

17686

63

Brake Rod Ass'y.

Part# 17686

OEM Warranty Repair Part for White Outdoor

Not available

732-0649

64

Ext. Spring 3.67" Lg.

Part# 732-0649

OEM Warranty Repair Part for White Outdoor

Not available

17715A

65

Clutch Brake Pedal Ass'y.

Part# 17715A

OEM Warranty Repair Part for White Outdoor

Not available

714-0104

66

Intern. Cotter Pin 5/16" Dia.

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.85

736-0140

67

Fl-Wash. .385" l.D. x .62"

Part# 736-0140 (Superseded to 936-0140)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.60

750-0802

68

Spacer.63" I.D.

Part# 750-0802

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.50

736-0117

69

Fl-Wash. .385" I.D. x .62"

Part# 736-0117 (Superseded to 936-0117)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.60

736-0256

70

Fl-Wash. .635" l.D. x l.On

Part# 736-0256 (Superseded to 936-0256)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.65

710-0650

71

Hex Wash. TT-Tap Scr. 5/16-18 x 7/8" Lg.

Part# 710-0650

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.73

712-0123

72

Hex Nut 5/16-24 Thd.

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

736-0329

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-0287

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0242

77

Bell-Wash. .345" I.D. x .88"

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

710-0190

78

Hex Bolt 5/16-18 x 4.0" Lg.

Part# 710-0190

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.18

714-0507

79

Cotter 3/32" Dia. x .75" Lg.

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

15835A

80

Pedal Brkt.

Part# 15835A

OEM Warranty Repair Part for White Outdoor

Not available

714-0111

81

Cotter Pin 3/32" Dia. x 1.0" Lg.

Part# 714-0111 (Superseded to 914-0111)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

714-0114

82

Sq.-Key l/4" x 2.0"

Part# 714-0114 (Superseded to 914-0114)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.74

756-0562

83

Engine Pulley

Part# 756-0562 (Superseded to 956-0562)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $84.92

736-0322

84

Fl-Wash. 7/16" l.D. x 1.25'

Part# 736-0322

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.17

736-0171

85

LWash. 7/16" l.D.

Part# 736-0171 (Superseded to 936-0171)

Note: (H.D.)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

710-0757

86

Hex Bolt 7/16-20 x l.5" Lg.

Part# 710-0757

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.48

710-1007

87

Hex TT-Tap Scr. 3/8-16 x 1.5

Part# 710-1007

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.19

736-0247

88

Fl-Wash. .406" l.D. x 1.25"

Part# 736-0247

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.47

750-0777

89

Spacer .88n I.D. x 1.25' O.D.

Part# 750-0777

OEM Warranty Repair Part for White Outdoor

Not available

732-0643

90

Extension Spring 6.11" Lg.

Part# 732-0643

OEM Warranty Repair Part for White Outdoor

Not available

91

Engine

Part#

Not available

726-0235

92

Speed Clip

Part# 726-0235

OEM Warranty Repair Part for White Outdoor

Not available

710-0323

93

Truss Mach. Scr. 5/16-18 x .75'

Part# 710-0323

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

736-0607

94

External L-Wash. 5/16" I.D.

Part# 736-0607

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

710-0726

96

Hex AB-Tap Scr. 5/16 x .75"

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

710-0351

97

Truss B-Tap Scr. #10 x .5"

Part# 710-0351

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

725-3169A

98

Safety Switch

Part# 725-3169A (Superseded to 925-04039)

Note: (Clutch)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.68

717-0950

99

Transaxle

Part# 717-0950

OEM Warranty Repair Part for White Outdoor

Not available

720-0218

100

Shift Knob

Part# 720-0218

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.79

17734

101

Speed Selector Lever Ass'y.

Part# 17734

OEM Warranty Repair Part for White Outdoor

Not available

732-0433

102

Ext. Spring 2.75n Lg.

Part# 732-0433

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.69

710-0874

103

Hex Bolt 5/16-18 x 1.25" Lg.

Part# 710-0874

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

17742

104

Connection Brkt.

Part# 17742

OEM Warranty Repair Part for White Outdoor

Not available

711-0404

105

Shoulder Nut

Part# 711-0404

OEM Warranty Repair Part for White Outdoor

Not available

723-3011

106

Ball Joint 5/16-24 Thd.

Part# 723-3011 (Superseded to 923-3011)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.31

710-0157

107

Hex Bolt 5/16-24 x .75n Lg.

Part# 710-0157

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

710-0539

113

Hex Bolt 3/8-24 x l.75n Lg.

Part# 710-0539

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

725-0980

114

Ground Wire 7.25n Lg.

Part# 725-0980

OEM Warranty Repair Part for White Outdoor

Not available

119

Part#

Note: (Refer to Hood Assembly)

Not available

717-3049

124

Reservoir

Part# 717-3049 (Superseded to 917-3049)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $88.02

750-0504

126

Spacer .375n l.D. x .503n

Part# 750-0504

Not available

712-0266

127

Hex Jam Nut 3/8-16 Thd.

Part# 712-0266 (Superseded to 712-0266A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.55

710-0604

128

Hex TT-Tap Scr. 5/16-18 x .62"

Part# 710-0604 (Superseded to 710-0604A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-0974

129

Hex Bolt 5/16-18 x 43/4n Lg.

Part# 710-0974

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.36

736-0174

130

Spring Washer .625" l.D.

Part# 736-0174

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

710-0106

131

Hex Bolt 1/4-20 x 1.25" Lg.

Part# 710-0106

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

736-0329

132

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-0287

133

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

712-0214

134

Hex L-Nut 3/8-24 Thd.

Part# 712-0214 (Superseded to 912-0214)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.40

736-0300

135

Fl-Wash. .385" l.D. x .87"

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-0756

136

Hex Bolt 3/8-16 x 2.5" Lg.

Part# 710-0756

OEM Warranty Repair Part for White Outdoor

Not available

17962

137

Switch Plate

Part# 17962

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.23
