LT-125 (133K606F190) - White Outdoor 38" Lawn Tractor (1993)

38" Lawn Tractor

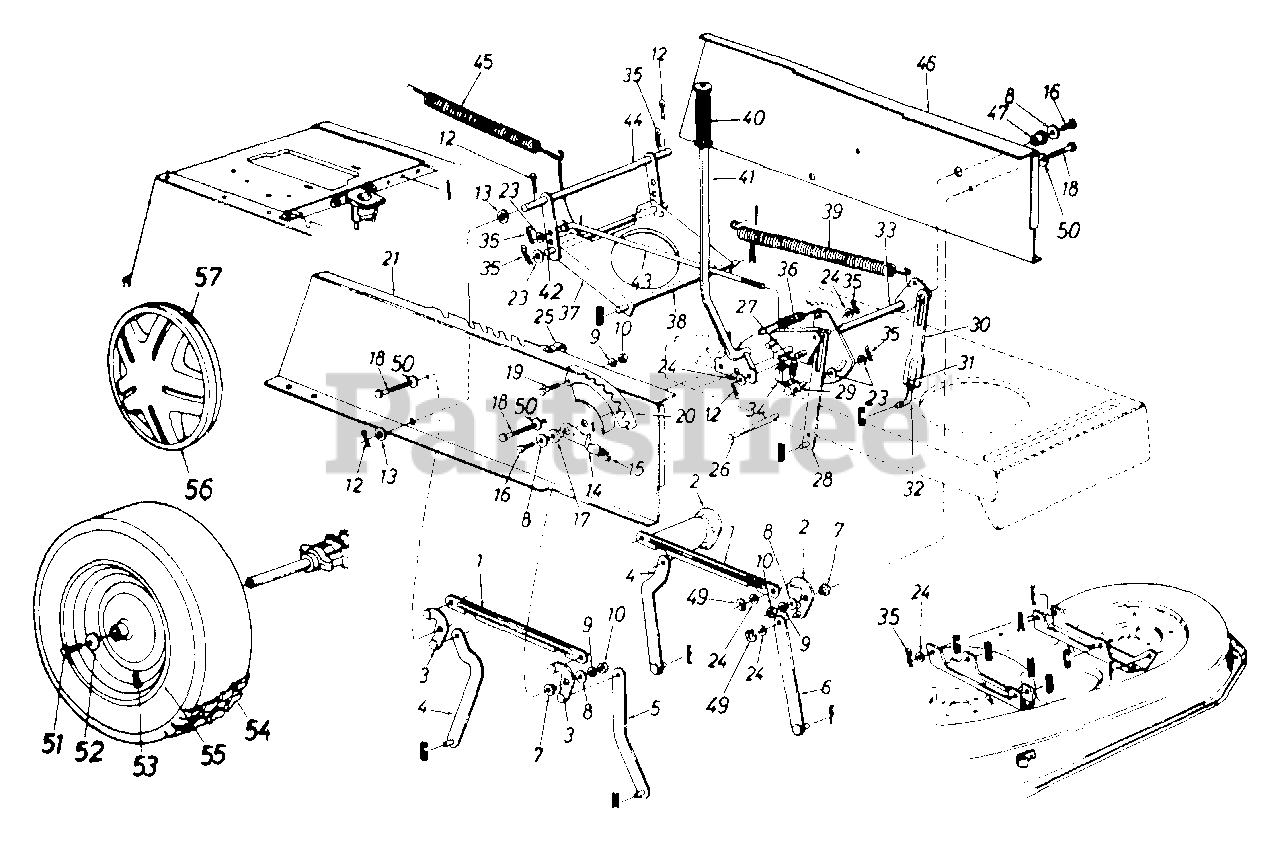

LT-125 (133K606F190) - White Outdoor 38" Lawn Tractor (1993) > Parts Diagrams (8) > Deck And Wheel Assembly

  • Title
783-0103

1

Connecting Rod

Part# 783-0103

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

ROD-CONNECTING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

683-0029

2

Pivot Link Ass'y. - L.H.

Part# 683-0029 (Superseded to 983-0029A-0637)

Note: (Uses "E"-Ring)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $13.08

17640

Pivot Link Ass'y. - L.H.

Part# 17640 (Superseded to 983-0029A-0637)

Note: (Uses Cotter Pin)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $13.08

683-0028

3

Pivot Link Ass'y. - R.H.

Part# 683-0028

Note: (Uses "E"-Ring)

OEM Warranty Repair Part for White Outdoor

Not available

17641

Pivot Link Ass'y. - R.H.

Part# 17641

Note: (Uses Cotter Pin)

OEM Warranty Repair Part for White Outdoor

Not available

17710

4

Deck Hanger Link Ass'y.

Part# 17710

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HANGER LINK ASSEMBLY BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

14800A

5

Deck Hanger Link Ass'y.

Part# 14800A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HANGER-DECK LINK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

14804A

6

Deck Hanger Link Ass'y.

Part# 14804A

OEM Warranty Repair Part for White Outdoor

Not available

748-0331

7

Shld. Spacer .318" I.D.

Part# 748-0331 (Superseded to 948-0331)

OEM Warranty Repair Part for White Outdoor

Not available

736-0264

8

Fl-Wash. .344" I.D. x .62" O.D.

Part# 736-0264 (Superseded to 936-0264)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

736-0119

9

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

712-0267

10

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

714-0470

12

Cotter Pin 1/8" Dia.

Part# 714-0470 (Superseded to 914-0470)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

736-0256

13

Fl-Wash. .635" I.D. x 1.0" O.D.

Part# 736-0256 (Superseded to 936-0256)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.02

683-0003

14

Weight Adj. Stop Lever Ass'y.

Part# 683-0003 (Superseded to 983-0003)

Note: (Incl. Ref. 15)

OEM Warranty Repair Part for White Outdoor

Not available

08540

15

Knob

Part# 08540

OEM Warranty Repair Part for White Outdoor

Not available

710-0604

16

Hex Wash. TT-Tap Scr. 5/16-18 x .75" Lg.

Part# 710-0604 (Superseded to 710-0604A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

748-0176

17

Flange Brg. .63" I.D.

Part# 748-0176

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.37

710-1238

18

Hex Wash. Hd. Scr. 5/16-18 x .875" Lg.

Part# 710-1238

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

710-0118

19

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

17730

20

Index Brkt.

Part# 17730 (Superseded to 783-04113P)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.95

17622C

21

Upper Frame - R.H.

Part# 17622C

OEM Warranty Repair Part for White Outdoor

Variations

SILVER FLAKE (0629)

FRAME-UPPER RH SID

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

FRAME-UPPER RH SID

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

FRAME-UPPER RH SID

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

736-0267

23

Fl-Wash. .385" I.D. x .87" O.D.

Part# 736-0267 (Superseded to 936-0267)

OEM Warranty Repair Part for White Outdoor

Not available

736-0160

24

Fl-Wash. .531" I.D. x .93" O.D.

Part# 736-0160 (Superseded to 936-0160)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

726-0272

25

Clamp

Part# 726-0272

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.02

738-0526

26

Running Board Rod

Part# 738-0526

OEM Warranty Repair Part for White Outdoor

Not available

710-3007

27

Hex Wash. Hd. Tap Scr.

Part# 710-3007

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

14802A

28

Link Deck Lift Ass'y.

Part# 14802A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Deck Lift Link, Powder Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

711-0723A

29

Adj. Ferrule 3/8-24 Thd.

Part# 711-0723A (Superseded to 911-0723A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.60

17712

30

Adj. Deck Lift Link

Part# 17712

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Deck Adjust Link

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $18.23

712-3066

31

Hex Nut 1/2-20 Thd. (Gr. 5)

Part# 712-3066 (Superseded to 912-3066)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

711-0841

32

Lift Link Adjuster

Part# 711-0841 (Superseded to 911-0841)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.87

17637A

33

Lift Shaft Ass'y.

Part# 17637A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

725-0803C

34

Safety Switch (Deck)

Part# 725-0803C (Superseded to 725-0803B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.92

714-0145

35

Inter. Cotter Pin 3/8" Dia.

Part# 714-0145 (Superseded to 914-0145)

OEM Warranty Repair Part for White Outdoor

Not available

732-0637

36

Extension Spring

Part# 732-0637 (Superseded to 932-0637)

OEM Warranty Repair Part for White Outdoor

Not available

17636B

37

Stabilizer Bracket

Part# 17636B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Stabilizer Bracket, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $50.65

738-0670

38

Shaft 1/2" Dia. x 10.28" Lg.

Part# 738-0670 (Superseded to 738-0670A)

OEM Warranty Repair Part for White Outdoor

Not available

732-0638

39

Extension Spring

Part# 732-0638

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.65

720-0233

40

Grip (Lift Handle)

Part# 720-0233 (Superseded to 920-0233)

OEM Warranty Repair Part for White Outdoor

Not available

17675

41

Deck Lift Handle Ass'y.

Part# 17675 (Superseded to 97675A-0637)

OEM Warranty Repair Part for White Outdoor

Not available

738-0669

42

Shaft 3/8" Dia. x 9.34" Lg.

Part# 738-0669

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $14.08

747-0598

43

Disengagement Rod

Part# 747-0598

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.79

17624

44

Stabilizer Shaft Ass'y.

Part# 17624 (Superseded to 97624-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $79.74

732-0556

45

Extension Spring 7.58" Lg.

Part# 732-0556 (Superseded to 932-0556)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $15.91

17623

46

Upper Frame - L.H.

Part# 17623 (Superseded to 783-0043)

OEM Warranty Repair Part for White Outdoor

Not available

741-0313

47

Flange Brg. .632" I.D.

Part# 741-0313 (Superseded to 741-0487C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.46

716-0104

49

"E"-Ring

Part# 716-0104 (Superseded to 916-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

714-0470

Cotter Pin 1/8" Dia.

Part# 714-0470 (Superseded to 914-0470)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

736-0425

50

Bell-Wash. .325" I.D.

Part# 736-0425 (Superseded to 936-0425)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

710-0627

51

Hex Bolt 5/16-24 x .75" Lg.

Part# 710-0627

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

736-0242

52

Bell-Wash. .345" I.D. x .88" O.D.

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

734-0255

53

Air Valve

Part# 734-0255 (Superseded to 934-0255)

Note: (Service Only)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

734-0817

54

Wheel Ass'y. Comp.

Part# 734-0817

OEM Warranty Repair Part for White Outdoor

Variations

Carlisle Gray (0911)

WHEEL ASSY W/TIRE

Part# Carlisle Gray (0911)

OEM Warranty Repair Part for White Outdoor

Not available

Dico Gray (0912)

No Longer Available WHEEL ASSY W/TIRE

Part# Dico Gray (0912)

OEM Warranty Repair Part for White Outdoor

Not available

Duro Gray (0915)

No Longer Available WHEEL ASSY W/TIRE

Part# Duro Gray (0915)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Beige (0931)

No Longer Available WHL ASSY 18 X 9 50

Part# Carlisle Beige (0931)

OEM Warranty Repair Part for White Outdoor

Not available

Dico Beige (0932)

No Longer Available WHEEL ASSY 18X9.5X

Part# Dico Beige (0932)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Yellow (0941)

No Longer Available WHL ASSY 18 X 9 50

Part# Carlisle Yellow (0941)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Green (0981)

No Longer Available WHEEL ASSY W/TIRE

Part# Carlisle Green (0981)

OEM Warranty Repair Part for White Outdoor

Not available

734-0448

Tire Only

Part# 734-0448

OEM Warranty Repair Part for White Outdoor

Variations

Carlisle (0901)

No Longer Available TIRE 18 X 9 50

Part# Carlisle (0901)

OEM Warranty Repair Part for White Outdoor

Not available

Dico (0902)

TIRE-TUBELESS 18X9

Part# Dico (0902)

OEM Warranty Repair Part for White Outdoor

Not available

Duro (0905)

TIRE-TUBELESS 18X9

Part# Duro (0905)

OEM Warranty Repair Part for White Outdoor

Not available

734-0603A

55

Rim Only

Part# 734-0603A (Superseded to 634-0070)

OEM Warranty Repair Part for White Outdoor

Not available

734-1784

56

Hub Cap

Part# 734-1784

OEM Warranty Repair Part for White Outdoor

Not available

727-0425A

57

Spring Clip

Part# 727-0425A (Superseded to 927-0425A)

Note: (Used w/Ref. No. 56)

OEM Warranty Repair Part for White Outdoor

Not available
