LT-125 (133K606F190) - White Outdoor 38" Lawn Tractor (1993) Hood And Fender Assembly Parts Diagram

38" Lawn Tractor

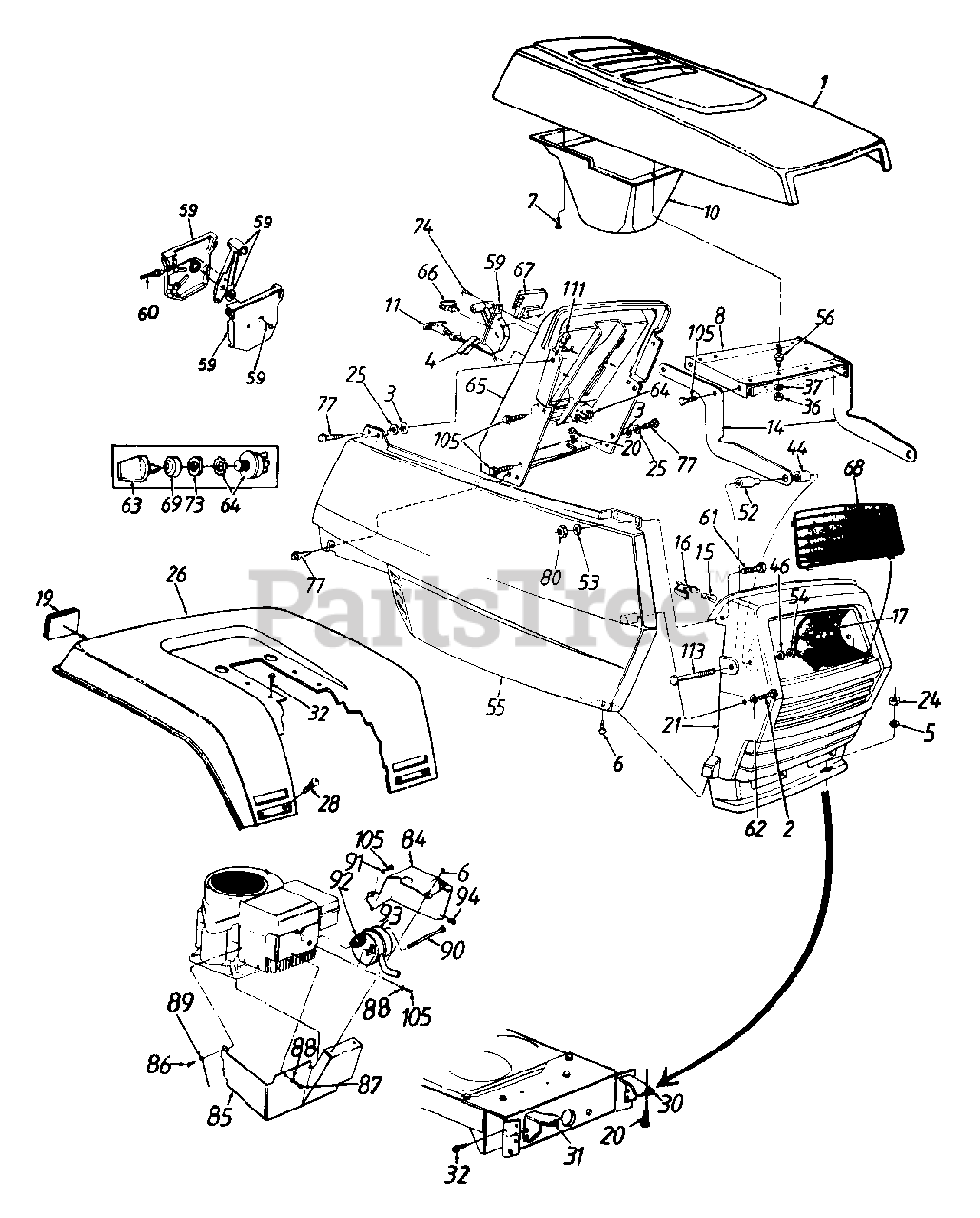

Hood And Fender Assembly Parts Diagram

  • Title

1

White Outdoor 731-1429

Hood
(Superseded to 931-1429)

Note: Code: N Notates a new part (not previously existing).

$

$

Not available

2

White Outdoor 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 726-0233

Bolt Retainer 1/4" I.D.

$3.99

$

In Stock, only 2 left!

0

4

White Outdoor 17782

Retainer Clip

$4.99

$

In Stock, only 3 left!

0

5

White Outdoor 736-0275

Fl-Wash. .34" I.D. x .68"

$6.49

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 4 left!

0

7

White Outdoor 710-0200

Hex Wash Hd. AB-Tap Scr. #8 x .5" Lg.

$

$

Not available

8

White Outdoor 16903A

Hood Plate

Note: Code: N Notates a new part (not previously existing).

Variations

White Outdoor 16903A-0637

PLATE-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

?9

White Outdoor 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$3.99

$

In Stock, Qty 16

0

10

White Outdoor 731-1073

Air Duct

$

$

Not available

11

White Outdoor 746-3021

Choke Control 29" Lg.

$26.99

$

In Stock, only 1 left!

0

14

White Outdoor 16902

Hood Hinge

$

$

Not available

15

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

16

White Outdoor 725-1649

Twist Lock - Lamp Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

17

777-8516

Reflector - Headlight

$

$

Not available

19

White Outdoor 730-3000

Reflector
(Superseded to 930-3000)

$16.99

$

In Stock, Qty 7

0

20

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 731-1430

Grille
(Superseded to 931-1430B)

Note: Code: N Notates a new part (not previously existing).

$

$

Not available

24

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

25

White Outdoor 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 17324B

Fender

Variations

White Outdoor 17324B-0480

No Longer Available FENDER-RR - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17324B-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17324B-0498

No Longer Available FENDER-RR - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 17324B-0499

No Longer Available FENDER-RR - CUB BEIGE (0499)

$

$

Not available

White Outdoor 17324B-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17324B-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17324B-0648

Fender - TECH GRAY (0648)

$

$

Not available

White Outdoor 17324B-0662

No Longer Available FENDER-RR - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17324B-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17324B-0667

No Longer Available FENDER-RR - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17324B-0674

No Longer Available FENDER-RR - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 17324B-0685

No Longer Available FENDER-RR - CUB BLUE (0685)

$

$

Not available

White Outdoor 17324B-0686

No Longer Available FENDER-RR - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

?27

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

28

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 705-0167

Grille Mount Brk't. - L.H.

$

$

Not available

31

White Outdoor 705-0166

Grille Mount Brk't. - R.H.

$

$

Not available

32

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

37

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 13

0

44

White Outdoor 750-0755

Spacer .33" I.D. x .625" O.D.

$3.99

$

Usually ships in 3-6 days

0

46

White Outdoor 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.49

$

Usually ships in 3-6 days

0

52

White Outdoor 750-0754

Shld. Spacer .33" I.D.

$

$

Not available

53

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.49

$

Usually ships in 3-6 days

0

54

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

55

White Outdoor 731-1432

Side Cover - R.H.

Note: Code: N Notates a new part (not previously existing).

$

$

Not available

White Outdoor 731-1431

Side Cover - L.H.

Note: Code: N Notates a new part (not previously existing). (Not shown)

$

$

Not available

56

White Outdoor 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

59

White Outdoor 831-0823A

Throttle Control Box Ass'y.

$30.99

$

In Stock, Qty 20+

0

60

White Outdoor 746-0501

Throttle Wire 18.5" Lg.

$16.99

$

In Stock, only 4 left!

0

61

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$3.99

$

In Stock, Qty 10

0

63

White Outdoor 725-1341B

Ignition Key

$9.99

$

In Stock, only 3 left!

0

64

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 15

0

65

White Outdoor 731-0961A

Dash Panel

$

$

Not available

66

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

67

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

68

White Outdoor 731-1038

Lens
(Superseded to 931-1038A)

$

$

Not available

69

White Outdoor 725-1347

Ignition Switch Cap

$4.49

$

In Stock, only 4 left!

0

73

White Outdoor 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

White Outdoor 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

77

White Outdoor 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

80

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 9

0

84

White Outdoor 683-0042

Muffler Heat Shield - L.H.
(Superseded to 683-0042A)

Note: Code: N Notates a new part (not previously existing).

$

$

Not available

85

White Outdoor 16936

Muffler Heat Shield - R.H.

$

$

Not available

86

White Outdoor 710-0323

Pan Hd. Mach. Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

87

White Outdoor 710-0294

Hex Bolt 1/4-20 x 3/8" Lg.

$3.49

$

Usually ships in 3-6 days

0

88

White Outdoor 736-0175

Spr. Wash. .265" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

89

White Outdoor 725-0980

Ground Wire

$

$

Not available

90

White Outdoor 738-0636

Shld. Bolt 7/16" Dia. x 3-5/8" Lg.
(Superseded to 938-0636)

$

$

Not available

91

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

92

White Outdoor 721-0208

Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

93

White Outdoor 751-0465

Muffler
(Superseded to 951-0465A)

$

$

Not available

94

White Outdoor 712-0147

Speed Nut #10-24 Thd.

$6.49

$

Usually ships in 3-6 days

0

105

White Outdoor 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

111

White Outdoor 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

113

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75"
