LT 125 (954000332-D) - Husqvarna Lawn Tractor (1991-10) Drive Group Parts Diagram

Lawn Tractor

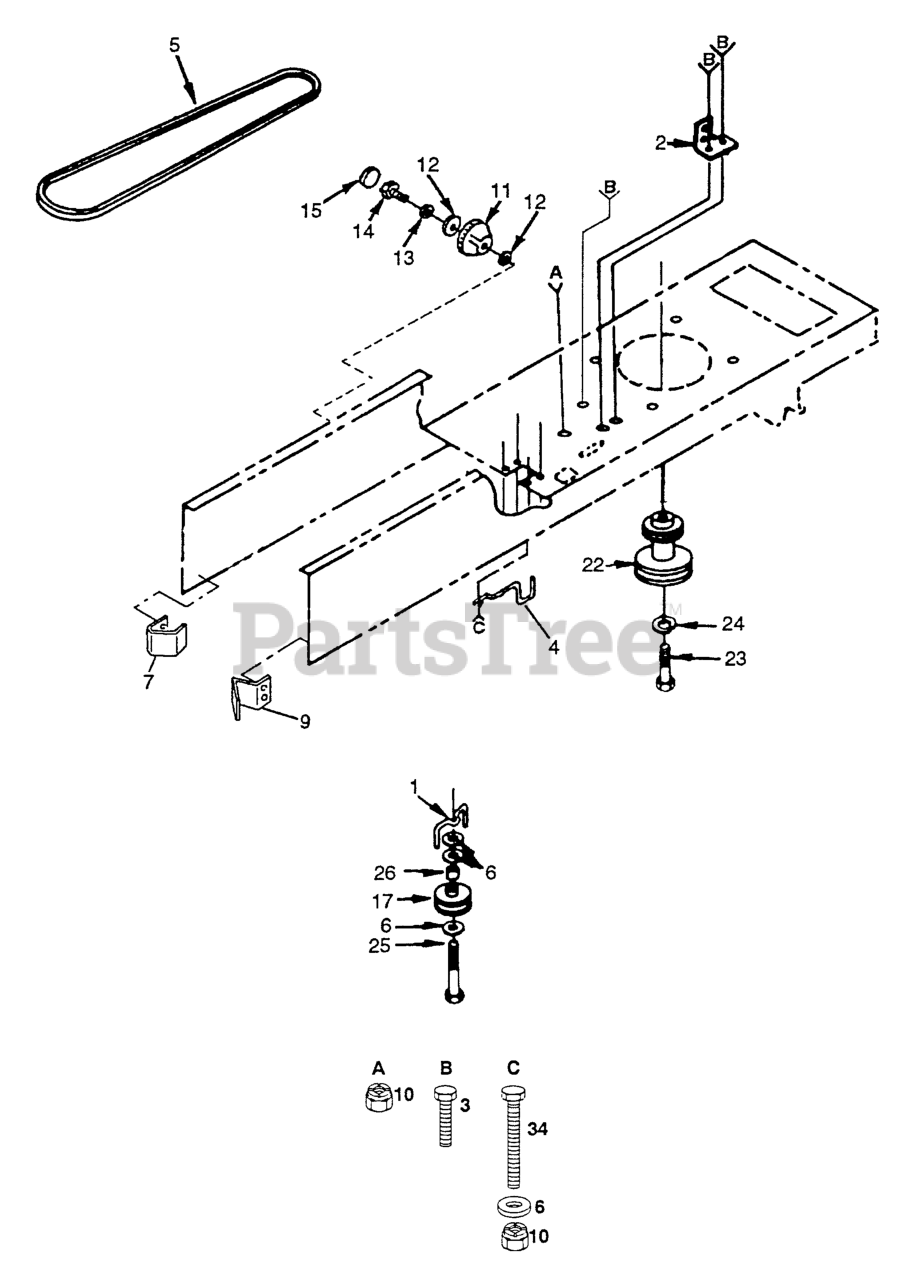

Drive Group Parts Diagram

  • Title

1

Husqvarna 532109070

BELT KEEPER LT NLA

$

$

Not available

2

Husqvarna 532108236

BRACKET LT

$

$

Not available

3

Husqvarna 817021008

SCREW

$3.99

$

In Stock, Qty 18

0

4

Husqvarna 532129921

KEEPER, BELT

$

$

Not available

5

Husqvarna 532125907

BELT

$41.99

$

In Stock, Qty 20+

0

6

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532127275

KEEPER BELT LH

$

$

Not available

9

Husqvarna 532127274

KEEPER

$

$

Not available

10

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532123934

HEIGHT INDICATOR

$

$

Not available

12

Husqvarna 819112410

WASHER

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00
(Superseded to 596580801)

$3.99

$

In Stock, Qty 17

0

15

Husqvarna 532123935

PLUG,HOLE

$

$

Not available

17

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 2 left!

0

22

Husqvarna 532131002

ENGINE PULLEY
(Superseded to 532136004)

$

$

Not available

23

Husqvarna 871130720

Bolt, Hex 7/16 - 20 x 1 - 1/4 G8

$

$

Not available

24

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

25

Husqvarna 874760644

BOLT

$

$

Not available

26

Husqvarna 532124965

SPACER T

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 9

0
