LT 125 (954000332-D) - Husqvarna Lawn Tractor (1991-10) Mower Parts Diagram

Lawn Tractor

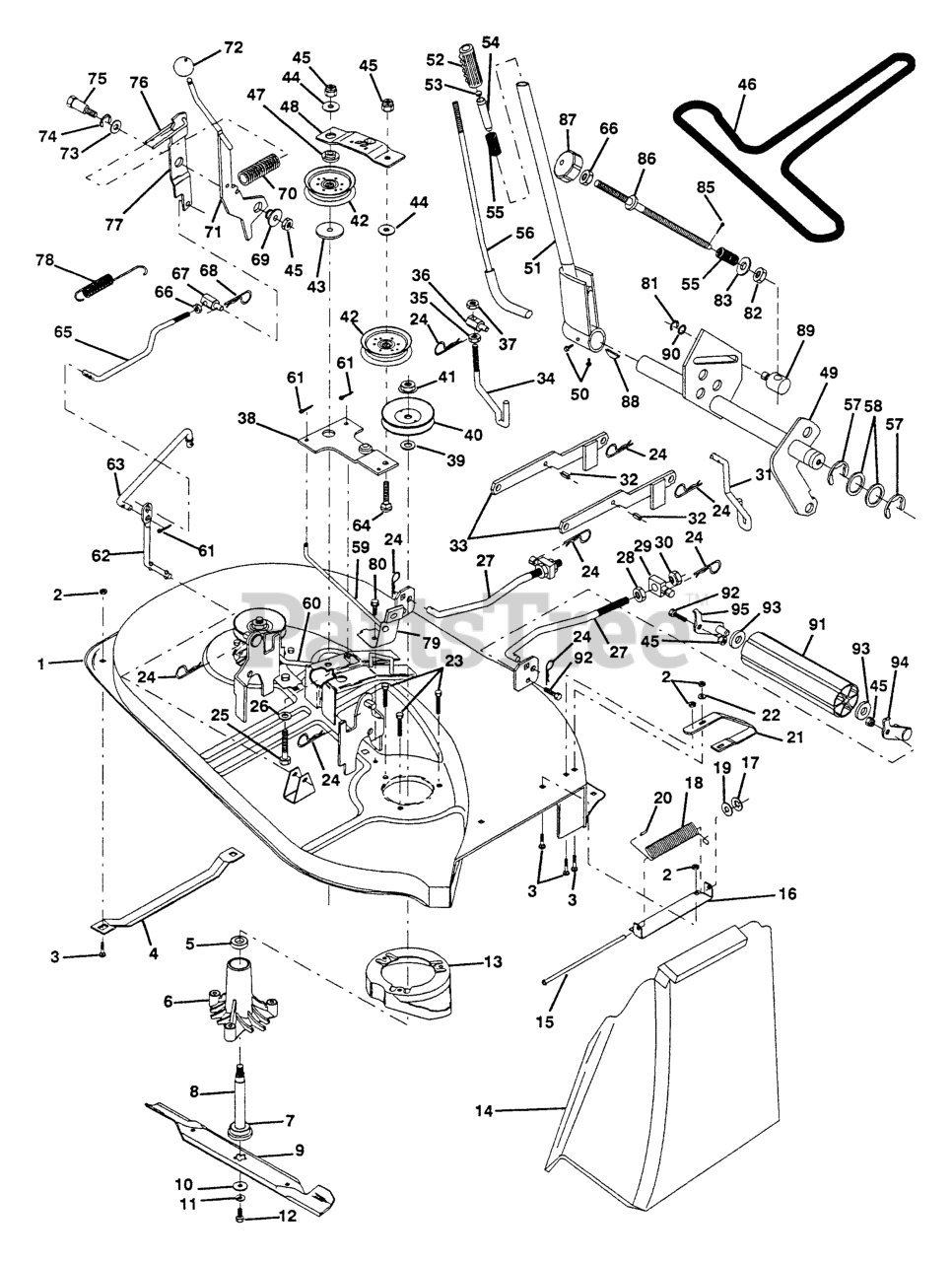

Mower Parts Diagram

  • Title

1

Husqvarna 532129365

CUTTER DECK
(Superseded to 532145775)

Note: Subs to 145775

$

$

Not available

2

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

3

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 532125074

RUNNER-LH M
(Superseded to 532007631)

$17.99

$

In Stock, Qty 9

0

5

Husqvarna 532110485

BEARING

$14.99

$

In Stock, Qty 20+

0

6

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)
(Superseded to 529910001)

$51.99

$

In Stock, only 2 left!

0

7

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$13.99

$

In Stock, Qty 20+

0

8

Husqvarna 532133172

SHAFT MANDREL (INCL KEY #47)
(Superseded to 532137646)

$34.99

$

In Stock, Qty 20+

0

9

Husqvarna 532127842

BLADE 38" VENTED DECK.
(Superseded to 532138497)

$26.99

$

In Stock, Qty 20+

0

10

Husqvarna 532129962

WASHER
(Superseded to 532140296)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532128961

STRIPPER
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

14

Husqvarna 532106736

SHIELD.DEFLECTOR.MOWER.38.BL

$

$

Not available

15

Husqvarna 532106735

ROD-HINGE T

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532105896

DEFLECTOR BRKT LT
(Superseded to 531155201)

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 532106734

DEFLECTOR SPRG T
(Superseded to 532123713)

$7.99

$

In Stock, Qty 16

0

19

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$

$

Not available

20

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 532128772

RUNNER.RH.38

$

$

Not available

22

Husqvarna 819111216

WASHER M
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 532078158

BOLT 5/16X18X1 1/4
(Superseded to 817580520)

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

25

Husqvarna 874600636

BOLT
(Superseded to 874760636)

$5.99

$

In Stock, only 1 left!

0

26

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532127218

FRONT LINK

$20.99

$

In Stock, only 4 left!

0

28

Husqvarna 873350800

NUT.HEX.JAM.1/2-13
(Superseded to 596433401)

$3.49

$

In Stock, only 2 left!

0

29

Husqvarna 532130171

TRUNION
(Superseded to 532175689)

$

$

Not available

30

Husqvarna 873680800

NUT LTV
(Superseded to 596433401)

$3.49

$

In Stock, only 2 left!

0

31

Husqvarna 532127224

LINK.LIFT.RH

$

$

Not available

32

Husqvarna 532128763

PIN-SPRING

$

$

Not available

33

Husqvarna 532133710

LIFTING ARM

$

$

Not available

34

Husqvarna 532127223

LIFT LINK LH

$

$

Not available

35

Husqvarna 873360700

NUT **
(Superseded to 873610700)

$6.99

$

In Stock, Qty 20+

0

36

Husqvarna 532110447

TRUNNION T
(Superseded to 532132793)

$

$

Not available

37

Husqvarna 873710700

NUT LOCK YTH
(Superseded to 873610700)

$6.99

$

In Stock, Qty 20+

0

38

Husqvarna 532133840

IDLER ARM
(Superseded to 531164901)

$13.99

$

In Stock, only 3 left!

0

39

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

40

Husqvarna 532129206

MANDREL PULLEY
(Superseded to 532153532)

$22.99

$

In Stock, Qty 20+

0

41

Husqvarna 873050900

NUT FLANGELOCK 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 2 left!

0

42

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$28.99

$

In Stock, Qty 20+

0

43

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, Qty 20+

0

44

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

45

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

46

Husqvarna 532131290

BELT
(Superseded to 532144200)

$51.99

$

In Stock, Qty 20+

0

47

Husqvarna 532133502

SPACER.IDLER.ARM

$5.99

$

In Stock, only 3 left!

0

48

Husqvarna 532133503

STIFFENER.IDLER.ARM
(Superseded to 531150801)

$7.99

$

In Stock, Qty 13

0

49

Husqvarna 532131874

ASSY-SHAFT LIFT

$

$

Not available

50

Husqvarna 823180606

SCREW

$

$

Not available

51

Husqvarna 532121719

ROD ASS'Y LEVER

$

$

Not available

52

Husqvarna 532125631

GRIP HANDLE

$7.99

$

In Stock, Qty 9

0

53

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

54

Husqvarna 532122364

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

55

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$3.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532121719

ROD ASS'Y LEVER

$

$

Not available

57

Husqvarna 812000022

E-RING

$3.49

$

In Stock, only 2 left!

0

58

Husqvarna 819292016

Washer 29/32 x 1-1/4 x 16 Ga.

$9.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532131288

BRAKE ROD RH

$

$

Not available

60

Husqvarna 532131289

BRAKE ROD LH

$

$

Not available

61

Husqvarna 876020312

COTTER PIN
(Superseded to 596917601)

$3.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532133551

PIVOT ROD

$7.99

$

In Stock, only 1 left!

0

63

Husqvarna 532133504

CLUTCH ROD SECONDARY

$

$

Not available

64

Husqvarna 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, Qty 20+

0

65

Husqvarna 532133550

CLUTCH ROD PRIMARY
(Superseded to 532134666)

$

$

Not available

66

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

67

Husqvarna 532133205

TRUNION
(Superseded to 532142028)

$

$

Not available

68

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 20+

0

69

Husqvarna 532127498

BUSHING.FLANGE.E-RING.GROOVE

$

$

Not available

70

Husqvarna 532128759

SPRING
(Superseded to 532153701)

$

$

Not available

71

Husqvarna 532131813

ASSY-ARM CLUTCH (PRIMARY)

$

$

Not available

72

Husqvarna 532132044

KNOB

$

$

Not available

73

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

74

Husqvarna 812000029

RING CLIP

$1.49

$

In Stock, Qty 20+

0

75

Husqvarna 532128903

BOLT

$6.99

$

In Stock, only 1 left!

0

76

Husqvarna 532127845

KEEPER SPRING

$

$

Not available

77

Husqvarna 532127847

ARM CLUTCH SECONDARY

$

$

Not available

78

Husqvarna 532131870

RETURN SPRING

$13.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532130840

BRAKE ASSEMBLY
(Superseded to 531165101)

$62.99

$

In Stock, Qty 10

0

80

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 812000037

Ring, Klip

$

$

Not available

82

Husqvarna 532110807

NUT T

$

$

Not available

83

Husqvarna 819131016

WASHER

$3.49

$

In Stock, only 4 left!

0

85

Husqvarna 876020308

COTTER PIN
(Superseded to 596917601)

$3.49

$

Usually ships in 3-10 days

0

86

Husqvarna 532110729

ROD LIFT LT

$

$

Not available

87

Husqvarna 532121891

HDLE ADJ LIFT

$

$

Not available

88

Husqvarna 532124997

KEY STD

$

$

Not available

89

Husqvarna 532110810

TRUNION LT

$

$

Not available

90

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Ga.

$

$

Not available

91

Husqvarna 532132264

NOSE ROLLER

$37.99

$

In Stock, Qty 20+

0

92

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

93

Husqvarna 819171416

Washer 17/32 x 7/8 16 Ga.

$4.99

$

In Stock, only 2 left!

0

94

Husqvarna 532132273

BRACKET RH (B)
(Superseded to 531154101)

$14.99

$

In Stock, only 4 left!

0

95

Husqvarna 532132274

BRACKET LH (A)
(Superseded to 532175746)

$9.49

$

In Stock, only 2 left!

0

Husqvarna 532132378

DECK ASSEMBLY
(Superseded to 532142820)

$

$

Not available

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

Note: (Includes Key No.'s 5, 7, 8, 10 - 12, 39 And 41)

$62.99

$

In Stock, Qty 20+

0
