LT 125 - Electrolux/AYP Lawn Tractor CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

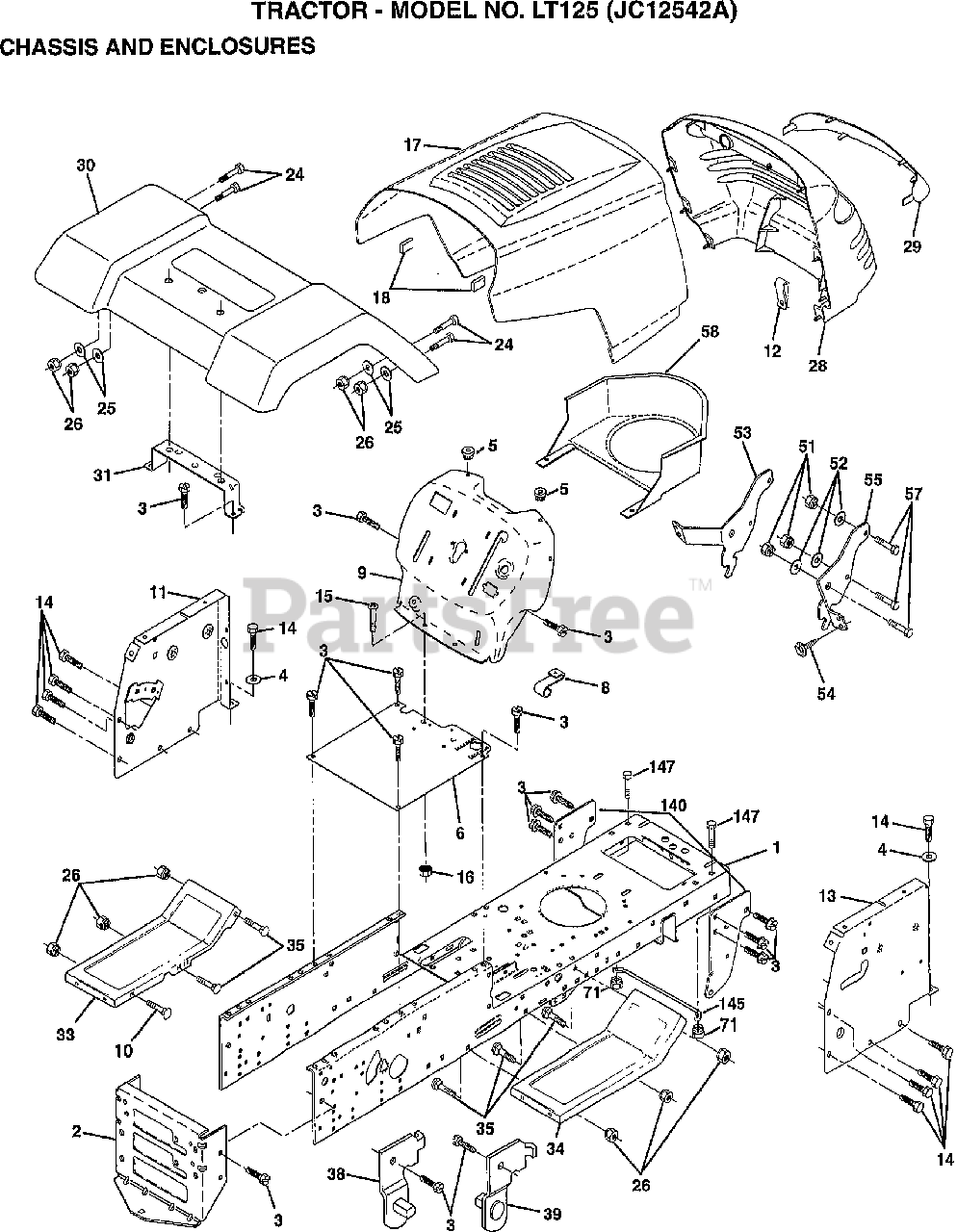

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 532159530

SUB= 159530

$

$

Not available

2

Electrolux/AYP 532140356

SUB= 145009
(Superseded to 532145009)

$

$

Not available

3

Electrolux/AYP 817490612

SCREW THDROL 3/8-16X3/4 TY-TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 819131216

WASHER 13/32X3/4X16 GA

$

$

Not available

5

Electrolux/AYP 532155272

SUB= 155272

$7.49

$

In Stock, Qty 5

0

6

Electrolux/AYP 532155923

SUB= 155923

$14.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532155138

SUB= 155138

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532157969

SUB= 147627X011
(Superseded to 584371301)

$21.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 872140608

BOLT CARRIAGE 3/8-16X1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532155927

SUB= 155927
(Superseded to 532174996)

$11.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532145660

SUB= 145660

$3.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 532157262

SUB= 155934X010
(Superseded to 532169117)

$

$

Not available

14

Electrolux/AYP 817490608

SCREW THDROL 3/8-16X1/2 TY-TT

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 874180512

SCREW MACHINE TRHD 5/16-18 X 3/4

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 873510500

NUT, KEPS 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532159355

SUB= 159639X505

$

$

Not available

18

Electrolux/AYP 532126938

"BUMPER,HOOD T"

$

$

Not available

24

Electrolux/AYP 874780616

BOLT FIN HEX 3/8-16 X 1

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 873800600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532157373

SUB= 157373
(Superseded to 532179101)

$

$

Not available

29

Electrolux/AYP 532140273

SUB= 140273

$17.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532141283

SUB= 140001X505

$

$

Not available

31

Electrolux/AYP 532136619

SUB= 136619
(Superseded to 136619)

$

$

Not available

33

Electrolux/AYP 532125401

SUB= 105476X505

$

$

Not available

34

Electrolux/AYP 532125402

SUB= 105475X505

$

$

Not available

35

Electrolux/AYP 872110606

BOLT RDHD SHT SQNK 3/8-16 X 3/4

$4.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532139886

SUB= 139886

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532139887

SUB= 139887

$8.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 873800400

NUT LOCK HEX W/INS 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 819091416

WASHER 9/32 X 7/8 X 16 GA

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 532144697

SUB= 144697

$

$

Not available

54

Electrolux/AYP 817030814

SCREW LOCK SPIDER #8 X 7/8
(Superseded to 532161464)

$

$

Not available

55

Electrolux/AYP 532144696

SUB= 144696

$

$

Not available

57

Electrolux/AYP 874780412

BOLT HEX 1/4-20 X 3/4
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 532150127

SUB= 150127

$

$

Not available

71

Electrolux/AYP 873680400

NUT CROWNLOCK 1/4-20
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

140

Electrolux/AYP 532158418

SUB= 158418

$

$

Not available

145

Electrolux/AYP 532156524

SUB= 156524
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

147

Electrolux/AYP 874760412

BOLT HEX HD 1/4-20 X 3/4

$7.49

$

In Stock, Qty 5

0

Electrolux/AYP 532005479

SUB= 5479J

$4.99

$

Usually ships in 3-10 days

0
