LT 125 (H12538C) - Husqvarna Lawn Tractor (1991-06) Steering, Front Axle And Wheels Parts Diagram

Lawn Tractor

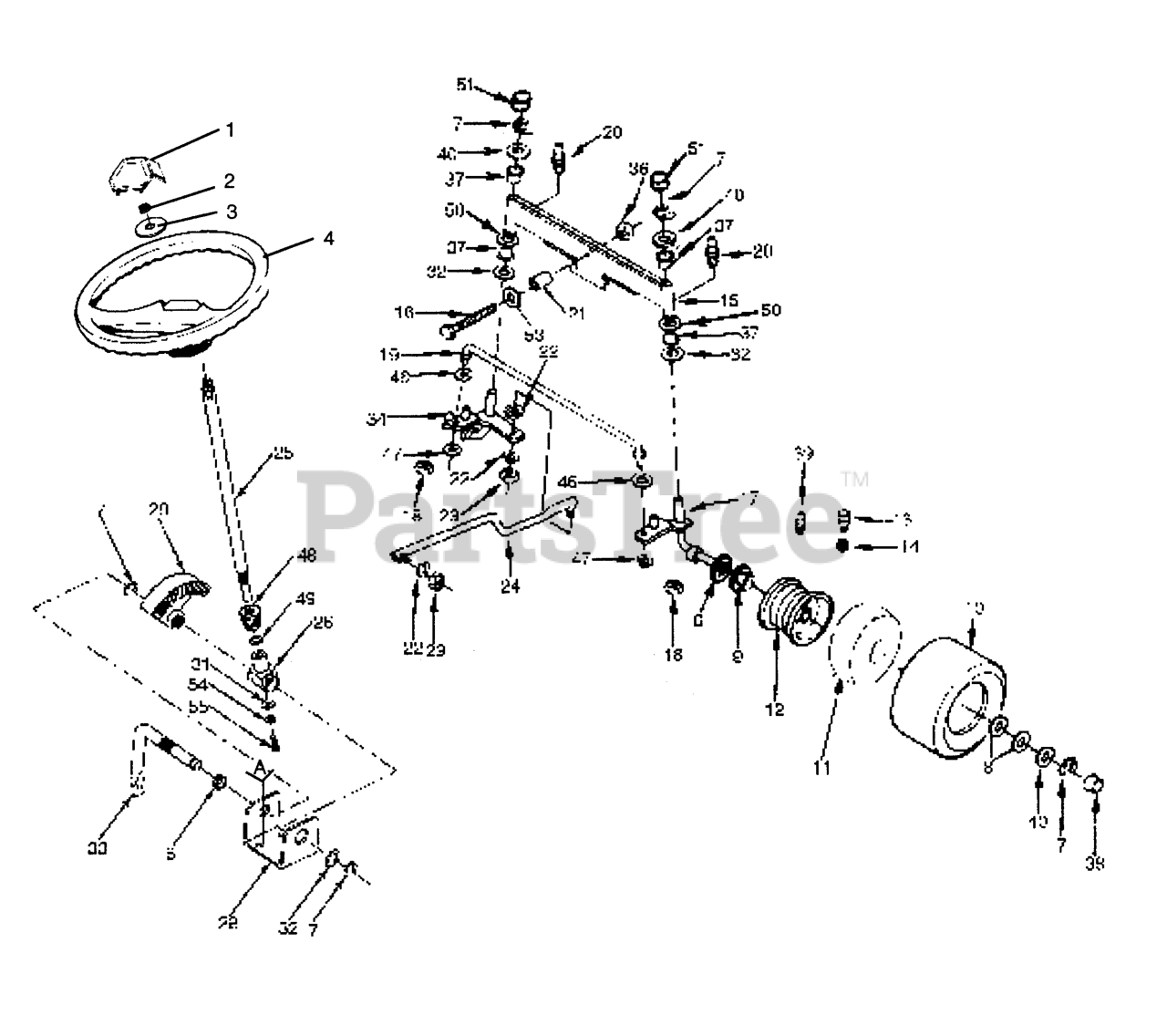

Steering, Front Axle And Wheels Parts Diagram

  • Title

1

Husqvarna 532124416

INSERT,STR WHEEL

$

$

Not available

2

Husqvarna 873940800

NUT.HEX.1/2-20

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 532100712

WASHER

$

$

Not available

4

Husqvarna 532124415

STEERING WHEEL

$

$

Not available

5

Husqvarna 532110711

ADAPTER LT
(Superseded to 587738905)

$11.99

$

In Stock, Qty 20+

0

6

Husqvarna 532109816

NYLINER T (7283A)

$5.99

$

In Stock, Qty 7

0

7

Husqvarna 812000029

RING CLIP

$1.49

$

In Stock, Qty 20+

0

8

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 532124959

BEARING T
(Superseded to 532009040)

$9.49

$

In Stock, Qty 20+

0

10

Husqvarna 532106222

TIRE HEAVY DUTY
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532059904

TUBE.5.3/4.5/6

$22.99

$

In Stock, Qty 8

0

12

Husqvarna 532125102

RIM.ASM.6X4.5.FRONT.WHITE
(Superseded to 532106732)

Note: (Inc. 2 each Key No. 9)

$102.99

$

In Stock, Qty 20+

0

13

Husqvarna 532065139

VALVE STEM LT

$6.49

$

In Stock, Qty 17

0

14

Husqvarna 532059192

VALVE CAP

$5.99

$

In Stock, Qty 7

0

15

Husqvarna 532108076

AXLE ASSY T
(Superseded to 532108075)

$

$

Not available

16

Husqvarna 874761060

BOLT LT

$

$

Not available

17

Husqvarna 532105654

SPINDLE-RH LT
(Superseded to 532130524)

$

$

Not available

18

Husqvarna 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available

19

Husqvarna 532121321

ROD TIE
(Superseded to 532170162)

$102.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532124836

ZERK M
(Superseded to 532183226)

$5.99

$

In Stock, Qty 10

0

21

Husqvarna 532110438

BEARING
(Superseded to 532155134)

$

$

Not available

22

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 873610600

NUT
(Superseded to 873800600)

$

$

Not available

24

Husqvarna 532124032

LINK DRAG
(Superseded to 532130468)

$102.99

$

In Stock, only 2 left!

0

25

Husqvarna 532124042

SHAFT STEERING
(Superseded to 531149701)

$102.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532124035

SHAFT,SUPPORT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 12

0

28

Husqvarna 532124036

BRKT,STEERING
(Superseded to 531152201)

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532124034

GEAR,SECTOR
(Superseded to 532136874)

$79.99

$

In Stock, Qty 7

0

31

Husqvarna 532126684

WASHER
(Superseded to 596582301)

$3.49

$

In Stock, Qty 12

0

32

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532124033

SHAFT,PITMAN
(Superseded to 532156365)

$

$

Not available

34

Husqvarna 532105656

SPINDLE-LH LT
(Superseded to 532156483)

$26.99

$

In Stock, only 2 left!

0

36

Husqvarna 873601000

LOCK NUT
(Superseded to 873681000)

$

$

Not available

37

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532104757

CAP.HUB.FRONT.LT.BLACK

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 532124957

FITTING LT
(Superseded to 532000278)

$6.99

$

In Stock, Qty 20+

0

40

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 819111216

WASHER M
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

47

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

48

Husqvarna 532124037

GEAR.PINION

$

$

Not available

49

Husqvarna 532057079

THRUST WASHER

$2.49

$

In Stock, Qty 10

0

50

Husqvarna 819272016

WASHER

$4.99

$

In Stock, Qty 7

0

51

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 20+

0

53

Husqvarna 819212010

WASHER
(Superseded to 734118571)

$

$

Not available

54

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

55

Husqvarna 871070410

SCREW,SPECIAL
(Superseded to 532165857)

$3.49

$

In Stock, only 1 left!

0
