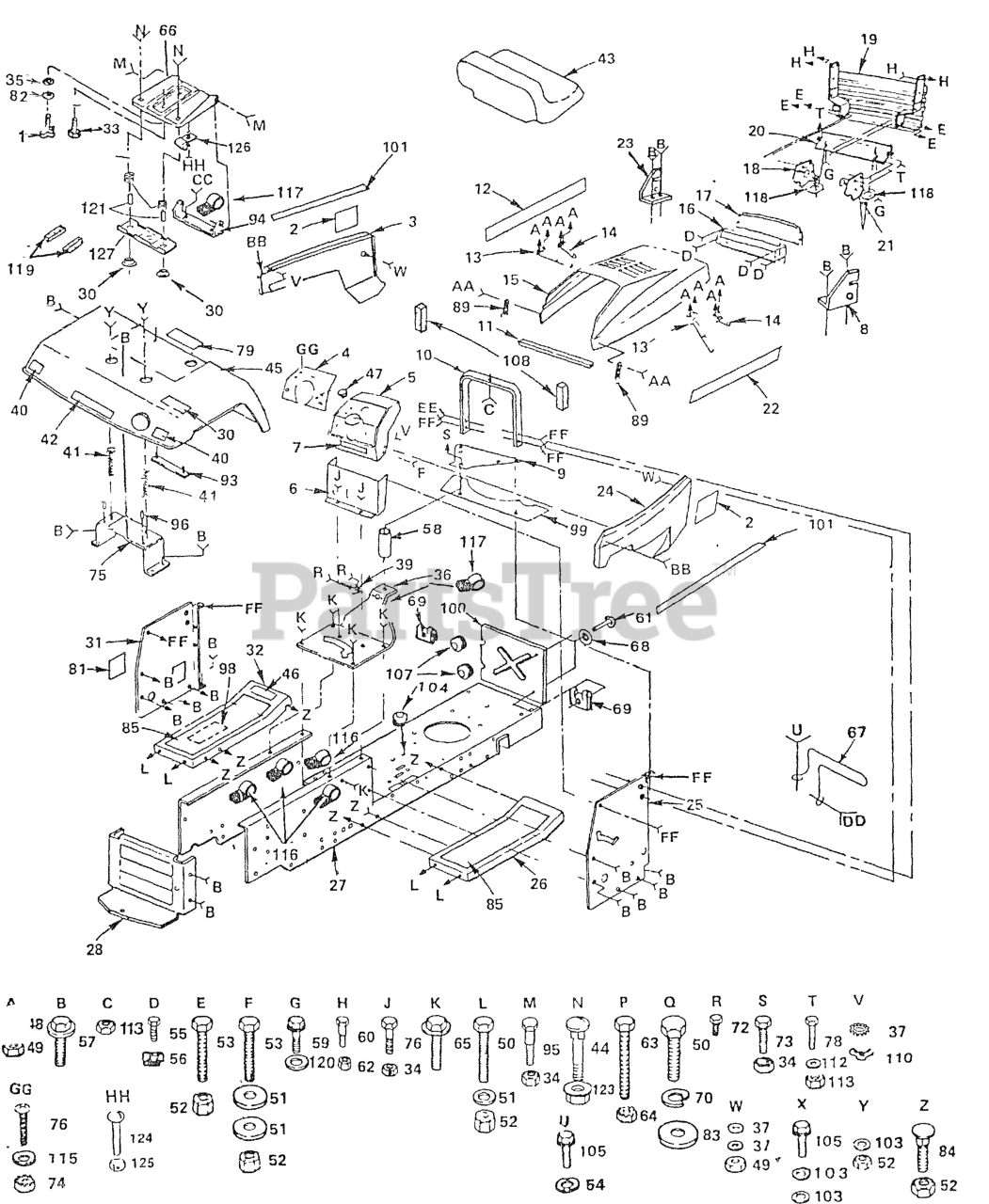

LT 125 (HVLT125AE) - Husqvarna Lawn Tractor (1990-01) Enclosures Parts Diagram

Lawn Tractor

Enclosures Parts Diagram

  • Title

1

Husqvarna 532120068

KNOB 1/2" YT
(Superseded to 532166369)

$7.99

$

In Stock, only 1 left!

0

2

Husqvarna 532126035

DECAL, SIDE PANEL NLA

$

$

Not available

2a

Husqvarna 532125586

DECAL,SIDE PAN RH

$

$

Not available

3

Husqvarna 532124845

Panel - Side, L.H.

$

$

Currently unavailable

4

Husqvarna 532124721

PLATE,DASHBOARD

$

$

Not available

5

Husqvarna 532124182

DASHBOARD
(Superseded to 532140452)

$

$

Not available

6

Husqvarna 532124846

Dash Assembly - Lower

$

$

Currently unavailable

7

Husqvarna 532109821

DECAL YT

$

$

Not available

8

Husqvarna 532110853

SUPPORT RH YTH

$

$

Not available

9

Husqvarna 532106965

PLATE SUPPORT T NLA

$

$

Not available

10

Husqvarna 532124130

SUPPORT ASS'Y

$

$

Not available

11

Husqvarna 532121251

STRIP FORM

$

$

Not available

12

Husqvarna 532124297

DECAL NLA

$

$

Not available

13

Husqvarna 532106784

STRAP ASSY LT

$

$

Not available

14

Husqvarna 532104618

STRAP ASSY LT

$

$

Not available

15

Husqvarna 532125007

HOOD
(Superseded to 532125454)

$

$

Not available

16

Husqvarna 532104613

REPL BY 532 12 43-92
(Superseded to 532124392)

$

$

Not available

17

Husqvarna 532106395

LENS

$

$

Not available

18

Husqvarna 532110855

SUPPORT LH YTH

$

$

Not available

19

Husqvarna 532126689

GRILL
(Superseded to 532157236)

$

$

Not available

20

Husqvarna 532105419

BRACKET

$

$

Not available

21

Husqvarna 532110854

BRACKET NLA

$

$

Not available

22

Husqvarna 532124298

DECAL

$

$

Not available

23

Husqvarna 532110852

SUPPORT LH YTH

$

$

Not available

24

Husqvarna 532124847

Panel - Side, R.H.

$

$

Currently unavailable

25

Husqvarna 532110828

PANEL LT NLA

$

$

Not available

26

Husqvarna 532105464

FOOTREST RH
(Superseded to 532145243)

$

$

Not available

27

Husqvarna 532121277

CHASSIS ASSY NLA

$

$

Not available

28

Husqvarna 532121306

DRAWBAR
(Superseded to 532145009)

$

$

Not available

30

Husqvarna 532121248

BUSHING

$

$

Not available

31

Husqvarna 532124850

Panel - Dash, L.H.

$

$

Currently unavailable

32

Husqvarna 532105465

FOOTREST LH**
(Superseded to 532147203)

$

$

Not available

33

Husqvarna 532121144

BOLT, SHOULDER**
(Superseded to 532127018)

$5.99

$

In Stock, only 1 left!

0

34

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

35

Husqvarna 819151616

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 15

0

36

Husqvarna 532124848

Saddle

$

$

Currently unavailable

37

Husqvarna 811030400

LOCKWASHER GT
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532124720

BUSHING LT
(Superseded to 532155108)

$7.99

$

In Stock, Qty 11

0

40

Husqvarna 532106202

REFLECTOR-TAIL YT

$

$

Not available

41

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, Qty 20+

0

42

Husqvarna 532125584

DECAL NLA

$

$

Not available

43

Husqvarna 532124186

SEAT
(Superseded to 532401043)

$

$

Not available

44

Husqvarna 872170410

Bolt, Roundhead 1/4 - 20 x 1 1/4

$

$

Not available

45

Husqvarna 532124749

FENDER

$

$

Not available

46

Husqvarna 532126677

DECAL

$

$

Not available

47

Husqvarna 532005479

PLUG BUTTON T

$9.49

$

Usually ships in 3-10 days

0

48

Husqvarna 810090400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

49

Husqvarna 873490400

NUT.WING.LCK.NYL.NOTCH.1/4-20
(Superseded to 532146525)

$

$

Not available

50

Husqvarna 874760612

BOLT

$3.49

$

In Stock, Qty 13

0

51

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

52

Husqvarna 873680600

LOCKNUT

$

$

Not available

53

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

54

Husqvarna 819131616

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

55

Husqvarna 817211010

Screw - Hex Washer Hd. Tapping 10 - 16 x 5/8

$

$

Not available

56

Husqvarna 532104755

HOLDER

$

$

Not available

57

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

58

Husqvarna 532121236

SPACER

$

$

Not available

59

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

60

Husqvarna 532124815

BOLT T
(Superseded to 532007605)

$

$

Not available

61

Husqvarna 532105751

STUD NLA

$

$

Not available

62

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

63

Husqvarna 874760620

BOLT

$5.99

$

Usually ships in 3-10 days

0

64

Husqvarna 873510600

NUT

$

$

Not available

65

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532124849

Pan - Seat

$

$

Currently unavailable

67

Husqvarna 532108885

PROTECTOR NLA

$

$

Not available

68

Husqvarna 532105838

RETAINER LT

$

$

Not available

69

Husqvarna 532105839

RECEPTACLE LT

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

72

Husqvarna 817431008

SCREW LT
(Superseded to 817211008)

$

$

Not available

73

Husqvarna 874760532

Bolt-Hex 5/16-18 x 2 Gr 2

$

$

Not available

74

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

75

Husqvarna 532105509

BRACKET-FENDER YT
(Superseded to 532183569)

$28.99

$

Usually ships in 3-10 days

0

76

Husqvarna 874180512

Screw - Mach. 5/16-18 x 3/4

$

$

Not available

78

Husqvarna 817190412

SCREW
(Superseded to 874760412)

$3.99

$

In Stock, Qty 6

0

79

Husqvarna 532120822

DECAL

$

$

Not available

81

Husqvarna 532121794

COVER ACCESS

$

$

Not available

82

Husqvarna 819171720

Washer- 17/32 x 1-1/16 x 20 Ga.

$

$

Currently unavailable

83

Husqvarna 819131212

WASHER T
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

84

Husqvarna 872140606

Bolt - Carriage 3/8 - 16 x 3/4

$

$

Not available

85

Husqvarna 532121251

STRIP FORM

$

$

Not available

89

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

93

Husqvarna 532105511

STRAP-FENDER YT
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532105513

BRKT,SEAT PIVOT**
(Superseded to 532126656)

$

$

Not available

96

Husqvarna 532105529

BOLT, SHOULDER LT
(Superseded to 532139888)

$4.99

$

In Stock, Qty 16

0

95

Husqvarna 532105531

NUT-PUSH YT

$

$

Not available

98

Husqvarna 532109199

DECAL

$

$

Not available

99

Husqvarna 532109740

PLATE NLA

$

$

Not available

100

Husqvarna 532108105

SHIELD HEAT HYT

$

$

Not available

101

Husqvarna 532121589

DECAL SIDE STRIPE

$

$

Not available

103

Husqvarna 819131614

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

104

Husqvarna 532124934

SNAP BUSHING T

$

$

Not available

105

Husqvarna 817490616

SCREW GTV
(Superseded to 817000616)

$6.99

$

In Stock, Qty 20+

0

106

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

107

Husqvarna 532110436

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

108

Husqvarna 532121251

STRIP FORM

$

$

Not available

109

Husqvarna 811050400

Lock Washer 1/4 Int. Ext.
(Superseded to 810040400)

$3.49

$

Usually ships in 3-10 days

0

100

Husqvarna 873490400

NUT.WING.LCK.NYL.NOTCH.1/4-20
(Superseded to 532146525)

$

$

Not available

112

Husqvarna 819091216

WASHER PM
(Superseded to 596204201)

$3.49

$

In Stock, Qty 10

0

113

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

115

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

116

Husqvarna 532005320

INSUL CLIP T

$

$

Not available

117

Husqvarna 532124966

CLIP
(Superseded to 532002751)

$

$

Not available

118

Husqvarna 819111212

WASHER

$3.49

$

Usually ships in 3-10 days

0

119

Husqvarna 532121251

STRIP FORM

$

$

Not available

120

Husqvarna 819111216

WASHER M
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

121

Husqvarna 532121249

SPACER SPLIT

$5.99

$

In Stock, only 2 left!

0

122

Husqvarna 532121250

SPRING

$4.99

$

Usually ships in 3-10 days

0

123

Husqvarna 532123976

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

124

Husqvarna 874641008

SCREW **

$

$

Not available

125

Husqvarna 873951000

Nut -Keps,#10-32UNF

$

$

Not available

126

Husqvarna 532004171

CLIP T
(Superseded to 532124967)

$

$

Not available

127

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

$11.99

$

In Stock, only 1 left!

0
