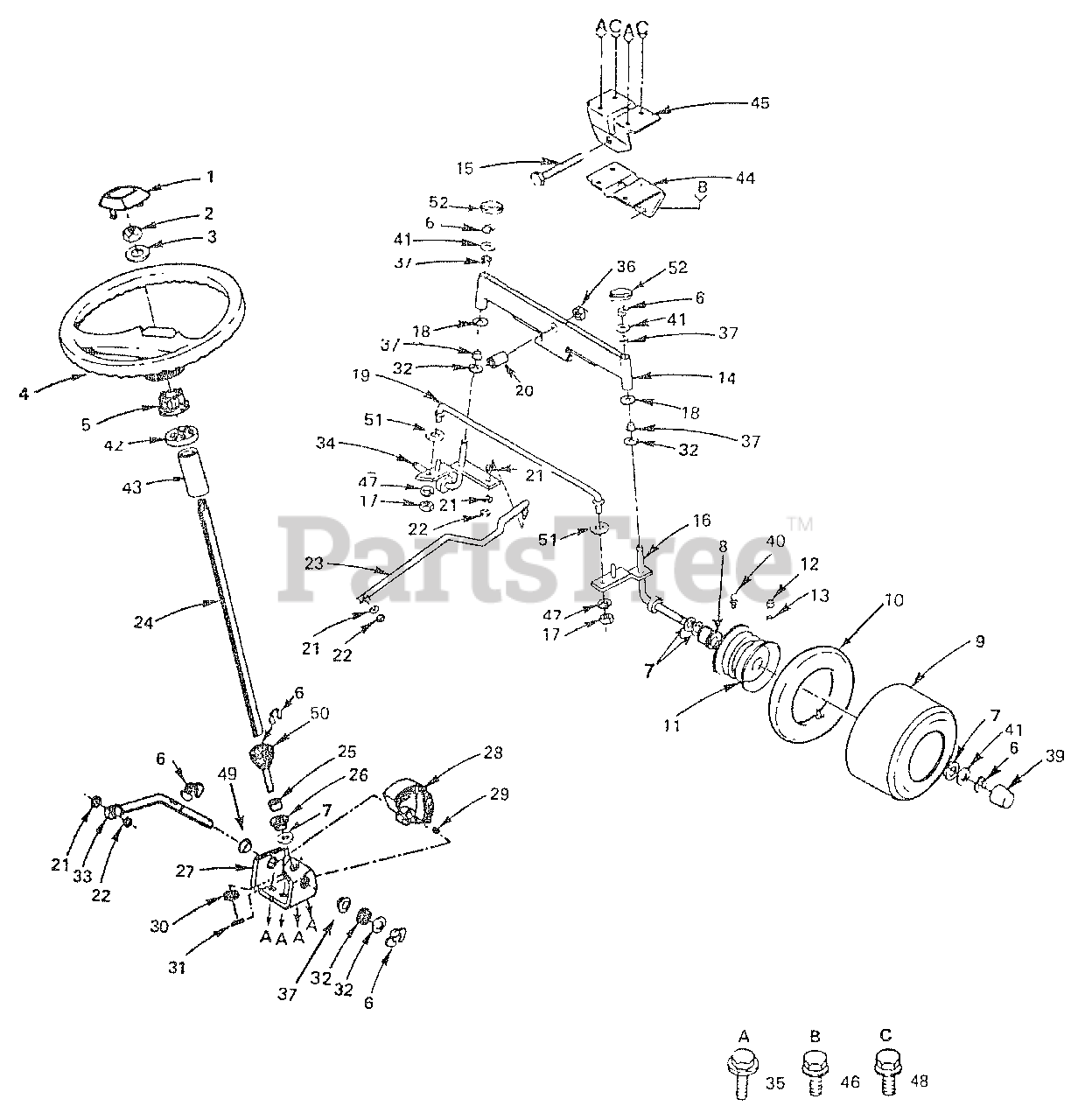

LT 125 (HVLT125AE) - Husqvarna Lawn Tractor (1990-01) Steering, Front Axle And Wheels Parts Diagram

Lawn Tractor

Steering, Front Axle And Wheels Parts Diagram

  • Title

1

Husqvarna 532124416

Insert - Steering Wheel

$

$

Not available

2

Husqvarna 873940800

Nut - Hex Toplock Jam 1/2-20

$7.49

$

In Stock, Qty 11

0

3

Husqvarna 532100712

Washer 17/32 x 2-1/4 x .160

$

$

Not available

4

Husqvarna 532124415

Steering Wheel - 13"

$

$

Not available

5

Husqvarna 532100711

Adapter - Wheel, Steering
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

6

Husqvarna 812000029

Klip Ring

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532121749

Washer - 25/32 x 1 1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 532009040

Bearings - Wheel, Front

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 532106222

Tire - Rib Tread 15 x 6.00-6 (Tubeless)
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532059904

Tube - Tire

Note: (not furnished with Tractor)

$37.99

$

In Stock, Qty 20+

0

11

Husqvarna 532106732

Rim Assembly - 6 Front

Note: (Inc. 2 each Key No. 8)

$87.99

$

In Stock, Qty 20+

0

12

Husqvarna 532065139

Stem - Valve

$10.99

$

In Stock, Qty 20+

0

13

Husqvarna 532059192

Cap - Valve

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 532108075

Axle Assembly - Front

$

$

Not available

15

Husqvarna 874761060

Bolt -Hex 5/8-11 x 3-3/4

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532105654

Spindle Assembly. - R.H.
(Superseded to 532130524)

$

$

Not available

17

Husqvarna 873810500

Nut- Hex 5/16-24
(Superseded to 873610500)

$

$

Not available

18

Husqvarna 819272016

Washer - 27/32 X 1-1/4 X 16 Ga.

$6.49

$

In Stock, only 4 left!

0

19

Husqvarna 532121334

Tie Rod
(Superseded to 532170162)

$93.99

$

In Stock, Qty 5

0

20

Husqvarna 532110438

Bearing
(Superseded to 532155134)

$

$

Not available

21

Husqvarna 810040600

Lockwasher - 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 873610600

Nut - Hex 3/8-24
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532105727

Drag Link

$

$

Not available

24

Husqvarna 532109557

Shaft Assembly - Steering

$

$

Not available

25

Husqvarna 532074580

Spacer

$

$

Not available

26

Husqvarna 871253208

Bushing - Steering Rod

$

$

Currently unavailable

27

Husqvarna 532109432

Bracket Assembly - Steering
(Superseded to 532110150)

$

$

Not available

28

Husqvarna 532108684

Gear-Sector

$

$

Not available

29

Husqvarna 532106126

Woodruff Key - 3/16 x 3/4

$

$

Not available

30

Husqvarna 532101930

Washer-Hardened

$

$

Not available

31

Husqvarna 532002882

Drive Pin - 3/16 X 1
(Superseded to 532001572)

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532124931

Bearing - Thrust
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

33

Husqvarna 532108683

Rod - Steering

$

$

Not available

34

Husqvarna 532105656

Spindle Assembly - L.H.
(Superseded to 532156483)

$26.99

$

In Stock, only 1 left!

0

35

Husqvarna 532122819

Screw - Hex Washer Hd. - Thread Forming - Type TT - 3/8 -16 x 3/4

$

$

Not available

36

Husqvarna 873901000

Nut- Lock Flange, 5/8-11
(Superseded to 873681000)

$2.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532003366

Bearing

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 532124577

Cover- Wheel, 6", Front

$

$

Not available

40

Husqvarna 532000278

Grease Fitting

$6.49

$

In Stock, Qty 20+

0

41

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 532106943

Spacer - Shaft, Steering

$

$

Not available

43

Husqvarna 532106945

Tube - Shaft, Steering

$

$

Not available

44

Husqvarna 532105664

Support - Saddle, Front

$9.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532105663

Support - Saddle, Rear

$

$

Not available

46

Husqvarna 817490508

Screw - Hex Washer Thd. Rolling - 5/16-18 X 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 810040500

Lockwasher - 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 817490616

Screw - Hex Washer Hd. Thread Forming - Type TT - 3/8-16 x 1
(Superseded to 817000616)

$7.49

$

In Stock, Qty 8

0

49

Husqvarna 532109816

Nyliner - Snap In

$6.49

$

In Stock, only 2 left!

0

50

Husqvarna 532108685

Gear- Pinion

$

$

Not available

51

Husqvarna 819111216

Washer -11/32 X 3/4 X 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

52

Husqvarna 532121232

Spindle Cap

$3.99

$

In Stock, Qty 20+

0
