LT 125 (HVLT125AE) - Husqvarna Lawn Tractor (1990-01) Transaxle And Rear Wheel Parts Diagram

Lawn Tractor

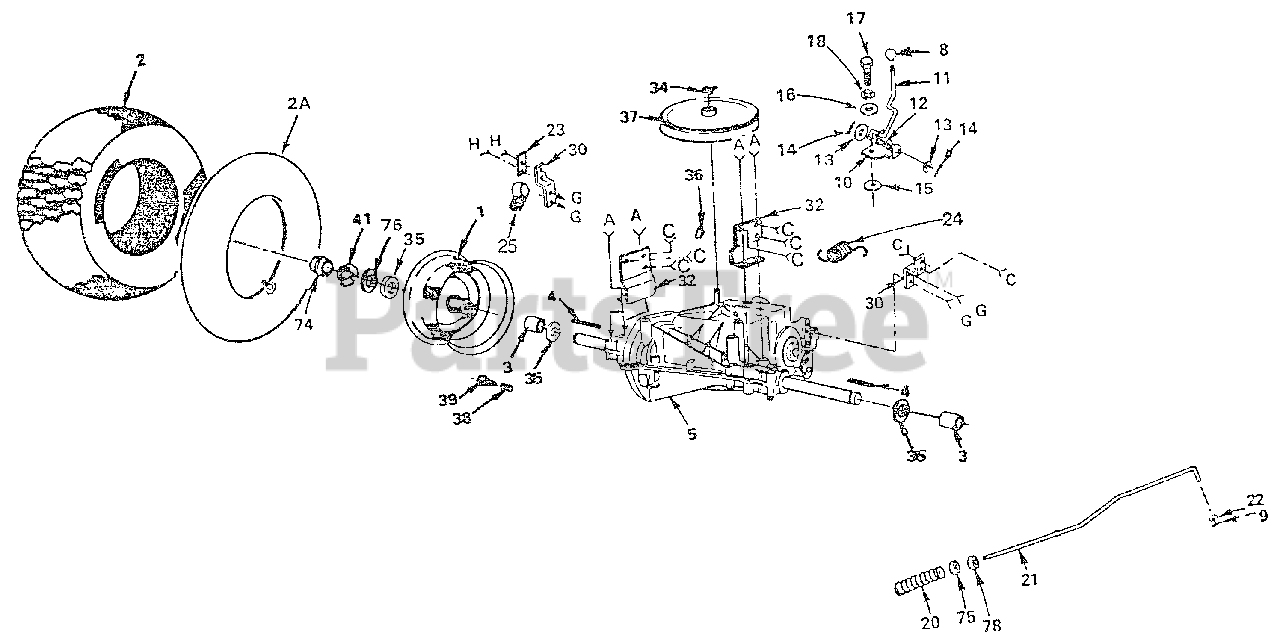

Transaxle And Rear Wheel Parts Diagram

  • Title

1

Husqvarna 532106108

Rim Assembly 8" Rear

$145.99

$

In Stock, only 1 left!

0

2

Husqvarna 532106268

Tire 18 x 9.50 - 8 (Tubeless)
(Superseded to 532420531)

$120.99

$

In Stock, only 1 left!

0

2A

Husqvarna 532124926

Tube - Tire
(Superseded to 532007152)

Note: (not furnished with Tractor)

$74.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532109502

Spacer-Split

$

$

Not available

4

Husqvarna 532123583

Key - Square 3/16 x 2

$4.99

$

In Stock, only 4 left!

0

5

Husqvarna 532109978

Transaxle - 6 Speed, Mode No.4150-61

$

$

Not available

8

Husqvarna 532121274

Knob - Control

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 876020412

Cotter Pin -1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 532108843

Plate - Rod, Shift
(Superseded to 532106919)

$

$

Not available

11

Husqvarna 532124379

Rod - Shifter

$

$

Not available

12

Husqvarna 532105700

Spring - Torsion

$

$

Not available

13

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Ga.

$

$

Not available

14

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532106362

Washer- Shift Plate

$2.99

$

Usually ships in 3-10 days

0

16

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 871040412

Bolt - Hex 1/4- 28 x 3/4, Gr.8

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 810040400

Washer-Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

20

Husqvarna 532106888

Spring- Rod, Brake
(Superseded to 532151332)

$6.49

$

In Stock, Qty 6

0

21

Husqvarna 532110437

Rod - Brake
(Superseded to 532131867)

$

$

Not available

22

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532106157

Plate - Strap, Torque

$

$

Not available

24

Husqvarna 532110422

Spring - Brake Return
(Superseded to 532146682)

$8.99

$

In Stock, only 1 left!

0

25

Husqvarna 532124996

Clip
(Superseded to 532002751)

$

$

Not available

30

Husqvarna 532105842

Strap - Torque

$

$

Not available

32

Husqvarna 532109167

Bracket - Transaxle

$

$

Not available

34

Husqvarna 812000028

Ring - Klip

$7.49

$

In Stock, Qty 16

0

35

Husqvarna 532121749

Washer- 25/32 x 1-1/4 x 16 Ga.

Note: (2 to 4 as required)

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 532125096

Woodruff Key - 3/16 x 34

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123666

Pulley -Transaxle

$37.99

$

In Stock, only 3 left!

0

38

Husqvarna 532059192

Cap - Valve

$7.49

$

In Stock, only 1 left!

0

39

Husqvarna 532065139

Stem - Valve

$10.99

$

In Stock, Qty 20+

0

41

Husqvarna 812000001

E-Ring

$4.99

$

In Stock, Qty 17

0

74

Husqvarna 532124578

Cap - Hub, Rear

$

$

Not available

75

Husqvarna 873680600

Nut- Centerlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

78

Husqvarna 873350600

Nut - Hex Jam, 3/8 -16
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0
