LT 125G331KVE (80233) - Snapper 33" Lawn Tractor, 12.5hp Transmission Support & Components Parts Diagram

33" Lawn Tractor, 12.5hp

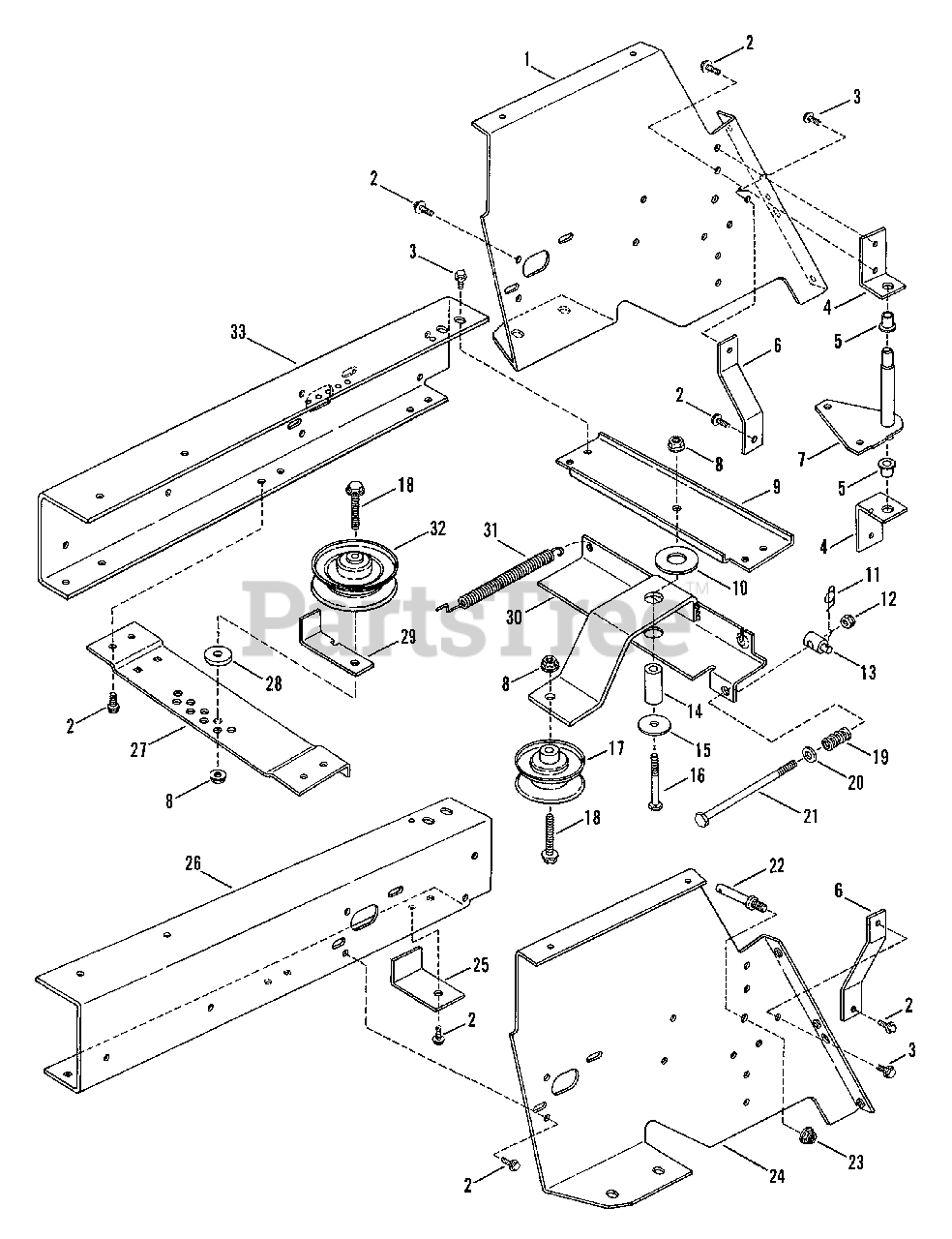

Transmission Support & Components Parts Diagram

  • Title

1

Snapper 7033324

MOUNT, Transmission (R.H.)
(Superseded to 7033324YP)

$101.99

$

Usually ships in 2-12 days

0

2

Snapper 7090361

SCREW, 5/16-18 x 5/8" H.W. Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

3

Snapper 7090858

SCREW, 5/16-18 x 1/2" H.W. Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

4

Snapper 7033591

BRACKET, Bell Crank
(Superseded to 7033591YP)

$39.99

$

Usually ships in 2-12 days

0

5

Snapper 7011016

BEARING
(Superseded to 7011016YP)

$4.49

$

In Stock, Qty 13

0

6

Snapper 7033325

BRACKET, Torque

$

$

Not available

7

Snapper 7041312

BELL CRANK ASSEMBLY
(Superseded to 7041312YP)

$80.99

$

Usually ships in 2-12 days

0

8

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

9

Snapper 7033346

CROSS BRACE, Upper

$

$

Currently unavailable

10

Snapper 7024102

WASHER

$

$

Not available

11

Snapper 7091593

COTTER-PIN, 3/8 Self-Lock
(Superseded to 703355)

Note: Was 24159

$3.99

$

In Stock, Qty 20+

0

12

Snapper 7091298

NUT, 5/16-18 Hex Lock
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 12

0

13

Snapper 7024253

PIN, Brake

$

$

Currently unavailable

14

Snapper 7022224

SPACER

$

$

Not available

15

Snapper 7032255

WASHER, Thrust

$

$

Not available

16

Snapper 7090629

BOLT, 3/8-16 x 2 1/4" Hex Head
(Superseded to 7090629YP)

$2.49

$

Usually ships in 2-12 days

0

17

Snapper 7017748

PULLEY, Idler

$

$

Not available

18

Snapper 7091580

BOLT, 3/8-16 x 1 3/4" Hex Flange Lock
(Superseded to 703812)

Note: Was 90701

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7017416

SPRING
(Superseded to 7017416YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7090692

WASHER, 5/16 Flat
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7024256

BOLT, 5/16-18 x 5" Hex Head

$

$

Currently unavailable

22

Snapper 7012111

STUD, Idler
(Superseded to 703836)

$8.49

$

In Stock, only 3 left!

0

23

Snapper 7090962

NUT, 3/8-24 Hex Flange Lock

$4.49

$

In Stock, Qty 7

0

24

Snapper 7033323

MOUNT, Transmission (L.H.)
(Superseded to 7033323YP)

$101.99

$

Usually ships in 2-12 days

0

25

Snapper 7033326

GUIDE, Belt

$

$

Currently unavailable

26

Snapper 7033321

FRAME CHANNEL (L.H.)

$

$

Currently unavailable

27

Snapper 7033327

CROSS-BRACE, Lower

$

$

Currently unavailable

28

Snapper 7016360

WASHER

$

$

Not available

29

Snapper 7032368

GUIDE, Belt

$

$

Not available

30

Snapper 7041313

IDLER ARM ASSEMBLY

$

$

Not available

31

Snapper 7022225

SPRING, Idler

$

$

Not available

32

Snapper 7011029

PULLEY, Idler
(Superseded to 7011029YP)

$23.99

$

In Stock, only 1 left!

0

33

Snapper 7033322

FRAME CHANNEL (R.H.)

$

$

Currently unavailable
