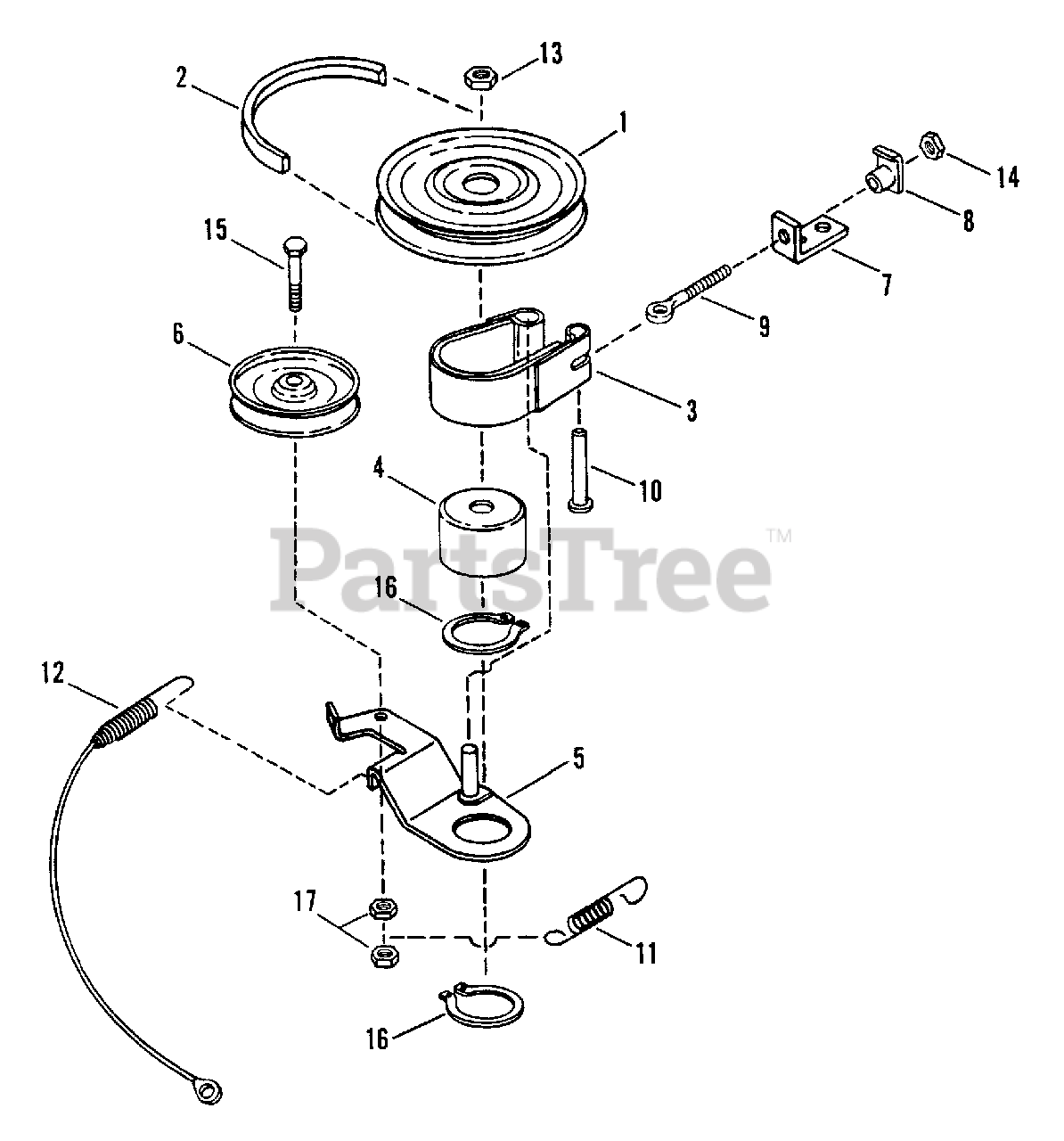

LT 125G411KVE (80234) - Snapper 41" Lawn Tractor, 12.5hp Belt, Blade Brake, 41" Cutting Deck Parts Diagram

41" Lawn Tractor, 12.5hp

Belt, Blade Brake, 41" Cutting Deck Parts Diagram

  • Title

1

Snapper 7015724

PULLEY, Drive

$

$

Not available

2

Snapper 7014799

BELT, Drive
(Superseded to 7014799YP)

$61.99

$

In Stock, only 1 left!

0

3

Snapper 7052886

BAND, Brake Assembly
(Superseded to 7503086YP)

Note: Was 57307

$38.99

$

In Stock, only 3 left!

0

4

Snapper 7032169

DRUM, Brake A101
(Superseded to 7035378YP)

$12.99

$

In Stock, only 3 left!

0

5

Snapper 7047912

ASSEMBLY, Brake Arm
(Superseded to 7047912YP)

$101.99

$

Usually ships in 2-12 days

0

6

Snapper 7018574

PULLEY, Idler
(Superseded to 7018574SM)

$40.99

$

In Stock, only 2 left!

0

7

Snapper 7032587

ANCHOR, Brake
(Superseded to 7032587YP)

$35.99

$

Usually ships in 2-12 days

0

8

Snapper 7014303

TEE-NUT, 1/4-20
(Superseded to 7014303YP)

$15.99

$

Usually ships in 2-12 days

0

9

Snapper 7014302

BOLT, 1/4-20 Eye
(Superseded to 7014302YP)

$4.99

$

In Stock, Qty 5

0

10

Snapper 7011021

PIN, Clevis, 1/4 x 1 1/4"
(Superseded to 7023914YP)

$

$

Not available

11

Snapper 7029788

SPRING, Blade Brake
(Superseded to 7029788YP)

Note: Was 23172

$31.99

$

Usually ships in 2-12 days

0

12

Snapper 7035434

CABLE, Blade 28.5"
(Superseded to 7035434YP)

Note: Was 19040

$30.99

$

In Stock, only 1 left!

0

13

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 14

0

14

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 17

0

15

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Hd. Cap
(Superseded to 7090167SM)

$

$

Not available

16

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.99

$

In Stock, Qty 20+

0

17

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 11

0
