LT 126 (960410204-03) - Husqvarna Lawn Tractor (2013-04) ENGINE Parts Diagram

Lawn Tractor

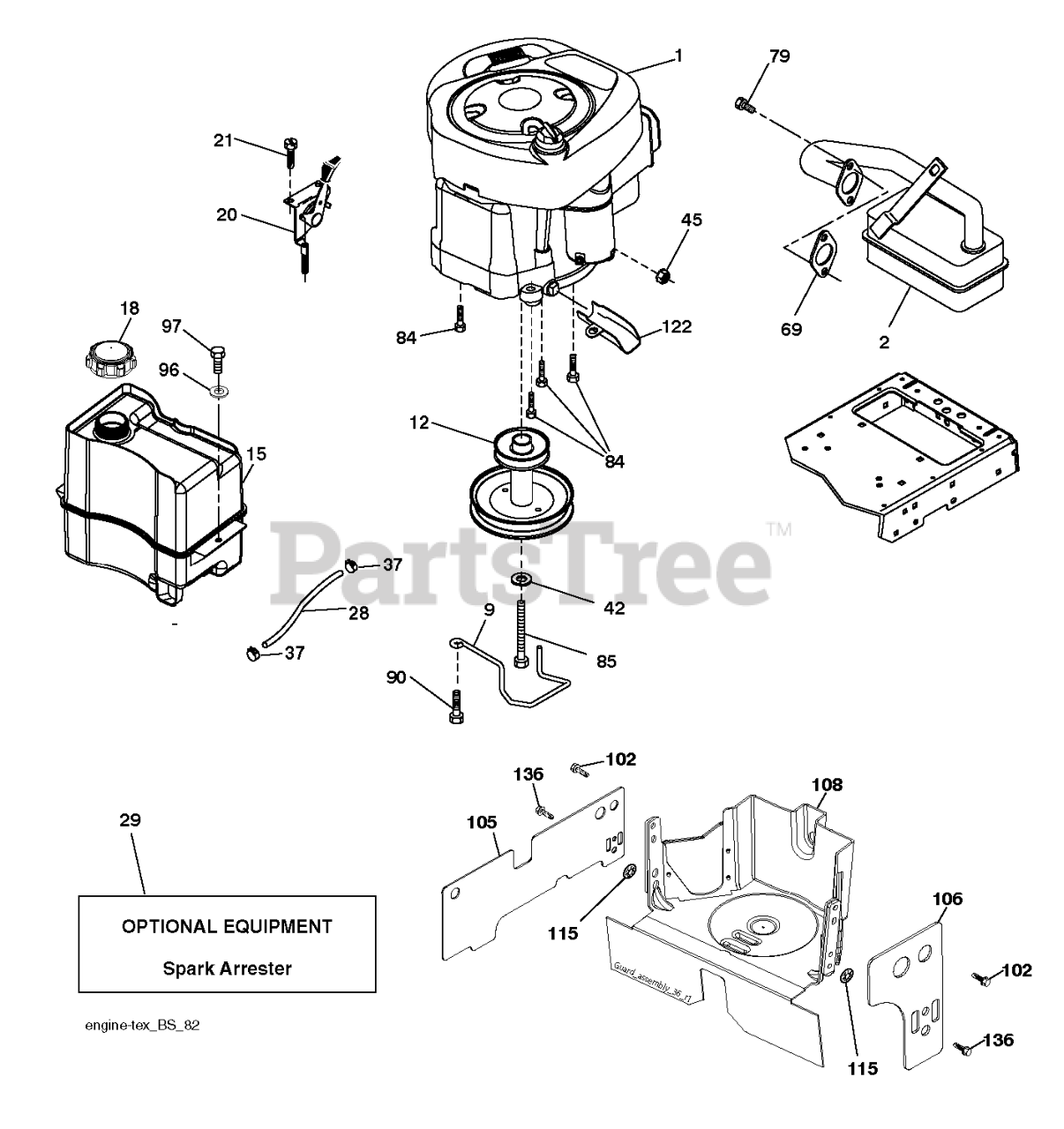

ENGINE Parts Diagram

  • Title

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

In Stock, Qty 6

0

136

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

115

Husqvarna 532423062

PALNUT 1/4

$3.49

$

In Stock, only 2 left!

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.49

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

1

000000000

Note: BRIGGS & STRATTON - 21R707-0005-B1 (585403601)

$

$

Not available

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 11

0

108

Husqvarna 532431689

COVER PULLEY
(Superseded to 583471901)

$

$

Not available

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$13.99

$

In Stock, Qty 10

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 20+

0

96

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

12

Husqvarna 532140186

PULLEY.ENG.CL.MECH.SLVR.LT/YT

$125.99

$

Usually ships in 3-10 days

0

106

Husqvarna 532430257

SHIELD SIDE
(Superseded to 583457201)

$

$

Not available

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.49

$

In Stock, Qty 15

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 6

0

105

Husqvarna 532420894

SHIELD LEFT
(Superseded to 583383701)

$

$

Not available

9

Husqvarna 584911601

KEEPER.BELT.ENGINE
(Superseded to 582540301)

$28.99

$

In Stock, only 4 left!

0

2

Husqvarna 532179758

MUFFLER.B&S.MODEL.21.11HP.OHV

$51.99

$

In Stock, Qty 20+

0

84

Husqvarna 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$34.99

$

In Stock, Qty 17

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

$62.99

$

In Stock, Qty 7

0
