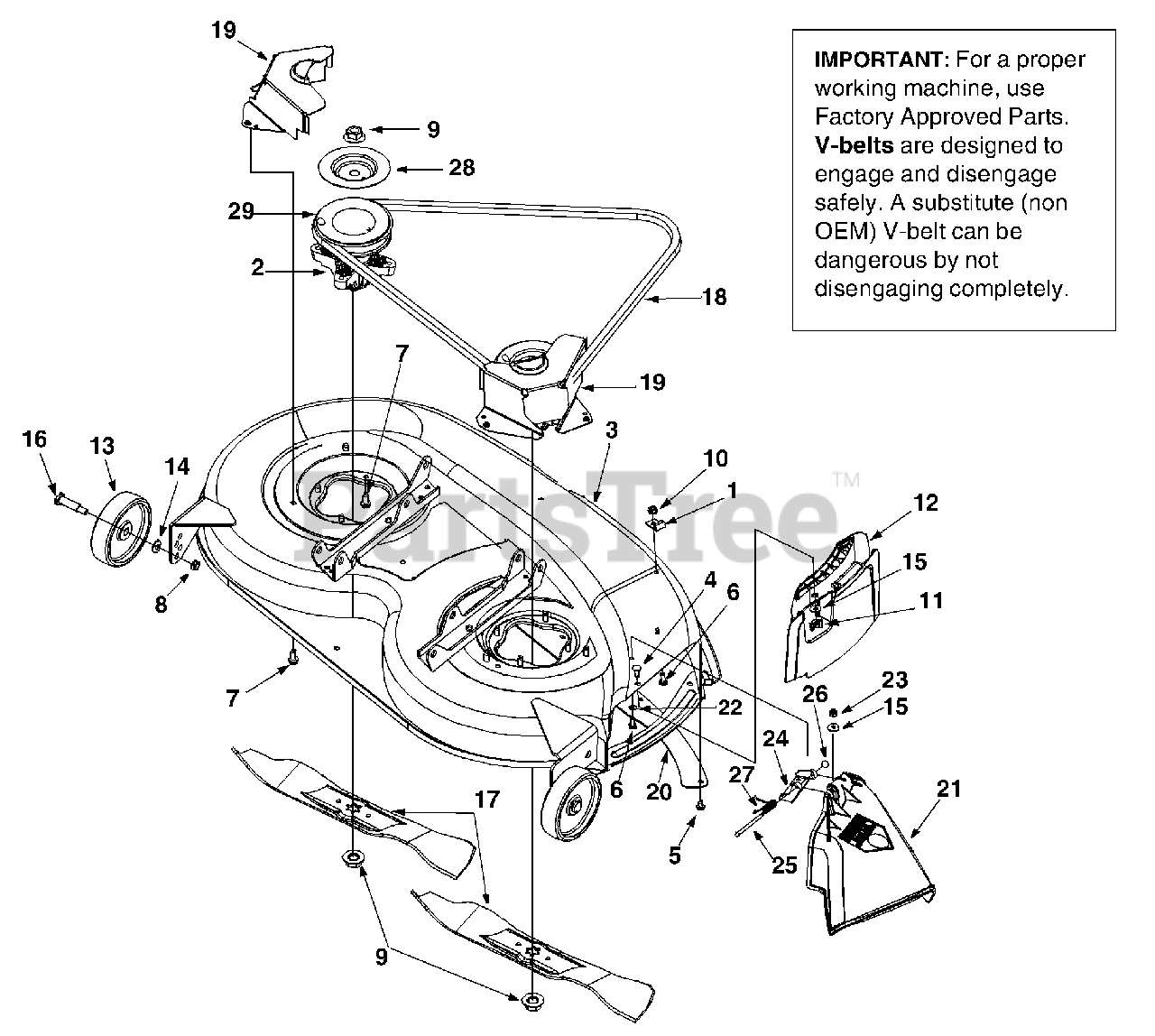

LT-13 (13AA662F190) - White Outdoor 38" Lawn Tractor (2002) > Parts Diagrams (10) > Deck Assembly

  • Title
16606

1

Retainer Hook Brkt.

Part# 16606 (Superseded to 96606)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.32

618-0138A

2

Blade Spdl Ass'y

Part# 618-0138A (Superseded to 918-0138C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $111.29

683-0129A

3

Deck Assembly

Part# 683-0129A

Note: Must be ordered with 4 digit color code.

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

DECK ASSEMBLY 38" BLACK

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $588.32

SILVER FLAKE (0629)

DECK ASSEMBLY 38" BLACK

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $588.32

POWDER BLACK (0637)

DECK ASSEMBLY 38" BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $588.32

MTD/TROY-BILT RED (0638)

DECK ASSEMBLY 38" BLACK

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $588.32

TECH GRAY (0648)

DECK ASSEMBLY 38"

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $588.32

RED METALLIC (0650)

DECK ASSEMBLY 38" BLACK

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $588.32

YARDMAN GREEN (0665)

DECK ASSEMBLY 38" BLACK

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $588.32

753-0694

38" Deck Ass'y Comp. (For Service)

Part# 753-0694

Note: Must be ordered with 4 digit color code.

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

KIT-DECK 38" NEW S

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

KIT-DECK 38" NEW S

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

KIT-DECK 38" NEW S

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

KIT-DECK 38" NEW S

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

KIT-DECK 38" NEW S

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

KIT-DECK 38" NEW S

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

710-0134

4

Carriage Screw 1/4-20 Thd. Gr.2

Part# 710-0134

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.98

710-0599

5

Hex Wash. Hd. TT-Tap Scr. 1/4-20 Thd.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0751

6

Hex Bolt 1/4-20 x .62" Lg.

Part# 710-0751

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

710-1260A

7

Hex Wash. TT-Tap Scr. 5/16-18 x .75"

Part# 710-1260A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

712-0181

8

Hex Top L-Nut 3/8-16 Thd.

Part# 712-0181 (Superseded to 912-0181)

OEM Warranty Repair Part for White Outdoor

Not available

712-0417A

9

Hex Flange Nut 5/8-16 Thd.

Part# 712-0417A

Note: Deck pulley and blade nuts must be torqued to 100 ft. lbs. if removed or replaced.

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.15

712-3027

10

Hex Flange Nut 1/4-20 Thd.

Part# 712-3027 (Superseded to 912-3027)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.05

712-3087

11

Wing Nut 1/4-20

Part# 712-3087

Note: Optional

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

731-2363

12

Mulch Plug

Part# 731-2363

Note: Optional

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $20.60

734-0973

13

Deck Wheel

Part# 734-0973

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.60

736-0105

14

Bell-Wash. .40" I.D. x .88" O.D.

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0270

15

Bell-Wash. 1/4" I.D.

Part# 736-0270

Note: Optional

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

738-0373

16

Shoulder Screw

Part# 738-0373 (Superseded to 938-0373)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.70

742-0610

17

3 in 1 blade

Part# 742-0610 (Superseded to 942-0610A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.82

742-0654

2 in 1 blade (For bagging and side dischrg)

Part# 742-0654

OEM Warranty Repair Part for White Outdoor

Not available

754-0329A

18

V Belt

Part# 754-0329A (Superseded to 954-0329A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $43.52

783-0343A

19

Belt Guard

Part# 783-0343A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.95

Variations

CHARCOAL GRAY (0483)

Deck Belt Cover, 38" Black

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.95

POWDER BLACK (0637)

Deck Belt Cover, 38" Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.95

MTD/TROY-BILT RED (0638)

Deck Belt Cover, 38" Black

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.95

TECH GRAY (0648)

Deck Belt Cover, 38" Black

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.95

RED METALLIC (0650)

Deck Belt Cover, 38" Black

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.95

YARDMAN GREEN (0665)

Deck Belt Cover, 38" Black

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.95

783-1297

20

Deck Skirt

Part# 783-1297

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Skirt Extension, 38" Deck

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.23

731-1032B

21

Chute Ass'y

Part# 731-1032B (Superseded to 631-05229)

Note: (Incl. Ref. 24, 25, 26, 27)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $59.82

731-1031B

Chute Deflector

Part# 731-1031B

Not available

726-0233

22

Push Nut

Part# 726-0233

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.12

712-3006

23

Hex Nut 1/4-20 Gr. 5

Part# 712-3006

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.24

703-1693A

24

Hinge Mounting Brkt.

Part# 703-1693A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.27

711-0792

25

Hinge Pin

Part# 711-0792 (Superseded to 911-0792)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.24

726-0106

26

Speed Nut Cap

Part# 726-0106 (Superseded to 926-0106)

OEM Warranty Repair Part for White Outdoor

Not available

732-0602A

27

Torsion Spring

Part# 732-0602A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.02

783-0342

28

Brake Disc

Part# 783-0342 (Superseded to 783-0342A)

OEM Warranty Repair Part for White Outdoor

Not available

756-1187

29

5" Dia. Pulley

Part# 756-1187

Note: Deck pulley and blade nuts must be torqued to 100 ft. lbs. if removed or replaced.

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.92
