LT-13 (13AA662F190) - White Outdoor 38" Lawn Tractor (2002) Drive And Rear Wheels Parts Diagram

38" Lawn Tractor

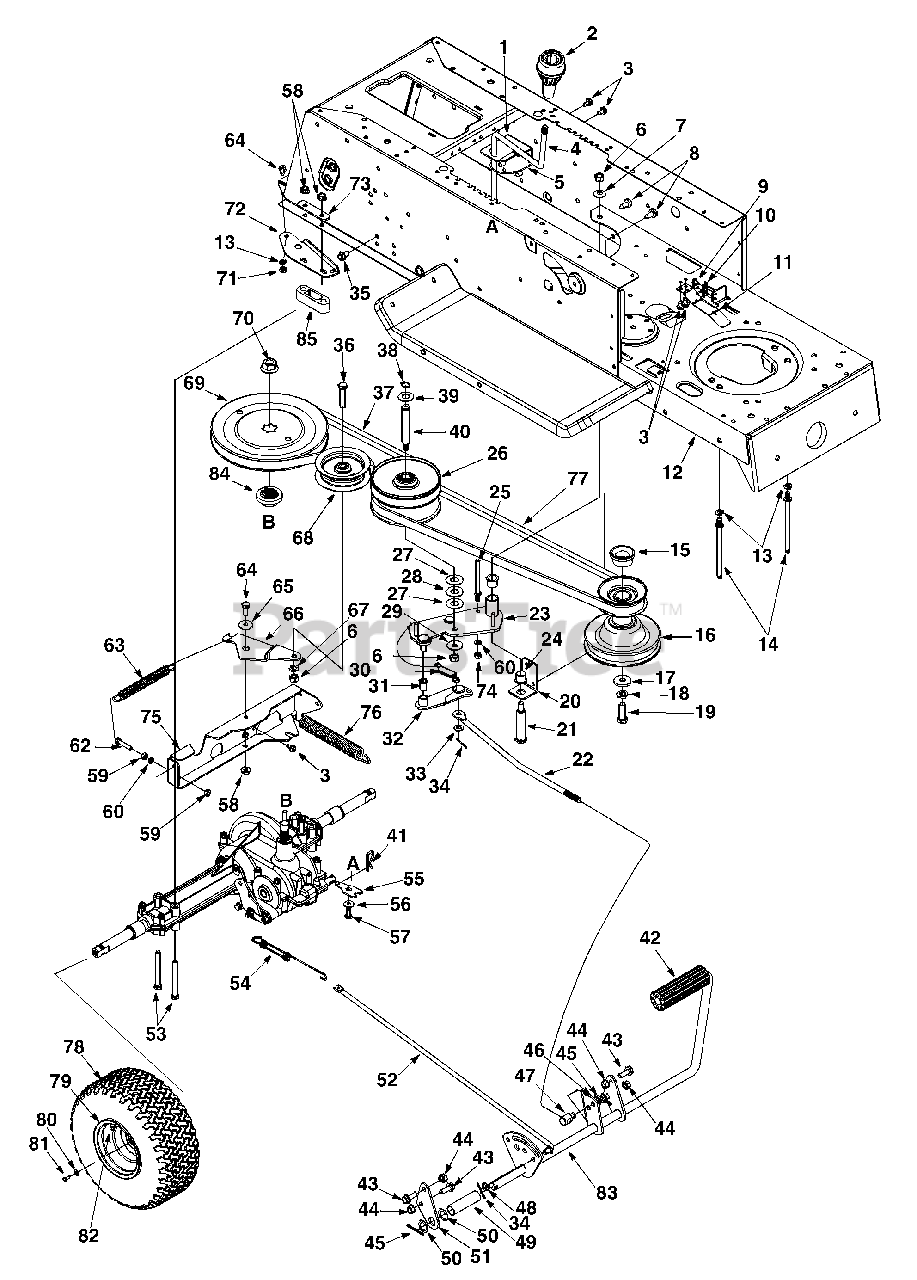

Drive And Rear Wheels Parts Diagram

  • Title

1

White Outdoor 17630

Shift Lever Bracket
(Superseded to 17630A-0637)

Variations

White Outdoor 17630-0637

Shift Lever Bracket - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

2

White Outdoor 720-0232

Shift Knob
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

3

White Outdoor 710-0599

Self Tap. Screw 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 17705

Shift Lever Assembly

$

$

Not available

5

White Outdoor 732-0525

Comp. Spring-Clip

$9.49

$

In Stock, Qty 6

0

6

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 736-0105

Bell Wash. .375" I.D.

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0726

AB-Tap Scr. 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-0224

AB-Tap Scr. #10-16 x .5" Lg.
(Superseded to 910-0224)

$3.49

$

In Stock, only 1 left!

0

10

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, Qty 5

0

11

White Outdoor 732-0750A

Switch Spring Actuator
(Superseded to 932-0750A)

$20.99

$

Usually ships in 3-6 days

0

12

White Outdoor 783-0310F

Lower Frame

Variations

White Outdoor 783-0310F-0637

FRAME-LOWER 600 - POWDER BLACK (0637)

$148.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0310F-0665

FRAME-LOWER 600 - YARDMAN GREEN (0665)

$148.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0310F-0483

FRAME-LOWER 600 - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0310F-0638

FRAME-LOWER 600 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0310F-0648

FRAME-LOWER 600 - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0310F-0650

FRAME-LOWER 600 - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0310F-0667

FRAME-LOWER 600 - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0310F-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$129.99

$

Usually ships in 3-6 days

0

13

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 711-1044

Belt Guard Pin 4.75" Lg.
(Superseded to 711-1044A)

$8.49

$

In Stock, Qty 14

0

15

White Outdoor 750-0956

Spacer 1" I.D. x 1.25" Lg.

$17.99

$

In Stock, Qty 5

0

16

White Outdoor 756-0982B

Engine Pulley

$67.99

$

In Stock, Qty 5

0

17

White Outdoor 736-0322

Fl. Wash. .450" I.D.

$8.49

$

In Stock, Qty 20+

0

18

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 710-3029

Hx Hd. Cap Scr. 7/16-20 x 1.25" Lg.

$4.49

$

In Stock, Qty 15

0

20

White Outdoor 17963

Bearing Shaft Bracket Ass'y

$

$

Not available

21

White Outdoor 738-0755

Shoulder Screw
(Superseded to 938-0755)

$13.99

$

Usually ships in 3-6 days

0

22

White Outdoor 747-0530A

Speed Control Link

$14.99

$

Usually ships in 3-6 days

0

23

White Outdoor 16354B

Variable Speed Brkt. Ass'y

Variations

White Outdoor 16354B-0637

BRACKET ASSY-VAR S - POWDER BLACK (0637)

$

$

Not available

$

$

24

White Outdoor 741-0495

Flange Brg. 5/8" I.D. x .88" Lg.

$4.49

$

In Stock, Qty 12

0

25

White Outdoor 711-1000

Belt Keeper 3" Lg.
(Superseded to 911-1000)

$10.99

$

In Stock, Qty 12

0

26

White Outdoor 717-0800A

Variable Speed Pulley Ass'y
(Superseded to 917-0800A)

$228.99

$

In Stock, Qty 7

0

27

White Outdoor 736-0355

Fl-Wash.

$3.99

$

In Stock, Qty 18

0

28

White Outdoor 741-0405

Thrust Bearing .56" I.D. x 1.25"
(Superseded to 941-0405)

$

$

Not available

29

White Outdoor 736-0331

Bell Wash. .390" I.D. x 1.13"

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 732-0568

Extension Spring
(Superseded to 932-0568)

$

$

Not available

31

White Outdoor 741-0419

Flange Bearing

$5.49

$

In Stock, only 3 left!

0

32

White Outdoor 16554A

Variable Speed Torque Brkt. Ass'y
(Superseded to 16554A-0637)

Variations

White Outdoor 16554A-0637

Torque Bracket Assembly - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

33

White Outdoor 736-0275

Fl-Wash. .344" I.D.

$6.49

$

Usually ships in 3-6 days

0

34

White Outdoor 714-0111

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 710-0604A

TT-Tap Scr. 5/16-18 x .625" Lg.

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 710-0539

Hex Hd. Cap Scr. 3/8-24 x 1.75" Lg.

$4.49

$

In Stock, Qty 14

0

37

White Outdoor 754-0370

V-Belt
(Superseded to 954-0370)

$41.99

$

In Stock, Qty 20+

0

38

White Outdoor 716-0114

Snap Ring .56" Dia.
(Superseded to 916-0114)

$6.49

$

In Stock, Qty 11

0

39

White Outdoor 736-0414

Fl-Wash. .570" I.D. x .120" Lg.

$3.99

$

In Stock, Qty 10

0

40

White Outdoor 738-0569

Shaft .56" Dia. x 3.79" Lg.
(Superseded to 938-0569)

$31.99

$

Usually ships in 3-6 days

0

41

White Outdoor 714-0209

Internal Cotter Pin
(Superseded to 914-0209)

$3.49

$

Usually ships in 3-6 days

0

42

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$11.99

$

In Stock, Qty 9

0

43

White Outdoor 710-1238

TT-Tap Scr. 5/16-18 x .75"
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 10

0

44

White Outdoor 712-0265

Sems Nut 5/16-18

$3.49

$

Usually ships in 3-6 days

0

45

White Outdoor 714-0470

Cotter Pin 1/8- 1.25

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0140

Fl-Wash .385" I.D. x .62" O.D.

$6.99

$

In Stock, Qty 9

0

47

White Outdoor 711-0198

Ferrule
(Superseded to 911-0198)

$12.99

$

In Stock, Qty 20+

0

48

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$6.99

$

In Stock, Qty 9

0

49

White Outdoor 750-0802

Spacer

$6.49

$

Usually ships in 3-6 days

0

50

White Outdoor 736-0256

Fl-Wash. .635" I.D. x .930 O.D.
(Superseded to 936-0256)

$6.99

$

Usually ships in 3-6 days

0

51

White Outdoor 17860

Pedal Bracket
(Superseded to 17860-0637)

Variations

White Outdoor 17860-0637

Pedal Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 747-0755A

Brake Rod

$

$

Not available

53

White Outdoor 710-0189

Hex Hd. Cap Scr. 5/16-18

$5.99

$

In Stock, Qty 5

0

54

White Outdoor 732-0413

Ext. Spring
(Superseded to 932-0413)

$11.99

$

In Stock, Qty 6

0

White Outdoor 732-0642

Ext. Spring (Used w/ 46" Deck)
(Superseded to 932-0642)

$

$

Not available

55

White Outdoor 17707

Shift Link Assembly

$

$

Not available

56

White Outdoor 736-0270

Bell Wash. .265 x .75

$3.99

$

In Stock, Qty 13

0

57

White Outdoor 710-0195

Hex Hd. Cap Screw 1/4-28
(Superseded to 910-0195)

$3.49

$

In Stock, only 1 left!

0

58

White Outdoor 712-3004A

Flange L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 20+

0

59

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.49

$

Usually ships in 3-6 days

0

60

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

62

White Outdoor 710-0428

Hex Hd. Cap Screw 1/4-28

$2.49

$

In Stock, only 1 left!

0

63

White Outdoor 732-0384

Extension Spring
(Superseded to 932-0384)

$13.99

$

In Stock, Qty 20+

0

64

White Outdoor 710-3008

Hex Hd. Cap Screw 5/16-18

$3.99

$

In Stock, Qty 20+

0

65

White Outdoor 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

66

White Outdoor 17643

Idler Brkt.
(Superseded to 17643-0637)

Variations

White Outdoor 17643-0637

Idler Bracket - POWDER BLACK (0637)

$9.99

$

In Stock, Qty 5

0

$9.99

$

In Stock, Qty 5

0

67

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

68

White Outdoor 756-0643A

Flat Idler Pulley

$38.99

$

In Stock, Qty 20+

0

69

White Outdoor 756-0665

V Pulley
(Superseded to 956-0665)

$68.99

$

In Stock, only 1 left!

0

70

White Outdoor 712-0700

Flange Nut 9/16

$10.99

$

In Stock, Qty 19

0

71

White Outdoor 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

72

White Outdoor 17668

Axle Support Brkt. R.H.
(Superseded to 17668A-0637)

Variations

White Outdoor 17668-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 17669

Axle Support Brkt. L.H.
(Superseded to 17669A-0637)

Variations

White Outdoor 17669-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

73

White Outdoor 17840

Transaxle Mounting Brkt.
(Superseded to 17840-0637)

Variations

White Outdoor 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

74

White Outdoor 712-3006

Hex Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

75

White Outdoor 17629A

Transaxle Support Brkt.
(Superseded to 17629A-0637)

Variations

White Outdoor 17629A-0637

Trans Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

76

White Outdoor 732-0556

Ext. Spring
(Superseded to 932-0556)

$20.99

$

In Stock, Qty 7

0

77

White Outdoor 754-0280A

V-Belt
(Superseded to 954-0280A)

$42.99

$

In Stock, Qty 20+

0

78

White Outdoor 634-0104

Wheel Ass'y. Comp.

Variations

White Outdoor 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0912

WHL ASSY 20 X 8 - Dico Gray (0912)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0914

WHL ASSY 20 X 8 - Cheng Gray (0914)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0916

WHL ASSY 20 X 8 - Kenda Gray (0916)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$155.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0941

WHL ASSY 20 X 8 - Carlisle Yellow (0941)

$474.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0942

WHEEL ASSY W/TIRE - Dico Yellow (0942)

$474.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0945

WHL ASSY 20 X 8 - Duro Yellow (0945)

$474.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0961

WHEEL ASM-20 X 8 - Carlisle Gray (0961)

$155.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0991

WHEEL ASM COMP-20 - Carlisle White (0991)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-4009

WHEEL ASM COMP-20 - TEE WHITE (4009)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-4028

WHEEL ASSY COMP-20 - SEARS YELLOW (4028)

$511.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0981

No Longer Available WHEEL ASM COMP-20 - Carlisle Green (0981)

$

$

Not available

$414.99

$

Usually ships in 3-6 days

0

79

White Outdoor 734-1730

Tire Only

Variations

White Outdoor 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$92.99

$

In Stock, Qty 8

0

White Outdoor 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$92.99

$

In Stock, Qty 8

0

White Outdoor 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$92.99

$

In Stock, Qty 8

0

White Outdoor 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$92.99

$

In Stock, Qty 8

0

$92.99

$

In Stock, Qty 8

0

White Outdoor 634-0070

Rim Only
(Superseded to 634-04369)

Variations

White Outdoor 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$153.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$153.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$153.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$153.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$153.99

$

Usually ships in 3-6 days

0

$124.99

$

Usually ships in 3-6 days

0

80

White Outdoor 736-0242

Bell Wash. .340 I.D. x .872 O.D.

$3.99

$

In Stock, Qty 20+

0

81

White Outdoor 710-0627

Hex Hd. Cap Scr. 5/16-24

$3.99

$

In Stock, Qty 20+

0

82

White Outdoor 734-0255

Air Valve (Service Only)
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

83

White Outdoor 683-0123

Clutch Brake Pedal Ass'y

Variations

White Outdoor 683-0123-0483

PEDAL-ASSY BRAKE - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 683-0123-0637

PEDAL-ASSY BRAKE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0123-0638

PEDAL-ASSY BRAKE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-0123-0650

PEDAL-ASSY BRAKE - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0123-0662

PEDAL-ASSY BRAKE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 683-0123-0665

PEDAL-ASSY BRAKE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-0123-0691

PEDAL-ASSY BRAKE - BLACK JACK (0691)

$

$

Not available

$

$

84

White Outdoor 718-0758

Pulley Hub Splined
(Superseded to 718-04407)

$11.99

$

In Stock, Qty 16

0

85

White Outdoor 748-0334

Spacer (Used w/46" Deck)
(Superseded to 948-0334)

$9.99

$

In Stock, only 1 left!

0
