LT-13 (13AA662F190) - White Outdoor 38" Lawn Tractor (2002) Hood Assembly Parts Diagram

38" Lawn Tractor

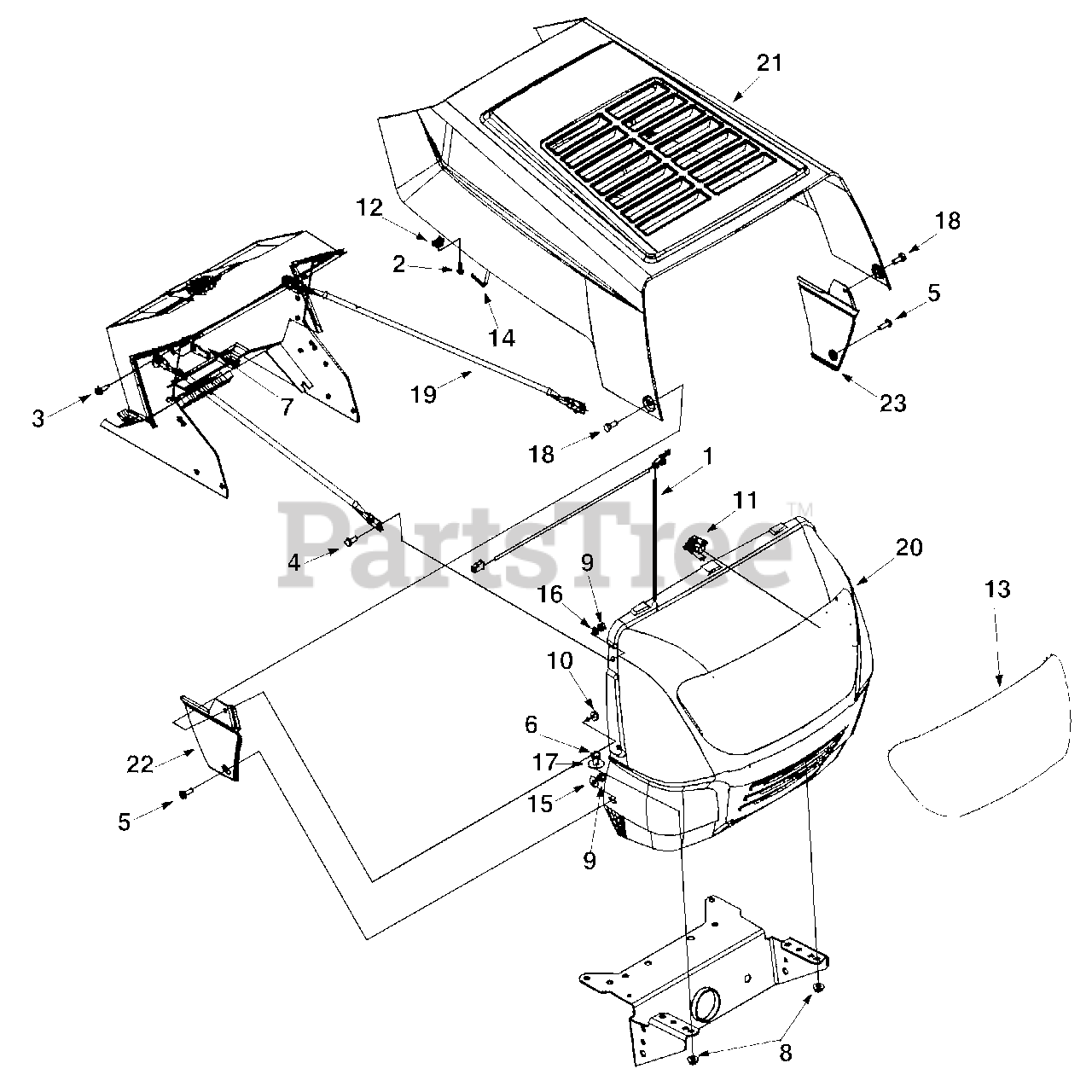

Hood Assembly Parts Diagram

  • Title

1

White Outdoor 629-0469A

Headlight Harness Assembly
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-0589

Truss. Mach. Scr. #10-24 x .75"

$6.49

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0751

Hex Bolt 1/4-20 x .5/8" Lg.

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-0924

Pan Hd. Mach. Scr. 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

8

White Outdoor 712-3004A

Flange L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 20+

0

9

White Outdoor 712-3006

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 712-3027

Hex Flange L-Nut 1/4-20 Thd.
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 725-1651

Socket
(Superseded to 925-1651)

$

$

Not available

11

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

12

White Outdoor 726-0130

Speed Nut
(Superseded to 926-0130)

$

$

Not available

13

White Outdoor 731-1503A

Lens
(Superseded to 753-06310)

$143.99

$

Usually ships in 3-6 days

0

13

White Outdoor 726-04077

Nut, Push 3/32

Note: Not shown

$

$

Not available

14

White Outdoor 732-0699

Hood Spring

$

$

Not available

15

White Outdoor 736-0270

Bell Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 13

0

16

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

17

White Outdoor 736-3078

Fl-Wash. .349" I.D. x 1.0" O.D.

$3.99

$

In Stock, Qty 16

0

18

White Outdoor 738-0952A

Shldr Bolt. .375" I.D. x 1.25" O.D.
(Superseded to 938-0952A)

$6.99

$

In Stock, Qty 14

0

19

White Outdoor 749-0722B

Grille Support Rod

Variations

White Outdoor 749-0722B-0637

SUPPORT-GRILLE - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 783-0156A

Grill
(Superseded to 783-04979)

Variations

White Outdoor 783-0156A-0499

GRILL:2 STYLE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0156A-0483

GRILL:2 STYLE - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0156A-0629

GRILL:2 STYLE - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0156A-0638

GRILLE STYLE 2 RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0156A-0662

GRILL:2 STYLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0156A-0665

GRILL:2 STYLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0156A-0667

GRILL:2 STYLE - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0156A-0674

GRILLE STYLE 2 YARD-MAN YELLOW - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-0156A-0687

GRILL:2 STYLE - PINE GREEN (0687)

$

$

Not available

White Outdoor 783-0156A-0688

No Longer Available GRILLE-STYLE 3 - SPRING GREEN (0688)

$

$

Not available

White Outdoor 783-0156A-0689

GRILL:2 STYLE - POLO GREEN (0689)

$

$

Not available

White Outdoor 783-0156A-0691

GRILLE STYLE 2-BLACK - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0156A-0709

GRILL:2 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-0156A-0717

GRILL:2 STYLE - SILVER MIST (0717)

$

$

Not available

$94.99

$

Usually ships in 3-6 days

0

21

White Outdoor 783-0250

Hood

Variations

White Outdoor 783-0250-0480

HOOD-O STY LOUVER - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 783-0250-0483

HOOD-S - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0250-0498

HOOD-STY O W/LOUVE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0250-0499

HOOD-STY O W/LOUVE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0250-0629

HOOD-O STY LOUVER - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0250-0638

HOOD-MTD RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0250-0640

HOOD-O STY LOUVER - CO-OP GREEN (0640)

$

$

Not available

White Outdoor 783-0250-0648

HOOD-S - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0250-0650

HOOD-O STY LOUVER - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0250-0660

No Longer Available HOOD-STY O W/LOUVE - TEAL (0660)

$

$

Not available

White Outdoor 783-0250-0662

HOOD-O STY LOUVER - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0250-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

White Outdoor 783-0250-0665

HOOD-O STY LOUVER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0250-0667

HOOD-STY O W/LOUVE - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0250-0668

No Longer Available HOOD-STY O W/LOUVE - MOSS GREEN (0668)

$

$

Not available

White Outdoor 783-0250-0674

HOOD-STY O W/LOUVE - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-0250-0677

HOOD-O STY LOUVER - GRASS GREEN (0677)

$

$

Not available

White Outdoor 783-0250-0686

No Longer Available HOOD-STY O W/LOUVE - SIMPLICITY ORANGE (0686)

$

$

Not available

White Outdoor 783-0250-0687

HOOD-O STY LOUVER - PINE GREEN (0687)

$

$

Not available

White Outdoor 783-0250-0688

No Longer Available HOOD-STY O W/LOUVE - SPRING GREEN (0688)

$

$

Not available

White Outdoor 783-0250-0691

HOOD-STY O W/LOUVE - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0250-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

White Outdoor 783-0250-0709

HOOD-O STY LOUVER - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-0250-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

22

White Outdoor 783-0366

R.H. Side Panel

Variations

White Outdoor 783-0366-0480

PANEL-SIDE RH STY - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 783-0366-0629

PANEL-SIDE RH STY - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0366-0638

PANEL-SIDE RH STY - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0366-0662

PANEL-SIDE RH STY - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0366-0665

PANEL-SIDE RH STY - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0366-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0366-0668

PANEL-SIDE RH STY - MOSS GREEN (0668)

$

$

Not available

White Outdoor 783-0366-0674

PANEL-SIDE RH STY - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-0366-0687

PANEL-SIDE RH STY - PINE GREEN (0687)

$

$

Not available

White Outdoor 783-0366-0691

PANEL-SIDE RH STY - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0366-0709

PANEL-SIDE RH STY - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

23

White Outdoor 783-0367

L.H. Side Panel

Variations

White Outdoor 783-0367-0480

PANEL-SIDE LH STY - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 783-0367-0629

PANEL-SIDE LH STY - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0367-0638

PANEL-SIDE LH STY - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0367-0662

PANEL-SIDE LH STY - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0367-0665

PANEL-SIDE LH STY - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0367-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0367-0668

PANEL-SIDE LH STY - MOSS GREEN (0668)

$

$

Not available

White Outdoor 783-0367-0674

PANEL-SIDE LH STY - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-0367-0687

PANEL-SIDE LH STY - PINE GREEN (0687)

$

$

Not available

White Outdoor 783-0367-0691

PANEL-SIDE LH STY - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0367-0709

PANEL-SIDE LH STY - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$
