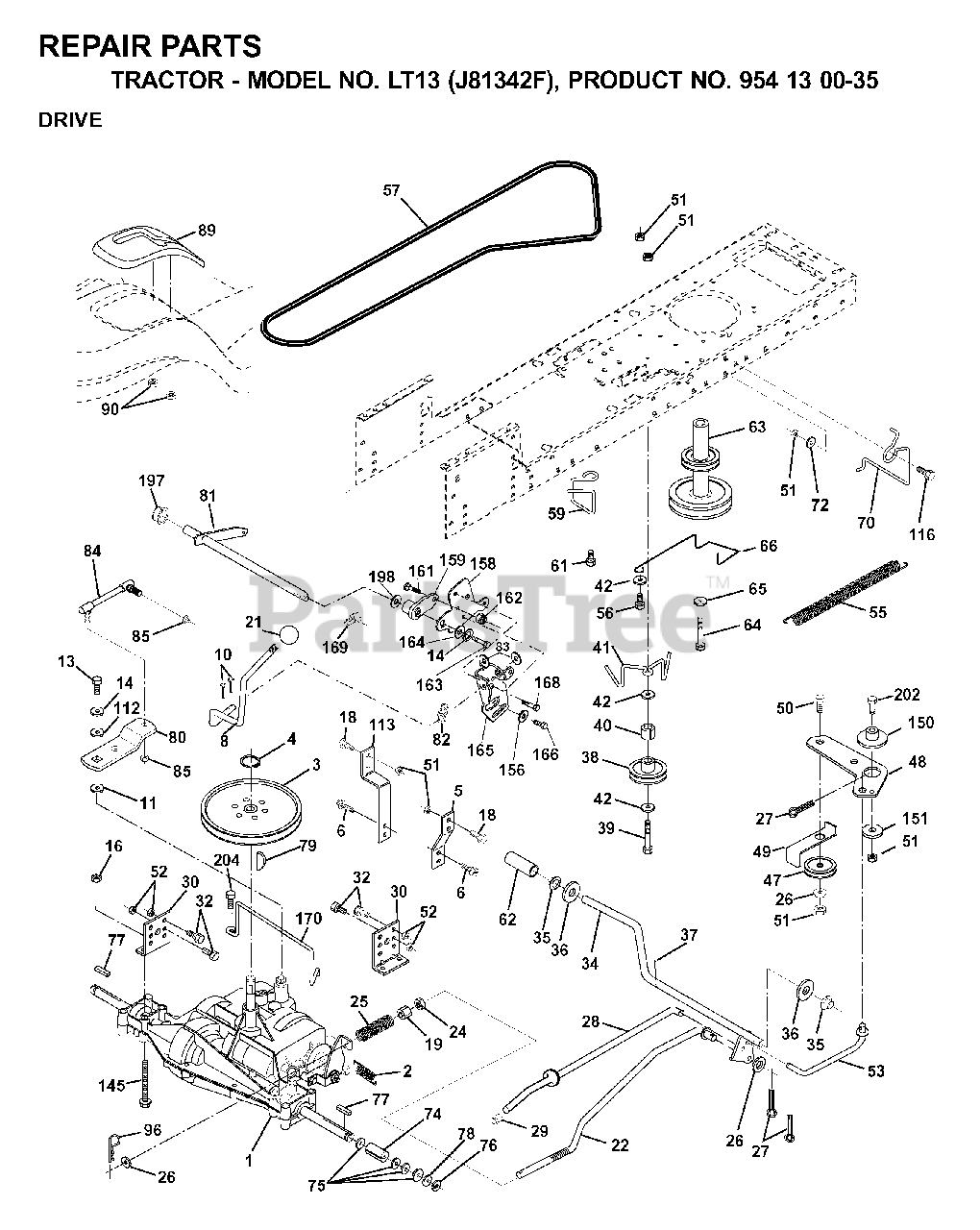

LT 13 (954130035) - Jonsered Lawn Tractor (2000-04) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

2

Jonsered 532146682

SPRING,BRAKE RETURN

$8.99

$

In Stock, only 2 left!

0

3

Jonsered 532123666

PULLEY TRANS

$37.99

$

In Stock, only 4 left!

0

4

Jonsered 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 20+

0

5

Jonsered 532121520

STRAP TORQUE

$7.49

$

In Stock, only 3 left!

0

6

Jonsered 817490512

SCREW
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

8

Jonsered 532165866

ROD SHIFT FENDER ADJUST STLT

$

$

Not available

10

Jonsered 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

11

Jonsered 532105701

WASH-SHFT PLT LT

$6.49

$

In Stock, only 1 left!

0

13

Jonsered 874550412

BOLT 1/4-28X3/4
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

18

Jonsered 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

19

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Jonsered 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$12.99

$

Usually ships in 3-10 days

0

22

Jonsered 532130804

ROD BRAKE

$31.99

$

In Stock, only 1 left!

0

24

Jonsered 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

25

Jonsered 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, Qty 7

0

26

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

27

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 532145204

ROD BRAKE PARK LT

$

$

Not available

29

Jonsered 532071673

PLUNGER CAP

$4.99

$

In Stock, only 2 left!

0

30

Jonsered 532130807

BRACKET TRANSAXLE

$3.99

$

Usually ships in 3-10 days

0

32

Jonsered 874760512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

34

Jonsered 532155071

SHAFT, FOOT PEDAL

$24.99

$

Usually ships in 3-10 days

0

35

Jonsered 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 8

0

36

Jonsered 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532124963

DRIVE PIN
(Superseded to 532002882)

$

$

Not available

38

Jonsered 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

39

Jonsered 872110622

BOLT

$3.99

$

In Stock, only 3 left!

0

40

Jonsered 532124965

SPACER T

$6.49

$

Usually ships in 3-10 days

0

41

Jonsered 532165838

KEEPER.BELT.IDLER.FLAT

$

$

Not available

42

Jonsered 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

47

Jonsered 532127783

IDLER PULLEY
(Superseded to 532139245)

$34.99

$

In Stock, Qty 9

0

48

Jonsered 532154407

BELLCRANK, CLUTCH

$8.99

$

In Stock, only 1 left!

0

49

Jonsered 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

50

Jonsered 874760624

BOLT
(Superseded to 874930624)

$

$

Not available

51

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Jonsered 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Jonsered 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

56

Jonsered 874760620

BOLT

$7.49

$

In Stock, only 3 left!

0

57

Jonsered 531013136

No Description Available

$

$

Not available

59

Jonsered 532169691

KEEPER, BELT CENTER

$26.99

$

Usually ships in 3-10 days

0

61

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

62

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

63

Jonsered 532140186

PULLEY ENGINE

$93.99

$

In Stock, only 1 left!

0

64

Jonsered 871170764

BOLT
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

65

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Jonsered 532154778

KEEPER BELT ENGINE

$12.99

$

In Stock, only 1 left!

0

70

Jonsered 532134683

KEEPER BELT ENG

$

$

Not available

72

Jonsered 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

74

Jonsered 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

75

Jonsered 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

76

Jonsered 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

77

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 8

0

78

Jonsered 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

79

Jonsered 532125096

KEY STD

$4.99

$

Usually ships in 3-10 days

0

80

Jonsered 532131486

ARM SHIFT

$4.99

$

Usually ships in 3-10 days

0

81

Jonsered 532165594

No Description Available

$34.99

$

Usually ships in 3-10 days

0

82

Jonsered 532165711

SHIFT SPRING

$7.49

$

In Stock, Qty 8

0

83

Jonsered 819171216

WASHER
(Superseded to 19171216)

$2.99

$

Usually ships in 3-10 days

0

84

Jonsered 532166228

No Description Available
(Superseded to 597068801)

$8.99

$

Usually ships in 3-10 days

0

85

Jonsered 532150360

NUT LOCK CENTER 1/4 -28 FNTHD
(Superseded to 873610400)

$

$

Not available

89

Jonsered 532166556

CONSOLE.SHIFT.STLT.6SP.BLACK

$

$

Not available

90

Jonsered 532124346

NUT

$4.99

$

In Stock, only 1 left!

0

96

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

112

Jonsered 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, Qty 13

0

113

Jonsered 532127285

STRAP TORQUE LH LT

$

$

Not available

116

Jonsered 872110610

BOLT
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

145

Jonsered 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

150

Jonsered 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

151

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$3.99

$

In Stock, Qty 19

0

156

Jonsered 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

158

Jonsered 532165589

BRACKET
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Jonsered 532165494

HUB
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Jonsered 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

163

Jonsered 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

164

Jonsered 819091010

WASHER

$

$

Not available

165

Jonsered 532165623

RP BRACKET
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Jonsered 532166880

SCREW

$6.49

$

Usually ships in 3-10 days

0

168

Jonsered 532165492

BOLT.SHOULDER.5/16-18X

$6.49

$

In Stock, only 3 left!

0

169

Jonsered 532165580

PLATE.FASTENING.CROSS.SHAFT

$4.99

$

Usually ships in 3-10 days

0

170

Jonsered 532165849

No Description Available
(Superseded to 532178394)

$9.99

$

Usually ships in 3-10 days

0

197

Jonsered 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

198

Jonsered 532169593

WASHER.NYL.7/8IDX.105"HYD CR

$7.49

$

Usually ships in 3-10 days

0

202

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

204

Jonsered 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0
