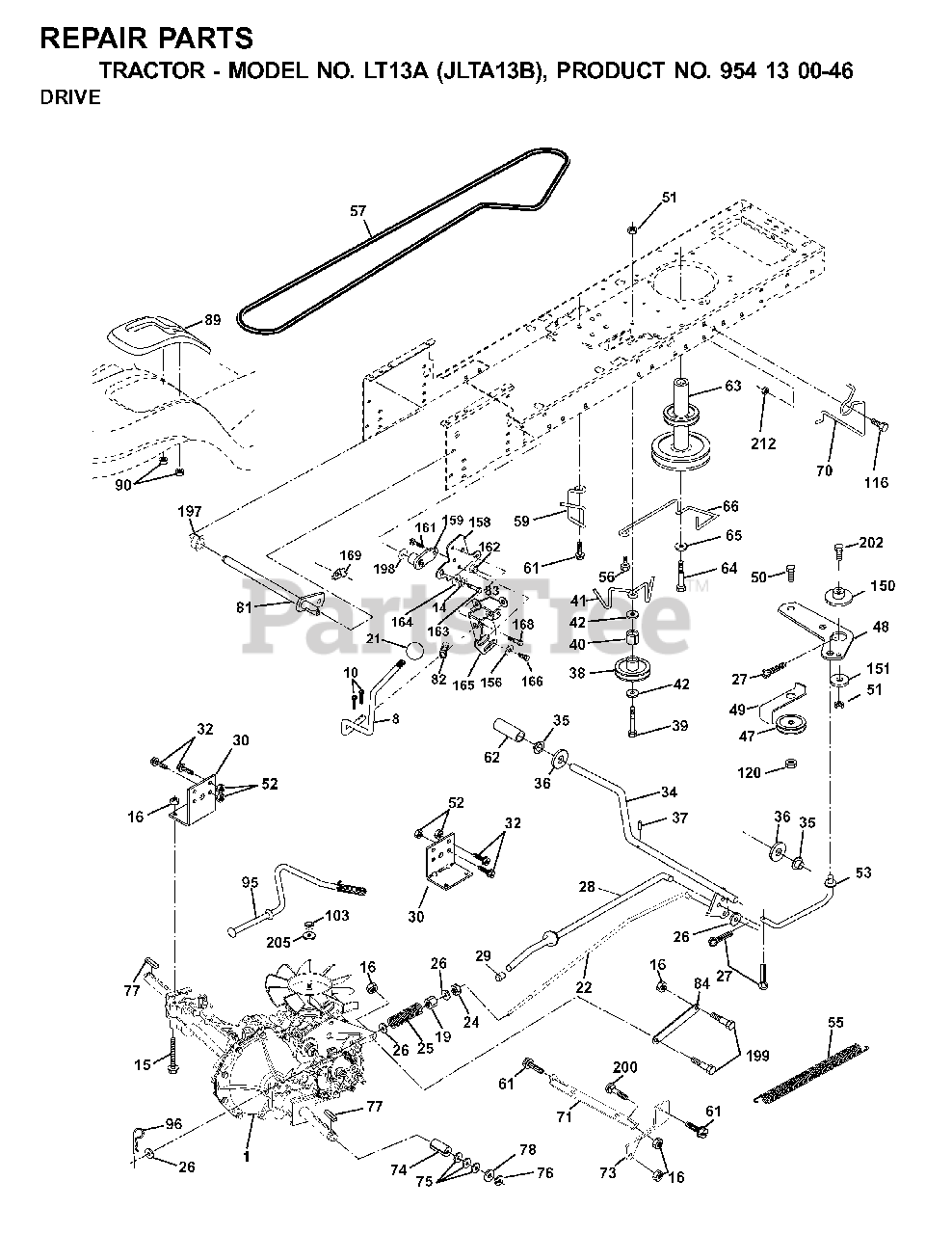

LT 13 A (954130046) - Jonsered Lawn Tractor (2001-02) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

8

Jonsered 532165866

ROD SHIFT FENDER ADJUST STLT

$

$

Not available

10

Jonsered 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

15

Jonsered 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Jonsered 532121274

KNOB.DUCKHEAD.1/2

$8.99

$

Usually ships in 3-10 days

0

22

Jonsered 532169498

ROD BRAKE HYDRO

$14.99

$

Usually ships in 3-10 days

0

24

Jonsered 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

25

Jonsered 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, Qty 7

0

26

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

27

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

29

Jonsered 532071673

PLUNGER CAP

$4.99

$

In Stock, only 2 left!

0

30

Jonsered 532174973

BRKT, MOUNT TRNSAXLE
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0

32

Jonsered 874760512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

34

Jonsered 532175578

SHAFT, FOOT PEDAL

$30.99

$

Usually ships in 3-10 days

0

35

Jonsered 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 8

0

36

Jonsered 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532124963

DRIVE PIN
(Superseded to 532002882)

$

$

Not available

38

Jonsered 532165936

PULLEY.FLAT

$31.99

$

In Stock, only 1 left!

0

39

Jonsered 874760648

BOLT
(Superseded to 874780648)

$

$

Not available

40

Jonsered 532175461

SPACER, SPLIT

$

$

Not available

41

Jonsered 532175556

KEEPER, BELT IDLER

$9.99

$

In Stock, only 1 left!

0

42

Jonsered 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

47

Jonsered 532127783

IDLER PULLEY
(Superseded to 532139245)

$34.99

$

In Stock, Qty 9

0

48

Jonsered 532154407

BELLCRANK, CLUTCH

$8.99

$

In Stock, only 1 left!

0

49

Jonsered 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

50

Jonsered 874760624

BOLT
(Superseded to 874930624)

$

$

Not available

51

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Jonsered 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Jonsered 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

56

Jonsered 817060616

No Description Available
(Superseded to 817000616)

$7.49

$

In Stock, Qty 7

0

57

Jonsered 532140294

DRIVE BELT, LTH & YTH TRACTORS

$36.99

$

In Stock, Qty 20+

0

59

Jonsered 532169691

KEEPER, BELT CENTER

$26.99

$

Usually ships in 3-10 days

0

61

Jonsered 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

62

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

63

Jonsered 532175410

ENGINE PULLEY

$87.99

$

In Stock, only 2 left!

0

64

Jonsered 871170764

BOLT
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

65

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Jonsered 532154778

KEEPER BELT ENGINE

$12.99

$

In Stock, only 1 left!

0

70

Jonsered 532134683

KEEPER BELT ENG

$

$

Not available

71

Jonsered 532169183

STRAP TORQUE LH HYDRO

$7.49

$

Usually ships in 3-10 days

0

73

Jonsered 532169182

STRAP TORQUE RH HYDRO

$10.99

$

In Stock, only 1 left!

0

74

Jonsered 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

75

Jonsered 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

76

Jonsered 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

77

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 8

0

78

Jonsered 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

81

Jonsered 532165596

SHAFT ASM CROSS TAPERED

$40.99

$

Usually ships in 3-10 days

0

82

Jonsered 532165711

SHIFT SPRING

$7.49

$

In Stock, Qty 8

0

83

Jonsered 819171216

WASHER
(Superseded to 19171216)

$2.99

$

Usually ships in 3-10 days

0

84

Jonsered 532169843

No Description Available
(Superseded to 169843)

$2.49

$

Usually ships in 3-10 days

0

89

Jonsered 532166602

No Description Available

$42.99

$

Usually ships in 3-10 days

0

90

Jonsered 532124346

NUT

$4.99

$

In Stock, only 1 left!

0

95

Jonsered 532170201

CONTROL ASM. BYPASS HYDRO

$12.99

$

Usually ships in 3-10 days

0

96

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

103

Jonsered 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, Qty 11

0

116

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

120

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

150

Jonsered 532175456

SPACER, RETAINER

$

$

Not available

151

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$3.99

$

In Stock, Qty 19

0

156

Jonsered 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

158

Jonsered 532165589

BRACKET
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Jonsered 532165494

HUB
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Jonsered 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

163

Jonsered 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

164

Jonsered 819091010

WASHER

$

$

Not available

165

Jonsered 532165623

RP BRACKET
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Jonsered 532166880

SCREW

$6.49

$

Usually ships in 3-10 days

0

168

Jonsered 532165492

BOLT.SHOULDER.5/16-18X

$6.49

$

In Stock, only 3 left!

0

169

Jonsered 532165580

PLATE.FASTENING.CROSS.SHAFT

$4.99

$

Usually ships in 3-10 days

0

197

Jonsered 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

198

Jonsered 532169593

WASHER.NYL.7/8IDX.105"HYD CR

$7.49

$

Usually ships in 3-10 days

0

199

Jonsered 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$3.99

$

In Stock, Qty 11

0

200

Jonsered 872140508

BOLT
(Superseded to 595901501)

$3.99

$

In Stock, Qty 17

0

202

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

205

Jonsered 819171616

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

212

Jonsered 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+
