LT 130 (954140004-A) - Husqvarna Lawn Tractor (1997-12) Drive Parts Diagram

Lawn Tractor

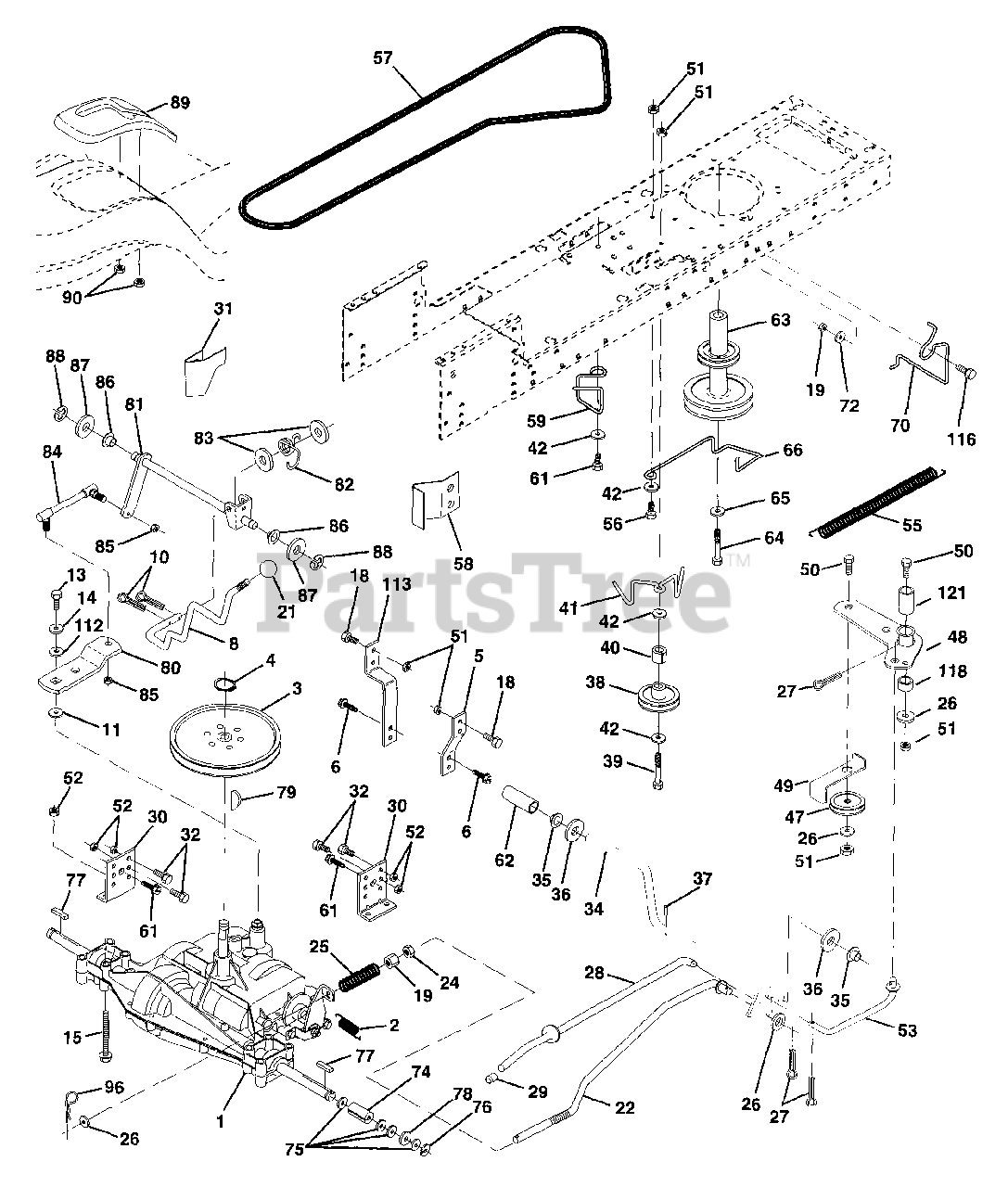

Drive Parts Diagram

  • Title

1

Transaxle (See Breakdown) Peerless 930-055A

$

$

Not available

2

Husqvarna 532146682

Spring Return Brake T/a Zinc

$7.99

$

In Stock, only 2 left!

0

3

Husqvarna 532123666

Pulley Transaxle 18" tires

$51.99

$

In Stock, only 4 left!

0

4

Husqvarna 812000028

Ring Retainer # 5100-62

$2.49

$

In Stock, Qty 7

0

5

Husqvarna 532121520

Strap Torque 30 Degrees

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 817490512

Screw Thdrol 5/1 6-18 X 3/4 TYT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532154792

Rod Shifter

$

$

Not available

10

Husqvarna 876020416

Pin Cotter 1/8 X 1 Cad
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532105701

Washer Plate Shf 388 Sq Hole

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874550412

Bolt 1/4-28 Unf Gr 8 W/Patch
(Superseded to 596136601)

$3.49

$

In Stock, only 1 left!

0

14

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.49

$

In Stock, only 1 left!

0

15

Husqvarna 874490544

Bolt Hex 5/16-18 Gr. 5
(Superseded to 595316601)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 874780616

Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

19

Husqvarna 873800600

Nut Lock 3/8-16 Unc
(Superseded to 873680600)

$

$

Not available

21

Husqvarna 532121274

Knob

$11.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532130804

Rod Brake Blk Zinc 26 840

$28.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

25

Husqvarna 532106888

Spring Rod Brake 2 00 Zinc
(Superseded to 532151332)

$5.99

$

In Stock, Qty 5

0

26

Husqvarna 819131316

Washer 13/32 X 13/16 X 16 Ga
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

28

Husqvarna 532145204

Rod Brake Parking LT/YT

$

$

Not available

29

Husqvarna 532071673

Cap Brake Parking Black

$5.99

$

In Stock, only 2 left!

0

30

Husqvarna 532130807

Bracket Mtg Transaxle

$

$

Not available

31

Husqvarna 532127275

Keeper Belt LH LT 14 Ga

$

$

Not available

32

Husqvarna 874760512

Bolt Hex Hd 5/16-18 unc X 3/4
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532155071

Shaft Asm Pedal Foot

$

$

Not available

35

Husqvarna 532120183

Bearing Nylon Blk 629 Id

$6.99

$

In Stock, Qty 17

0

36

Husqvarna 819211616

Washer 21/32 X 1 X 16 Ga
(Superseded to 596933401)

$3.49

$

In Stock, only 2 left!

0

37

Husqvarna 532124963

Pin Roll 3/16 X 1"
(Superseded to 532001572)

$4.99

$

In Stock, Qty 5

0

38

Husqvarna 532123674

Pulley Idler Flat

$31.99

$

In Stock, only 2 left!

0

39

Husqvarna 874760644

Bolt Fin Hex 3/8-16unc X 2-3/4

$

$

Not available

40

Husqvarna 532124965

Spacer Split 395 X 59 Bzp

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532154777

Keeper Belt Retainer Idler Foolproof
(Superseded to 532165838)

$

$

Not available

42

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

47

Husqvarna 532127783

Pulley Idler V Groove Plastic
(Superseded to 532139245)

$39.99

$

In Stock, Qty 20+

0

48

Husqvarna 532154604

Bellcrank Asm

$

$

Not available

49

Husqvarna 532123205

Retainer Belt Style Spring
(Superseded to 531151801)

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 874760624

Bolt Hex Hd 3/8-16unc X 1-1/2
(Superseded to 874930624)

$9.49

$

In Stock, Qty 8

0

51

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$

$

Not available

52

Husqvarna 873680500

Nut Crownlock 5/16-18 Unc
(Superseded to 873690500)

$

$

Not available

53

Husqvarna 532105710

Link Clutch
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

Spring Return Clutch 6 75

$13.99

$

In Stock, Qty 17

0

56

Husqvarna 874760620

Bolt Fin Hx 3/8-16 X 1/4

$5.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532130801

V-Belt Ground Drive 95 25
(Superseded to 532138255)

$43.99

$

In Stock, Qty 9

0

58

Husqvarna 532127274

Keeper Belt RH LT Pnt/zinc 16g

$

$

Not available

59

Husqvarna 532140312

Keeper Belt Span Ctr
(Superseded to 532169691)

$22.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817490612

Screw Thdrol 3/8-16 x 3/4 Ty-tt
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

62

Husqvarna 532124872

Cover Pedal Blk Round
(Superseded to 510089501)

$6.99

$

In Stock, only 2 left!

0

63

Husqvarna 532140186

Engine Pulley LT/YT

$125.99

$

Usually ships in 3-10 days

0

64

Husqvarna 871170764

Bolt Hex
(Superseded to 501606501)

$3.49

$

In Stock, Qty 14

0

65

Husqvarna 810040700

Washer Lock Hvy Hlcl Spr 7/16
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

66

Husqvarna 532154778

Keeper Belt Engine Foolproof
(Superseded to 531151001)

$9.49

$

In Stock, only 2 left!

0

70

Husqvarna 532134683

Guide Belt Mower Drive RH
(Superseded to 531165301)

$7.99

$

In Stock, only 3 left!

0

72

Husqvarna 819132012

Washer 13/32 X 1-1/4 X 12 Ga
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

74

Husqvarna 532137057

Spacer Axle

$6.99

$

In Stock, only 1 left!

0

75

Husqvarna 532121749

Washer 25/32 X 1 1/4 X 16 Ga

$2.49

$

In Stock, Qty 20+

0

76

Husqvarna 812000001

E-ring #5133-75

$3.49

$

In Stock, Qty 18

0

77

Husqvarna 532123583

Key Square 2 0 X 1845/1865

$4.99

$

In Stock, Qty 20+

0

78

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$4.99

$

In Stock, Qty 20+

0

79

Husqvarna 532125096

Key Woodruff #9 3/16 x 3/4

$7.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532131486

Arm Shift

$7.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532156043

Shaft Asm Cross 20"t

$

$

Not available

82

Husqvarna 532123782

Spring Torsion T/a

$

$

Not available

83

Husqvarna 819171216

Washer 17/32 X 3/4 X 16 Ga
(Superseded to 734117771)

$4.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532123793

Rod Shift
(Superseded to 532166230)

$

$

Not available

85

Husqvarna 532150360

Nut Lock Center 1/4 - 28 FNTHD

$

$

Not available

86

Husqvarna 532071208

Bushing Rod Strg 629/632 Id

$

$

Not available

87

Husqvarna 819212016

Washer 21/32 X 1-1/4 X 16 Ga

$

$

Not available

88

Husqvarna 812000008

Ring Klip #5304-62

$9.49

$

In Stock, Qty 10

0

89

Husqvarna 532154886

Console Shift STLT
(Superseded to 532166556)

$

$

Not available

90

Husqvarna 532124346

Nut Self-thd Wsh-hd 1/4 Zinc

$9.49

$

In Stock, only 1 left!

0

96

Husqvarna 532124788

Retainer Spring 1"
(Superseded to 532004497)

$4.99

$

In Stock, only 3 left!

0

112

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 596039801)

$3.49

$

In Stock, only 2 left!

0

113

Husqvarna 532127285

Strap Torque LT
(Superseded to 531150301)

$7.99

$

In Stock, Qty 5

0

116

Husqvarna 872110610

Bolt Rdhd Sq Neck 3/8-16 x 1.25
(Superseded to 596987501)

$4.99

$

In Stock, only 2 left!

0

118

Husqvarna 532154774

Spacer Bellcrank

$

$

Not available

121

Husqvarna 532154419

Nyliner Clutching STL

$

$

Not available
