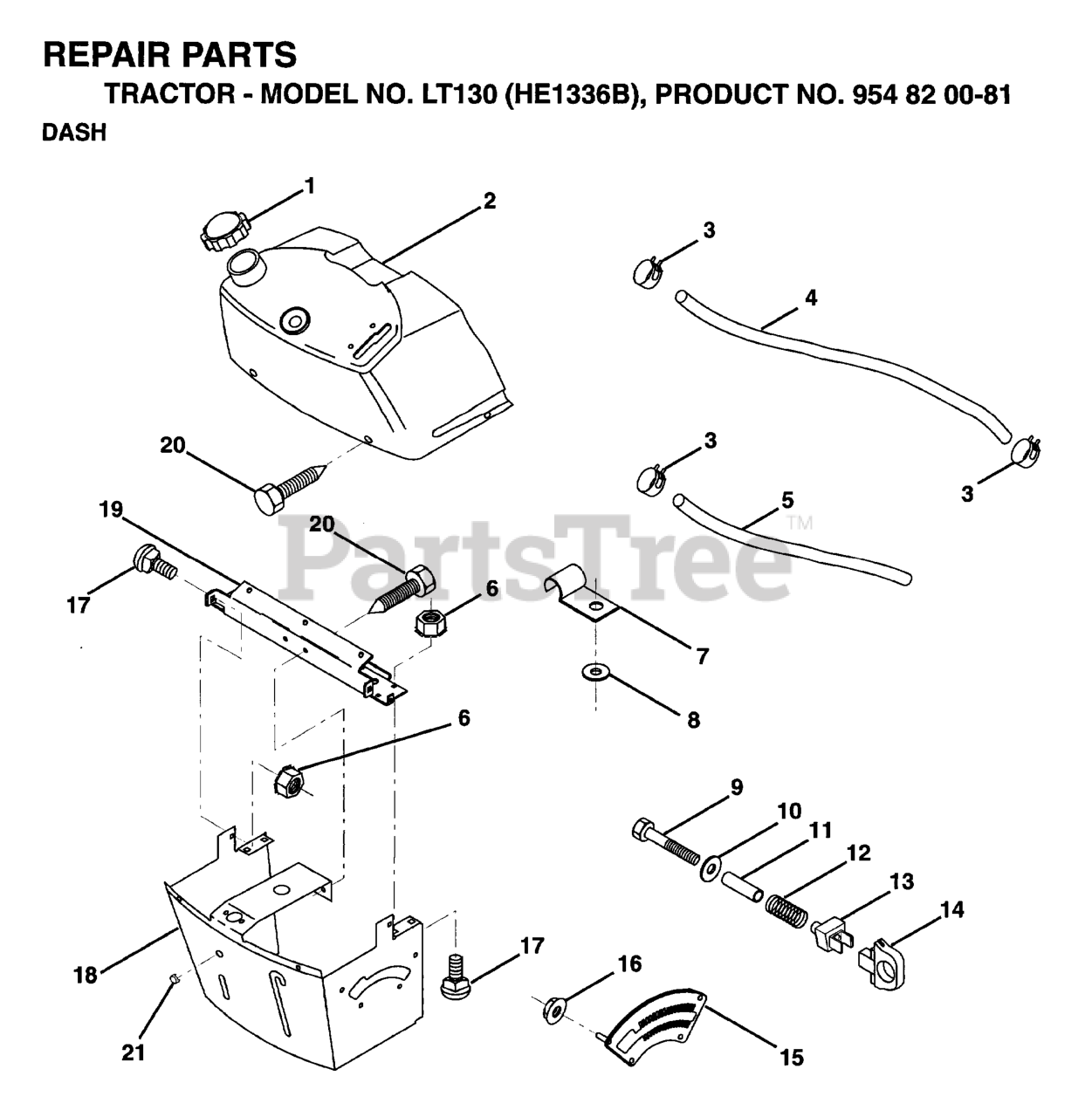

LT 130 (954820081-B) - Husqvarna Lawn Tractor (1996-01) DASH Parts Diagram

Lawn Tractor

DASH Parts Diagram

  • Title

19

Husqvarna 532134744

CROSS BRACE

$

$

Not available

12

Husqvarna 532003720

SPRING.COMPRESSION

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532122023

ADJUSTER QUAD

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 872110404

BOLT

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873640400

Nut, Keps Blk Hex 1/4-20 UNC

$

$

Not available

7

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

4

Husqvarna 532008544

FUEL LINE
(Superseded to 532000295)

$

$

Not available

8

Husqvarna 819091216

WASHER PM

$

$

Not available

1

Husqvarna 532142187

CAP.FUEL.GREY

$

$

Not available

20

Husqvarna 817060408

SCREW

$5.99

$

In Stock, only 2 left!

0

5

Husqvarna 532008548

FUEL LINE T

$7.99

$

In Stock, only 1 left!

0

21

Husqvarna 532134014

PLUG DOME

$

$

Not available

2

Husqvarna 532138395

TANK ASM DASH LR

$

$

Not available

9

Husqvarna 874760428

BOLT HEX FIN 1/4-20X1 3/4
(Superseded to 874760432)

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532126450

KNOB HGT RETAINER

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532126115

KNOB

$

$

Not available

18

Husqvarna 532130745

SUPT ASSY DASH

$

$

Not available

3

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

10

Husqvarna 819091413

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532124346

NUT.PUSH.3/16

$7.99

$

In Stock, only 1 left!

0

11

Husqvarna 532121249

SPACER SPLIT

$6.49

$

In Stock, only 2 left!

0
