LT 135420 C (7800361) - Murray 42" Lawn Tractor, 13.5hp (2008) Main Case Assembly - Gear Drive Parts Diagram

42" Lawn Tractor, 13.5hp

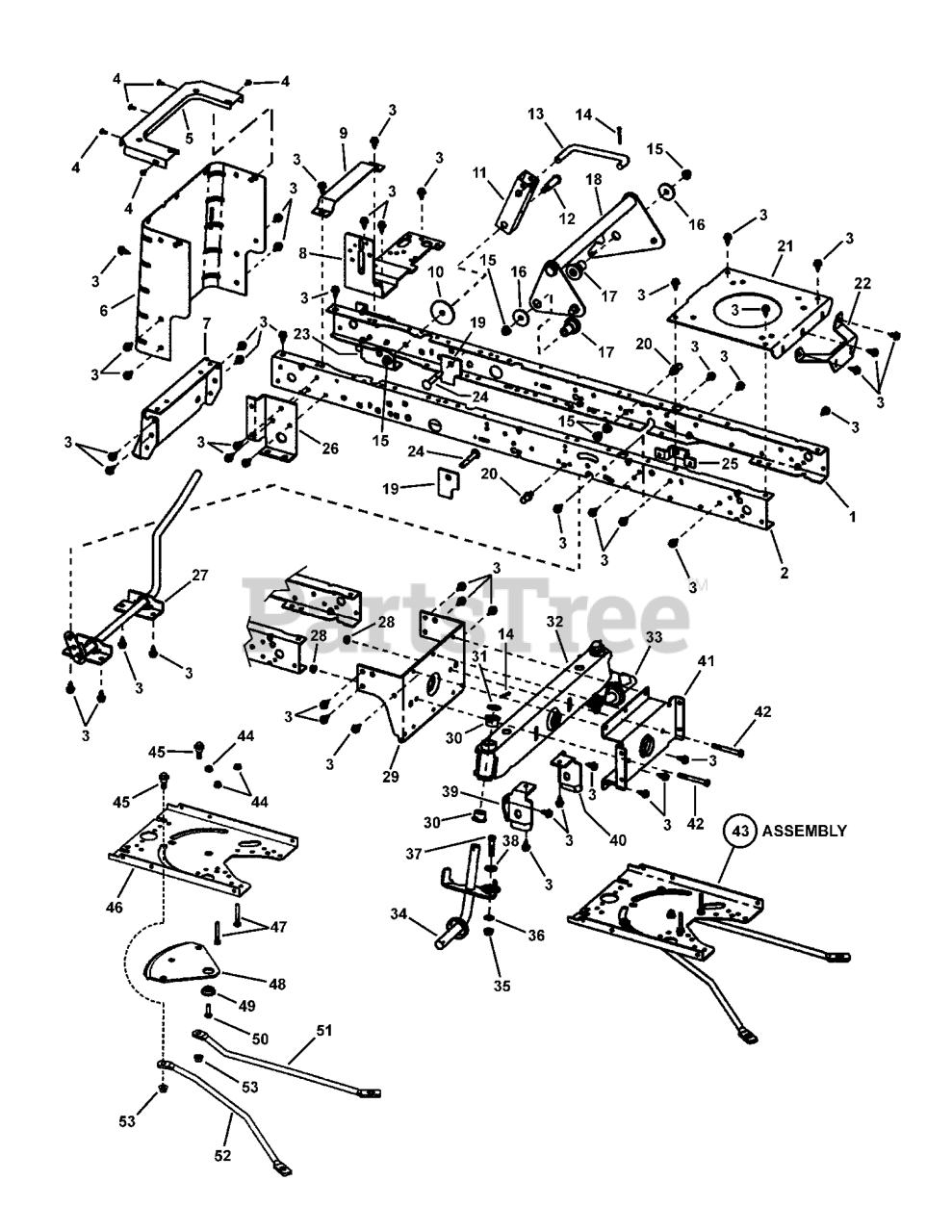

Main Case Assembly - Gear Drive Parts Diagram

  • Title

1

Murray 1001927E717MA

RAIL - FRAME LH
(Superseded to 1001269E701MA)

$103.99

$

Usually ships in 2-12 days

0

2

Murray 1001928E717MA

RAIL FRAME RH

$99.99

$

Usually ships in 2-12 days

0

3

Murray 26X249MA

CAPSCREW 5/16-18

$

$

Not available

4

Murray 7091286YP

SCREW, 10-24X.50 SELF-TAP SEMS

Note: or 26X270MA

$4.99

$

In Stock, Qty 12

0

5

Murray 094186E701MA

TOP - REAR PLATE

$26.99

$

Usually ships in 2-12 days

0

6

Murray 1001906E701MA

PLATE REAR
(Superseded to 7300866ZYP)

$75.99

$

Usually ships in 2-12 days

0

7

Murray 1001002E701MA

PLATE - HITCH

$

$

Not available

8

Murray 690166E700MA

BRACKET SHIFT RH

$44.99

$

Usually ships in 2-12 days

0

9

Murray 690482E701MA

BRKT - BATTERY SUPPORT

$

$

Not available

10

Murray 17X191MA

HER PLAIN .406 X 2.25

$3.99

$

Usually ships in 2-12 days

0

11

Murray 094015E701MA

BRACKET - PIVOT

$70.99

$

Usually ships in 2-12 days

0

12

Murray 009X53MA

SHOULDER BOLT, 1.563L X 0.75D X 9/16 X 3/8-16

$7.49

$

Usually ships in 2-12 days

0

13

Murray 690122E701MA

LINK - LIFT HANDLE
(Superseded to 7300877ZMA)

$20.99

$

Usually ships in 2-12 days

0

14

Murray 7091809YP

PIN,COTTER 1/8 X 1.25 YZ

$4.49

$

In Stock, only 2 left!

0

15

Murray 7091619SM

HFLN, 3/8-16 YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 11

0

16

Murray 7013866YP

HER 1-1/2 OD

$6.49

$

Usually ships in 2-12 days

0

17

Murray 690151MA

SPACER - LIFTER PIVOT

$6.99

$

Usually ships in 2-12 days

0

18

Murray 1001111E701MA

LIFTER ASSY (WELDMENT)

$119.99

$

Usually ships in 2-12 days

0

19

Murray 1001098E701MA

PLATE STIFFENING

$22.99

$

Usually ships in 2-12 days

0

20

Murray 094067MA

PIN - THREADED SHOULDER (3/8-16 thread)
(Superseded to 704054)

$7.49

$

Usually ships in 2-12 days

0

21

Murray 094006E701MA

PLATE - ENGINE

$117.99

$

Usually ships in 2-12 days

0

22

Murray 690537E701MA

BRACKET, MUFFLER MOUNTING

$78.99

$

Usually ships in 2-12 days

0

23

Murray 094185E701MA

BRACKET - TRANSAXLE L.H.

$61.99

$

Usually ships in 2-12 days

0

24

Murray 7091008YP

RHSSNB,3/8CX2-1/2

$5.49

$

In Stock, only 1 left!

0

25

Murray 094005E701MA

BRACKET - BELLCRANK
(Superseded to 7300796ZMA)

$8.99

$

Usually ships in 2-12 days

0

26

Murray 094184E701MA

BRACKET - TRANSAXLE R.H.

$61.99

$

Usually ships in 2-12 days

0

27

Murray 7400237YP

ASSEMBLY - BRAKE LEVER (WELDMENT)
(Superseded to 7400237ZYP)

$82.99

$

Usually ships in 2-12 days

0

28

Murray 7092081YP

HFLN, 5/16-24 BZ
(Superseded to 703123)

$3.49

$

In Stock, Qty 17

0

29

Murray 1001270E701MA

BRACKET - HANGER REAR

$169.99

$

Usually ships in 2-12 days

0

30

Murray 690150MA

BEARING SPINDLE

$8.99

$

In Stock, only 4 left!

0

31

Murray 7010935SM

HER,.77X1.13X.06

$3.99

$

In Stock, Qty 20+

0

32

Murray 1001460E701MA

WELDMENT, AXLE SECTION ASSY

$108.99

$

Usually ships in 2-12 days

0

33

Murray 094576E701MA

WELDMENT - SPINDLE LH

$197.99

$

Usually ships in 2-12 days

0

34

Murray 094575E701MA

WELDMENT - SPINDLE RH

$184.99

$

Usually ships in 2-12 days

0

35

Murray 015X84MA

NUT, HEX FLANGE, 3/8-16 NC
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

36

Murray 017X53MA

FW, .41 X.82 X 16GA
(Superseded to 703590)

$3.99

$

In Stock, Qty 17

0

37

Murray 01X111MA

BOLT, HEX, 3/8-16 UNC X 1.50 BRIGHT ZINC
(Superseded to 703406)

$4.99

$

In Stock, Qty 10

0

38

Murray 710083MA

HER, FLAT, 25/64" ID X 1" OD X 14 GA.

$7.49

$

In Stock, only 2 left!

0

39

Murray 094026E701MA

HANGER DECK RH

$23.99

$

Usually ships in 2-12 days

0

40

Murray 094027E701MA

HANGER DECK LH

$23.99

$

Usually ships in 2-12 days

0

41

Murray 094007E701MA

HANGER - AXLE

$34.99

$

Usually ships in 2-12 days

0

42

Murray 01X146MA

HHB, 5/16-24 X 2.75 BOLT

$3.99

$

Usually ships in 2-12 days

0

43

SECTOR GEAR ASSY (GEAR DRIVE - LT)

$

$

Not available

44

Murray 7090585MA

HFLN, 5/16-18 BZ
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

45

Murray 009X57MA

BOLT, SHOULDER 3/8-16

$9.99

$

In Stock, Qty 5

0

46

Murray 1001121E701MA

PLATE, STEERING MOUNT
(Superseded to 7300867ZMA)

$

$

Not available

47

Murray 094384MA

SCREW - GUIDE

$4.49

$

Usually ships in 2-12 days

0

48

Murray 094121MA

GEAR - SECTOR

$33.99

$

Usually ships in 2-12 days

0

49

Murray 094123MA

BEARING - SECTOR GEAR

$13.99

$

In Stock, only 3 left!

0

50

Murray 7027168SM

HHCS, 5/16-18 X 1 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

51

Murray 095329E701MA

DRAG - LINK LH

$21.99

$

Usually ships in 2-12 days

0

52

Murray 095328E701MA

DRAG - LINK RH

$

$

Not available

53

Murray 7091619SM

HFLN, 3/8-16 YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 11

0
