LT 135420 C (7800361) - Murray 42" Lawn Tractor, 13.5hp (2008) Motion Drive Group - Gear Drive Parts Diagram

42" Lawn Tractor, 13.5hp

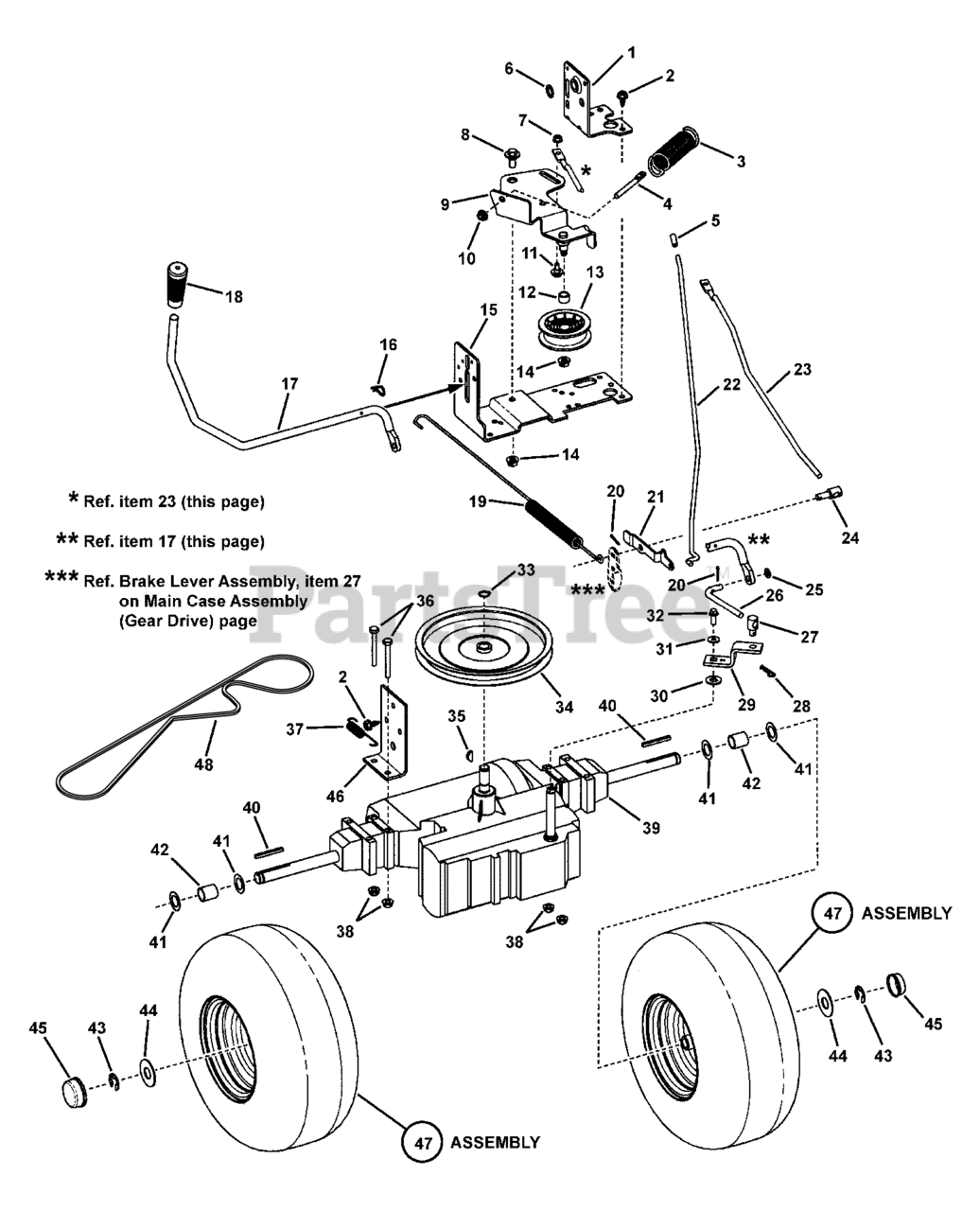

Motion Drive Group - Gear Drive Parts Diagram

  • Title

1

Murray 1001303ZMA

BRACKET - SHIFT PIVOT

$20.99

$

Usually ships in 2-12 days

0

2

Murray 26X249MA

CAPSCREW 5/16-18

$

$

Not available

3

Murray 165X116MA

SPRING - EXTENSION

$8.99

$

Usually ships in 2-12 days

0

4

Murray 094042ZMA

STUD - SPRING MTG (5/16-18 thread)

$4.49

$

Usually ships in 2-12 days

0

5

Murray 091079MA

GRIP

$3.99

$

Usually ships in 2-12 days

0

6

Murray 017X91MA

WASHER, FLAT, .81 X .550 X 16GA

$5.99

$

In Stock, only 2 left!

0

7

Murray 015X89MA

1/4-20 HFN

$4.49

$

Usually ships in 2-12 days

0

8

Murray 009X39MA

SHOULDER BOLT, 0.75 X 0.60 X 3/8-16

$6.49

$

In Stock, only 1 left!

0

9

Murray 7400241MA

ASSEMBLY - IDLER ARM

$33.99

$

Usually ships in 2-12 days

0

10

Murray 015X79MA

HEX NUT, 5/16-18 FLANGE SER YZ
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

11

Murray 009X54MA

SHOULDER BOLT, 1/4-20X3.75

$5.99

$

Usually ships in 2-12 days

0

12

Murray 690369MA

SPACER 1/2" TO 17MM

$

$

Not available

13

Murray 690409MA

IDLER PULLEY - 2.75 DIA.

$19.99

$

In Stock, only 3 left!

0

14

Murray 015X84MA

NUT, HEX FLANGE, 3/8-16 NC
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Murray 690166E700MA

BRACKET SHIFT RH

$44.99

$

Usually ships in 2-12 days

0

16

Murray 0031X4MA

HAIR PIN, .56D-.092T
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

17

Murray 094043ZMA

LEVER - SHIFTER

$50.99

$

In Stock, only 1 left!

0

18

Murray 092697MA

GRIP, .50 SHAFT, TAPERED
(Superseded to 1753233YP)

$7.49

$

In Stock, Qty 20+

0

19

Murray 165X115MA

SPRING - EXTENSION

$22.99

$

Usually ships in 2-12 days

0

20

Murray 030X20MA

PIN - COTTER, 0.75 X 0.090
(Superseded to 703312)

$4.49

$

In Stock, Qty 8

0

21

Murray 094045ZMA

LATCH - PARKING BRAKE

$47.99

$

Usually ships in 2-12 days

0

22

Murray 1001245ZMA

ROD - PARKING BRAKE

$35.99

$

Usually ships in 2-12 days

0

23

Murray 094041ZMA

ROD - CLUTCH

$35.99

$

Usually ships in 2-12 days

0

24

Murray 094815ZMA

ADJUSTING NUT

$21.99

$

Usually ships in 2-12 days

0

25

Murray 017X47MA

FW, .34X.62X16GA
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

26

Murray 95289MA

LINK - SHIFT

$14.99

$

Usually ships in 2-12 days

0

27

Murray 021920ZMA

NUT -ADJUSTING (3/8-16 thread)

$17.99

$

Usually ships in 2-12 days

0

28

Murray 711682MA

HAIR PIN, .38D-.09T
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

29

Murray 094031ZMA

YOKE - SHIFT

$16.99

$

Usually ships in 2-12 days

0

30

Murray 17X148MA

WASHER, 1.0 X 0.393/0.388SQ.ID X 16GA

$4.49

$

Usually ships in 2-12 days

0

31

Murray 017X38MA

FW, .26 X.75 X 16GA

$3.99

$

Usually ships in 2-12 days

0

32

Murray 06X105MA

CAPSCREW 1/4-28 NF FLANGE HEAD

$4.49

$

In Stock, only 1 left!

0

33

Murray 0011X7MA

SNAP RING, .625-.035T

$3.99

$

In Stock, only 1 left!

0

34

Murray 095094MA

PULLEY - LOW NOISE

$58.99

$

In Stock, Qty 6

0

35

Murray 020697MA

KEY, WOODRUFF #9

$4.49

$

Usually ships in 2-12 days

0

36

Murray 01X155MA

HHB, 5/16-18X2.50
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

37

Murray 165X92MA

EXTENSION SPRING

$5.49

$

In Stock, only 2 left!

0

38

Murray 015X88MA

NUT, HEX FLANGE LOCK, 5/16-18 NC
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

39

Murray 1001809MA

DANA 6-SPEED TRANS AXLE

$785.99

$

Usually ships in 2-12 days

0

40

Murray 021553MA

3/16 SQ KEY - REAR WHEELS

$5.49

$

In Stock, Qty 14

0

41

Murray 17X160MA

HER, FLAT 1.25 X 0.760ID

$4.99

$

In Stock, only 1 left!

0

42

Murray 1401103MA

SPACER - 0.875 DIA X 1.12-1.97L

$11.99

$

Usually ships in 2-12 days

0

43

Murray 0011X3MA

E-RING, .750D X .050T

$5.99

$

In Stock, Qty 8

0

44

Murray 17X195MA

FW, 1.862X .765 X 16GA

$4.99

$

In Stock, Qty 16

0

45

Murray 094618MA

HUB CAP

$5.99

$

In Stock, Qty 20+

0

46

Murray 094184E701MA

BRACKET - TRANSAXLE RH

$61.99

$

Usually ships in 2-12 days

0

46

Murray 094185E701MA

BRACKET - TRANSAXLE LH (not shown)

$61.99

$

Usually ships in 2-12 days

0

47

Murray 7101560YP

ASSY, Wheel & Tire 20 x 8.0-8 (incl. 3 items below)

$281.99

$

In Stock, only 1 left!

0

48

Murray 7101749MA

BELT, V Motion Drive (4L Sect.; 96.88 E.L.)
(Superseded to 037X87MA)

Note: (Used on Gear Drive Models only)

$26.99

$

In Stock, only 3 left!

0

--

Murray 7101559YP

TIRE, 20 x 8-8 2 Ply K358

$228.99

$

Usually ships in 2-12 days

0

--

Murray 7101558YP

RIM, 8 x 7 Broached Hub Wheel Silver

$107.99

$

Usually ships in 2-12 days

0

--

Murray 7012234SM

VALVE STEM, TR 412

$6.99

$

In Stock, Qty 8

0
