LT-14 (133R676G190) - White Outdoor 42" Lawn Tractor (1993) Wiring Schematic Parts Diagram

42" Lawn Tractor

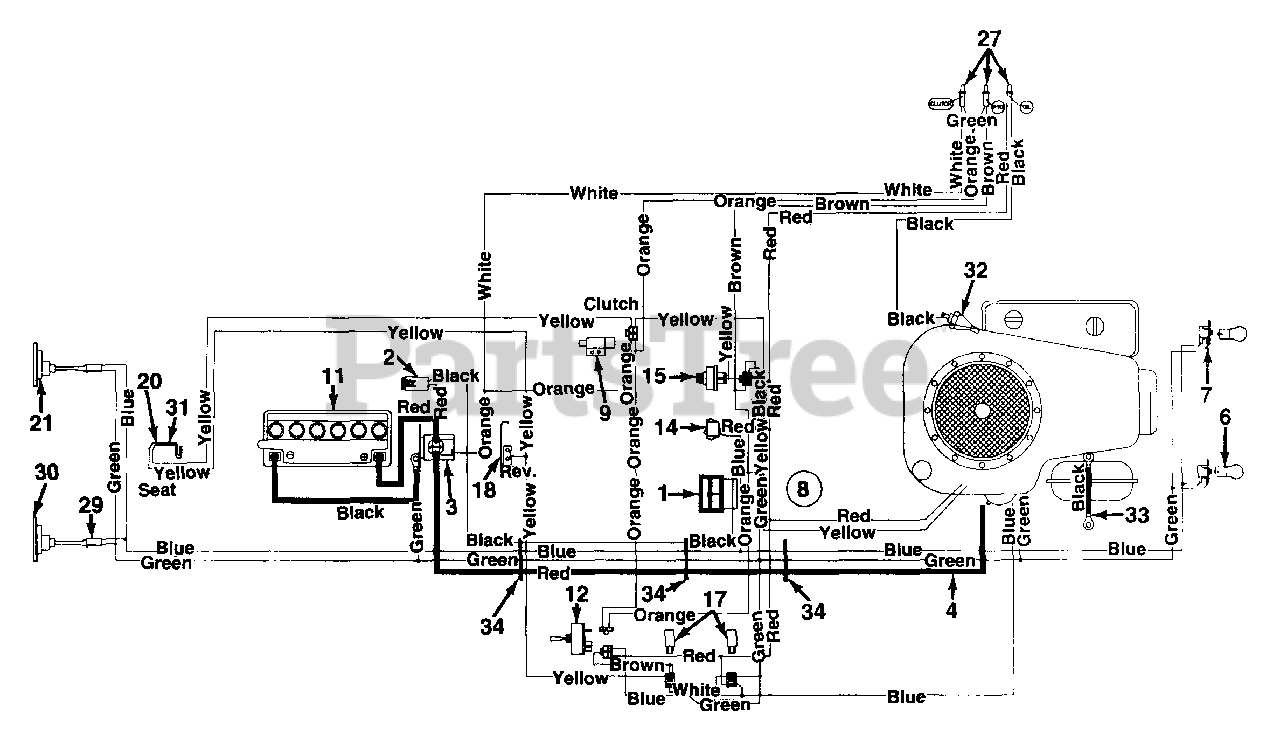

Wiring Schematic Parts Diagram

  • Title

1

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

2

White Outdoor 725-1381

Fuse 20 Amps
(Superseded to 925-1381)

$6.99

$

In Stock, Qty 10

0

3

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$28.99

$

In Stock, Qty 20+

0

4

White Outdoor 725-1081

Wire 30" Lg.
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

6

White Outdoor 725-0963

Bulb
(Superseded to 925-0963)

$7.99

$

In Stock, Qty 20+

0

7

White Outdoor 725-1649

Socket
(Superseded to 925-1649A)

$12.99

$

In Stock, Qty 20+

0

8

629-0099

Wire Harness

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

9

White Outdoor 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$25.99

$

In Stock, Qty 20+

0

11

White Outdoor 725-1633

Battery 12V
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

12

White Outdoor 725-0893

Switch (PTO)
(Superseded to 925-0893)

$87.99

$

In Stock, Qty 12

0

14

725 0634

Light Switch

$

$

Not available

15

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$37.99

$

In Stock, Qty 20+

0

17

White Outdoor 725-1648

Relay
(Superseded to 925-1648A)

$49.99

$

In Stock, Qty 7

0

18

White Outdoor 725-1643

Spring Lever

$10.99

$

In Stock, only 2 left!

0

20

White Outdoor 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.99

$

In Stock, Qty 6

0

21

725-3018

Taillight

$

$

Not available

27

White Outdoor 725-1365

Bulb
(Superseded to 925-1365)

$10.99

$

Usually ships in 3-6 days

0

29

White Outdoor 725-1380

Taillight Harness

$

$

Not available

30

White Outdoor 725-3020

Bulb
(Superseded to 925-3020)

$

$

Not available

31

White Outdoor 725-1439

Safety Switch (Seat)

$8.99

$

In Stock, Qty 9

0

32

White Outdoor 751-0537

Oil Pressure Switch

$

$

Not available

33

White Outdoor 725-0980

Wire 7.5" Lg.

$

$

Not available

34

White Outdoor 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0
