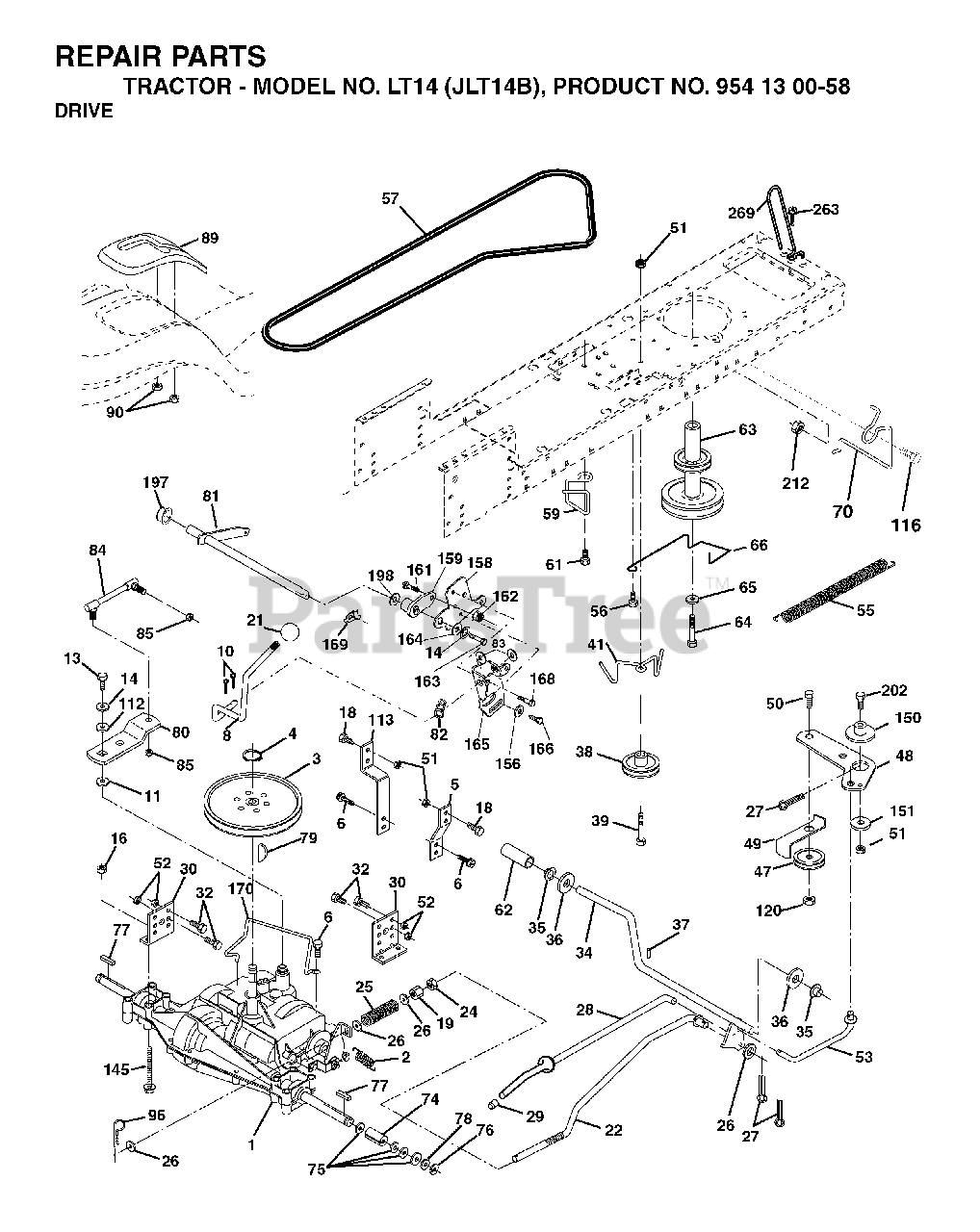

LT 14 (954130058) - Jonsered Lawn Tractor (2003-01) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

2

Jonsered 532146682

SPRING,BRAKE RETURN

$8.99

$

In Stock, only 3 left!

0

3

Jonsered 532123666

PULLEY TRANS

$37.99

$

In Stock, only 4 left!

0

4

Jonsered 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 20+

0

5

Jonsered 532121520

STRAP TORQUE

$7.49

$

In Stock, only 3 left!

0

6

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

8

Jonsered 532165866

ROD SHIFT FENDER ADJUST STLT

$

$

Not available

10

Jonsered 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

11

Jonsered 532105701

WASH-SHFT PLT LT

$6.49

$

In Stock, only 1 left!

0

13

Jonsered 874550412

BOLT 1/4-28X3/4
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

16

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

18

Jonsered 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

19

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Jonsered 532121274

KNOB.DUCKHEAD.1/2

$8.99

$

Usually ships in 3-10 days

0

22

Jonsered 532130804

ROD BRAKE

$31.99

$

In Stock, only 1 left!

0

24

Jonsered 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

25

Jonsered 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, Qty 9

0

26

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

27

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 2 left!

0

28

Jonsered 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

29

Jonsered 532071673

PLUNGER CAP

$4.99

$

In Stock, only 2 left!

0

30

Jonsered 532174973

BRKT, MOUNT TRNSAXLE
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0

32

Jonsered 874760512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

34

Jonsered 532175578

SHAFT, FOOT PEDAL

$30.99

$

Usually ships in 3-10 days

0

35

Jonsered 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 10

0

36

Jonsered 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532124963

DRIVE PIN
(Superseded to 532002882)

$

$

Not available

38

Jonsered 532179114

PULLEY IDLER COMPOSITE

$31.99

$

In Stock, Qty 20+

0

39

Jonsered 874760648

BOLT
(Superseded to 874780648)

$

$

Not available

41

Jonsered 532175556

KEEPER, BELT IDLER

$9.99

$

In Stock, only 1 left!

0

47

Jonsered 532127783

IDLER PULLEY
(Superseded to 532139245)

$34.99

$

In Stock, Qty 13

0

48

Jonsered 532154407

BELLCRANK, CLUTCH

$8.99

$

In Stock, only 1 left!

0

49

Jonsered 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

50

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

51

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Jonsered 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Jonsered 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

56

Jonsered 817120614

SCREW 3/8-16X.875
(Superseded to 817490614)

$

$

Not available

57

Jonsered 532130801

V-BELT
(Superseded to 532138255)

$36.99

$

In Stock, Qty 20+

0

59

Jonsered 532169691

KEEPER, BELT CENTER

$26.99

$

Usually ships in 3-10 days

0

61

Jonsered 817120614

SCREW 3/8-16X.875
(Superseded to 817490614)

$

$

Not available

62

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

63

Jonsered 532180219

No Description Available

$

$

Not available

64

Jonsered 871170764

BOLT
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

65

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Jonsered 532154778

KEEPER BELT ENGINE

$12.99

$

In Stock, only 1 left!

0

70

Jonsered 532180218

No Description Available

$

$

Not available

74

Jonsered 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

75

Jonsered 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

76

Jonsered 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

77

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 11

0

78

Jonsered 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

79

Jonsered 532125096

KEY STD

$4.99

$

Usually ships in 3-10 days

0

80

Jonsered 532131486

ARM SHIFT

$4.99

$

Usually ships in 3-10 days

0

81

Jonsered 532165594

No Description Available

$34.99

$

Usually ships in 3-10 days

0

82

Jonsered 532165711

SHIFT SPRING

$7.49

$

In Stock, Qty 10

0

83

Jonsered 819171216

WASHER
(Superseded to 19171216)

$2.99

$

Usually ships in 3-10 days

0

84

Jonsered 532166228

No Description Available
(Superseded to 597068801)

$8.99

$

Usually ships in 3-10 days

0

85

Jonsered 532150360

NUT LOCK CENTER 1/4 -28 FNTHD
(Superseded to 873610400)

$

$

Not available

89

Jonsered 532166556

CONSOLE.SHIFT.STLT.6SP.BLACK

$

$

Not available

90

Jonsered 532124346

NUT

$4.99

$

In Stock, only 1 left!

0

96

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

112

Jonsered 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, only 2 left!

0

113

Jonsered 532127285

STRAP TORQUE LH LT

$

$

Not available

116

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

120

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

145

Jonsered 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

150

Jonsered 532175456

SPACER, RETAINER

$

$

Not available

151

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$3.99

$

In Stock, Qty 19

0

156

Jonsered 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

158

Jonsered 532165589

BRACKET
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Jonsered 532165494

HUB
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Jonsered 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

163

Jonsered 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

164

Jonsered 819091010

WASHER

$

$

Not available

165

Jonsered 532165623

RP BRACKET
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Jonsered 532166880

SCREW

$6.49

$

Usually ships in 3-10 days

0

168

Jonsered 532165492

BOLT.SHOULDER.5/16-18X

$6.49

$

In Stock, only 3 left!

0

169

Jonsered 532165580

PLATE.FASTENING.CROSS.SHAFT

$4.99

$

Usually ships in 3-10 days

0

170

Jonsered 532178394

KEEPER BELT T/A

$9.99

$

Usually ships in 3-10 days

0

197

Jonsered 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

198

Jonsered 532169593

WASHER.NYL.7/8IDX.105"HYD CR

$7.49

$

Usually ships in 3-10 days

0

202

Jonsered 872110614

BOLT
(Superseded to 596136201)

$3.99

$

In Stock, Qty 10

0

212

Jonsered 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

263

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 10

0

269

Jonsered 532182402

No Description Available
(Superseded to 583122001)

$7.49

$

Usually ships in 3-10 days

0
