LT-140 (135-704-190) - White Outdoor 44" Lawn Tractor (1985) Chassis Assembly Parts Diagram

44" Lawn Tractor

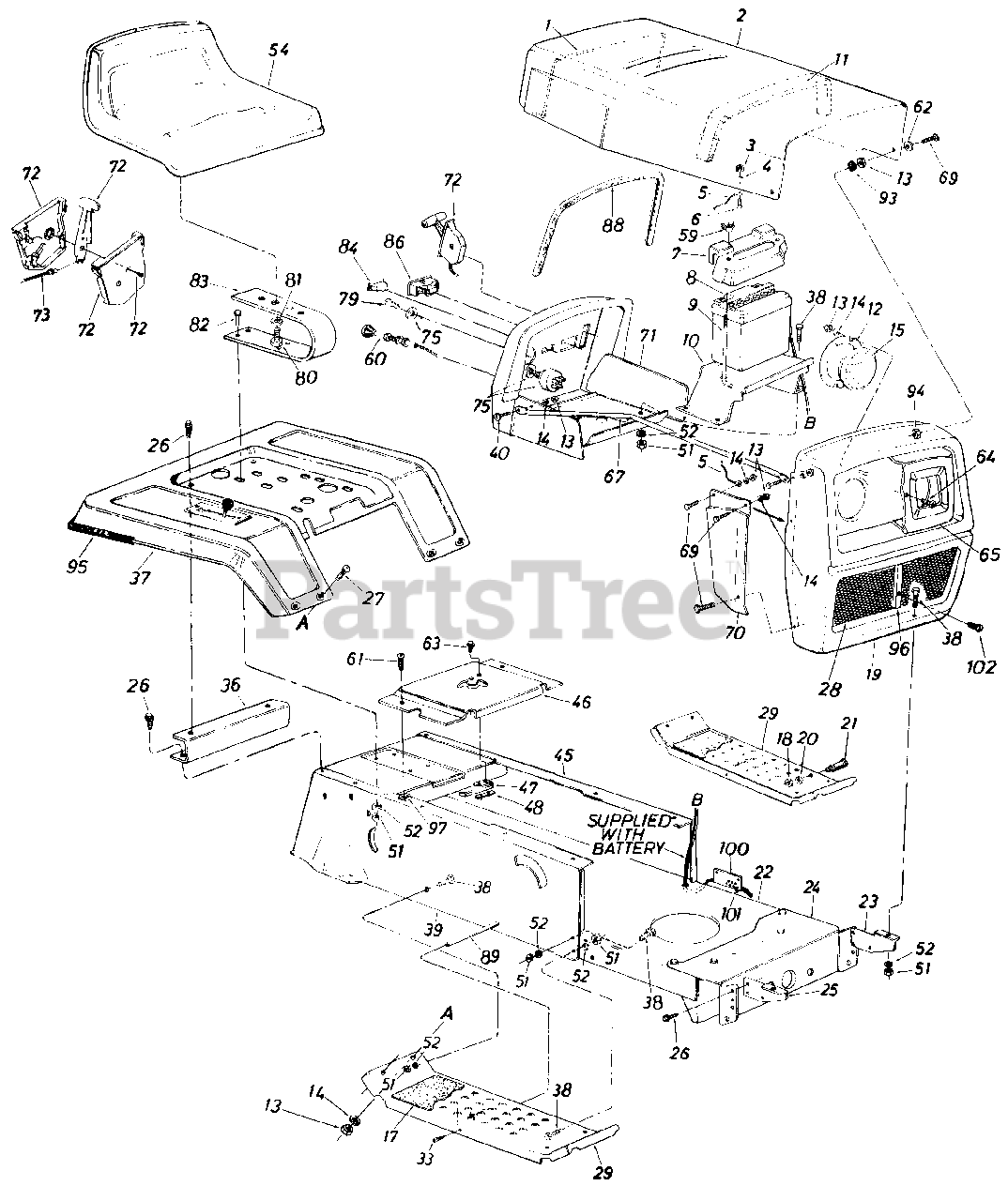

Chassis Assembly Parts Diagram

  • Title

1

MTD 732-0477

Hood Spring

Note: NLA

$

$

Not available

2

MTD 16207

Hood

Note: NLA

$

$

Currently unavailable

3

MTD 712-0272

Hex Sems Nut #10-24 Thd.*

$3.99

$

In Stock, Qty 7

0

4

MTD 936-0463

Fl-Wash. .281" I.D. x .62" O.D. x .051
(Superseded to 736-0463)

$4.49

$

In Stock, only 1 left!

0

5

MTD 723-0302

Hood Stop 7" Lg.

$11.99

$

Usually ships in 3-6 days

0

6

MTD 710-0473

Truss Hd. Scr. #10-24 x 1/2"*

$3.99

$

In Stock, Qty 7

0

7

MTD 731-0707

Battery Cover

Note: NLA

$

$

Not available

8

MTD 925-0453G

12 Volt Battery

$

$

Not available

9

MTD 911-0222A

Battery Hold Down Rod

$11.99

$

In Stock, only 1 left!

0

10

MTD 12747

Battery Bracket

Note: NLA

$

$

Not available

11

MTD 722-0138

PVC Foam Strip

Note: NLA

$

$

Not available

12

MTD 09960

Headlight Retainer

Note: NLA

$

$

Not available

13

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.49

$

In Stock, only 2 left!

0

14

MTD 936-0329

L-Wash 14" I.D.*

$4.49

$

In Stock, Qty 13

0

15

MTD 925-0222

Headlight

$54.99

$

In Stock, Qty 5

0

15

MTD 710-0653

Hex Wash. Hd. Tap Scr. 1/4 x 3/8" Lg.

$4.49

$

In Stock, Qty 16

0

17

MTD 723-0360

Foot Pad

Note: NLA

$

$

Not available

18

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

In Stock, only 2 left!

0

19

MTD 14787

Grille Ass'y.

Note: NLA

$

$

Not available

20

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

21

MTD 938-0145

Shld. Bolt .50" Dia. x .84

$6.49

$

Usually ships in 3-6 days

0

22

MTD 14606

Lower Frame

Note: NLA

$

$

Currently unavailable

23

MTD 13863

Grille Mount Brkt. L.H.

Note: NLA

$

$

Not available

24

MTD 14619

Front Pivot Brkt.

Note: NLA

$

$

Currently unavailable

25

MTD 13862

Grille Mount Brkt. R.H.

Note: NLA

$

$

Not available

26

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

27

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.*
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

28

MTD 13730

Grille Screen

Note: NLA

$

$

Not available

29

MTD 14604

Running Board (R.H. & L.H.)

Note: NLA

$

$

Currently unavailable

33

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.*

$4.49

$

In Stock, only 2 left!

0

36

MTD 15848

Fender Mount Brace

Note: NLA

$

$

Currently unavailable

37

MTD 16221

Fender

Note: NLA

$

$

Currently unavailable

38

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$3.99

$

In Stock, Qty 20+

0

39

MTD 14602G-0637

R.H. Side Frame

$

$

Not available

40

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.*

$3.99

$

In Stock, Qty 20+

0

45

MTD 14603

L.H. Side Frame

Note: NLA

$

$

Not available

46

MTD 16188

Shift Cover

Note: NLA

$

$

Currently unavailable

47

MTD 753-0579

Reverse Safety Switch

$

$

Not available

48

MTD 926-0320

Insulator Nut Plate

$6.49

$

In Stock, Qty 11

0

48

MTD 14607

Hitch Plate

Note: NLA

$

$

Currently unavailable

51

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

54

MTD 757-0309

Seat Ass'y

Note: NLA

$

$

Currently unavailable

59

MTD 912-0113

Wing Nut 1/4-20 Thd. Plastic

$6.49

$

In Stock, only 2 left!

0

60

MTD 746-0394

Choke Control

$

$

Not available

61

MTD 710-0351

Truss Mach. Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 4 left!

0

62

MTD 936-0463

Fl-Wash. .296 I.D. x .62 O.D.
(Superseded to 736-0463)

$4.49

$

In Stock, only 1 left!

0

63

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

64

MTD 710-0148

Truss Hd. Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 16

0

65

MTD 731-0465

Bezel

$

$

Not available

67

MTD 749-0673

Grille Support Rod L.H

Note: NLA

Variations

MTD 749-0673-0637

No Longer Available ROD-GRILLE - POWDER BLACK (0637)

$

$

Not available

$

$

67

MTD 749-0674

Grille Support Rod R.H.

Note: NLA

$

$

Currently unavailable

69

MTD 710-0924

Truss Hd. Scr. 1/4-20 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

70

MTD 14748

R.H. Grille Side Panel

Note: NLA

$

$

Currently unavailable

70

MTD 14749

L.H. Grille Side Panel

Note: NLA

$

$

Currently unavailable

71

MTD 15933

Dash Panel Ass'y.

Note: NLA

$

$

Currently unavailable

72

MTD 831-0796A

Throttle Control Box Ass'y.

$20.99

$

In Stock, Qty 15

0

73

MTD 746-0501

Throttle Control Wire

$16.99

$

In Stock, Qty 5

0

75

MTD 925-0267B

Ignition Switch

$33.99

$

In Stock, Qty 18

0

79

MTD 925-0201

Ignition Key

$8.99

$

In Stock, Qty 14

0

80

MTD 710-3131

Hex Bolt 1/2-13 x 1.00" Lg.

$4.99

$

In Stock, only 1 left!

0

81

MTD 936-0921

L-Wash. 1/2" I.D.*
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

82

MTD 710-0376

Hex Bolt 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 19

0

83

MTD 732-0458

Seat Spring 5.5" High

Note: NLA

$

$

Not available

84

MTD 925-0634

Light Switch

$16.99

$

In Stock, Qty 6

0

86

MTD 925-0925

Ammeter

$28.99

$

Usually ships in 3-6 days

0

88

MTD 731-0511

Molding Strip 27" Lg.

$3.49

$

Usually ships in 3-6 days

0

89

MTD 738-0526

Running Board Rod

$

$

Not available

89

MTD 710-0599

Thread Rolling Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

93

MTD 735-0144

Rubber Wash. 1/2" I.D. x 1.0 O.D. x .25"

Note: NLA

$

$

Not available

94

MTD 712-0324

Hex Sems Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

95

MTD 731-0511

Trim Strip 81"

$3.49

$

Usually ships in 3-6 days

0

96

MTD 723-0347

Center Moulding

Note: NLA

$

$

Currently unavailable

97

MTD 726-0139

Speed Nut #10Z

$6.49

$

In Stock, only 3 left!

0

100

MTD 16371

Brake Cable Bracket

Note: NLA

$

$

Currently unavailable

101

MTD 726-0197

Cable Tie

$3.49

$

In Stock, only 1 left!

0

102

MTD 710-0425

Truss Mach. Scr. #10-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

MTD 777-4553

WHITE Plastic Logo Grille

Note: NLA

$

$

Not available

MTD 777-4530

WHITE Label Steering Hub

Note: NLA

$

$

Currently unavailable

MTD 777-5159

LAWN BOSS Label Hood

Note: NLA

$

$

Currently unavailable

MTD 777-4777

Reflective Label Seat

Note: NLA

$

$

Not available

MTD 730-0116

Reflectors Fenders

Note: NLA

$

$

Currently unavailable

MTD 777-5255

CRUISE-MATIC Label Frame Sides

Note: NLA

$

$

Currently unavailable

MTD 777-5256

CRUISE-MATIC Label Fender

Note: NLA

$

$

Currently unavailable
