LT-140 (135-704-190) - White Outdoor 44" Lawn Tractor (1985) Single Speed Transaxle Parts Diagram

44" Lawn Tractor

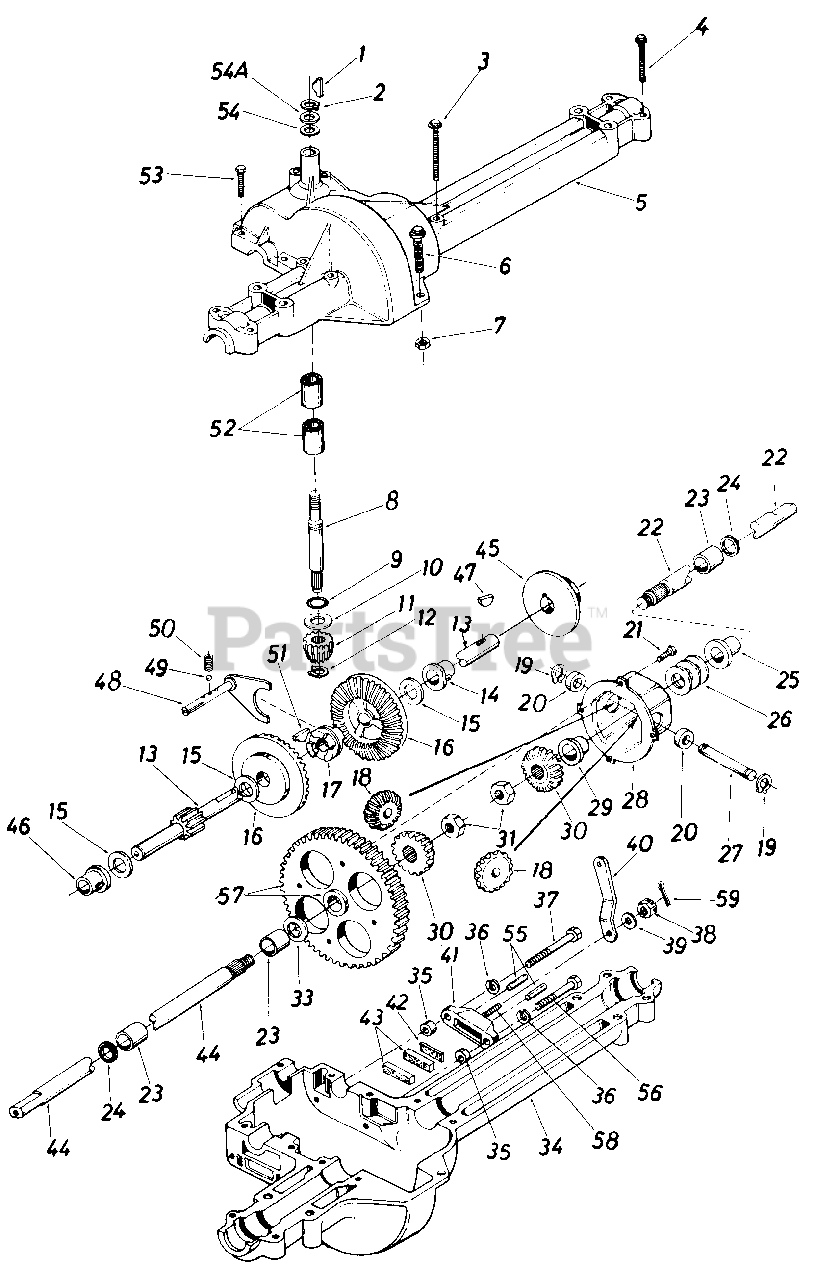

Single Speed Transaxle Parts Diagram

  • Title

1

MTD 914-0129

#4 Hi-Pro Key 3/32 x 5/8" Dia.

$

$

Not available

2

MTD 916-0115

Snap Ring .625" Shaft

$

$

Not available

3

MTD 710-1026

Hex Bolt 1/4-20 x 1.75" Lg.*

$6.49

$

In Stock, Qty 20+

0

4

MTD 710-0809

Hex Bolt 1/4-20 x 1.25" Lg.*

$6.49

$

In Stock, Qty 20+

0

5

MTD 717-0540

Upper Housing

$

$

Not available

6

MTD 710-0889

Hex Fl-Bolt 1/4-20 x .88" Lg.*

Note: NLA

$

$

Not available

7

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.49

$

In Stock, only 2 left!

0

8

MTD 717-0634A

Input Shaft

$111.99

$

Usually ships in 3-6 days

0

9

MTD 921-0178

Square Seal 5/8" I.D.

$

$

Not available

10

MTD 936-0335

Thrust Washer 5/8" I.D. x 1.25" O.D

$6.49

$

In Stock, Qty 8

0

11

MTD 917-0633

Pinion Input 14T

$21.99

$

Usually ships in 3-6 days

0

12

MTD 916-0108

Retaining Ring 7/16" Ext.
(Superseded to 716-0108)

$4.99

$

Usually ships in 3-6 days

0

13

MTD 917-0758

Drive Shaft R.H.

$148.99

$

Usually ships in 3-6 days

0

14

MTD 941-0336

Flange Brg. 5/8" I.D. x 3/4" Lg.*

$10.99

$

In Stock, Qty 18

0

15

MTD 936-0349

Fl-Wash. 5/8" I.D. x 1.0" O.D. x .020 Thk.

$3.99

$

In Stock, Qty 20+

0

15

MTD 936-0336

Fl-Wash. 5/8" I.D. x 1.0" O.D. x .030 Thk.

$4.49

$

In Stock, Qty 20+

0

15

MTD 936-0337

Fl-Wash. 5/8" I.D. x 1.0" O.D> x .040 Thk.

$4.49

$

In Stock, Qty 15

0

16

MTD 717-0757

Bevel Gear 42T

$86.99

$

Usually ships in 3-6 days

0

17

MTD 917-0667

Clutch Collar

$

$

Not available

18

MTD 717-1020

Miter Gear 15T

$22.99

$

In Stock, only 1 left!

0

19

MTD 753-0527

Snap Ring

$

$

Not available

20

MTD 753-0527

Thrust Bearing 1/2" I.D. x 1.0" O.D.

$

$

Not available

21

MTD 710-0862A

Pan Head Scr. 1/4-20 x .50" Lg. w/ Patch

$4.49

$

Usually ships in 3-6 days

0

22

MTD 717-1012

Axle R.H.

$128.99

$

Usually ships in 3-6 days

0

23

MTD 941-0340

Sleeve Bearing 3/4" I.D. x 1.0" Lg.
(Superseded to 741-05060)

$8.49

$

In Stock, Qty 20+

0

24

MTD 921-0179

Oil Seal 3/4" I.D.
(Superseded to 721-0179)

$

$

Not available

25

MTD 941-0339

Flange Bearing 3/4" I.D. x 15/16" Lg.

$11.99

$

In Stock, Qty 20+

0

26

MTD 736-0188

Fl-Wash. .760" I.D. x 1.49" O.D.

$3.99

$

In Stock, Qty 20+

0

27

MTD 753-0527

Cross Shaft

$

$

Not available

28

MTD 753-0546

Differential Housing Ass'y.

$58.99

$

Usually ships in 3-6 days

0

29

Comes with Ref. 28

$

$

Not available

30

MTD 917-1019

Miter Gear

$27.99

$

Usually ships in 3-6 days

0

31

MTD 712-0200A

Hex Ins. L-Nut 1/2-20 Thd.

$4.49

$

In Stock, only 1 left!

0

33

MTD 736-0188

Fl-Wash. .760" I.D. x 1.49" O.D.

$3.99

$

In Stock, Qty 20+

0

34

MTD 753-0714

Lower Housing

$

$

Not available

35

MTD 750-0555

Spacer .53" O.D. x 3/8" Lg.

$

$

Not available

36

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 13

0

37

MTD 910-0886

Hex Bolt 1/4-20 x 1.50" Lg. (Grade 5)

$

$

Not available

38

MTD 912-0273

Castle Nut 5/16-24 Thd.*

$4.49

$

Usually ships in 3-6 days

0

39

MTD 936-0159

Fl-Wash. .344" I.D. x .875" O.D.
(Superseded to 736-0159)

$

$

Not available

40

MTD 717-0700

Actuating Arm R.H.

$13.99

$

In Stock, only 2 left!

0

41

MTD 717-0679

Brake Yoke

Note: NLA

$

$

Not available

42

MTD 917-0682

Puck Plate

$9.49

$

In Stock, Qty 7

0

43

MTD 917-0678

Brake Puck

$6.99

$

In Stock, Qty 20+

0

44

MTD 717-1011

Axle L.H.

$102.99

$

Usually ships in 3-6 days

0

45

MTD 717-0677

Brake Disc

$

$

Not available

46

MTD 941-0337

Flange Bearing 5/8" I.D. x 15/16" Lg.

$9.99

$

In Stock, Qty 20+

0

47

MTD 914-0161

Woodruff Key 3/16 x 5/8 HT

$4.49

$

In Stock, Qty 12

0

48

MTD 917-0754

Shift Fork Ass'y.

$112.99

$

In Stock, only 1 left!

0

49

MTD 741-0862

Ball Detent.250" Dia.

$4.49

$

In Stock, Qty 20+

0

50

MTD 932-0863

Spring Detent
(Superseded to 932-05125)

$3.99

$

In Stock, Qty 11

0

51

MTD 914-0169

#9 Hi-Pro Key 3/16" x 3/4" Dia. HT

$10.99

$

In Stock, Qty 7

0

52

MTD 941-0335

Needle Brg. 5/8" I.D. x 1/2" Lg.

$16.99

$

In Stock, Qty 7

0

53

MTD 710-0788

Hex Bolt 1/4-20 x 1.00" Lg.

$6.99

$

In Stock, only 4 left!

0

54

MTD 936-0336

Fl-Wash. 5/8" I.D. x .030

$4.49

$

In Stock, Qty 20+

0

54A

MTD 936-0337

Fl-Wash. 5/8" I.D. x .040

$4.49

$

In Stock, Qty 15

0

55

MTD 941-0343

Actuating Pin 5/16" Dia.
(Superseded to 741-0343)

$

$

Not available

56

MTD 910-0886

Hex Bolt 1/4-20 x 1.50" Lg. (Grade 5)

$

$

Not available

57

MTD 917-0767

Differential Gear 72T Ass'y w/ Bearing

$

$

Not available

58

MTD 717-0796

Sq. Hd. Bolt 5/16-24 Thd.

$

$

Not available

59

MTD 914-0507

Cotter Pin 3/32" Dia. x .50" Lg.

$4.49

$

In Stock, Qty 19

0
