LT-140 (137-686-190) - White Outdoor 44" Lawn Tractor (1987) Lift Assembly W/44" Deck Parts Diagram

44" Lawn Tractor

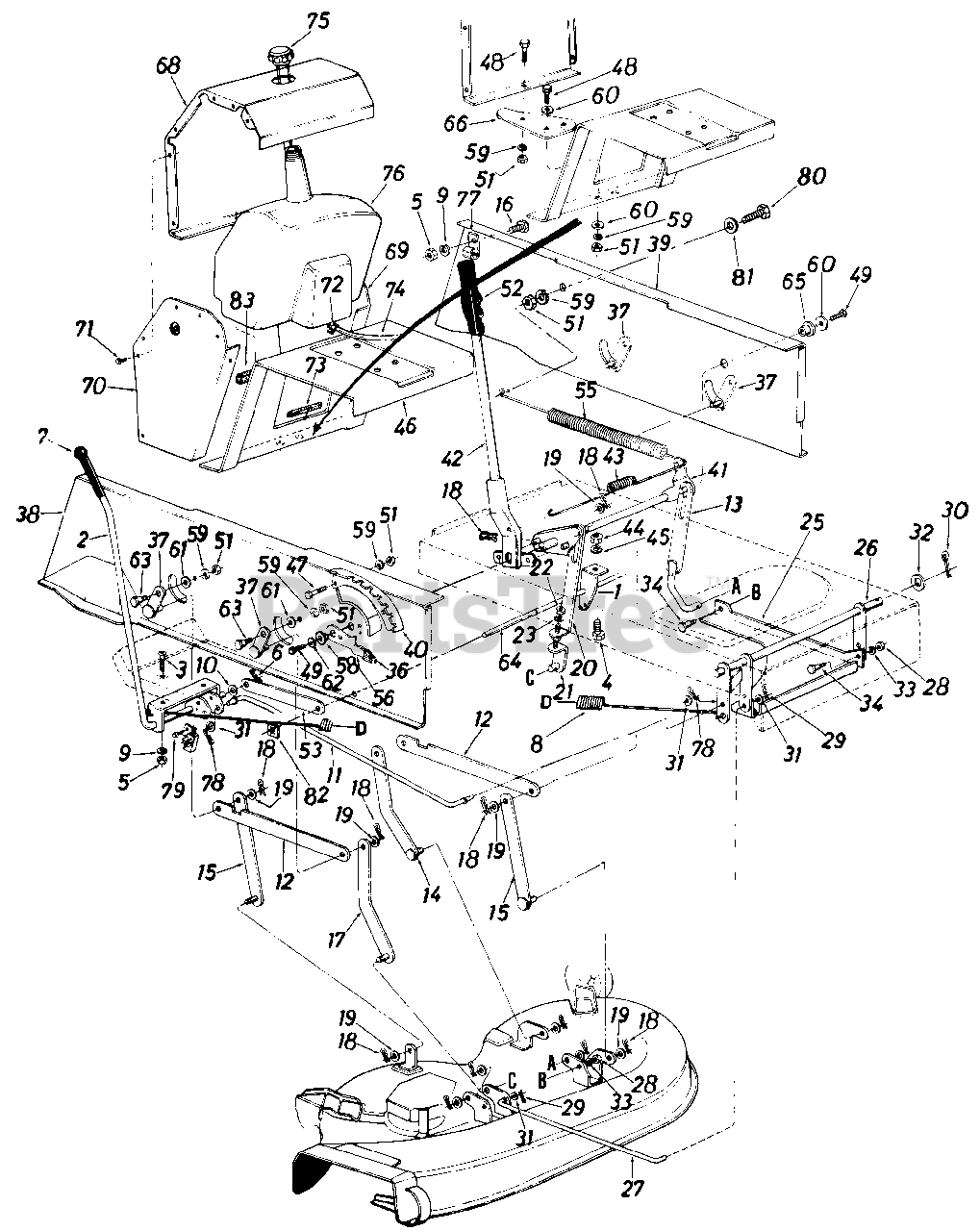

Lift Assembly W/44" Deck Parts Diagram

  • Title

1

16181

Spring Hanger Bracket

$

$

Not available

2

16212

Deck Engagement Lever Ass'y.

$

$

Not available

3

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

4

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

6

White Outdoor 714-0111

Cotter Pin 3132" Dia. x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 720-0143

Grip

$

$

Not available

8

White Outdoor 732-0531

Ext Spring .99" O.D. x 22" Lg.

$

$

Not available

9

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 736-0272

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 20+

0

11

747-0491

Drive Deck Control Rod 12.5

$

$

Not available

12

White Outdoor 09735

Connecting Rod 3/16 x 1 x 12.5

$

$

Not available

13

16178

Deck Lift Link Ass'y.

$

$

Not available

14

16209

Deck Hanger Link Ass'y. Rear L.H.

$

$

Not available

15

White Outdoor 16216

Deck Hanger Link Ass'y.

$

$

Not available

16

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

17

16345

Deck Hanger Link Ass'y. Front R.H.

$

$

Not available

18

White Outdoor 714-0101

Inter. Cotter Pin 1/2" Dia.

$4.49

$

In Stock, only 4 left!

0

19

White Outdoor 736-0160

Fl-Wash. .531 I.D. x .93" O.D.

$3.99

$

In Stock, only 2 left!

0

20

White Outdoor 16063

Adj. Link Deck Lifting
(Superseded to 14802A-0637)

$

$

Not available

21

White Outdoor 16342

Adj. Lower Link Ass'y.

$

$

Not available

22

White Outdoor 712-0241

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

25

White Outdoor 16214

Diagonal Brace

$

$

Not available

26

White Outdoor 16234

Stabilizer Shaft Ass'y.

$

$

Not available

27

711-0777

Stabilizer Rod

$

$

Not available

28

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

29

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 736-0117

Fl-Wash. .385" I.D. x .620" O.D.
(Superseded to 936-0117)

$6.99

$

In Stock, only 1 left!

0

32

White Outdoor 736-0156

Fl-Wash. .635" I.D. x 1.12" O.D.

$3.99

$

In Stock, Qty 13

0

33

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

34

White Outdoor 738-0258

Shoulder Bolt 3/8-16
(Superseded to 938-0258)

$

$

Not available

36

White Outdoor 08540

Knob Height Adj.

$

$

Not available

37

White Outdoor 09721

Pivot Link Ass'y.

$

$

Not available

38

White Outdoor 14602

Side Panel Upper Frame R.H.
(Superseded to 14602G-0637)

$

$

Not available

39

White Outdoor 14603

Side Panel Upper Frame L.H .

$

$

Not available

40

16462

Index Brkt.

Note: (Deck Lift)

$

$

Not available

41

White Outdoor 16463

Lift Shaft Ass'y.

$

$

Not available

42

White Outdoor 16465

Lift Handle Brkt. Ass'y.
(Superseded to 753-0548)

$

$

Not available

43

White Outdoor 732-0498

Ext. Spring .56" I.D. x 32 Coils
(Superseded to 932-0498)

$

$

Not available

44

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

45

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

46

16223

Hitch Plate

$

$

Not available

47

White Outdoor 710-0118

Hex Bolt 5/16-18 X .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

48

White Outdoor 710-0376

Hex Bolt 5/16-18 X 1.00" Lg. (Grade 5)

$3.99

$

In Stock, Qty 17

0

49

White Outdoor 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 X .62" Lg.
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 720-0157

Grip
(Superseded to 920-0233)

$

$

Not available

53

16369

Link 1.0" x 7.5" X .19

$

$

Not available

55

White Outdoor 732-0307

Ext. Spring .99" Dia. x 11.00" Lg.
(Superseded to 932-0307A)

$

$

Not available

56

White Outdoor 732-0412

Deck Lift Down Stop
(Superseded to 983-0003)

$

$

Not available

58

White Outdoor 748-0176

Flange Brg. .630" I.D.

$9.49

$

In Stock, only 1 left!

0

59

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D. x .125

$4.49

$

In Stock, only 4 left!

0

61

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .62" O.D. x .063

$6.49

$

In Stock, only 1 left!

0

62

White Outdoor 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D.

$4.49

$

In Stock, only 4 left!

0

63

White Outdoor 738-0140

Shld. Bolt .437" Dia. x .180

$5.49

$

In Stock, Qty 17

0

64

White Outdoor 738-0526

Running Board Rod

$

$

Not available

65

White Outdoor 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$6.99

$

In Stock, Qty 20+

0

66

White Outdoor 16315

Hitch Bar

$

$

Not available

68

White Outdoor 16238

Gas Tank Housing Main Panel

$

$

Not available

69

White Outdoor 16239

Side Panel L.H. Gas Tank

$

$

Not available

70

White Outdoor 16240

Side Panel R.H. Gas Tank

$

$

Not available

71

White Outdoor 710-0351

Truss Mach. B-Tapp Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 4 left!

0

72

White Outdoor 726-0207

Hose Clamp .406" Dia.

$

$

Not available

73

White Outdoor 731-0511

Trim Strip-5" Lg.

$3.49

$

Usually ships in 3-6 days

0

74

White Outdoor 751-0173

Gas Line 44" Lg.
(Superseded to 751-10349-16)

$18.99

$

In Stock, Qty 13

0

75

White Outdoor 751-0226

Gas Tank Cap
(Superseded to 951-0226A)

$53.99

$

In Stock, Qty 14

0

76

White Outdoor 751-0403

Gas Tank

$

$

Not available

77

White Outdoor 726-0175

Hose Clamp

$

$

Not available

78

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 4 left!

0

79

White Outdoor 710-0599

Hex Wash. Hd. Tap 6cr. 1/4 0 x.50" Lg.

$3.99

$

In Stock, Qty 20+

0

80

White Outdoor 710-0959

Hex Bolt 5/16-18 X 1.50" Lg.

$7.49

$

Usually ships in 3-6 days

0

81

White Outdoor 736-0159

Fl-Wash. .344" I.D. x .875" O.D.

$3.99

$

In Stock, Qty 20+

0

82

712-0247

Speed Nut for .500" Dia. Stud

$

$

Not available

83

White Outdoor 722-0157

Foam Strip 3/8" X 1-1/8" X 1-1/2" Lg.

$4.49

$

Usually ships in 3-6 days

0
