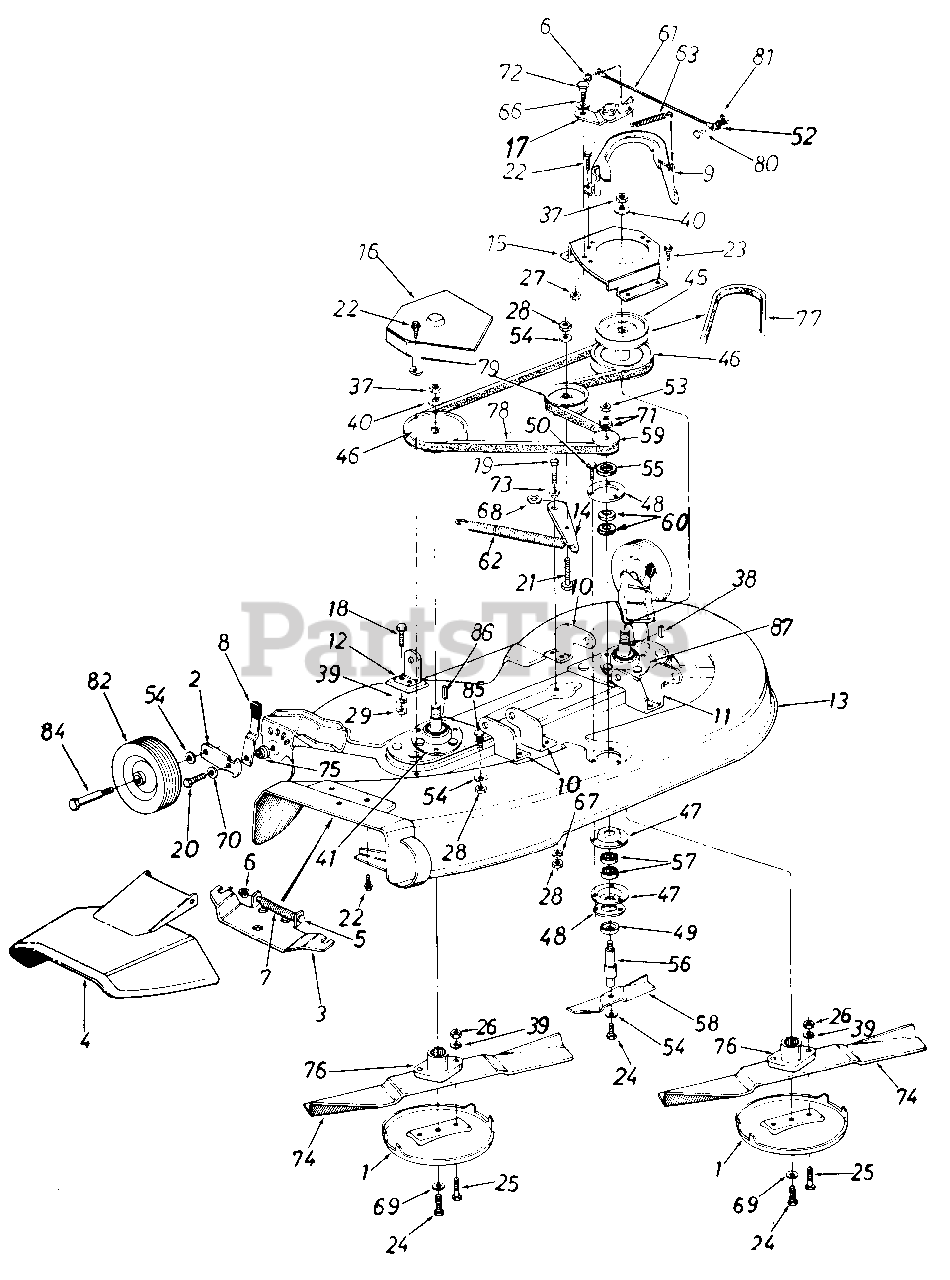

LT-140 (138-686-190) - White Outdoor 44" Lawn Tractor (1988) Deck Assembly Parts Diagram

44" Lawn Tractor

Deck Assembly Parts Diagram

  • Title

1

White Outdoor 07919

Anti-Scalp Plate
(Superseded to 07919B-0637)

$

$

Not available

2

White Outdoor 10937

Bar-Wheel Pivot

$

$

Not available

3

White Outdoor 11396

Adapter Plate

$

$

Not available

4

11574

Chute Cover Ass'y.

$

$

Not available

5

White Outdoor 711-0571

Hinge Pin

$

$

Not available

6

White Outdoor 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

7

White Outdoor 732-0261

Torsion Spring

$

$

Not available

8

White Outdoor 14082

Spring Lever Ass'y.

$

$

Not available

9

White Outdoor 14258

Belt Guard
(Superseded to 14258B-0637)

$

$

Not available

10

White Outdoor 16175

Deck Hanger Bracket

Variations

White Outdoor 16175-0637

No Longer Available BRACKET-DECK HANGE - POWDER BLACK (0637)

$

$

Not available

$

$

11

White Outdoor 16176

Butterfly-Bracket

$

$

Not available

12

White Outdoor 16180

Deck Hanger Bracket

$

$

Not available

13

16231

44" Deck Ass'y.

$

$

Not available

14

White Outdoor 16331

Idler Bracket

$

$

Not available

15

White Outdoor 16333

Pulley Cover-L.H.

$

$

Not available

16

White Outdoor 16334

Pulley Cover-R.H.

Variations

White Outdoor 16334-0637

No Longer Available COVER-PULLEY-RH - POWDER BLACK (0637)

$

$

Not available

$

$

17

White Outdoor 16337

Spindle Brake Arm Ass'y.

$

$

Not available

18

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.'
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

20

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.49

$

In Stock, Qty 8

0

21

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

22

White Outdoor 710-0599

Hex Wash. S-Tapp Scr. 1/4-20 x .50"

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 710-0726

Hex Wash. Hd. Tapp Scr. 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 710-0877

Hex Cent. L-Bolt 3/8-24 x .88" Lg.
(Superseded to 710-0696)

$6.49

$

In Stock, only 2 left!

0

25

White Outdoor 710-0672

Hex Bolt Special 5/16-24 x 1-1/4" Lg.

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

27

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

28

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.'
(Superseded to 912-3010)

$

$

Not available

37

White Outdoor 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

38

White Outdoor 714-0168

Sq. Key 3/16" x 2.25" Lg.

$

$

Not available

39

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 736-0317

Bell-Wash. .630" I.D. x 1.25" O.D.

$7.49

$

In Stock, Qty 20+

0

41

White Outdoor 717-0910

R.H. Blade Spindle Ass'y.
(Superseded to 917-0910)

$

$

Not available

45

White Outdoor 756-0329

5/8 "V"-Pulley .79" I.D. x 5.75" O.D.

$96.99

$

In Stock, only 1 left!

0

46

White Outdoor 756-0470

"V"-Pulley .79" I.D. x 6.50" O.D.
(Superseded to 756-0470A)

$

$

Not available

47

White Outdoor 15319

Bearing Housing 1-3/8" I.D.
(Superseded to 15319B)

$10.99

$

In Stock, Qty 9

0

48

White Outdoor 16348

Reinforcement Plate
(Superseded to 16348B)

$8.99

$

Usually ships in 3-6 days

0

49

White Outdoor 16400

Bearing Shield

$

$

Not available

50

White Outdoor 710-0588

Hex Wash. Hd. B-Tap Scr. 1/4 x 1.0" Lg.
(Superseded to 710-0788)

$6.99

$

In Stock, only 4 left!

0

52

White Outdoor 736-0463

Fl-Wash. .20" I.D. x .62" O.D.

$4.49

$

In Stock, only 1 left!

0

53

White Outdoor 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.49

$

In Stock, Qty 8

0

54

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 736-0162

Fl-Wash. .635" I.D. x 1.04" O.D.

$3.99

$

In Stock, Qty 20+

0

56

White Outdoor 738-0627

6.5" Blade Spindle
(Superseded to 938-0627)

$77.99

$

Usually ships in 3-6 days

0

57

White Outdoor 741-0155

Ball Brg. .62" I.D. x 1.38" O.D. x .44"
(Superseded to 941-0155)

$22.99

$

In Stock, Qty 20+

0

58

White Outdoor 742-0252

6.5" Blade

$

$

Not available

59

White Outdoor 756-0468

1/2" "V"-Pulley Half .625" I.D. x 2.25" O.D.

$8.49

$

Usually ships in 3-6 days

0

60

White Outdoor 736-0302

Fl-Wash. 5/8" I.D. x 15116" O.D.

$

$

Not available

61

White Outdoor 727-0290

Brake Cable 11.75" Lg.
(Superseded to 727-0290A)

$11.99

$

Usually ships in 3-6 days

0

62

White Outdoor 732-0121

Extension Spring .73" O.D. x 4.31" Lg.
(Superseded to 932-0121)

$13.99

$

In Stock, only 1 left!

0

63

White Outdoor 732-0395

Ext. Spring .50" x 2.51" Lg.
(Superseded to 932-0395)

$

$

Not available

66

White Outdoor 736-0141

Spring Wash. .445" I.D. x .75" O.D.
(Superseded to 936-0141)

$6.49

$

Usually ships in 3-6 days

0

67

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

68

White Outdoor 736-0174

Spring Wash. .625" I.D. x .885" O.D.

$6.49

$

In Stock, only 2 left!

0

69

White Outdoor 736-0217

L-Wash. 3/8" I.D. (Heavy Duty)

$3.99

$

In Stock, Qty 13

0

70

White Outdoor 736-0219

Bell-Wash. .400" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

71

White Outdoor 736-0253

Bell-Wash. .505" I.D. x 1.00" O.D.

$3.99

$

In Stock, Qty 20+

0

72

White Outdoor 738-0140

Shld. Bolt .437" Dia. x .180"

$5.49

$

In Stock, Qty 17

0

73

White Outdoor 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$9.49

$

In Stock, Qty 17

0

74

White Outdoor 742-0295

21" Blade

$

$

Not available

75

White Outdoor 748-0279

Shld. Spacer

$

$

Not available

76

White Outdoor 748-0300

Blade Adapter

$12.99

$

In Stock, Qty 17

0

77

White Outdoor 754-0229

"V"-Belt
(Superseded to 954-0229)

$59.99

$

Usually ships in 3-6 days

0

78

White Outdoor 754-0293

"V"-Belt
(Superseded to 954-0293)

$32.99

$

Usually ships in 3-6 days

0

79

White Outdoor 756-0365

Fl-ldler w/Flanges 3.50" O.D.
(Superseded to 956-0365)

$44.99

$

In Stock, Qty 9

0

80

White Outdoor 711-0701

Clevis Pin 1/4" Dia. x .53" Lg.
(Superseded to 911-0701)

$6.49

$

In Stock, only 1 left!

0

81

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

82

White Outdoor 734-0974

Deck Wheel 6.0" x 1.38"

$19.99

$

Usually ships in 3-6 days

0

84

White Outdoor 738-0455

Shld. Bolt 3/8-16 x 1.41"
(Superseded to 938-0455)

$

$

Not available

85

White Outdoor 710-0617

Rib Neck Bolt

Note: (Service Only)

$3.99

$

Usually ships in 3-6 days

0

86

White Outdoor 714-0122

Sq. Key 3/16" x 3/16" x .75" Lg.

$3.49

$

In Stock, Qty 17

0

87

White Outdoor 717-0909

L.H Blade Spindle Ass'y.
(Superseded to 917-0909)

$

$

Not available
