LT 140 (954000512-A) - Husqvarna Lawn Tractor (1993-01) 42" Mower Parts Diagram

Lawn Tractor

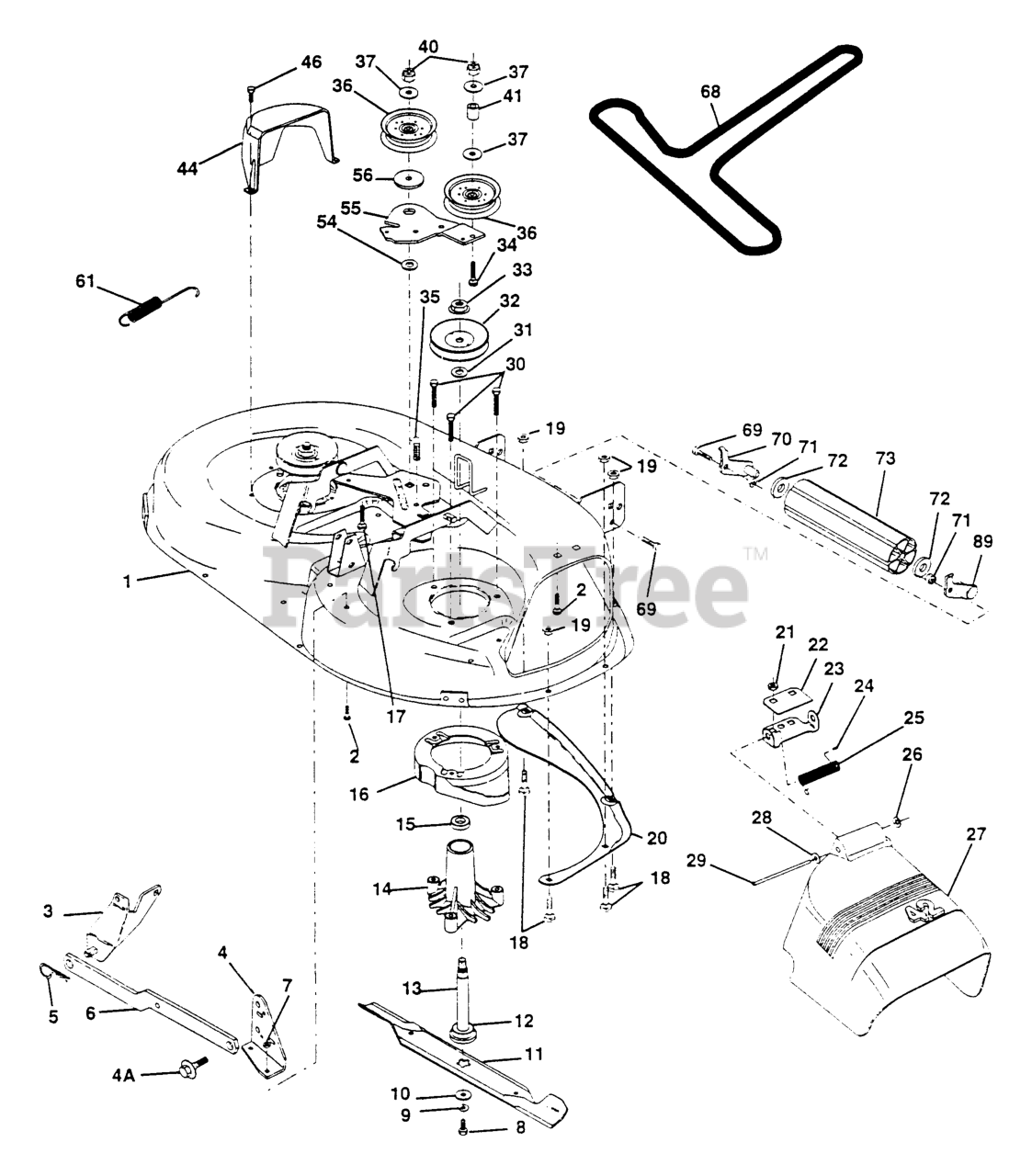

42" Mower Parts Diagram

  • Title

1

Husqvarna 532138024

DECK ASM 42" MWR
(Superseded to 532145338)

$

$

Not available

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR
(Superseded to 531165401)

$20.99

$

In Stock, Qty 14

0

4

Husqvarna 532138440

BRKT DECK SW BAR

$

$

Not available

4A

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

6

Husqvarna 532130832

REAR SUSP ARM
(Superseded to 531149301)

$13.99

$

In Stock, only 2 left!

0

7

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532129962

WASHER
(Superseded to 532140296)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 532138498

Blade Mower High Perf 42"
(Superseded to 532138971)

$20.99

$

In Stock, Qty 20+

0

12

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$13.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, Qty 20+

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)
(Superseded to 529910001)

$51.99

$

In Stock, only 2 left!

0

15

Husqvarna 532110485

BEARING

$14.99

$

In Stock, Qty 20+

0

16

Husqvarna 532136929

STRIPPER
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

17

Husqvarna 872110616

BOLT
(Superseded to 596136301)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 532136888

BAFFLE
(Superseded to 531167001)

$17.99

$

In Stock, only 4 left!

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

22

Husqvarna 532134753

STIFFENER BRACKET
(Superseded to 532177563)

$

$

Not available

23

Husqvarna 532131267

DEFLECTOR BRACKET
(Superseded to 529845901)

$5.99

$

In Stock, Qty 14

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, Qty 16

0

26

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532130968

SHIELD.DEFLECTOR.MOWER.42".BLK

$43.99

$

In Stock, Qty 20+

0

28

Husqvarna 819111016

Washer 11/32 X 5/8 X 16 Ga

$

$

Not available

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 532078158

BOLT 5/16X18X1 1/4
(Superseded to 817580520)

$4.99

$

In Stock, only 1 left!

0

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 532129861

MANDREL PULLEY
(Superseded to 532173436)

$20.99

$

In Stock, Qty 20+

0

33

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 2 left!

0

34

Husqvarna 872110622

BOLT

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532133835

FASTENER.XMAS.TREE

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$28.99

$

In Stock, Qty 20+

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 532132823

IDLER SPRING SPACER

$

$

Not available

44

Husqvarna 532134236

MANDREL GUARD LH
(Superseded to 532140088)

$39.99

$

In Stock, Qty 7

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

54

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

In Stock, Qty 20+

0

55

Husqvarna 532133844

IDLER ARM
(Superseded to 532151785)

$45.99

$

In Stock, only 2 left!

0

56

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, Qty 20+

0

61

Husqvarna 532131870

RETURN SPRING

$13.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532130969

V-BELT.MOWER.92.40.42/K46

$31.99

$

In Stock, Qty 20+

0

69

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

70

Husqvarna 532132274

BRACKET LH (A)
(Superseded to 532175746)

$9.49

$

In Stock, only 2 left!

0

71

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

72

Husqvarna 819171416

Washer 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, only 2 left!

0

73

Husqvarna 532132264

NOSE ROLLER

$37.99

$

In Stock, Qty 20+

0

89

Husqvarna 532132273

BRACKET RH (B)
(Superseded to 531154101)

$14.99

$

In Stock, only 4 left!

0

Husqvarna 532138506

DECK SERV 42 ELC
(Superseded to 532176207)

$

$

Not available

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

Note: (Includes Key Numbers 8-10. 12-15. 31 and 33)

$62.99

$

In Stock, Qty 20+

0
