LT 140 (954000512-A) - Husqvarna Lawn Tractor (1993-01) Engine Parts Diagram

Lawn Tractor

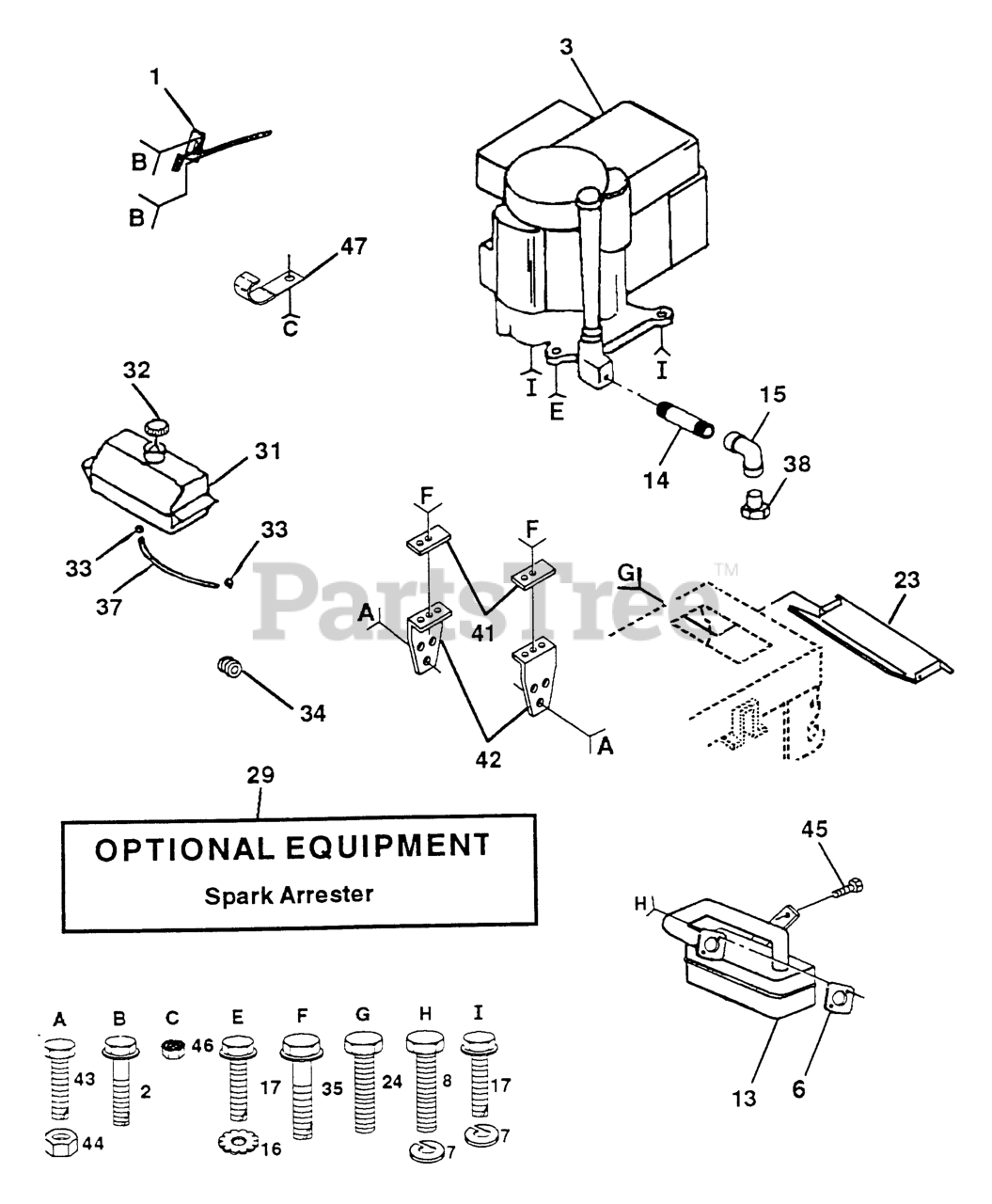

Engine Parts Diagram

  • Title

1

Husqvarna 532132753

THROTTLE CONTROL

$

$

Not available

2

Husqvarna 817720410

SCREW LT
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

3

Engine Kohl 14 HP Model No. PS1454

$

$

Not available

6

Gasket, Eng

Note: (Order from Engine Mfg.)

$

$

Not available

7

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 874760508

Bolt, Fin Hex 5/16-18 X 5/8

$

$

Not available

13

Husqvarna 532137350

MUFFLER LT 12.5
(Superseded to 532159420)

$125.99

$

Usually ships in 3-10 days

0

14

Husqvarna 813280328

Nipple Pipe 3/8 Npt X 3-1/2"

$

$

Not available

15

Husqvarna 813200300

ELBOW
(Superseded to 532181654)

$20.99

$

In Stock, Qty 20+

0

16

Husqvarna 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 532125398

BOLT, HEX
(Superseded to 740108025)

$

$

Not available

23

Husqvarna 532128953

HEAT SHIELD

$

$

Not available

24

Husqvarna 817021008

SCREW

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 532137179

KIT, SPARK ARREST

$

$

Not available

31

Husqvarna 532109202

TANK FUEL LT
(Superseded to 532184900)

$51.99

$

In Stock, Qty 6

0

32

Husqvarna 532123549

GAS CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 10

0

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 12

0

34

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$5.99

$

In Stock, only 1 left!

0

35

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

37

Husqvarna 532124953

FUEL LINE T
(Superseded to 532008542)

$

$

Not available

38

Plug Oil Drain

Note: (Order from Engine Mfg.)

$

$

Not available

41

Husqvarna 532128230

CLAMP, FUEL TANK T

$

$

Not available

42

Husqvarna 532128229

BRACKET FUEL TANK T

$

$

Not available

43

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

44

Husqvarna 873680600

LOCKNUT

$

$

Not available

45

Bolt, Hex

Note: (Order from Engine Mfg.)

$

$

Not available

46

Husqvarna 873510600

NUT

$

$

Not available

47

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available
