LT 140 (954000512-A) - Husqvarna Lawn Tractor (1993-01) Sunstrand Pump Assembly Parts Diagram

Lawn Tractor

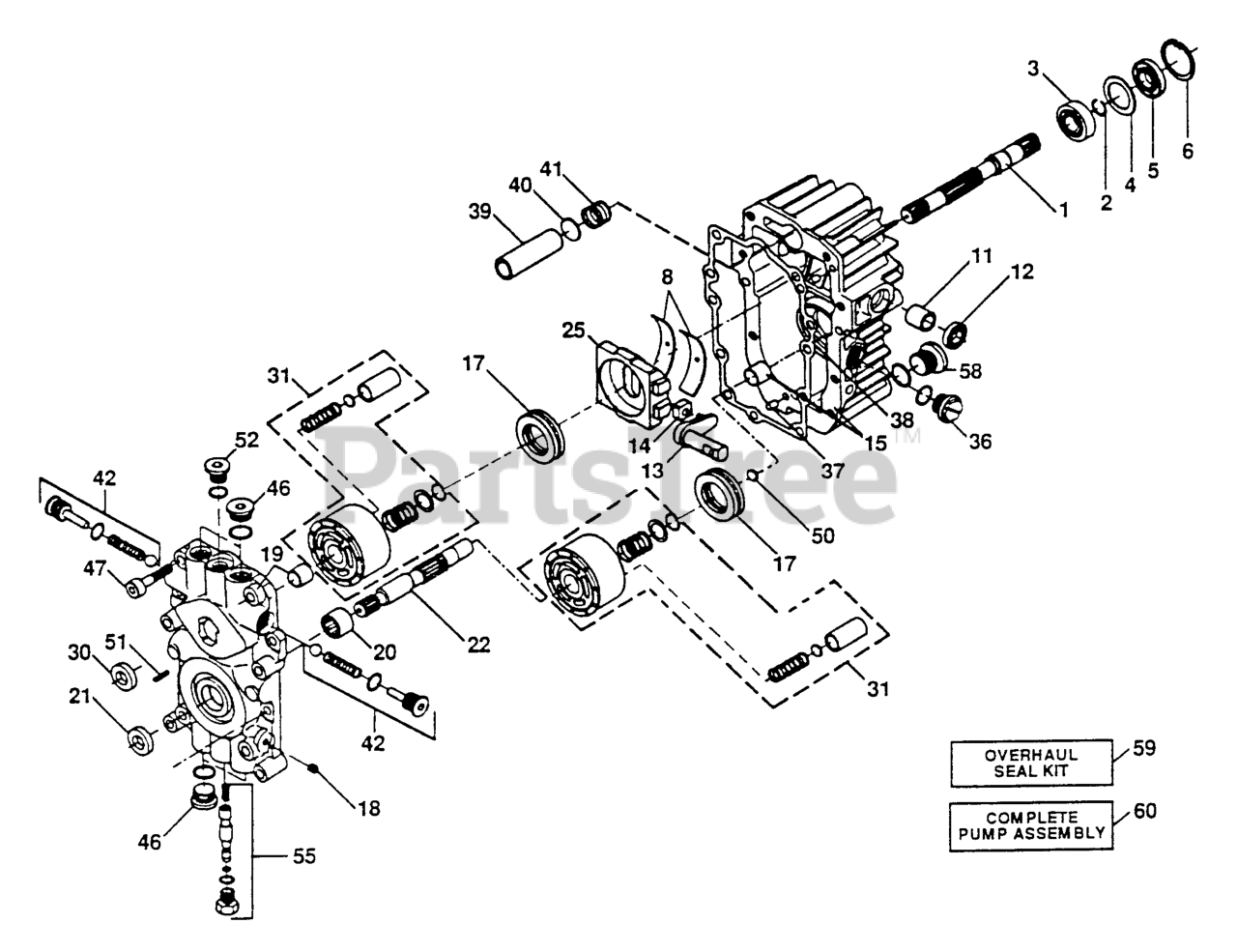

Sunstrand Pump Assembly Parts Diagram

  • Title

1

Husqvarna 532122756

SHAFT 2003022

$

$

Not available

2

Husqvarna 532122716

RETAINIANG RING
(Superseded to 532142928)

Note: Included in Overhaul Seal Kit, BDU-10

$

$

Not available

3

Husqvarna 532122745

BALL BEARING 2003043

$136.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532122715

SPACER

Note: Included in Overhaul Seal Kit, BDU-10

$

$

Not available

5

Husqvarna 532122700

SEAL LIP
(Superseded to 532142932)

Note: Included in Overhaul Seal Kit, BDU-10

$

$

Not available

6

Husqvarna 532122699

RETAINING PIN

Note: Included in Overhaul Seal Kit, BDU-10

$

$

Not available

8

Husqvarna 532122767

CRADLE BEARING

$

$

Not available

11

Husqvarna 532122747

BEARING

$

$

Not available

12

Husqvarna 532122717

SEAL LIP

Note: Included in Overhaul Seal Kit, BDU-10

$

$

Not available

13

Husqvarna 532122748

TRUNION ARM

$

$

Not available

14

Husqvarna 532122749

GUIDE 2000015 HYD

$

$

Not available

15

Husqvarna 532127146

PUMP ASM COMP
(Superseded to 532121430)

$

$

Not available

17

Husqvarna 532122770

BALL BEARING
(Superseded to 532150771)

$

$

Not available

18

Husqvarna 532122771

PLUG PIPE

$

$

Not available

19

Husqvarna 532127147

KIT,CTR SECTION

$

$

Not available

20

Husqvarna 532122773

NEEDLE BEARING

$

$

Not available

21

Husqvarna 532122722

LIP SEAL 9008000-0127

Note: Included in Overhaul Seal Kit, BDU-10

$14.99

$

In Stock, only 4 left!

0

22

Husqvarna 532122750

SHAFT

$

$

Not available

25

Husqvarna 532127148

SWASHPLATE,VARIAB

$

$

Not available

30

Husqvarna 532122723

SEAL LIP

Note: Included in Overhaul Seal Kit, BDU-10

$

$

Not available

31

Husqvarna 532127149

KIT,BLOCK CYLINDE

$

$

Not available

36

Husqvarna 532127151

PLUG,PLASTIC

$

$

Not available

37

Husqvarna 532122786

PIN

$

$

Not available

38

Husqvarna 532122718

GASKET 2003060

Note: Included in Overhaul Seal Kit, BDU-10

$11.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532122731

FILTER 2003003

$85.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532122730

WASHER

$

$

Not available

41

Husqvarna 532122728

SPRING

$

$

Not available

42

Husqvarna 532127152

KIT,CHECK VALVE 2513014

$

$

Not available

46

Husqvarna 532122787

PLUG

$

$

Not available

47

Husqvarna 532122752

SCREW

$

$

Not available

50

Husqvarna 532122788

WASHER

$

$

Not available

51

Husqvarna 532122789

PIN

$

$

Not available

52

Husqvarna 532122754

PLUG

$

$

Not available

55

Husqvarna 532127153

KIT,BYPASS VALVE(2513011)

$

$

Not available

58

Husqvarna 532122790

PLUG

$

$

Not available

59

Husqvarna 532127154

KIT,OVERHEAD SEAL -2513013
(Superseded to 539116907)

Note: Includes Items 2, 4-6, 12, 21, 30, 38; O-Rings for Check Valves and Bypass Valve

$

$

Not available

60

Husqvarna 532121430

PUMP ASM COMP

$

$

Not available
