LT 1438 H (UT-33022) - Homelite Lawn Tractor Lift, Brake And Clutch Linkage Parts Diagram

Lawn Tractor

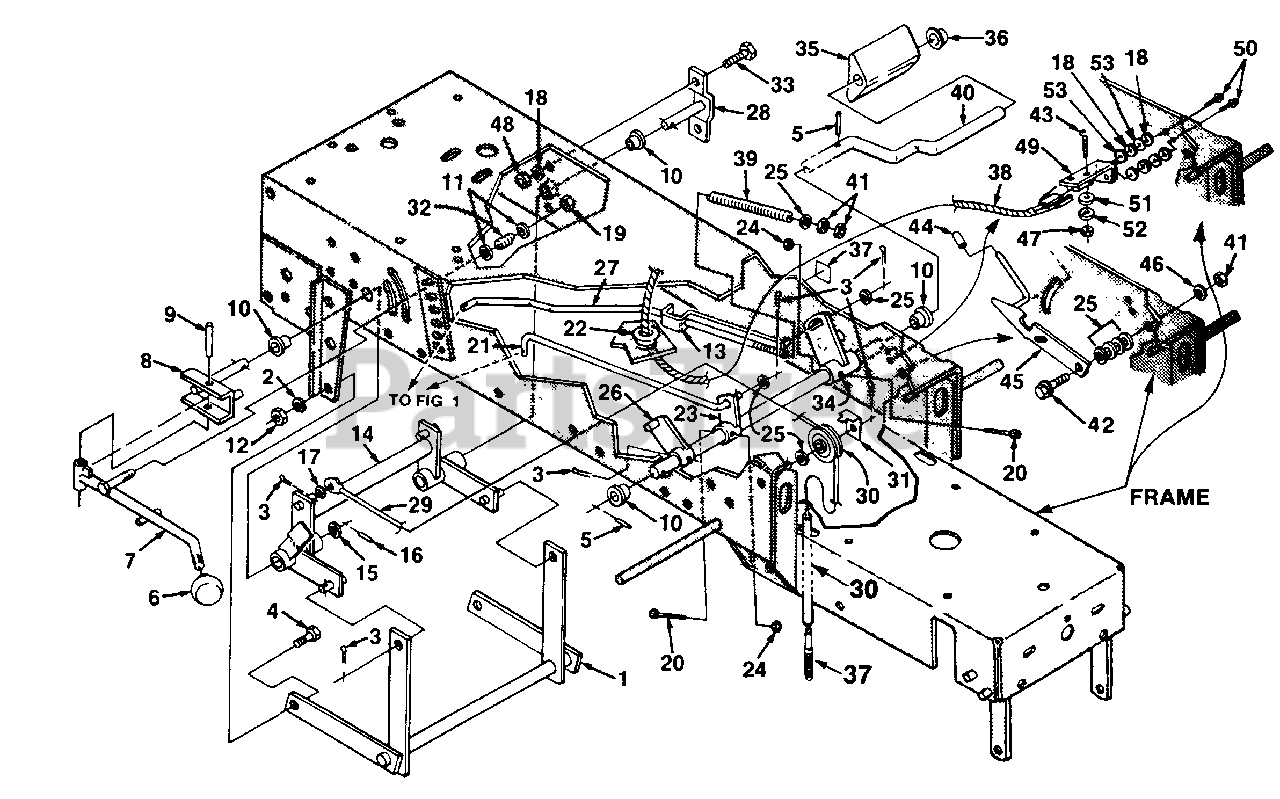

Lift, Brake And Clutch Linkage Parts Diagram

  • Title

1

Homelite JA993298

LIFT BAR ASSY.

$

$

Currently unavailable

2

Homelite JA446142

WASHER- Lock Hvy. (3/8")

$

$

Not available

3

Homelite JA460014

PIN- Cotter (3/32 x 3/4")

$

$

Not available

4

Homelite JA376094

BOLT- Shoulder

$

$

Not available

5

Homelite JA461363

PIN- Roll (1/8 x 1")

$

$

Currently unavailable

6

Homelite JA343497

KNOB- Shift Lever

$

$

Currently unavailable

7

Homelite JA994334

HANDLE ASSY.

$

$

Currently unavailable

8

Homelite JA993291

HANDLE- Lift

$

$

Currently unavailable

9

Homelite JA461347

PIN- Groove

$

$

Currently unavailable

10

Homelite JA351587

BUSHING

$

$

Not available

11

Homelite JA452006

WASHER- Flat (3/8")

$

$

Currently unavailable

12

Homelite JA443110

NUT- Hex (3/8 x 16)

$

$

Not available

13

Homelite JA994346

BRACKET- Brake Spring

$

$

Currently unavailable

14

Homelite JA993296

REAR LIFT & BUSHING

$

$

Currently unavailable

15

Homelite JA453020

WASHER- Flat (5/8")

$

$

Currently unavailable

16

Homelite JA461383

PIN- Roll

$

$

Not available

17

Homelite JA453011

WASHER- Flat (3/8")
(Superseded to PS84010)

$

$

Not available

18

Homelite JA446128

WASHER- Lock (1/4")
(Superseded to UP03409)

$4.99

$

Usually ships in 3-7 days

0

19

Homelite JA444718

NUT- Lock (5/16-18)

$

$

Not available

20

Homelite JA434027

SCREW- Socket

$

$

Currently unavailable

21

Homelite JA376098

ROD- Idler Act.

$

$

Currently unavailable

22

Homelite JA376066

BUSING- Snap

$

$

Currently unavailable

23

Homelite JA993242

LEVER- Clutch

$

$

Currently unavailable

24

Homelite JA444782

NUT- C'lock (#10-24)

$

$

Not available

25

Homelite JA453009

WASHER- Flat (5/16")
(Superseded to UP07173)

$

$

Not available

26

Homelite JA994331

ARM- Deactivating

$

$

Currently unavailable

27

Homelite JA993246

ROD- Brake

$

$

Currently unavailable

28

Homelite JA993292

FLANGE & ROD ASSY

$

$

Currently unavailable

29

Homelite JA339600

CABLE- Lift

$

$

Currently unavailable

30

Homelite JA376073

PULLEY- Lift Cable

$

$

Currently unavailable

31

Homelite JA376015

RETAINER- Cable

$

$

Currently unavailable

32

Homelite JA376092

SPRING- Compression

$

$

Currently unavailable

33

Homelite JA400106

SCREW- Hex hd. cap (1/4-20 x 5/8")

$

$

Currently unavailable

34

Homelite JA993243

BRAKE LEVER

$

$

Currently unavailable

35

Homelite JA344895

PEDAL- Clutch

$

$

Currently unavailable

36

Homelite JA375810

NUT- Push

$

$

Not available

37

Homelite JA993338

DECAL- Park Brake

$

$

Currently unavailable

38

Homelite JA991560

SWITCH- Safety

$

$

Currently unavailable

39

Homelite JA376102

SPRING- Comp Brake

$

$

Not available

40

Homelite JA993241

ARM- Brake/Clutch

$

$

Currently unavailable

41

Homelite JA443106

NUT- (5/16-18)
(Superseded to 81018)

$

$

Not available

42

Homelite JA375431

BOLT- Shoulder (5/16-18)

$

$

Not available

43

Homelite JA402776

SCREW- Slotted Truss Hd. (#4-40 x 1")

$

$

Currently unavailable

44

Homelite JA353077

TIP

$

$

Currently unavailable

45

Homelite JA994327

LATCH & LEVER

$

$

Currently unavailable

46

Homelite JA446136

WASHER- Lock Hvy. (5/16")
(Superseded to UP03791)

$

$

Not available

47

Homelite JA444302

NUT- Hex (#4-40)

$

$

Currently unavailable

48

Homelite JA443102

NUT- Hex (1/4-20)
(Superseded to JA993730)

$

$

Not available

49

Homelite JA376061

BRACKET

$4.49

$

Usually ships in 3-7 days

0

50

Homelite JA375978

SCREW- (1/4-14 x .44)

$

$

Not available

51

Homelite 84011

WASHER- Flat (#4)

$1.49

$

Usually ships in 3-7 days

0

52

Homelite JA446102

WASHER- Lock (#4)

$

$

Currently unavailable

53

Homelite 84020

WASHER- Flat (1/4")

$

$

Not available
