LT 1438 H (UT-33022) - Homelite Lawn Tractor Transaxle Assemblies Parts Diagram

Lawn Tractor

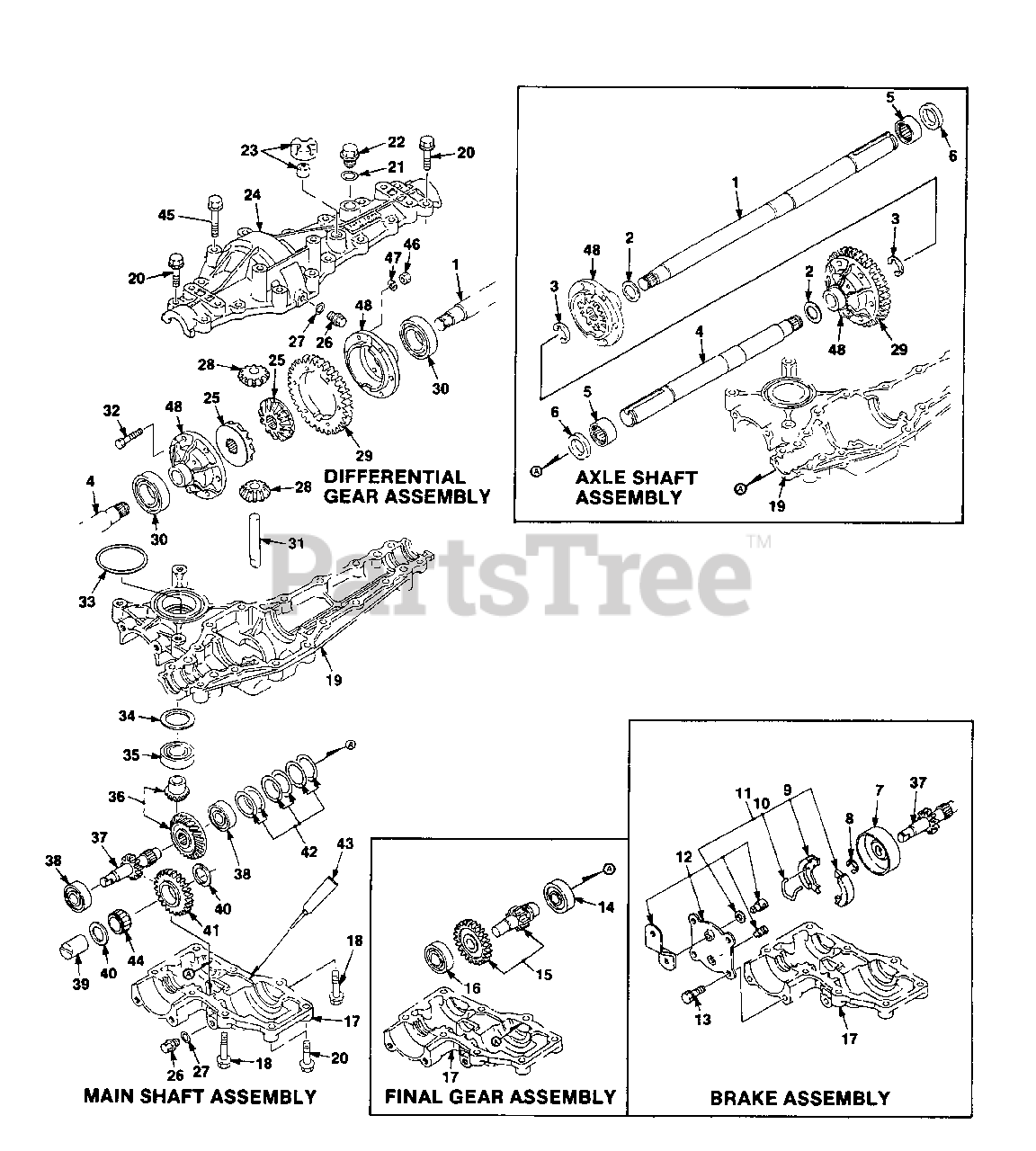

Transaxle Assemblies Parts Diagram

  • Title

1

Homelite JA994545

AXLE & SHAFT (R)

$

$

Currently unavailable

2

Homelite JA994543

WASHER- (20 x 29.5 x 2)

$

$

Currently unavailable

3

Homelite JA994547

RING- (15)

$

$

Currently unavailable

4

Homelite JA994544

AXLE- Shaft

$

$

Currently unavailable

5

Homelite JA994546

NEEDLE

$

$

Currently unavailable

6

Homelite JA994548

SEAL

$

$

Currently unavailable

7

Homelite JA994549

DRUM- Brake

$

$

Currently unavailable

8

Homelite JA994557

RING- (10)

$

$

Currently unavailable

9

Homelite JA994554

SHOE- Brake

$

$

Currently unavailable

10

Homelite JA994555

SPRING

$

$

Currently unavailable

11

Homelite JA994553

BRAKE- Assy (CB-1)

$

$

Currently unavailable

12

Homelite JA994556

BRAKE COVER ASSY.

$

$

Currently unavailable

13

Homelite JA994558

BOLT- (w/washer) (8 x 20)

$

$

Currently unavailable

14

Homelite JA994541

BEARING (6203)

$

$

Currently unavailable

15

Homelite JA994538

FINAL PINION ASSY.

$

$

Currently unavailable

16

Homelite JA994542

BEARING- (6302)

$

$

Currently unavailable

17

Homelite JA994505

CASE- Lower

$

$

Currently unavailable

18

Homelite JA994516

SCREW- Tapping (8 x 35)

$

$

Currently unavailable

19

Homelite JA994502

MISSION CASE

$

$

Currently unavailable

20

Homelite JA994515

SCREW- Tapping (8 x 30)

$

$

Currently unavailable

21

Homelite JA994509

PACKING- (P16)

$

$

Currently unavailable

22

Homelite JA994507

PLUG- (14)

$

$

Currently unavailable

23

Homelite JA994504

VENT VALVE ASSY.

$

$

Currently unavailable

24

Homelite JA994503

UPPER CASE

$

$

Currently unavailable

25

Homelite JA994529

GEAR- Differential

$

$

Currently unavailable

26

Homelite JA994506

PLUG

$

$

Currently unavailable

27

Homelite JA994508

PACKING

$

$

Currently unavailable

28

Homelite JA994532

PINION- Differiential

$

$

Currently unavailable

29

Homelite JA994539

GEAR- Final (43)

$

$

Currently unavailable

30

Homelite JA994535

BEARING- (6006)

$

$

Currently unavailable

31

Homelite JA994531

SHAFT- Diff. Pinion

$

$

Currently unavailable

32

Homelite JA994536

BOLT- (6 x 30)

$

$

Currently unavailable

33

Homelite JA994514

PACKING- (G60)

$

$

Currently unavailable

34

Homelite JA994518

WASHER- (.30 x 42 x 2)

$

$

Currently unavailable

35

Homelite JA994527

BEARING- (6004)

$

$

Currently unavailable

36

Homelite JA994519

MOTOR GEAR ASSY.

$

$

Currently unavailable

37

Homelite JA994521

MAIN SHAFT

$

$

Currently unavailable

38

Homelite JA994528

BEARING- (6202)

$

$

Currently unavailable

39

Homelite JA994523

SHAFT- Idle

$

$

Currently unavailable

40

Homelite JA994525

WASHER- Thrust

$

$

Currently unavailable

41

Homelite JA994524

GEAR- (24)

$

$

Currently unavailable

42

Homelite JA994522

SHIM- ASSY.

$

$

Currently unavailable

43

Homelite JA994501

SEALANT

$

$

Currently unavailable

44

Homelite JA994526

NEEDLE- (20 x 26 x 12)

$

$

Currently unavailable

45

Homelite JA994517

SCREW- Tapping (8 x 45)

$

$

Currently unavailable

46

Homelite JA994537

NUT

$

$

Currently unavailable

47

Homelite JA994534

WASHER

$

$

Currently unavailable

48

Homelite JA994533

CASE

$

$

Currently unavailable
