LT-145 (130-736G190) - White Outdoor 42" Lawn Tractor (1990) Electrical System Parts Diagram

42" Lawn Tractor

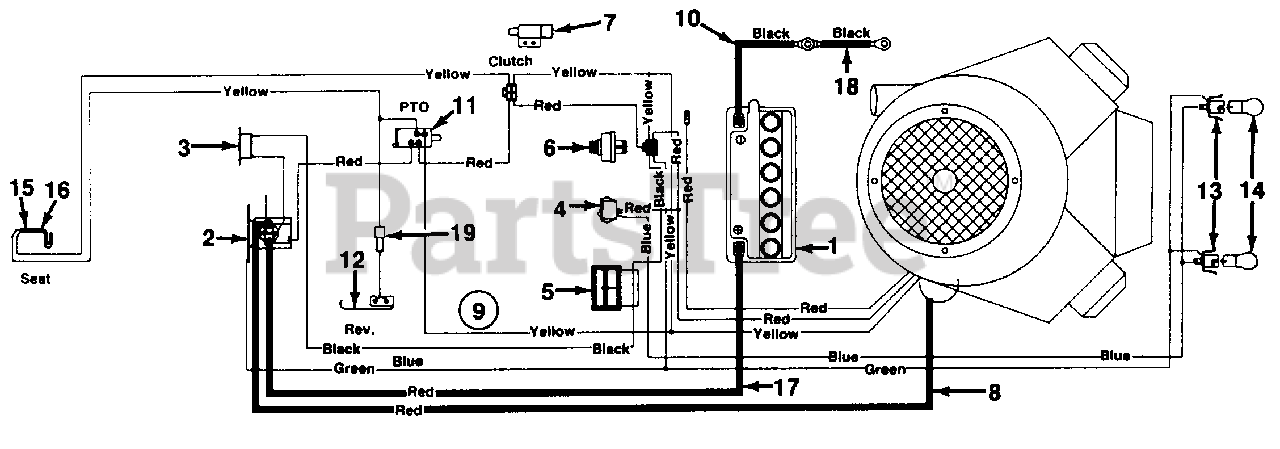

Electrical System Parts Diagram

  • Title

1

White Outdoor 725-1430

BaKery-1 2V
(Superseded to 753-0608)

$

$

Not available

2

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

3

White Outdoor 725-1382

Circuit Breaker

$

$

Not available

4

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

5

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

6

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$40.99

$

In Stock, Qty 14

0

7

White Outdoor 725-3169

Safety Switch
(Superseded to 925-04039)

Note: (Clutch)

$22.99

$

In Stock, Qty 20+

0

8

White Outdoor 725-1081

Electric Wire-30.0" Lg.
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

9

725-1510

Wire Harness

$

$

Not available

10

White Outdoor 725-0977

Ground Wire 11.5" Lg.

$

$

Not available

11

White Outdoor 725-0803B

Safety Switch

Note: (Deck)

$31.99

$

In Stock, Qty 8

0

12

White Outdoor 725-0759

Safety Switch
(Superseded to 753-0579)

Note: (Reverse)

$

$

Not available

13

White Outdoor 725-1058A

Headlight Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

14

White Outdoor 725-0963

Headlight Bulb
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

15

White Outdoor 725-1303

Safety Switch
(Superseded to 925-1303)

Note: (Seat)

$5.99

$

In Stock, Qty 8

0

16

White Outdoor 725-1439

Safety Switch

Note: (Seat)

$7.99

$

In Stock, Qty 8

0

17

725-1080

Electric Wire-27" Lg.

$

$

Not available

18

White Outdoor 725-0980

Ground Wire-7.5" Lg.

$

$

Not available

19

725-1548

Ext. Wire

$

$

Not available
