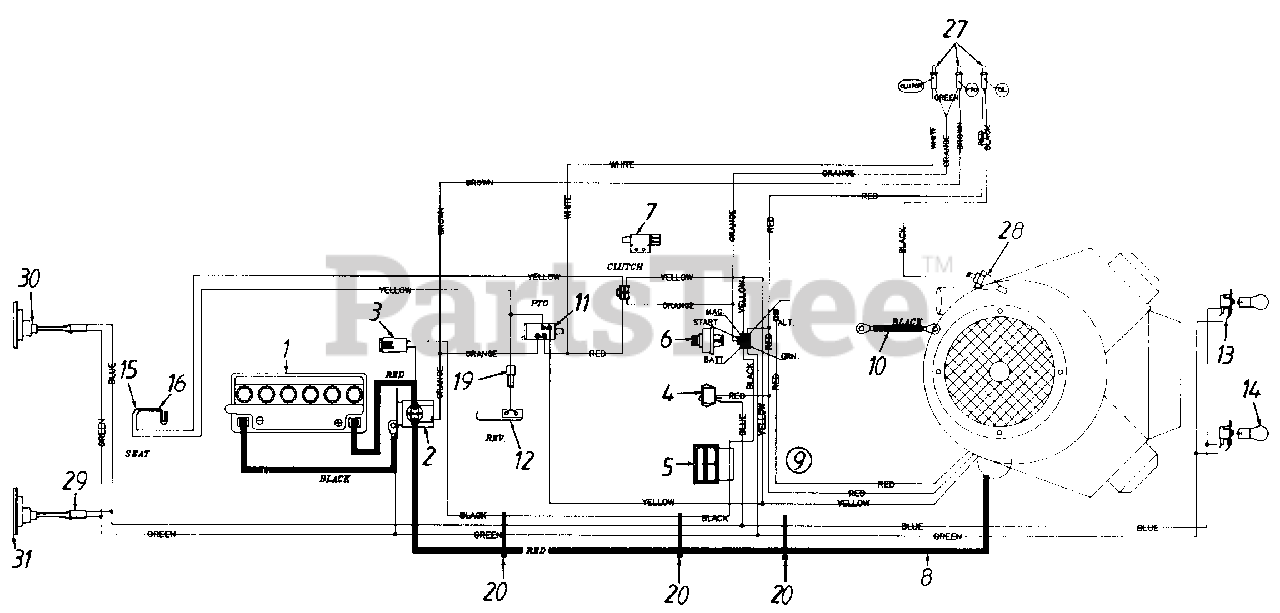

LT-145 (132-736G190) - White Outdoor 42" Lawn Tractor (1992) Electrical System Parts Diagram

42" Lawn Tractor

Electrical System Parts Diagram

  • Title

1

White Outdoor 725-1635

Battery - 12V
(Superseded to 753-0608)

$

$

Not available

2

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

3

White Outdoor 725-1381

Fuse 20 Amps
(Superseded to 925-1381)

$5.99

$

In Stock, Qty 14

0

4

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

5

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

6

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$40.99

$

In Stock, Qty 14

0

7

White Outdoor 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$22.99

$

In Stock, Qty 20+

0

8

White Outdoor 725-1081

Electric Wire - 30.0" Lg.
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

9

White Outdoor 629-0063

Wire Harness

Note: Code: N notates a new part (not previously existing).

$

$

Not available

10

White Outdoor 725-0980

Ground Wire - 7.5" Lg.

$

$

Not available

11

White Outdoor 725-0803C

Safety Switch (Deck)
(Superseded to 725-0803B)

$31.99

$

In Stock, Qty 8

0

12

White Outdoor 725-1643

Safety Switch (Reverse)

Note: Code: N notates a new part (not previously existing).

$9.99

$

In Stock, only 1 left!

0

13

White Outdoor 725-1649

Headlight Socket (Style 0, 6)
(Superseded to 925-1649A)

Note: Code: N notates a new part (not previously existing).

$10.99

$

In Stock, Qty 20+

0

White Outdoor 725-1650

Headlight Socket (Style 4, 9)
(Superseded to 925-1650)

Note: Code: N notates a new part (not previously existing).

$12.99

$

Usually ships in 3-6 days

0

14

White Outdoor 725-0963

Headlight Bulb
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

15

White Outdoor 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

16

White Outdoor 725-1439

Safety Switch (Seat)

$7.99

$

In Stock, Qty 8

0

19

725-1548

Ext. Wire

$

$

Not available

20

White Outdoor 726-0197

Cable Tie

$3.49

$

In Stock, only 1 left!

0

27

White Outdoor 725-1365

Bulb
(Superseded to 925-1365)

$9.99

$

In Stock, only 4 left!

0

28

White Outdoor 751-0537

Oil Pressure Switch

$

$

Not available

29

White Outdoor 725-1380

Taillight Harness

$

$

Not available

30

725-3018

Taillight

$

$

Not available

31

White Outdoor 725-3020

Taillight Bulb
(Superseded to 925-3020)

$

$

Not available
