LT-145 (13A8693F190) - White Outdoor 38" Lawn Tractor (1997) Electrical System Parts Diagram

38" Lawn Tractor

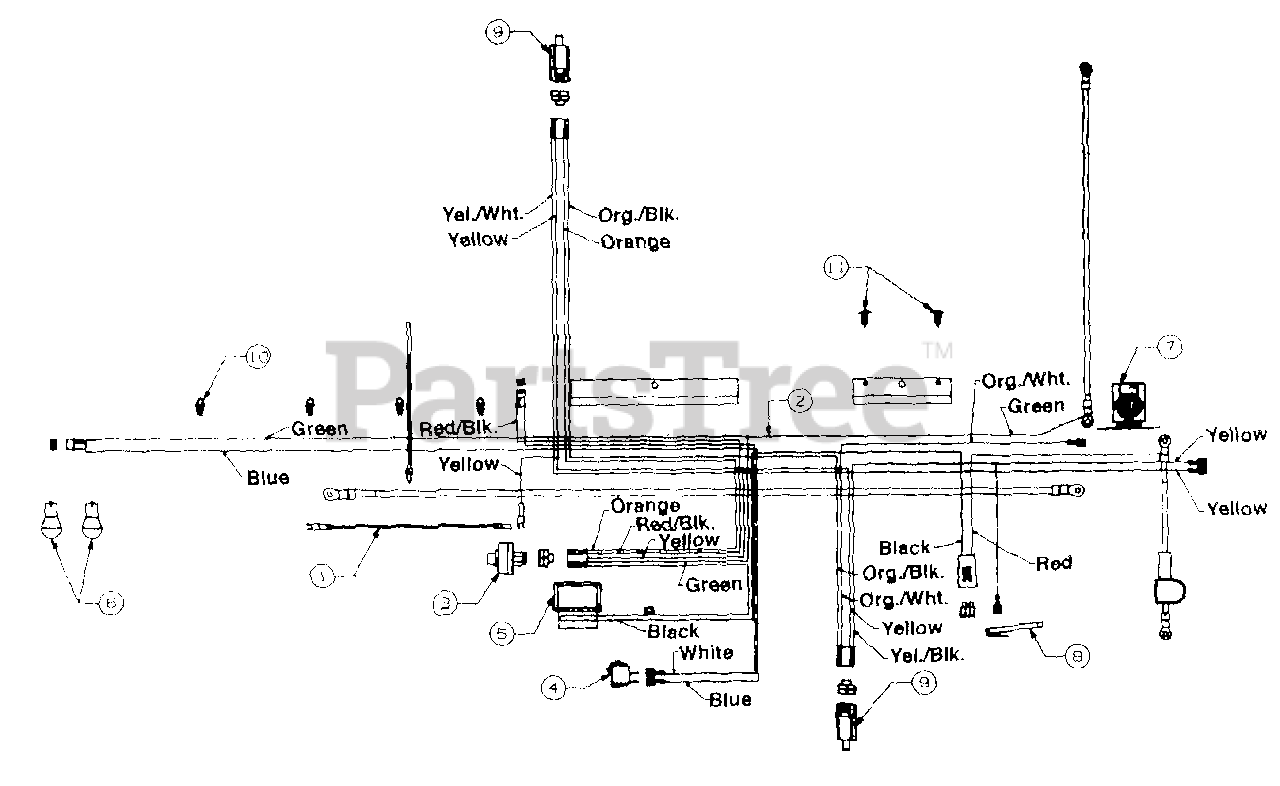

Electrical System Parts Diagram

  • Title

1

White Outdoor 629-0207

Harness Adapter

Note: (Wag.)

$9.99

$

In Stock, only 1 left!

0

2

White Outdoor 629-0302

Wire Harness wl Light Switch and Amp
(Superseded to 929-0302E)

$183.99

$

Usually ships in 3-6 days

0

White Outdoor 629-0301

Wire Harness w/o Light Switch and Amp
(Superseded to 629-0301E)

$

$

Not available

3

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 14

0

4

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

Note: (Optional)

$16.99

$

In Stock, Qty 5

0

5

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

Note: (Optional)

$28.99

$

In Stock, only 1 left!

0

6

White Outdoor 725-0963

Bulb
(Superseded to 925-0963)

Note: (Headlight)

$6.99

$

In Stock, Qty 20+

0

7

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

8

White Outdoor 725-1643

Safety Switch (Reverse)

$9.99

$

In Stock, only 1 left!

0

9

White Outdoor 725-1657A

Safety Switch
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

10

White Outdoor 725-1711

Wire Retainer Clip

$

$

Not available

11

White Outdoor 726-3046

Ratchet

$3.99

$

In Stock, Qty 20+

0
