LT 145H38CBV (80840) - Snapper 38" Lawn Tractor, 14.5hp Cast Front Axle Parts Diagram

38" Lawn Tractor, 14.5hp

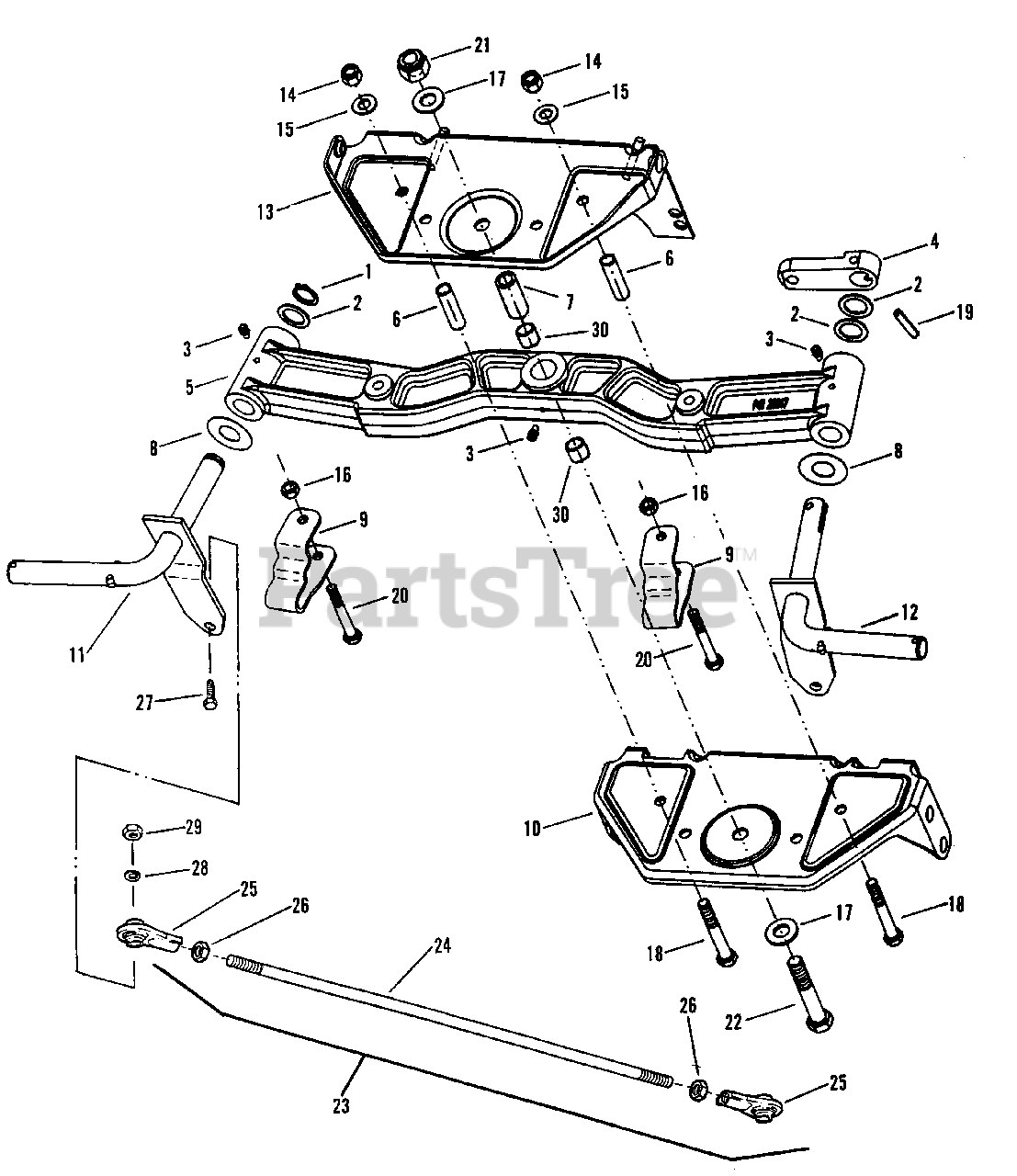

Cast Front Axle Parts Diagram

  • Title
1

Snapper Part# 7010746

RING, External Retaining 5/8
(Superseded to 703975)
Usually ships in 1 day

$

$2.74

0

2

Snapper Part# 7010935

WASHER, 49/64 x 1-1/8 x 1/16 Flat
(Superseded to 7010935SM)
Usually ships in 1 day

$

$2.68

0

3

Snapper Part# 7014669

FITTING, 3/16 Lube
(Superseded to 7014669YP)
Usually ships in 1 day

$

$2.85

0

4

Snapper Part# 7019034

ARM, Steering
(Superseded to 7019034YP)
Usually ships in 6 to 12 days

$

$13.29

0

5

Snapper Part# 7072411

AXLE, Cast
(Superseded to 7072411YP)

Note: Was 28647

Usually ships in 6 to 12 days

$

$252.67

0

6

Snapper Part# 7028666

SPACER, 25/64 x 1/2 x 1-13/16
Usually ships same day

Not available

$

$

7

Snapper Part# 7028689

SPACER, Center
Usually ships in 6 to 12 days

$

$12.75

0

8

Snapper Part# 7031036

WASHER, Thrust
(Superseded to 7031036YP)
Usually ships in 1 day

$

$3.08

0

9

Snapper Part# 7033383

BRACKET, Deck Hanger
(Superseded to 7033383YP)
Usually ships in 6 to 12 days

$

$10.95

0

10

Snapper Part# 7074424

BRACKET, Cast Axle - Rear
(Superseded to 7074424YP)

Note: Was 34740

Usually ships in 6 to 12 days

$

$39.12

0

11

Snapper Part# 7041251

WELDMENT, Right Hand Spindle Wheel - Short
(Superseded to 7041251YP)
Usually ships in 6 to 12 days

$

$201.23

0

12

Snapper Part# 7041250

WELDMENT, Left Hand Spindle Wheel - Short
(Superseded to 7041250BMYP)
Usually ships in 1 day

$

$170.89

0

13

Snapper Part# 7053804

ASSEMBLY, Cast Axle Front Brkt.
(Superseded to 7053804YP)
Usually ships in 6 to 12 days

$

$88.31

0

14

Snapper Part# 7091299

NUT, 3/8 Nylon Lock
(Superseded to 703117)

Note: Was 76979

Usually ships in 1 day

$

$2.40

0

15

Snapper Part# 7090122

WASHER, 3/8 x 5/64 Flat
(Superseded to 703878)
Usually ships in 1 day

$

$3.13

0

16

Snapper Part# 7091575

NUT, 5/16 - 18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

Usually ships in 1 day

$

$2.40

0

17

Snapper Part# 7090250

WASHER, 1/2 x 3/32 Flat
(Superseded to 704123)
Usually ships in 1 day

$

$3.02

0

18

Snapper Part# 7091557

SCREW, 3/8-16 x 2-3/4" Hex Head Cap, Grade 2
(Superseded to 7091557SM)

Note: Was 90795

Usually ships same day

Not available

$

$

19

Snapper Part# 7090842

PIN, 1/4 x 1-1/4 Roll
(Superseded to 7090842YP)
Usually ships in 1 day

$

$3.46

0

20

Snapper Part# 7091046

SCREW, 5/16-18 x 2-1/2 Hex Head Cap Grade 5
(Superseded to 7091046YP)
Usually ships in 1 day

$

$2.85

0

21

Snapper Part# 7091121

NUT, 1/2 Nylon Lock
Usually ships same day

Not available

$

$

22

Snapper Part# 7091821

SCREW, 1/2-13 x 3 Hex Head Cap Grade 5
(Superseded to 7091821YP)

Note: Was 91694

Usually ships in 1 day

$

$2.85

0

23

Snapper Part# 7053873

ASSEMBLY, Tie Rod

Note: (Includes items 24 - 26)

Usually ships same day

Not available

$

$

24

Snapper Part# 7034777

ROD, Steering Connector
(Superseded to 7034777YP)
Usually ships in 6 to 12 days

$

$9.45

0

25

Snapper Part# 7027936

BALL JOINT, 3/8-24
(Superseded to 7027936SM)
Usually ships in 1 day

$

$15.08

0

26

Snapper Part# 7090482

NUT, 3/8-24 Hex Jam
(Superseded to 7090482SM)
Usually ships in 1 day

$

$3.46

0

27

Snapper Part# 7091497

SCREW, 3/8-16 x 1-1/2 Hex Head Cap, Grade 5
(Superseded to 703406)
Usually ships in 1 day

$

$3.41

0

28

Snapper Part# 7091320

WASHER, 3/8 Split Lock
(Superseded to 703454)
Usually ships in 1 day

$

$2.35

0

29

Snapper Part# 7091302

NUT, 3/8-16 Hex, Grade 5
(Superseded to 7091302SM)
Usually ships in 1 day

$

$2.85

0

30

Snapper Part# 7012706

BEARING, Sleeve
(Superseded to 7012706SM)
Usually ships in 1 day

$

$6.71

0
