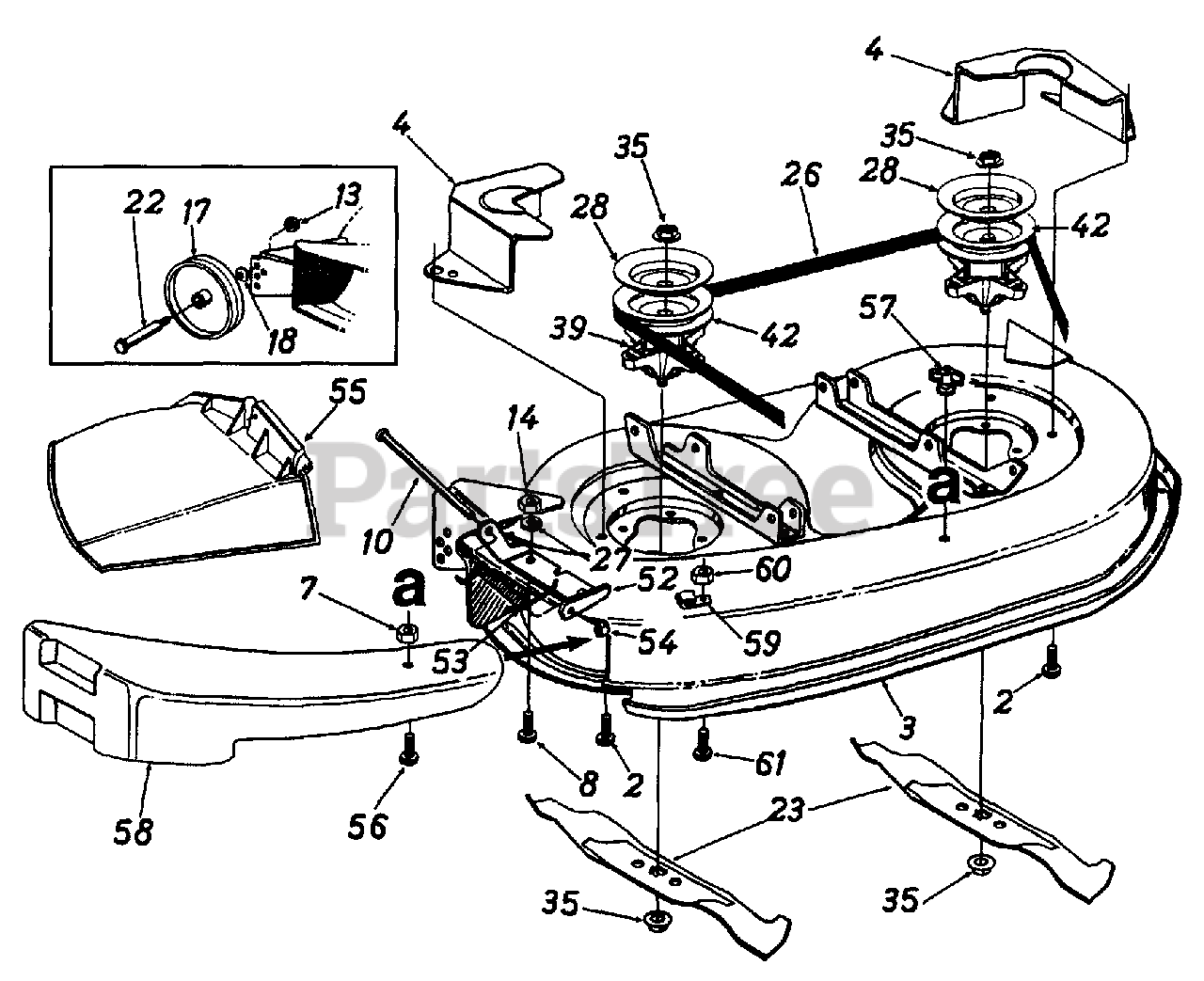

LT-15 (13A1686G190) - White Outdoor 42" Lawn Tractor (1997) > Parts Diagrams (10) > 42" Mowing Deck

  • Title
710-1260

2

Hex Wash. Hd. TT-Tap Scr. 5/16-18 x .75" Lg.

Part# 710-1260 (Superseded to 710-1260A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

683-0141

3

42" Deck Ass'y.

Part# 683-0141

Note: Code: N Notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

DECK ASSY- 42"

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $569.53

POWDER BLACK (0637)

DECK ASSEMBLY 42'' BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $569.53

MTD/TROY-BILT RED (0638)

DECK ASSEMBLY 42'' RED

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $569.53

TECH GRAY (0648)

DECK SHELL 42'' TECH GREY

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $569.53

YARDMAN GREEN (0665)

DECK ASSEMBLY 42'' GREEN

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $569.53

813-06977

42" Deck Ass'y. Comp.

Part# 813-06977

Note: (For Service Only) Code: N Notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

KIT-DECK 42" NEW S

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

KIT-DECK 42" NEW S

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

KIT-DECK 42" NEW S

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

KIT-DECK 42" NEW S

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

KIT-DECK 42" NEW S

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

783-0149

4

Belt Guard Deck

Part# 783-0149

Note: Code: N Notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Belt Guard, G-Deck Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.44

MTD/TROY-BILT RED (0638)

Belt Guard, G-Deck Black

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.44

TECH GRAY (0648)

Belt Guard, G-Deck Black

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.44

YARDMAN GREEN (0665)

Belt Guard, G-Deck Black

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.44

712-0291

7

Hex L-Nut 1/4-20 Thd.

Part# 712-0291 (Superseded to 912-0291)

Note: Optional

OEM Warranty Repair Part for White Outdoor

Not available

710-0258

8

Hex Bolt 1/4-20 x .62"

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

711-0792

10

Hinge Pin

Part# 711-0792 (Superseded to 911-0792)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.24

712-0181

13

Hex Top L-Nut 3/8-16 Thd.

Part# 712-0181 (Superseded to 912-0181)

OEM Warranty Repair Part for White Outdoor

Not available

712-3006

14

Hex Nut 1/4-20 Thd. (Gr. 5)

Part# 712-3006

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.24

734-0973

17

Deck Wheel - 5"

Part# 734-0973

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.60

736-0105

18

Bell-Wash. .40" I.D. x .88" O.D.

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

738-0373

22

Shld. Bolt .498" Dia. x 1.53"

Part# 738-0373 (Superseded to 938-0373)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.70

742-0616

23

3 in 1 Blade

Part# 742-0616 (Superseded to 942-0616A)

Note: Code: N Notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $29.07

754-0371A

26

V-Belt

Part# 754-0371A (Superseded to 954-0371A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $92.25

736-0270

27

Bell-Wash. 1/4" I.D.

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

783-0342

28

Brake Disc

Part# 783-0342 (Superseded to 783-0342A)

OEM Warranty Repair Part for White Outdoor

Not available

710-0157

?33

Hex Bolt 5/16-24 x .75" Lg.

Part# 710-0157

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

712-0417A

35

Hex Flange Nut 5/8-18 Thd.

Part# 712-0417A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.15

736-0158

?37

L-Wash. 5/8" I.D.

Part# 736-0158 (Superseded to 936-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

618-0142

39

Blade Spindle Ass'y. Comp.

Part# 618-0142 (Superseded to 918-0142C)

Note: (Incl. Ref. 28, 35, 42)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $106.38

756-0980

42

5.75" Dia. Pulley

Part# 756-0980

Note: Code: N Notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $21.80

703-1693

52

Hinge Mtg. Brkt.

Part# 703-1693 (Superseded to 703-1693A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.27

732-0602

53

Torsion Spring

Part# 732-0602 (Superseded to 732-0602A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.02

726-0106

54

Push Nut

Part# 726-0106 (Superseded to 926-0106)

OEM Warranty Repair Part for White Outdoor

Not available

731-1032

55

Chute Ass'y. Comp.

Part# 731-1032 (Superseded to 631-05229)

Note: (Incl. Ref. 10, 52, 53, 54, 55)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $59.82

710-0597

56

Hex Bolt 1/4-20 x 1" Lg.

Part# 710-0597

Note: Optional

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

712-3087

57

Wing Nut 1/4-20 Thd.

Part# 712-3087

Note: Optional

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

731-1643

58

Mulching Plug

Part# 731-1643 (Superseded to OEM-190-116)

Note: Code: N Notates a new part (not previously existing). Optional

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $85.79

16606

59

Retainer Hook Brkt.

Part# 16606 (Superseded to 96606)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.32

712-0271

60

Hex Sems Nut 1/4-20 Thd.

Part# 712-0271

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.03

710-0258

61

Hex Bolt 1/4-20 x .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87
