LT-15 (13A1686G190) - White Outdoor 42" Lawn Tractor (1997) Speed Control Parts Diagram

42" Lawn Tractor

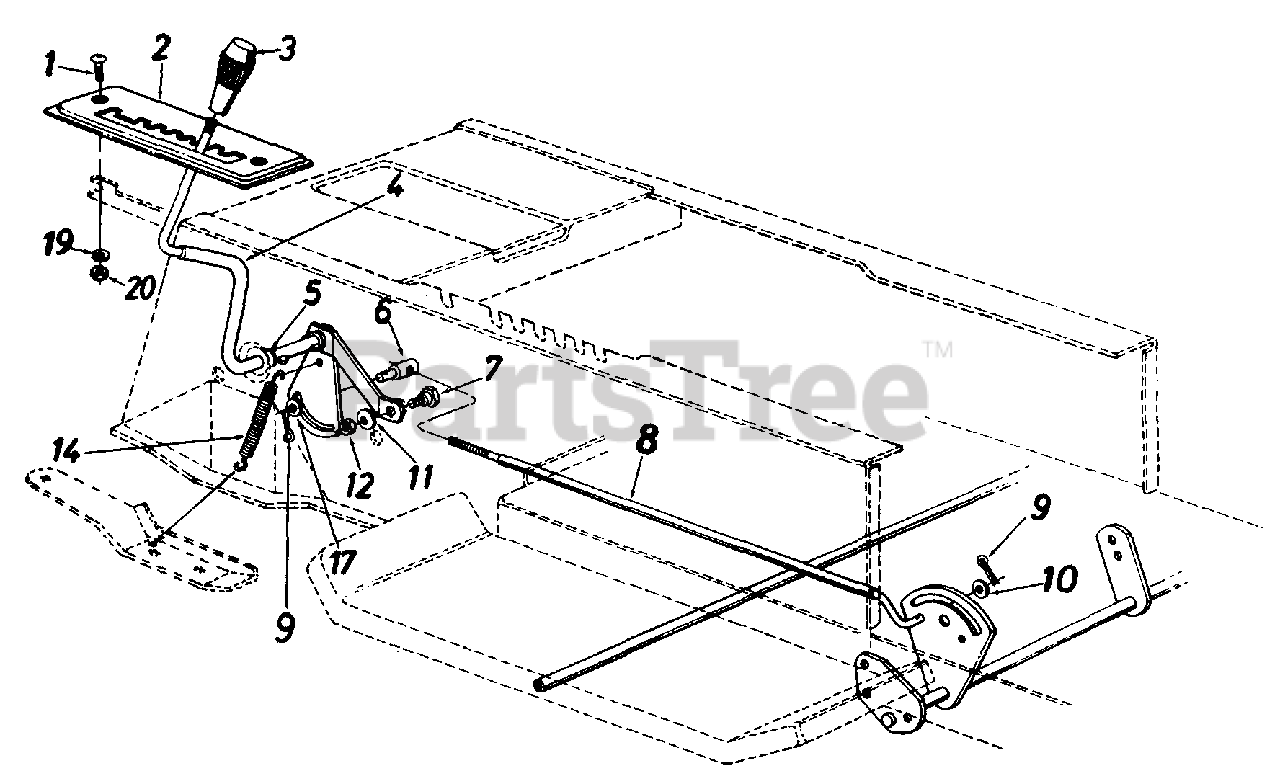

Speed Control Parts Diagram

  • Title

1

White Outdoor 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 783-0341

8-Speed Selector Plate

$

$

Not available

3

White Outdoor 720-0218

Shift Knob

$18.99

$

In Stock, only 2 left!

0

4

White Outdoor 16192A

Speed Selector Lever Ass'y.

$

$

Not available

5

White Outdoor 736-0192

Flat Washer .53" I.D. x .93"

$3.99

$

In Stock, only 2 left!

0

6

White Outdoor 711-0198

Ferrule 3/8-24 x .37" Dia.
(Superseded to 911-0198)

$12.99

$

In Stock, Qty 20+

0

7

White Outdoor 738-0155

Shoulder Bolt
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

8

White Outdoor 747-0503A

Speed Control Link

$

$

Not available

9

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x 1.0"

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 736-0226

Fl-Wash. .469" I.D. x .88"
(Superseded to 936-0226)

$3.99

$

In Stock, only 3 left!

0

11

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 732-0303

Spring .38" O.D. x 3.18" Lg.
(Superseded to 932-0303)

$9.49

$

In Stock, Qty 14

0

17

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62"

$6.99

$

In Stock, Qty 9

0

19

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

20

White Outdoor 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0
