LT-15 (13A1686G190) - White Outdoor 42" Lawn Tractor (1997)

42" Lawn Tractor

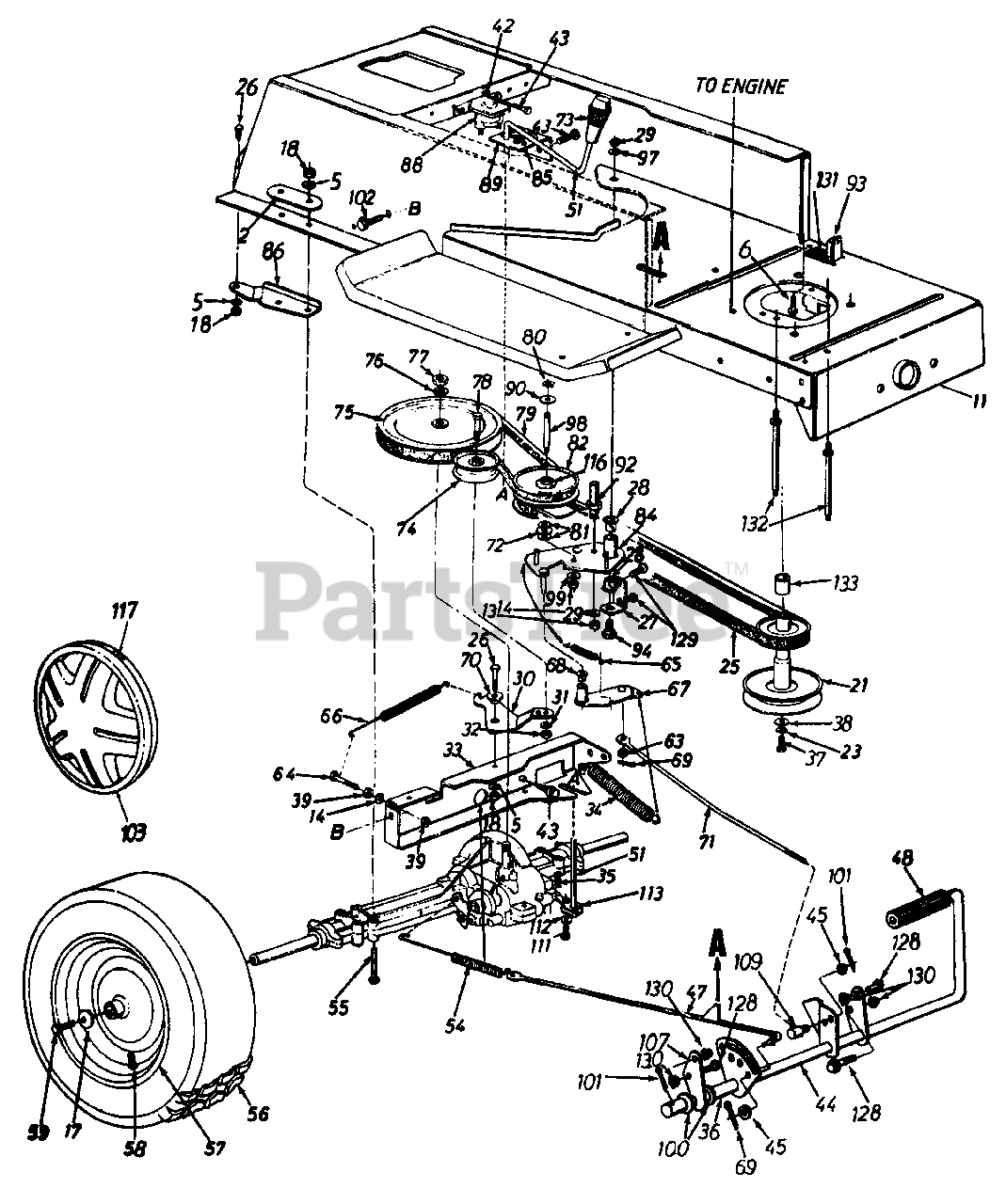

LT-15 (13A1686G190) - White Outdoor 42" Lawn Tractor (1997) > Parts Diagrams (10) > Transaxle And Rear Wheel Ass'y

  • Title
17840

2

Transaxle Mtg. Brkt.

Part# 17840

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Trans Mounting Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.11

736-0119

5

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

6

UNKNOWN

Part#

Not available

783-0310

11

Lower Frame Ass'y.

Part# 783-0310

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

FRAME-LOWER 600

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $120.73

MTD/TROY-BILT RED (0638)

FRAME-LOWER 600

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

FRAME-LOWER 600

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

FRAME-LOWER 600

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $120.73

712-0287

13

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0329

14

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

736-0242

17

Bell-Wash. .345" I.D. x .88"

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

712-0267

18

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

756-0982

21

Engine Pulley

Part# 756-0982 (Superseded to 756-0982B)

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $53.25

736-0171

23

L-Wash. 7/16" I.D.

Part# 736-0171 (Superseded to 936-0171)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.10

754-0280

25

Variable-Speed Belt

Part# 754-0280 (Superseded to 954-0280A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $37.74

710-0118

26

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

17963

27

Bearing Shaft Bracket Ass'y.

Part# 17963

OEM Warranty Repair Part for White Outdoor

Not available

741-0591

28

Flanged Nyliner Brg. 5/8" I.D. x .88" Lg.

Part# 741-0591 (Superseded to 941-0591)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

712-0241

29

Hex Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

17694

30

Idler Bracket

Part# 17694

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Idler Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.57

736-0169

31

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

712-0241

32

Hex Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

17629A

33

Transaxle Support Brkt.

Part# 17629A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Trans Support Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

732-0556

34

Ext. Spring .94" O.D. x 7.58"

Part# 732-0556 (Superseded to 932-0556)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $15.91

714-0149B

35

Inter. Cotter Pin

Part# 714-0149B (Superseded to 914-0149B)

OEM Warranty Repair Part for White Outdoor

Not available

750-0802

36

Spacer .63" I.D.

Part# 750-0802

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.87

710-0757

37

Hex Bolt 7/16-20 x 1.5" Lg.

Part# 710-0757

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.01

738-0785

38

Shld. Spacer .445" I.D.

Part# 738-0785 (Superseded to 938-0785)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $19.14

712-0138

39

Hex Nut 1/4-28 Thd.

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for White Outdoor

Not available

710-0776

?40

Hex AB-Tap Scr. 1/4" x .62" Lg.

Part# 710-0776 (Superseded to 710-0896)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

711-0747

?41

Belt Guard Pin

Part# 711-0747 (Superseded to 911-0747)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.48

736-0222

42

Ext. L-Wash. 1/4" I.D.

Part# 736-0222 (Superseded to 936-0222)

OEM Warranty Repair Part for White Outdoor

Not available

710-0599

43

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

683-0123

44

Clutch/Brake Pedal Ass'y.

Part# 683-0123

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

PEDAL-ASSY BRAKE

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

PEDAL-ASSY BRAKE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

PEDAL-ASSY BRAKE

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

PEDAL-ASSY BRAKE

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

PEDAL-ASSY BRAKE

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

PEDAL-ASSY BRAKE

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

BLACK JACK (0691)

PEDAL-ASSY BRAKE

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

736-0140

45

Fl-Wash. .344" I.D. x .62"

Part# 736-0140 (Superseded to 936-0140)

OEM Warranty Repair Part for White Outdoor

Not available

747-0755A

47

Brake Rod Ass'y.

Part# 747-0755A

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Not available

735-0196

48

Foot Pad

Part# 735-0196 (Superseded to 735-0239A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.63

17705

51

Shift Lever Ass'y.

Part# 17705

OEM Warranty Repair Part for White Outdoor

Not available

732-0264

?53

Ext. Spring .38" O.D. x 2.5"

Part# 732-0264 (Superseded to 932-0264)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.50

732-0642

54

Ext. Spring 7.33" Lg.

Part# 732-0642 (Superseded to 932-0642)

OEM Warranty Repair Part for White Outdoor

Not available

710-1266

55

Hex Bolt 5/16-18 x 3.5" Lg.

Part# 710-1266

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.95

734-1675

56

Wheel Ass'y. Comp.

Part# 734-1675

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $366.02

Variations

Carlisle Gray (0911)

WHL ASSY 20 X 8

Part# Carlisle Gray (0911)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $366.02

Dico Gray (0912)

WHL ASSY 20 X 8

Part# Dico Gray (0912)

OEM Warranty Repair Part for White Outdoor

Not available

Cheng Gray (0914)

WHL ASSY 20 X 8

Part# Cheng Gray (0914)

OEM Warranty Repair Part for White Outdoor

Not available

Duro Gray (0915)

WHEEL ASSY 20X8

Part# Duro Gray (0915)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $387.55

Carlisle Beige (0931)

WHL ASSY 20 X 8

Part# Carlisle Beige (0931)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Yellow (0941)

WHEEL ASSY W/TIRE

Part# Carlisle Yellow (0941)

OEM Warranty Repair Part for White Outdoor

Not available

Cheng Yellow (0944)

No Longer Available WHEEL ASSY W/TIRE

Part# Cheng Yellow (0944)

OEM Warranty Repair Part for White Outdoor

Not available

Duro Yellow (0945)

WHL ASSY 20 X 8

Part# Duro Yellow (0945)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $387.55

Carlisle Green (0981)

WHEEL ASSY W/TIRE

Part# Carlisle Green (0981)

OEM Warranty Repair Part for White Outdoor

Not available

Duro Green (0985)

WHEEL ASSY 20X8X8

Part# Duro Green (0985)

OEM Warranty Repair Part for White Outdoor

Not available

734-1596

Tire Only

Part# 734-1596

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $174.69

Variations

Carlisle (0901)

TIRE 20 X 8

Part# Carlisle (0901)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $174.69

Dico (0902)

TIRE 20 X 8-DICO M

Part# Dico (0902)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $115.94

Cheng (0904)

TIRE 20 X 8 CHENG

Part# Cheng (0904)

OEM Warranty Repair Part for White Outdoor

Not available

Duro (0905)

Tire, 20 X 8 X 8

Part# Duro (0905)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $84.62

Kenda (0906)

TIRE 20X8 KENDA

Part# Kenda (0906)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $174.69

634-0070

57

Wheel Rim Only

Part# 634-0070

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $122.26

Variations

CUB BEIGE (0499)

WHEEL RIM

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $125.84

SILVER FLAKE (0629)

WHEEL RIM

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $125.84

OYSTER GRAY (0662)

WHEEL RIM

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $125.84

YARDMAN YELLOW (0674)

WHEEL RIM

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.82

SPRING GREEN (0688)

WHEEL RIM

Part# SPRING GREEN (0688)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $125.84

TEE WHITE (4009)

WHEEL RIM

Part# TEE WHITE (4009)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $125.84

734-0255

58

Air Valve

Part# 734-0255 (Superseded to 934-0255)

Note: (Service Only)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

710-0627

59

Hex Bolt 5/16-24 x .75" Lg.

Part# 710-0627

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

732-0722

?61

Brake Return Spring Anchor

Part# 732-0722 (Superseded to 932-0722A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.18

736-0275

63

Fl-Wash. .34" I.D. x .68" O.D.

Part# 736-0275 (Superseded to 936-0275)

OEM Warranty Repair Part for White Outdoor

Not available

710-0428

64

Hex Bolt 1/4-28 x 1.25" Lg.

Part# 710-0428

OEM Warranty Repair Part for White Outdoor

Not available

732-0568

65

Ext. Spring

Part# 732-0568 (Superseded to 932-0568)

OEM Warranty Repair Part for White Outdoor

Not available

732-0384

66

Ext. Spring .62" O.D. x 6.12"

Part# 732-0384 (Superseded to 932-0384)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.52

16554A

67

Variable Speed Torque Brkt. Ass'y.

Part# 16554A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Torque Bracket Assembly

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $14.61

741-0419

68

Flanged Bearing

Part# 741-0419

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.42

714-0111

69

Cotter Pin 3/32" Dia.

Part# 714-0111 (Superseded to 914-0111)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.36

748-0234

70

Shoulder Spacer .27" Lg.

Part# 748-0234

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

747-0530A

71

Speed Control Link

Part# 747-0530A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.89

741-0405

72

Truss Bearing .56 Dia. x 1.25"

Part# 741-0405 (Superseded to 941-0405)

OEM Warranty Repair Part for White Outdoor

Not available

720-0232

73

Shift Knob

Part# 720-0232 (Superseded to 920-0232)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.29

756-0437

74

Fl-Idler Pulley 3.25" x .75"

Part# 756-0437 (Superseded to 756-0643A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.86

656-0005

75

"V" Pulley

Part# 656-0005

OEM Warranty Repair Part for White Outdoor

Not available

736-0427

76

Bell-Wash. .56" I.D. x 1.125"

Part# 736-0427 (Superseded to 936-0427)

OEM Warranty Repair Part for White Outdoor

Not available

712-3035

77

Hex Jam Nut 5/16-18 Thd.

Part# 712-3035

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

710-0539

78

Hex Bolt 3/8-24 x 1.75" Lg.

Part# 710-0539

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.18

754-0370

79

Variable Speed Belt

Part# 754-0370 (Superseded to 954-0370)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $36.55

716-0114

80

Snap Ring .56" Dia.

Part# 716-0114 (Superseded to 916-0114)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

736-0355

81

Fl-Wash.

Part# 736-0355

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

717-0800A

82

Variable Speed Pulley Ass'y. 5" O.D.

Part# 717-0800A (Superseded to 917-0800A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $172.84

16354B

84

Variable Speed Brkt. Ass'y.

Part# 16354B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET ASSY-VAR S

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

732-0525

85

Comp. Spring - Clip

Part# 732-0525

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.16

17668

86

Axle Support Brkt.- R.H.

Part# 17668

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Axle Support Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

17669

Axle Support Brkt.- L.H.

Part# 17669

Note: (Not shown)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Axle Support Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

725-1426

88

Solenoid

Part# 725-1426 (Superseded to 925-1426A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.17

17630

89

Shift Lever Bracket

Part# 17630

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Shift Lever Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.74

736-0414

90

Teflon Washer .565" I.D.

Part# 736-0414 (Superseded to 936-0414)

OEM Warranty Repair Part for White Outdoor

Not available

711-1000

92

Belt Keeper 3" Lg.

Part# 711-1000 (Superseded to 911-1000)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.73

725-1657A

93

Safety Switch (Clutch)

Part# 725-1657A (Superseded to 925-1657A)

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.92

738-0755

94

Shld. Bolt 3/8-24 x 3.12" Lg.

Part# 738-0755 (Superseded to 938-0755)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.36

736-0105

97

Bell-Wash. .38" I.D. x .88"

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

738-0569

98

Shaft .56" Dia. x 3.875" Lg.

Part# 738-0569 (Superseded to 938-0569)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.57

736-0331

99

Bell-Wash. .39" I.D. x 1.12"

Part# 736-0331

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.78

736-0256

100

Fl-Wash. .64" I.D. x .94"

Part# 736-0256 (Superseded to 936-0256)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.02

714-0470

101

Cotter Pin 1/8" Dia. x 1.25"

Part# 714-0470 (Superseded to 914-0470)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-0604

102

Hex Wash. Hd. Scr. 5/16-18 x .62" Lg.

Part# 710-0604 (Superseded to 710-0604A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

734-1784

103

Hub Cap

Part# 734-1784

OEM Warranty Repair Part for White Outdoor

Not available

17860

107

Pedal Bracket

Part# 17860

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Pedal Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

711-0198

109

Ferrule

Part# 711-0198 (Superseded to 911-0198)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.66

710-0195

111

Hex Bolt 1/4-28 x .50" Lg.

Part# 710-0195 (Superseded to 910-0195)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.53

736-0270

112

Bell-Wash. .265" I.D. x .75"

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

17707

113

Shift Lever Link Ass'y.

Part# 17707

OEM Warranty Repair Part for White Outdoor

Not available

736-0140

?115

Fl-Wash. .385" I.D. x .62"

Part# 736-0140 (Superseded to 936-0140)

OEM Warranty Repair Part for White Outdoor

Not available

741-0404

116

Needle Brgs.

Part# 741-0404 (Superseded to 941-0404)

OEM Warranty Repair Part for White Outdoor

Not available

727-0425A

117

Spring Clip

Part# 727-0425A (Superseded to 927-0425A)

Note: (Used w/Ref. No. 103)

OEM Warranty Repair Part for White Outdoor

Not available

710-0427

?119

Hex Bolt 3/8-16 x 1.25" Lg.

Part# 710-0427 (Superseded to 710-3144)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

756-0217

?120

Fl-Idler w/Flanges 2.75" O.D.

Part# 756-0217 (Superseded to 956-0217)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $15.92

736-0280

?121

Fl-Wash. .39" I.D. x 1.12" O.D.

Part# 736-0280 (Superseded to 736-04005)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.32

712-0798

?122

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0650

128

Hex Wash. TT-Tap Scr. 5/16-18 x .75" Lg.

Part# 710-0650

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

710-0726

129

Hex Wash. AB-Tap Scr. 5/16-18 x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.04

712-0265

130

Hex Sems Nut 5/16-18 Thd.

Part# 712-0265

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.53

732-0750A

131

Spring Switch

Part# 732-0750A (Superseded to 932-0750A)

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.23

711-1044

132

Belt Guard Pin

Part# 711-1044 (Superseded to 711-1044A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.10

750-0956

133

Spacer

Part# 750-0956

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $14.12
