LT-15 (13A2682F190) - White Outdoor 38" Lawn Tractor (2003) Deck Assembly Parts Diagram

38" Lawn Tractor

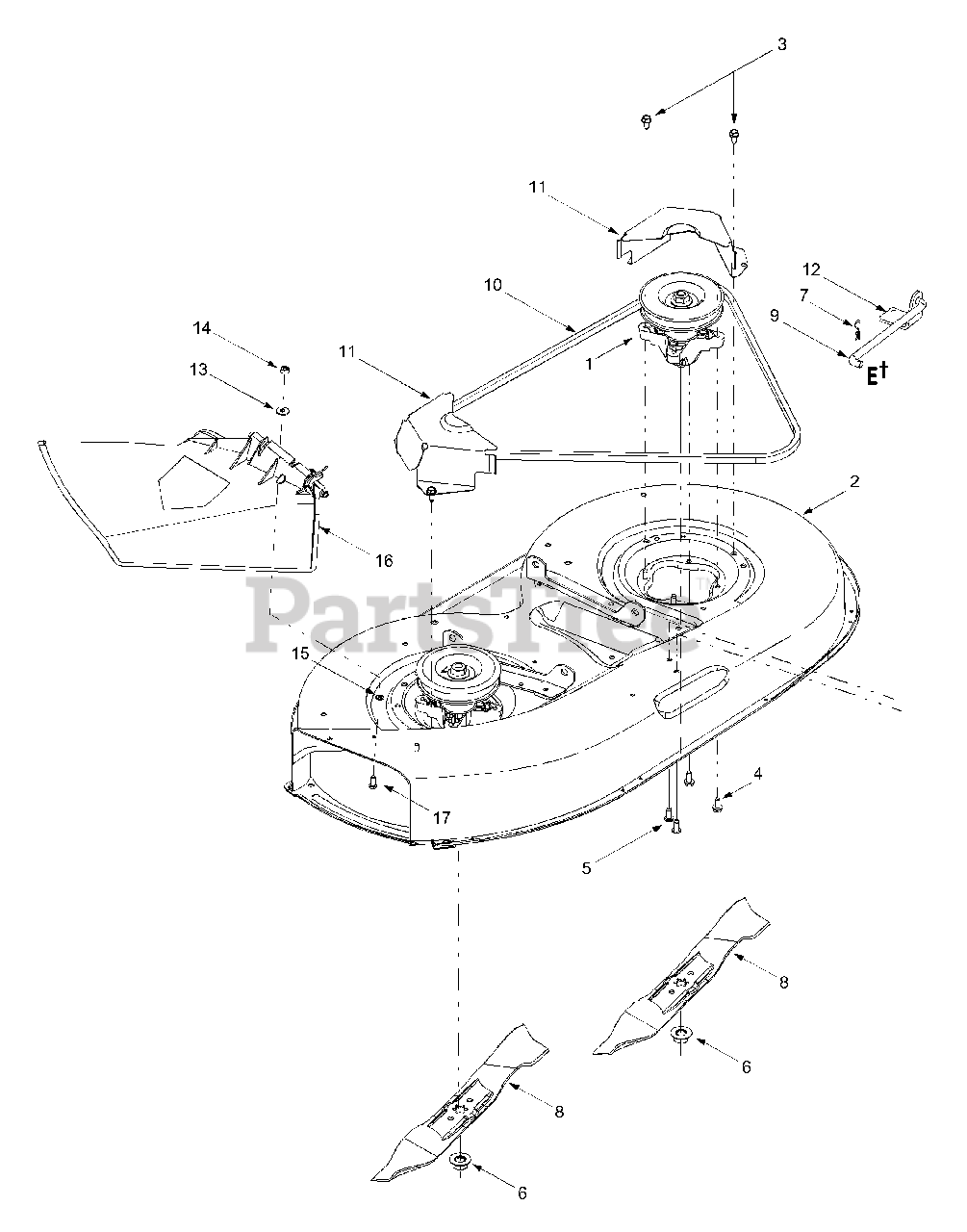

Deck Assembly Parts Diagram

  • Title

1

White Outdoor 618-0138A

Spindle Assembly
(Superseded to 918-0138C)

$140.99

$

In Stock, only 2 left!

0

2

White Outdoor 683-04003A

Deck Shell
(Superseded to 983-04003A)

Variations

White Outdoor 683-04003A-0637

DECK ASSY 38" W/O WHEELS BLACK - POWDER BLACK (0637)

$577.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04003A-0665

DECK ASSY 38" W/O WHEELS BLACK - YARDMAN GREEN (0665)

$577.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04003A-0650

DECK ASSY-38" W/O WHEELS - RED METALLIC (0650)

$577.99

$

Usually ships in 3-6 days

0

$467.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0726

Self-tapping Screw, 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-1260A

Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-1611B

Self-tapping Screw, 5/16-18 x .75

$6.49

$

In Stock, only 2 left!

0

6

White Outdoor 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

7

White Outdoor 714-04023

Internal Cotter Pin, .080 x 1.56

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 742-0610A

Blade, 19.38"
(Superseded to 942-0610A)

$26.99

$

In Stock, Qty 20+

0

9

White Outdoor 747-04018

Deck Hanger Link/Anti-sway Rod
(Superseded to 947-04018A)

$

$

Not available

10

White Outdoor 754-0329A

Deck Belt
(Superseded to 954-0329A)

$52.99

$

In Stock, Qty 20+

0

11

White Outdoor 783-04148

Belt Cover

Variations

White Outdoor 783-04148-0637

Deck Belt Cover, 38" Black - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04148-0665

COVER-BELT 38" DK - YARDMAN GREEN (0665)

$32.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04148-0650

COVER-BELT 38" DK - RED METALLIC (0650)

$30.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

12

White Outdoor 783-04211

Anti-sway Stabilizer Bracket
(Superseded to 783-04211-0637)

Variations

White Outdoor 783-04211-0637

BRACKET-STABILIZER - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

13

White Outdoor 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 15

0

14

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 726-0233

Push Nut, 1/4

$3.99

$

In Stock, Qty 7

0

16

White Outdoor 731-1032

Discharge Chute Assembly
(Superseded to 631-05229)

$77.99

$

In Stock, Qty 20+

0

17

White Outdoor 710-0751

Hex Cap Screw:1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0
