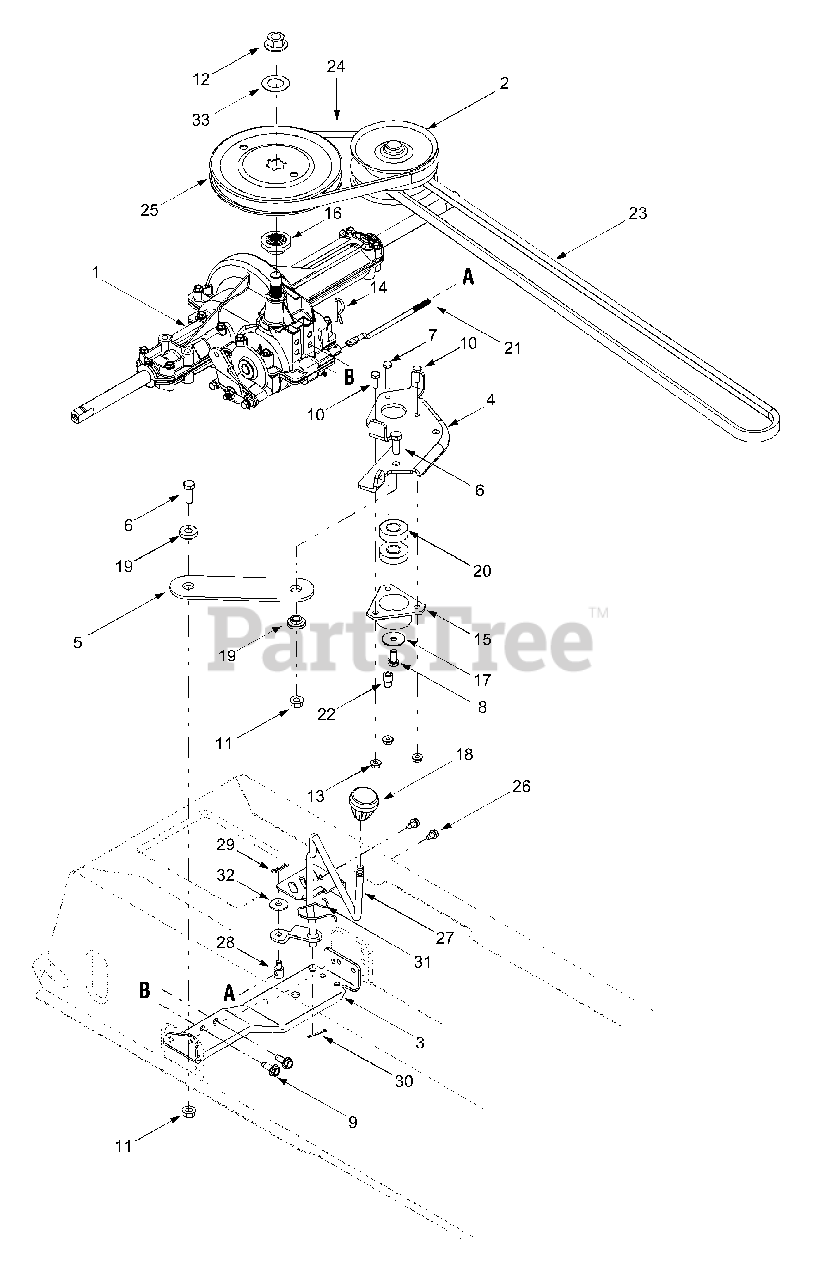

LT-15 (13A2682F190) - White Outdoor 38" Lawn Tractor (2003) Drive Parts Diagram

38" Lawn Tractor

Drive Parts Diagram

  • Title

1

White Outdoor 618-04034

Transmission, Single-speed
(Superseded to 753-05851)

$624.99

$

Usually ships in 3-6 days

0

2

White Outdoor 656-0059A

Variable-speed Pulley, 4.75
(Superseded to 956-04015B)

$96.99

$

In Stock, Qty 20+

0

3

White Outdoor 683-04055

Torque Bracket
(Superseded to 753-05343)

$

$

Not available

4

White Outdoor 683-04056

Variable-speed Bracket

$

$

Not available

5

White Outdoor 683-04057

Variable-speed Bracket

$14.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0606

Hex Cap Screw, 1/4-20 x 1.5

$4.99

$

In Stock, Qty 15

0

8

White Outdoor 710-0627

Hex Cap Screw, 5/16-24 x .75

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-1260A

Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-3015

Hex Screw,1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0700

Flange Nut, 9/16-18

$10.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-3027

Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 714-0209

Internal Cotter Pin, .125
(Superseded to 914-0209)

$3.49

$

Usually ships in 3-6 days

0

15

White Outdoor 718-04012

Bearing Cup

$19.99

$

In Stock, only 4 left!

0

16

White Outdoor 718-0758

Pulley Hub, 5/8 Spline
(Superseded to 718-04407)

$11.99

$

In Stock, Qty 16

0

17

White Outdoor 736-0362

Flat Washer, .320 x 1.25 x .06

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 720-0232

Shift Knob, 1.60 OD X 1.56
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

19

White Outdoor 738-0372B

Shoulder Spacer, 1.0 x .38 x .38

$8.99

$

In Stock, Qty 20+

0

20

White Outdoor 741-0600

Ball Bearing, 17 x 40 x 12
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

21

White Outdoor 747-04072

Shift Rod

$13.99

$

Usually ships in 3-6 days

0

22

White Outdoor 750-04099

Stepped Spacer
(Superseded to 950-04099)

$

$

Not available

23

White Outdoor 754-04001

Lower Drive Belt
(Superseded to 954-04001A)

$28.99

$

In Stock, Qty 20+

0

24

White Outdoor 754-04002

Upper Drive Belt
(Superseded to 954-04002)

$16.99

$

In Stock, Qty 20+

0

25

White Outdoor 756-04002

Transmission Pulley, 7.25
(Superseded to 956-04002)

$25.99

$

In Stock, Qty 20+

0

26

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 647-04009A

Shift Lever Assembly
(Superseded to 647-04009B)

$

$

Not available

28

White Outdoor 711-0736

Ferrule, 1/4-20 x 1.0

$13.99

$

In Stock, only 2 left!

0

29

White Outdoor 714-0104

Cotter Pin, 1.13

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 714-0111

Cotter Pin, 1.0

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 732-04067

Spring Compression Clip
(Superseded to 932-04067)

$

$

Not available

32

White Outdoor 736-3089

Flat Washer, 5/16 x .934 x .100

$

$

Not available

33

White Outdoor 736-04089

Flat Washer, .88 ID x 1.5 OD
(Superseded to 936-04089)

$5.49

$

Usually ships in 3-6 days

0
