LT-15 (13A2682F190) - White Outdoor 38" Lawn Tractor (2003) Drive & Rear Wheels Parts Diagram

38" Lawn Tractor

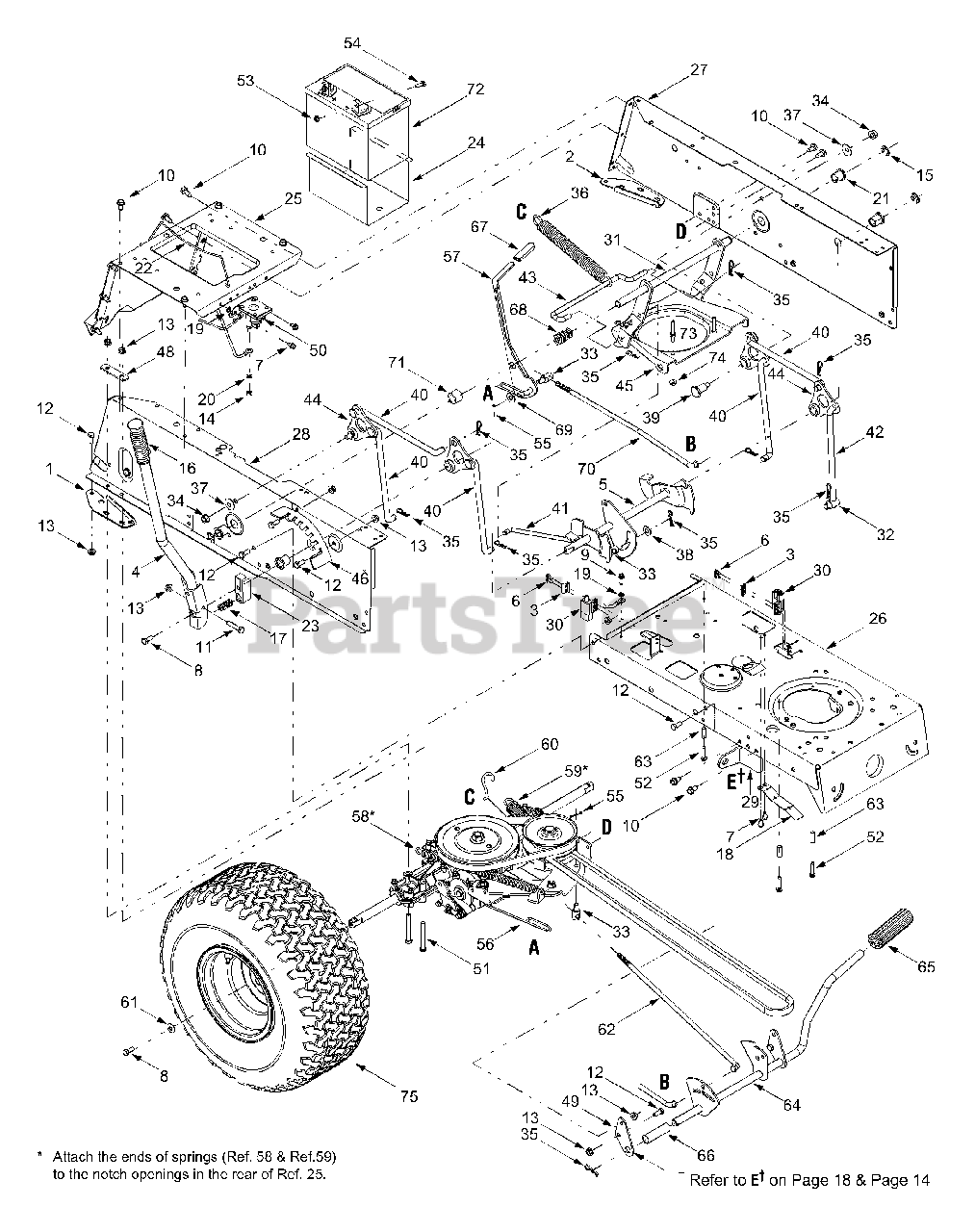

Drive & Rear Wheels Parts Diagram

  • Title

1

White Outdoor 17668A

RH Axle Support Bracket
(Superseded to 17668A-0637)

Variations

White Outdoor 17668A-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 17669A

LH Axle Support Bracket
(Superseded to 17669A-0637)

Variations

White Outdoor 17669A-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, Qty 5

0

4

White Outdoor 683-04025

Lift Handle Assembly

Variations

White Outdoor 683-04025-0637

Lift Handle Assembly, Black - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04025-0638

HANDLE ASSY-LIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-04025-0650

HANDLE ASSY-LIFT - RED METALLIC (0650)

$

$

Not available

$60.99

$

Usually ships in 3-6 days

0

5

White Outdoor 683-04049

Lift Shaft Assembly
(Superseded to 683-04049A-0637)

Variations

White Outdoor 683-04049-0637

Lift Shaft Assembly, Black - POWDER BLACK (0637)

$95.99

$

Usually ships in 3-6 days

0

$95.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0224

Self-tapping Screw, #10-16 x .5
(Superseded to 910-0224)

$3.49

$

In Stock, only 2 left!

0

7

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0627

Hex Cap Screw, 5/16-24 x .75

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0726

Self-tapping Screw, 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-0805

Hex Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

12

White Outdoor 710-3008

Hex Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

14

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 716-0106

E-Ring, .625 Dia Shaft

$3.99

$

In Stock, only 3 left!

0

16

White Outdoor 720-0233

Handle Grip
(Superseded to 920-0233)

$

$

Not available

17

White Outdoor 732-0369

Compression Spring, .55 x 1.37
(Superseded to 932-0369)

$9.49

$

In Stock, only 1 left!

0

18

White Outdoor 732-0750A

Switch Actuator Spring
(Superseded to 932-0750A)

$20.99

$

Usually ships in 3-6 days

0

19

White Outdoor 736-0222

External Lock Washer, 1/4

$5.49

$

In Stock, only 3 left!

0

20

White Outdoor 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

21

White Outdoor 741-0487A

Flange Bearing, .632 ID
(Superseded to 741-0487C)

$6.99

$

In Stock, Qty 20+

0

22

White Outdoor 747-04031

Battery Hold-down Rod

$10.99

$

Usually ships in 3-6 days

0

23

White Outdoor 748-04011

Lift Shaft Connector
(Superseded to 948-04011A)

$23.99

$

In Stock, only 3 left!

0

24

White Outdoor 783-0345

Battery Tray
(Superseded to 783-0345-0637)

Variations

White Outdoor 783-0345-0637

Battery Tray - POWDER BLACK (0637)

$15.99

$

In Stock, only 1 left!

0

$15.99

$

In Stock, only 1 left!

0

25

White Outdoor 783-0355C

Hitch Plate
(Superseded to 783-0355D)

Variations

White Outdoor 783-0355C-0483

PLATE-HITCH - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0355C-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0355C-0638

PLATE-HITCH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0355C-0648

PLATE-HITCH - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0355C-0650

PLATE-HITCH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0355C-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

26

White Outdoor 783-04011

Lower Frame
(Superseded to 783-04011A)

Variations

White Outdoor 783-04011-0637

FRAME-LOWER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04011-0638

FRAME-LOWER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04011-0650

No Longer Available FRAME:LWR:60 - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04011-0665

No Longer Available FRM:LWR:6 - YARDMAN GREEN (0665)

$

$

Not available

$

$

27

White Outdoor 783-04031

LH Upper Frame Side Panel
(Superseded to 783-04031A)

Variations

White Outdoor 783-04031-0637

PANEL-SIDE LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04031-0638

PANEL-SIDE LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04031-0650

PANEL-SIDE LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04031-0665

PANEL-SIDE LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

28

White Outdoor 783-04032

RH Upper Frame Side Panel

Variations

White Outdoor 783-04032-0483

PANEL-SIDE RH - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-04032-0637

PANEL-SIDE RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04032-0638

PANEL-SIDE RH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04032-0650

PANEL-SIDE RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04032-0665

PANEL-SIDE RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

29

White Outdoor 783-04213

Deck Anti-sway Bracket
(Superseded to 783-04213-0637)

Variations

White Outdoor 783-04213-0637

BRACKET-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

30

White Outdoor 725-04039

Screw-mount Interlock Switch
(Superseded to 925-04039)

$22.99

$

In Stock, Qty 20+

0

31

White Outdoor 683-04048

Stabilizer Shaft Assembly
(Superseded to 683-04048A-0637)

Variations

White Outdoor 683-04048-0637

Stabilizer Shaft Assembly, Black - POWDER BLACK (0637)

$

$

Not available

$

$

32

White Outdoor 711-04036

Ferrule, 1/2-20 x .50
(Superseded to 911-04036)

$10.99

$

In Stock, only 1 left!

0

33

White Outdoor 711-04075

Ferrule, 3/8-24 x .375
(Superseded to 911-04075A)

$10.99

$

In Stock, only 4 left!

0

34

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

35

White Outdoor 714-04023

Internal Cotter Pin, .080 x 1.56

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 732-04050A

Extension Spring, 1.07 x 9.52
(Superseded to 732-04050D)

$21.99

$

In Stock, only 1 left!

0

37

White Outdoor 736-0219

Bell Washer, .389 x 1.12 x .030
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

38

White Outdoor 736-0267

Flat Washer, .385 x .87 x .060

$4.49

$

In Stock, only 1 left!

0

39

White Outdoor 738-0445A

Shoulder Bolt, 3/8-16 x .62 x .92
(Superseded to 938-0445A)

$

$

Not available

40

White Outdoor 747-04018

Deck Hanger Link
(Superseded to 947-04018A)

$

$

Not available

41

White Outdoor 747-04040A

Deck Disengagement Rod

$14.99

$

Usually ships in 3-6 days

0

42

White Outdoor 747-04069

Deck Hanger Link
(Superseded to 747-04069A)

$14.99

$

Usually ships in 3-6 days

0

43

White Outdoor 747-04115A

Rear Stabilizer Rod

$28.99

$

Usually ships in 3-6 days

0

44

White Outdoor 748-04010

Lift Link
(Superseded to 948-04010)

$

$

Not available

45

White Outdoor 783-04093

Deck Stabilizer Bracket
(Superseded to 783-04093-0637)

Variations

White Outdoor 783-04093-0637

Deck Stabilizer Bracket, Black - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

46

White Outdoor 783-04113

Deck Lift Index Bracket
(Superseded to 783-04113P)

$23.99

$

In Stock, only 1 left!

0

?47

White Outdoor 17630A

Shift Lever Retainer
(Superseded to 17630A-0637)

Variations

White Outdoor 17630A-0637

Shift Lever Bracket - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

48

White Outdoor 17840

Transaxle Mounting Bracket
(Superseded to 17840-0637)

Variations

White Outdoor 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

49

White Outdoor 17860

Pedal Mounting Bracket
(Superseded to 17860-0637)

Variations

White Outdoor 17860-0637

Pedal Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

50

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

51

White Outdoor 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

52

White Outdoor 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

53

White Outdoor 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 710-3015

Hex Screw,1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 714-0111

Cotter Pin, 1.0

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 732-04029

Extension Spring, .59 x 12.38
(Superseded to 932-04029)

$

$

Not available

57

White Outdoor 783-04059

Speed Select Lever

$

$

Not available

58

White Outdoor 732-04075A

Extension Spring, .73 x 12.54
(Superseded to 732-04075B)

$

$

Not available

59

White Outdoor 732-04076

Extension Spring, 1.15 x 7.90
(Superseded to 732-04076A)

$12.99

$

In Stock, Qty 9

0

60

White Outdoor 732-0722A

Brake Return Spring
(Superseded to 932-0722A)

$11.99

$

In Stock, only 4 left!

0

61

White Outdoor 736-0242

Bell Washer, .34 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 747-04043

Variable Speed Control Rod

$17.99

$

Usually ships in 3-6 days

0

63

White Outdoor 750-0566A

Spacer, .260 x .372 x 1.030

$9.49

$

In Stock, Qty 7

0

64

White Outdoor 683-04005A

Clutch / Brake Pedal Assembly

Variations

White Outdoor 683-04005A-0637

PEDAL ASSY-CLUTCH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-04005A-0638

PEDAL ASSY-CLUTCH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-04005A-0650

PEDAL ASSY-CLUTCH - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-04005A-0665

PEDAL ASSY-CLUTCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

White Outdoor 735-0196

Foot Pad, 4.6
(Superseded to 735-0239A)

$11.99

$

In Stock, Qty 9

0

66

White Outdoor 750-0802

Spacer, .640 x .76 x 2.63

$6.49

$

Usually ships in 3-6 days

0

67

White Outdoor 720-04008

Shift Handle Grip

$4.99

$

Usually ships in 3-6 days

0

68

White Outdoor 732-04017

Compression Spring, .89 x 1.75
(Superseded to 932-04017)

$

$

Not available

69

White Outdoor 736-0300

Flat Washer, .406 x .875 x .059

$3.99

$

In Stock, Qty 20+

0

70

White Outdoor 747-04039

Speed Control Rod

$

$

Not available

71

White Outdoor 750-04080

Spacer, .640 x 1.0 x .78
(Superseded to 950-04080)

$

$

Not available

72

White Outdoor 725-1706

Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

73

White Outdoor 712-3027

Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

74

White Outdoor 711-0993

Belt Guard Pin, 1/4-20
(Superseded to 911-0993)

$3.99

$

In Stock, Qty 20+

0

75

White Outdoor 634-0104

Square Shoulder Wheel Ass'y Complete

Variations

White Outdoor 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0912

WHL ASSY 20 X 8 - Dico Gray (0912)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0914

WHL ASSY 20 X 8 - Cheng Gray (0914)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0916

WHL ASSY 20 X 8 - Kenda Gray (0916)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$155.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0941

WHL ASSY 20 X 8 - Carlisle Yellow (0941)

$474.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0942

WHEEL ASSY W/TIRE - Dico Yellow (0942)

$474.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0945

WHL ASSY 20 X 8 - Duro Yellow (0945)

$474.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0961

WHEEL ASM-20 X 8 - Carlisle Gray (0961)

$155.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0991

WHEEL ASM COMP-20 - Carlisle White (0991)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-4009

WHEEL ASM COMP-20 - TEE WHITE (4009)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-4028

WHEEL ASSY COMP-20 - SEARS YELLOW (4028)

$511.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0981

No Longer Available WHEEL ASM COMP-20 - Carlisle Green (0981)

$

$

Not available

$414.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070

Rim Assembly (Square Shoulder)
(Superseded to 634-04369)

Variations

White Outdoor 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$153.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$153.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$153.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$153.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$153.99

$

Usually ships in 3-6 days

0

$124.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1730

Tire Only (Square Shoulder)

Variations

White Outdoor 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$92.99

$

In Stock, Qty 8

0

White Outdoor 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$92.99

$

In Stock, Qty 8

0

White Outdoor 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$92.99

$

In Stock, Qty 8

0

White Outdoor 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$92.99

$

In Stock, Qty 8

0

$92.99

$

In Stock, Qty 8

0

White Outdoor 734-0255

Air Valve (Square Shoulder)
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0
