LT-15 (13AM683F190) - White Outdoor 38" Lawn Tractor (2001) Electrical Parts Diagram

38" Lawn Tractor

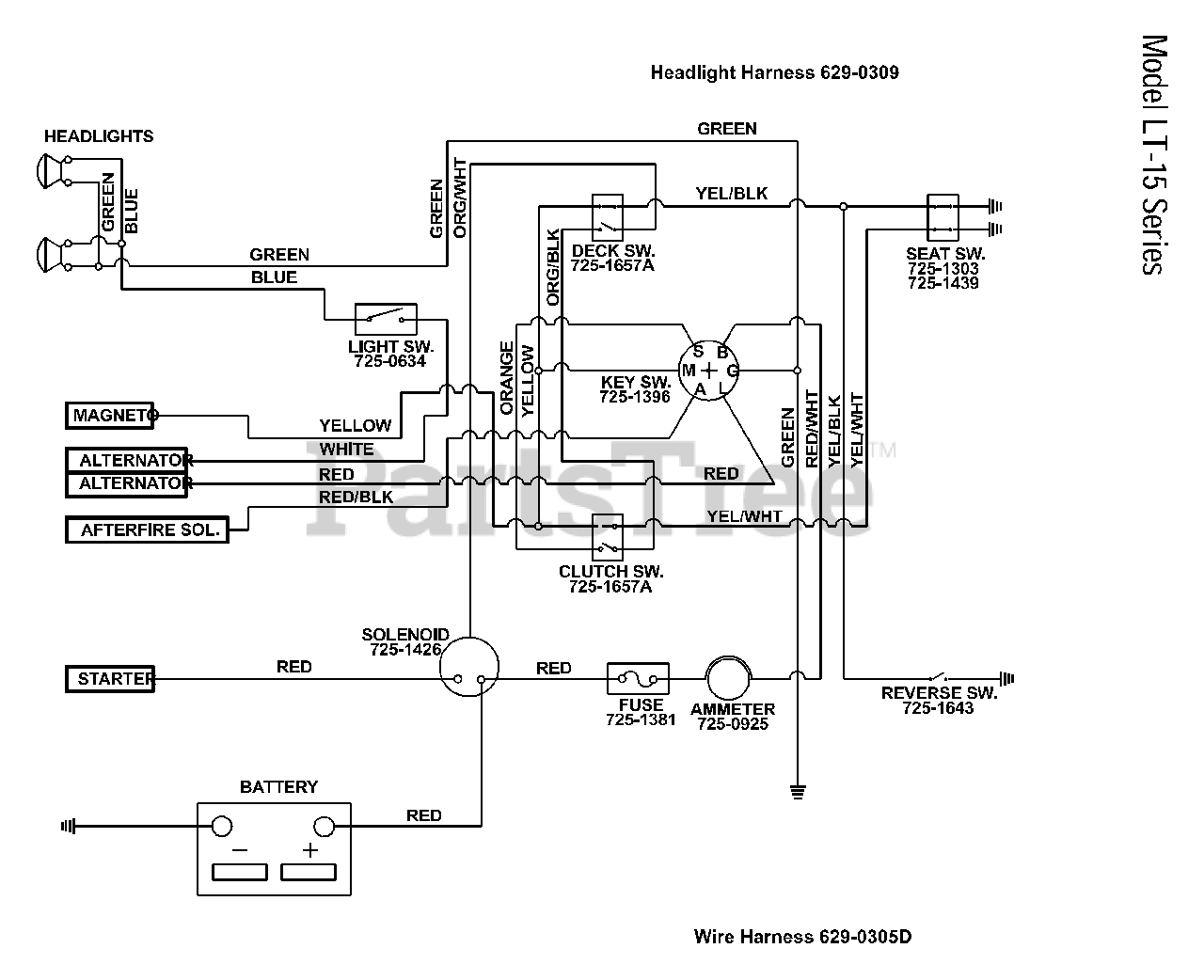

Electrical Parts Diagram

  • Title

725-0634

White Outdoor 725-0634

USE 925-0634 SWITCH-HEADLAMP
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

725-1426

White Outdoor 725-1426

USE 925-1426A SOLENOID-12V
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

629-0305D

White Outdoor 629-0305D

USE 929-0305E HARNESS ASM
(Superseded to 929-0305E)

$176.99

$

Usually ships in 3-6 days

0

725-1381

White Outdoor 725-1381

USE 925-1381 FUSE-20A
(Superseded to 925-1381)

$5.99

$

In Stock, Qty 14

0

725-0925

White Outdoor 725-0925

USE 925-0925 AMMETER
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

725-1643

White Outdoor 725-1643

SWITCH-SPRING

$9.99

$

In Stock, only 1 left!

0

725-1657A

White Outdoor 725-1657A

USE 925-1657A SWITCH SAFETY
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

725-1396

White Outdoor 725-1396

USE 925-1396A SWITCH-IGNITION
(Superseded to 925-1396A)

$40.99

$

In Stock, Qty 15

0

725-1657A

White Outdoor 725-1657A

USE 925-1657A SWITCH SAFETY
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

725-1439

White Outdoor 725-1439

SWITCH-SEAT SPRING

$7.99

$

In Stock, Qty 8

0

725-1303

White Outdoor 725-1303

USE 925-1303 SWITCH-SPRING
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

629-0309

White Outdoor 629-0309

USE 929-0469B HARNESS-HEADLIG
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0
