LT 15 (954130003) - Jonsered Lawn Tractor (1997-04) SEAT Parts Diagram

Lawn Tractor

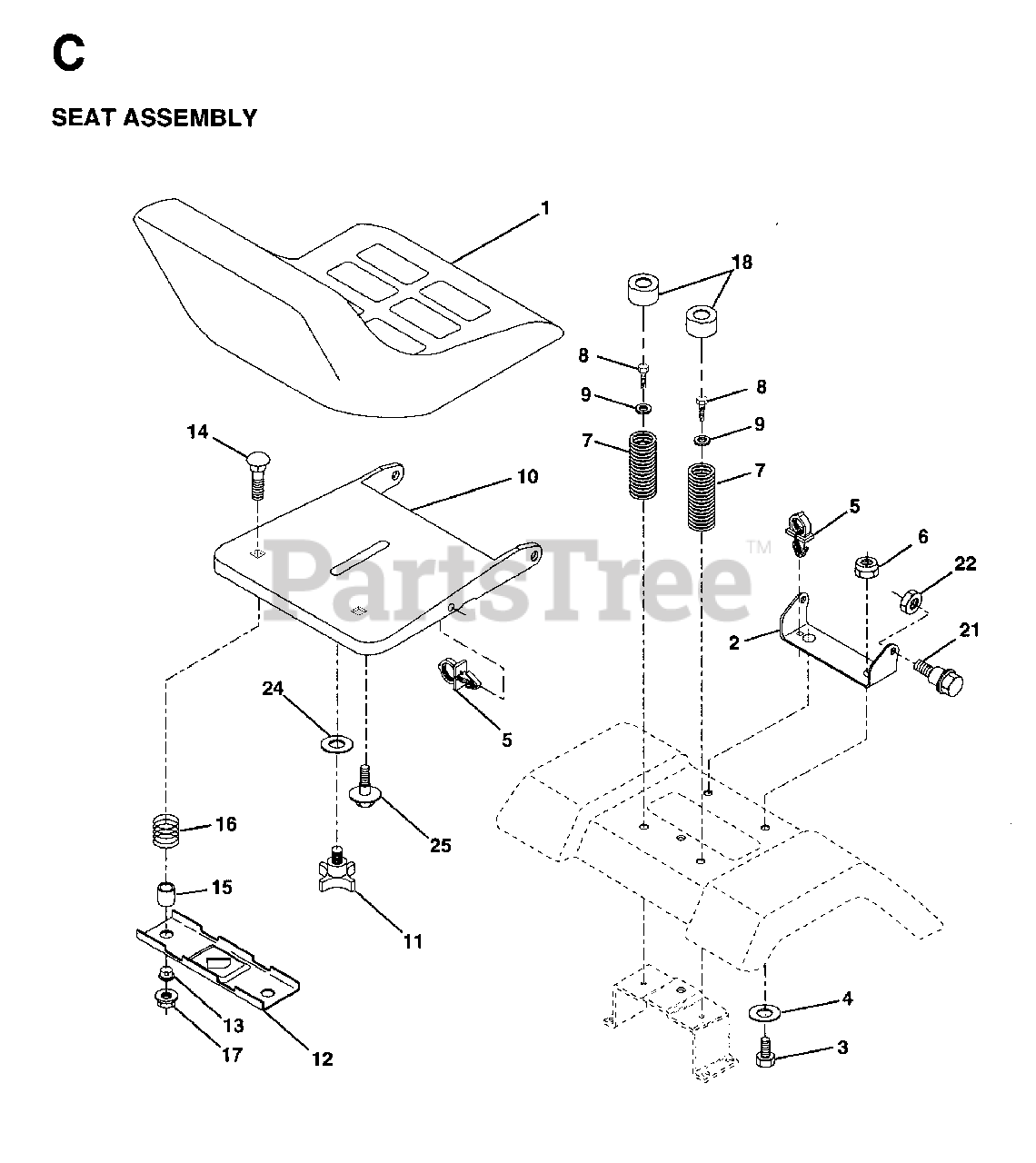

SEAT Parts Diagram

  • Title

1

Jonsered 532127440

SEAT
(Superseded to 532140121)

$

$

Not available

2

Jonsered 532140551

SEAT PIVOT BRKT

$6.49

$

Usually ships in 3-10 days

0

3

Jonsered 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

4

Jonsered 819131610

WASHER PM

$6.49

$

In Stock, Qty 7

0

5

Jonsered 532145006

PUSH CLIP

$6.49

$

In Stock, only 1 left!

0

6

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

7

Jonsered 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

8

Jonsered 817490616

SCREW GTV
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

9

Jonsered 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Jonsered 532155925

PAN, SEAT
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Jonsered 532120068

KNOB 1/2" YT
(Superseded to 532166369)

$10.99

$

In Stock, only 3 left!

0

12

Jonsered 532121246

BRKT SWITCH
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

13

Jonsered 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 872050411

BOLT CARRIAGE 1/4-20X1 3/8

$

$

Not available

15

Jonsered 532121249

SPACER SPLIT

$6.49

$

In Stock, Qty 5

0

16

Jonsered 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 532123976

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

18

Jonsered 532124238

CAP SPRING

$

$

Not available

21

Jonsered 532153236

BOLT SHOULDER 5/16-18
(Superseded to 532171852)

$4.99

$

In Stock, Qty 14

0

22

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Jonsered 819171912

WASHER

$7.49

$

In Stock, only 2 left!

0

25

Jonsered 532127018

BOLT,SHOULD

$7.49

$

Usually ships in 3-10 days

0
