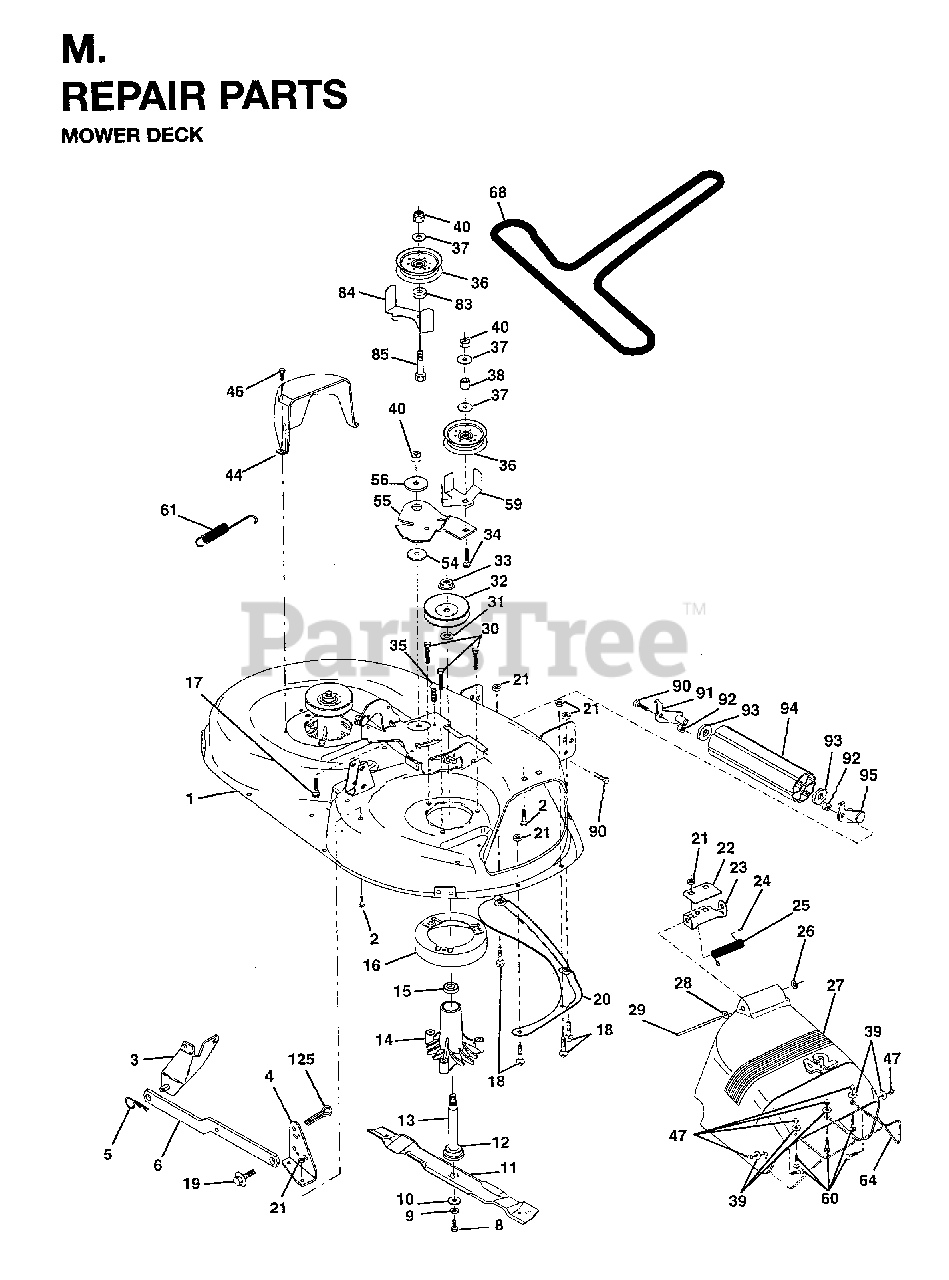

LT 15 (954820221) - Jonsered Lawn Tractor (1996-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Jonsered 532144393

DECK 42"
(Superseded to 532164961)

$302.99

$

Usually ships in 3-10 days

0

2

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 532138017

BRKT ASM SWAY BAR

$12.99

$

In Stock, Qty 12

0

4

Jonsered 532138440

BRKT DECK SW BAR

$6.49

$

Usually ships in 3-10 days

0

5

Jonsered 532085902

RETAINER SPRING
(Superseded to 596919601)

$3.99

$

In Stock, Qty 20+

0

6

Jonsered 532130832

REAR SUSP ARM
(Superseded to 532130833)

$8.99

$

In Stock, Qty 5

0

8

Jonsered 532850857

BLADE BOLT

$3.99

$

In Stock, Qty 17

0

9

Jonsered 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.49

$

Usually ships in 3-10 days

0

10

Jonsered 532140296

WASHER.BLADE

$6.49

$

In Stock, Qty 6

0

11

Jonsered 532138498

BLADE 42"
(Superseded to 532138971)

$14.99

$

In Stock, Qty 20+

0

12

Jonsered 532129895

BEARING
(Superseded to 738220419)

$26.99

$

In Stock, Qty 11

0

13

Jonsered 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$26.99

$

In Stock, Qty 20+

0

14

Jonsered 532128774

HSG MANDREL

$31.99

$

In Stock, Qty 20+

0

15

Jonsered 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

16

Jonsered 532140329

STRIPPER
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Jonsered 872110618

BOLT CARRIAGE

$6.49

$

In Stock, only 1 left!

0

18

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 532132827

BOLT SHD 5/16-18

$6.49

$

Usually ships in 3-10 days

0

20

Jonsered 532136888

BAFFLE
(Superseded to 532159770)

$

$

Not available

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Jonsered 532134753

STIFFENER BRACKET
(Superseded to 532177563)

$4.99

$

Usually ships in 3-10 days

0

23

Jonsered 532131267

DEFLECTOR BRACKET
(Superseded to 532177563)

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532123713

SPRING TORSION

$5.99

$

In Stock, Qty 10

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Jonsered 532139450

No Description Available

$

$

Not available

28

Jonsered 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

30

Jonsered 532138776

SCREW
(Superseded to 532157722)

$3.49

$

In Stock, Qty 20+

0

31

Jonsered 532129963

WASHER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

32

Jonsered 532129861

MANDREL PULLEY
(Superseded to 532153535)

$10.99

$

In Stock, Qty 20+

0

33

Jonsered 532137266

NUT
(Superseded to 532139729)

$8.99

$

In Stock, only 2 left!

0

34

Jonsered 872110622

BOLT

$3.99

$

In Stock, only 3 left!

0

35

Jonsered 532133835

FASTENER.XMAS.TREE

$7.49

$

Usually ships in 3-10 days

0

36

Jonsered 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

37

Jonsered 734117201

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

38

Jonsered 532132823

IDLER SPRING SPACER

$7.49

$

Usually ships in 3-10 days

0

39

Jonsered 734114601

WASHER
(Superseded to 819070816)

$5.99

$

In Stock, Qty 8

0

40

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

44

Jonsered 532140088

GUARD MANDREL LH BLACK

$26.99

$

In Stock, Qty 13

0

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Jonsered 532060867

NUT
(Superseded to 60867)

$

$

Not available

54

Jonsered 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.49

$

In Stock, Qty 20+

0

55

Jonsered 532140084

IDLER ARM
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

56

Jonsered 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.49

$

In Stock, Qty 13

0

59

Jonsered 532141043

GUARD, BELT

$

$

Not available

60

Jonsered 874291010

SCREW.10-24X5/8

$2.99

$

Usually ships in 3-10 days

0

61

Jonsered 532131950

SPRING EXTENSION

$8.99

$

In Stock, Qty 8

0

64

Jonsered 532139328

No Description Available

$

$

Not available

68

Jonsered 532144200

V-BELT TRIPATH

$42.99

$

In Stock, Qty 20+

0

83

Jonsered 532120958

WASHER

$

$

Not available

84

Jonsered 532144394

KEEPER BELT
(Superseded to 532156084)

$6.49

$

Usually ships in 3-10 days

0

85

Jonsered 872140618

BOLT
(Superseded to 872110618)

$6.49

$

In Stock, only 1 left!

0

90

Jonsered 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

91

Jonsered 532132274

BRACKET LH (A)
(Superseded to 532175746)

$7.49

$

In Stock, Qty 10

0

92

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

93

Jonsered 819171416

WASHER

$4.99

$

In Stock, Qty 13

0

94

Jonsered 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

95

Jonsered 532132273

BRACKET RH (B)
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

125

Jonsered 876020816

COTTER PIN

$6.49

$

Usually ships in 3-10 days

0

--

Jonsered 532130794

MANDREL ASM, LH 5PT STAR

$44.99

$

In Stock, Qty 20+

0
